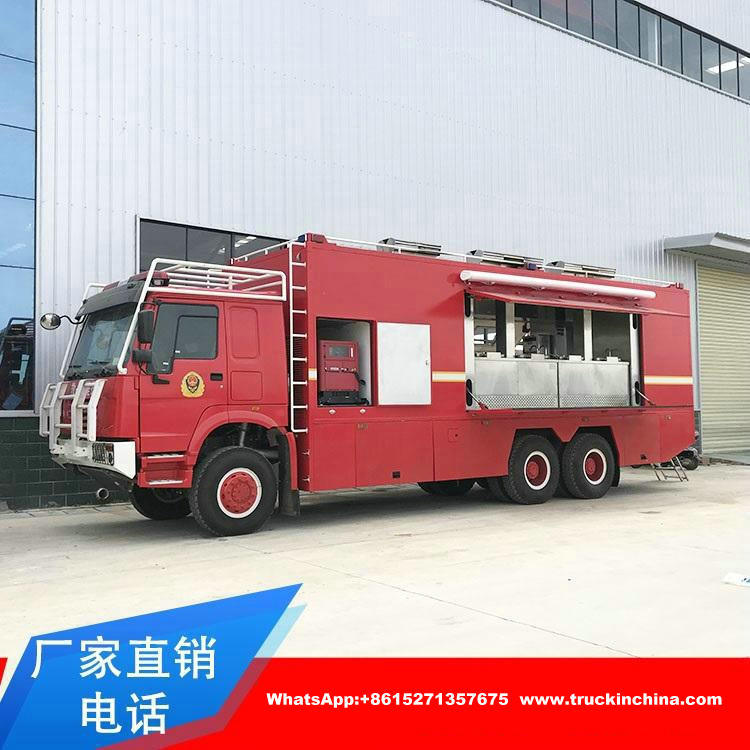

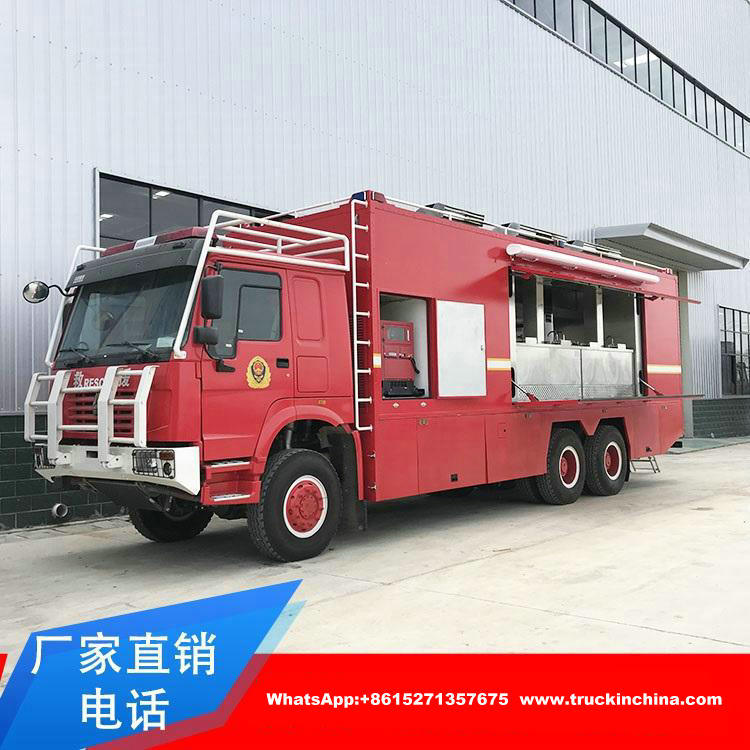

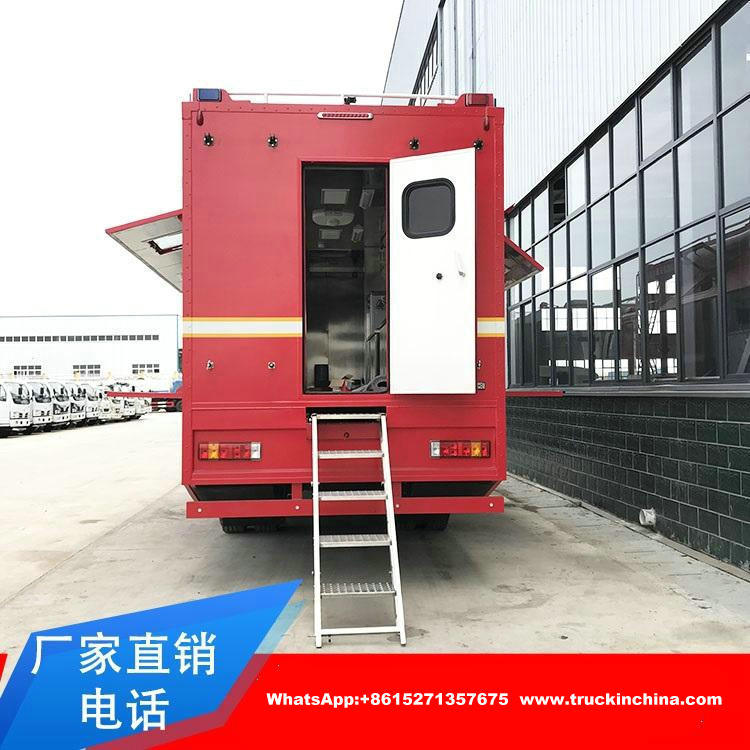

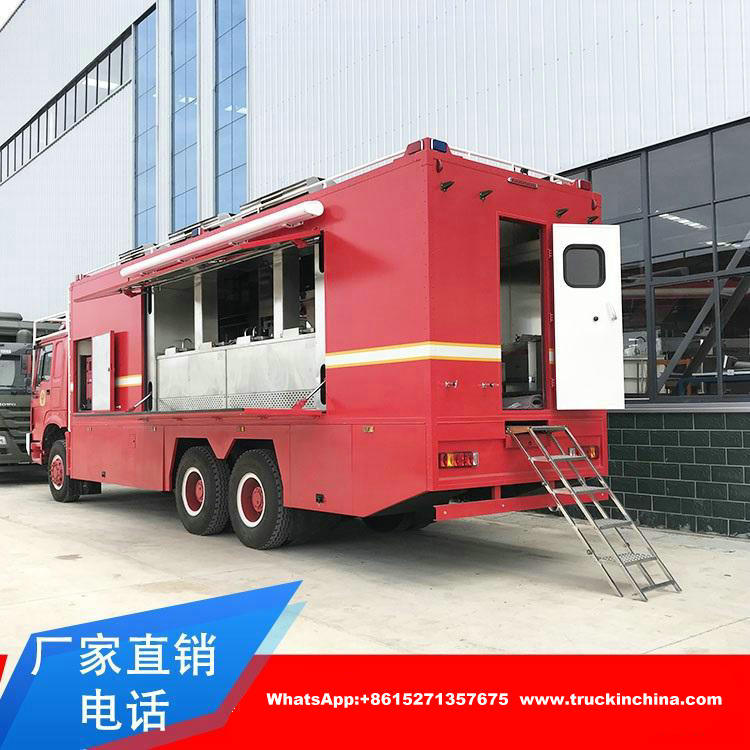

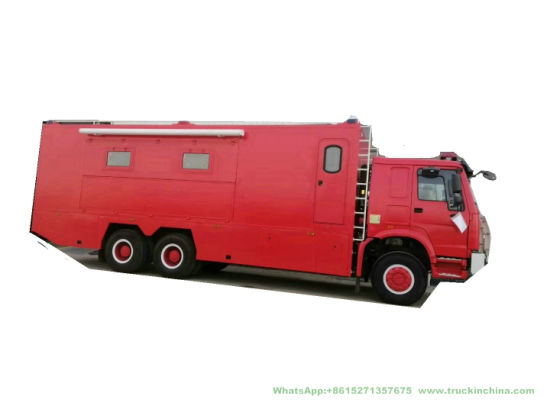

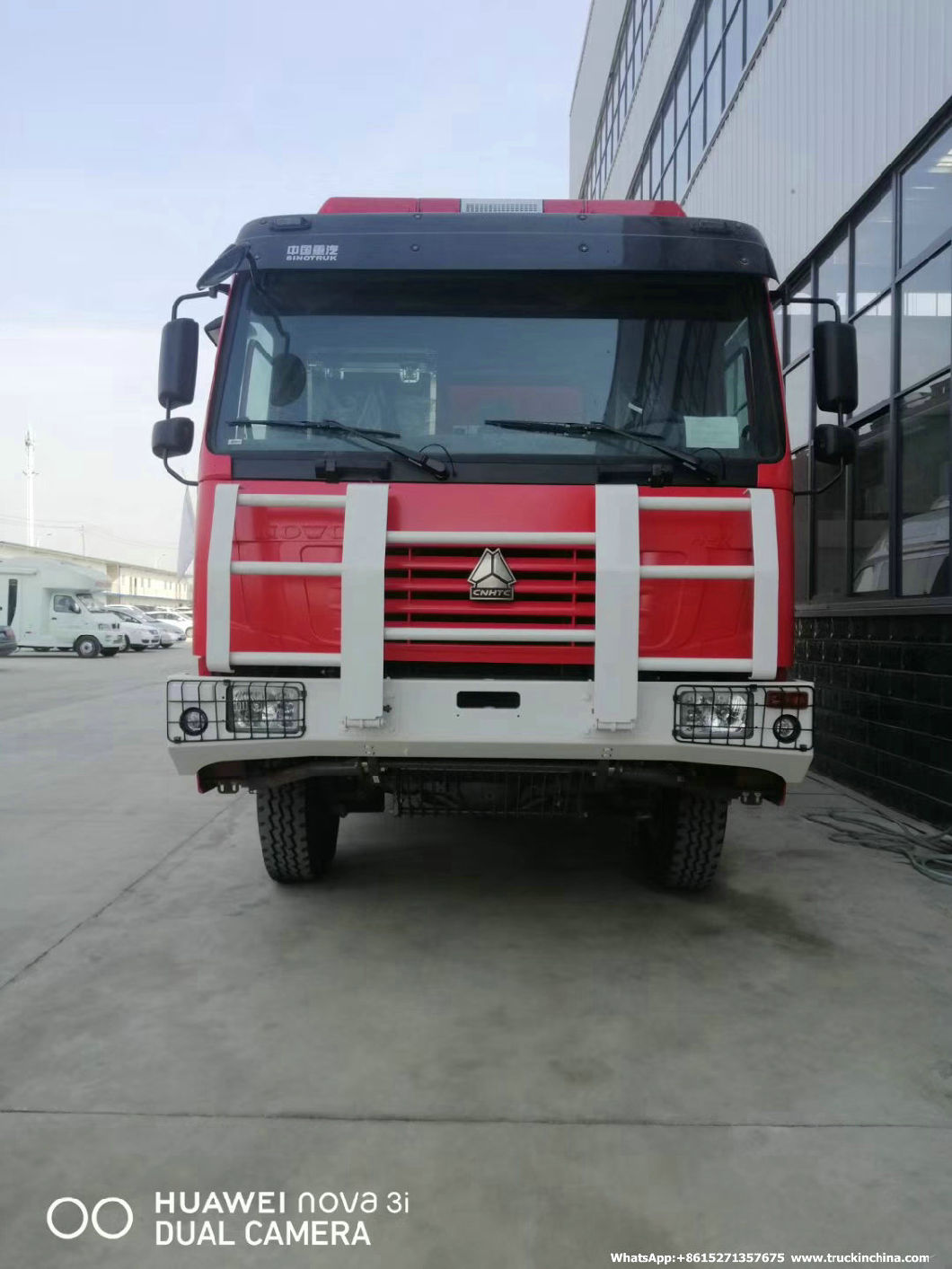

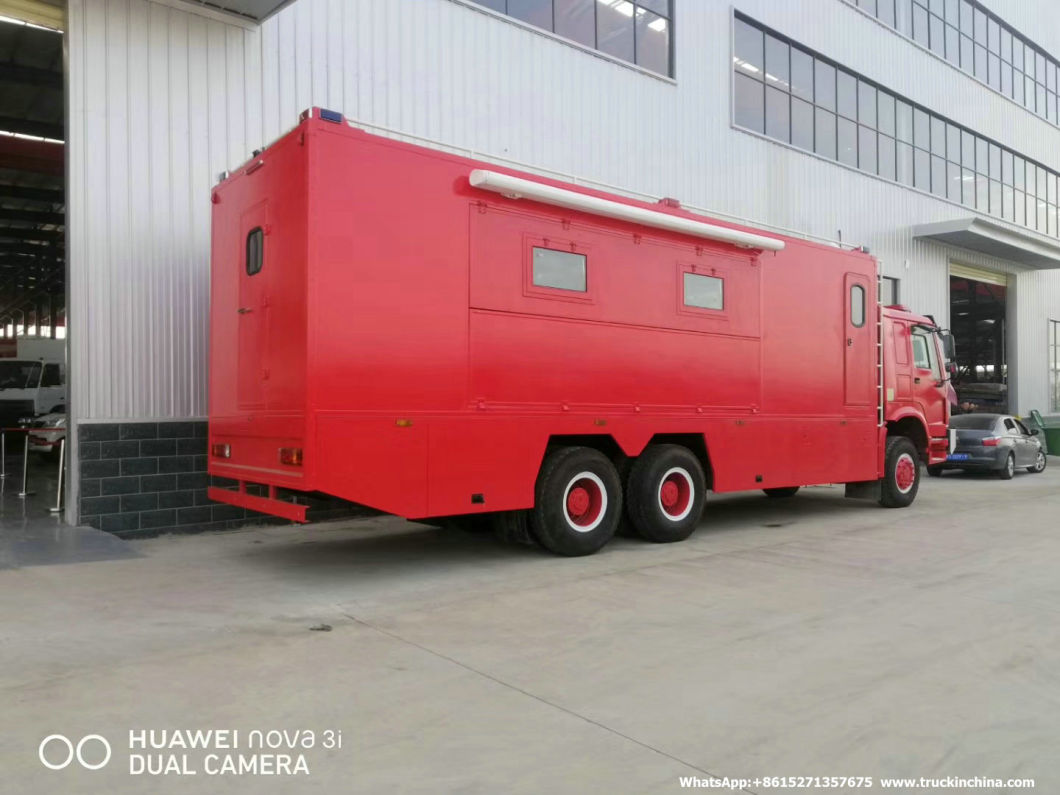

HOWO Awd 6X6 Military Mobile Kitchen Truck (Military Offroad Food Cooking Truck)
| Quantity: | |
|---|---|
- Shanghai, China
- 3000
- T/T
HOWO AWD 6X6 Military Mobile Kitchen Truck (Military Offroad Food Cooking Truck)
Mobile Kitchen (Military Food Cooking Truck )
army food truck
Heavy truck HOWO field emergency cooking car field cooking car cooking car large cooking car mobile dining car
| Function Description: our company produces two kinds of chassis for the mobile catering vehicle, and realizes the mobile rear kitchen function. It can be installed according to the user requirements, with skylight, stainless steel ladder, guardrail, water purification system, sewage system, booster pump, rice cooker, binocular stove, stainless steel exhaust system, freezer, stainless steel operation table, vegetable rack, washing basin and other equipment. The car body is made of inner stainless steel and outer glass cylinder, and the bottom plate is aluminum pattern anti skid board. Professional military dining car. | |||
| [main technical parameters] | |||
| Product name | DRZ5250XZCZ5 field self propelled cooking cart | emission standard | EURO 3- -5-6 |
| Vehicle dimensions (mm) | 1014211942x2550x3980 | Rated mass (Kg) | 5350 |
| Body dimensions (mm) | 76008600x2000x1900 | Preparation quality (Kg) | 19520 |
| Number of cockpit seats | 3 | Total mass (Kg) | 19520 |
| Tyre type | 12.00R20 | Engine enterprise | Heavy duty engine |
| Number of tires | Ten | engine power | 280 horsepower |
| Chassis configuration: heavy truck Howard 6*6 off-road chassis, Howard 6*6 full drive HW76 flat top single bedroom cab, D10.28-50 heavy duty 280 horsepower engine, HW15710C (Howard 10 gearbox), Maebashi: STR (7 ton drum brake), rear axle: ST16 (Steyr 16 tons), 12.00R20 steel cord, air conditioner, electric glass. | |||
| The car body is made of steel skeleton and aluminum skin. The whole car body is composed of steel frame and aluminum skin. It has a car monitoring and navigation system, a draining and exhausting system, an automatic collection and disassembly system on both sides of the car body, a super silent generator, a double door fuel steaming cabinet, a burner, controller, fan and other sets of equipment, fuel stoves, saucepan, stainless steel chopping dishes, washing dishes, hanging cabinets, condiments, which can be placed in tableware, electric meat grinder, multi purpose cutting machine, food mixer, water pump, water tank 1000L, 200L, stainless steel partition plate, locker and so on. Implementation standard: GB9684-2011 (food contact) national standard for food safety - stainless steel products. Accept personalized modification. | |||
| [for enquiries, mobile catering vehicle that is suitable for your needs. | |||
HOWO 6x6 Chassis
| Chassis parameters | |||
| Chassis type: | ZZ2257N5857E1 | Batch: | |
| Axle number: | 3 | Fuel type: | diesel oil |
| Wheelbase (mm): | 5200+14005600+14005800+1400 | Front tread (mm): | 2022,2041 |
| Rated passenger (including driver): | Rear wheelbase (mm): | 1850/1850 | |
| Tires: | Ten | Spring number: | 9/12,4/12 |
| Tire specifications: | 12.00R20 16PR, 12.00R20 14PR, 11.00R20 | ||
Engine
| Engine parameters | |||
| Engine type | Engine manufacturing enterprise | Displacement (ML) | Power (kw) |
| D10.28-50 D10.31-50 D10.34-50 D10.38-50 MC11.32-50 MC11.36-50 MC11.40-50 | China Heavy Duty Truck Group Co., Ltd. China Heavy Duty Truck Group Co., Ltd. China Heavy Duty Truck Group Co., Ltd. China Heavy Duty Truck Group Co., Ltd. China Heavy Duty Truck Group Co., Ltd. China Heavy Duty Truck Group Co., Ltd. China Heavy Duty Truck Group Co., Ltd. | 9726 9726 9726 9726 10518 10518 10518 | 206 228 249 276 238 268 297 |
| Emission standards: | GB17691-2005 GB3847-2005 | Fuel types: | diesel oil |
military mobile food truck/Kitchen truck/military dinning truck
The cab seat layout is multi manned, high safety and high trafficability. The whole vehicle is equipped with parking power generation system, driving power generation system, power distribution system, main and non-staple food control system, operation monitoring system, water system, oil system, accessories and tools.
1 . Chassis
Sinotruk SINTRAK
ZZ1326V466HE 1 Sinotruk jinan commercial vehicle co. LTD
1
Unit
2 Box DRZ customized DRZ 1 Set
3 Decoration DRZ customized DRZ 1 Set
4 .

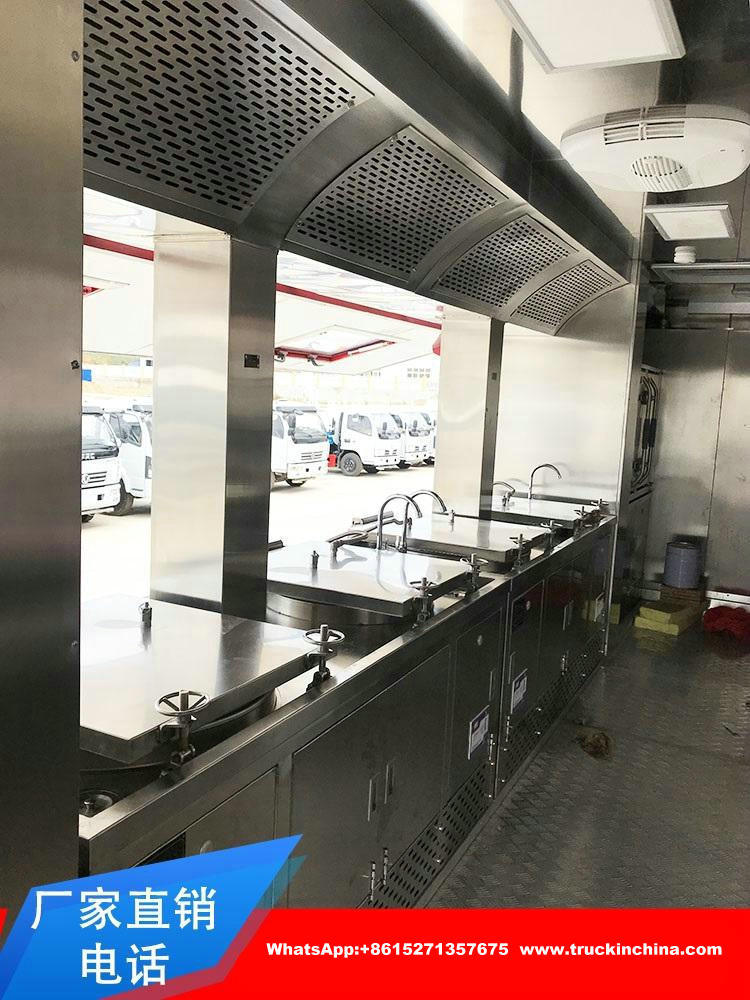

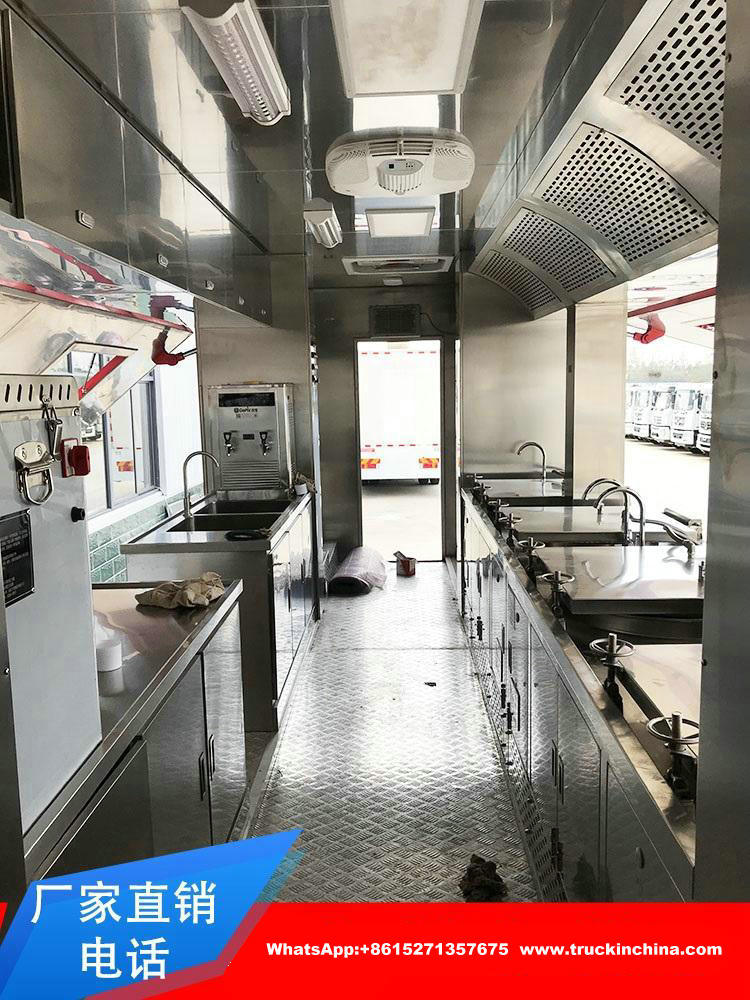

1 Wok DRZ customized DRZ 2 Set
2 Cooker DRZ customized DRZ 2 Set
3 steam box DRZ customized DRZ 1 Set
4 Meat grinder Baicheng JQ-1 Xingtai Liye Liangpin Technology Development Co., Ltd. 1 Set
5 Dough mixer Henglian B20 Guangdong Henglian Food Machinery Co., Ltd. 1 Set
6 Steamed bread machine Silver eagle Silver Eagle 65-2 East Yinying Yushi Machinery Co., Ltd. 1 Set
7 Press machine Silver eagle Silver Eagle 350 Ft East Yinying Yushi Machinery Co., Ltd. 1 Set
8 dicing machine DRZ customized DRZ 1 Set
9 Meat slicer Baicheng JQ-2 Xingtai Liye Liangpin Technology Development Co., Ltd. 1 Set
10 Electric baking pan Silver valley YXD45 Beijing Yingu Electromechanical Co. 1 Set
11 Car refrigerator DRZ customized DRZ 1 Set
12 Fuel water heater Qingdong KBD-256ST Qingdong Tianjin Thermal Energy Equipment Co., Ltd. 1
13 Water heater Ice BST-KSQ001 Shanghai Haotuo Electric Co., Ltd. 1 Set
14 Desk DRZ customized DRZ 1 Set

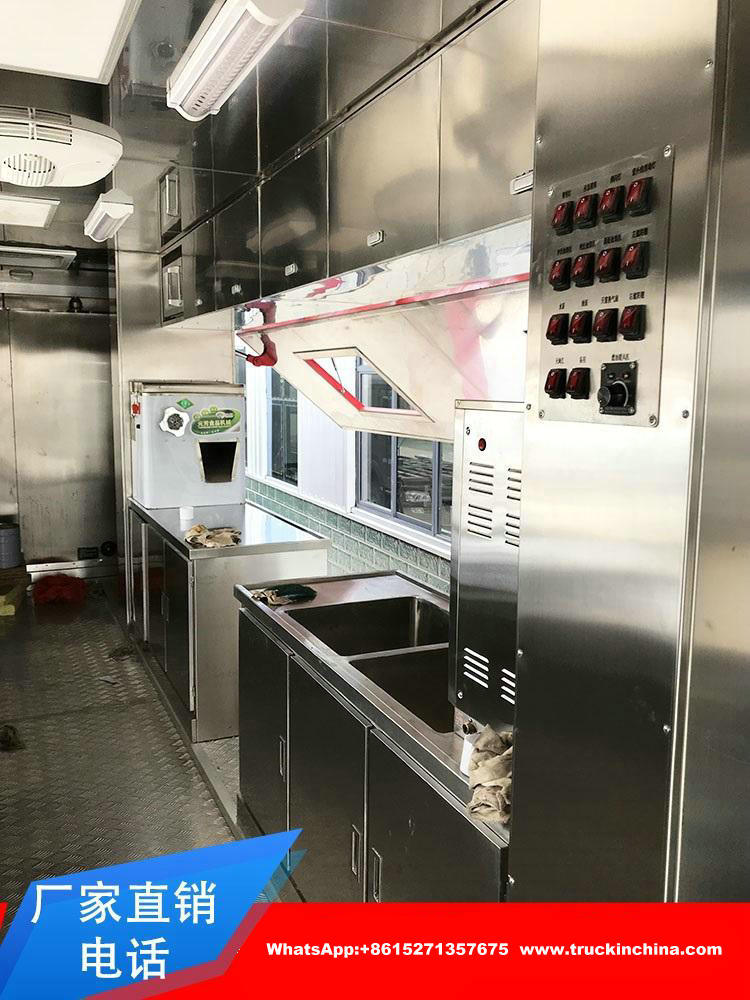

15 Washing pool DRZ customized DRZ 1 Set
16 tableware DRZ customized DRZ 1 Set
17 Range hood DRZ customized DRZ 1 Set
18 Cooking fuel tank DRZ customized DRZ 1 Set
19 Electric pressure cooker SUPOR SY-60YC8010E Zhejiang Supor Co., Ltd. 2 Set
20 Induction cooker beautiful 3500w Midea Group Co., Ltd. 2 Set
21 Microwave oven beautiful X3-233A 23L Midea Group Co., Ltd. 1 Set
22 Electric oven beautiful T7-L384D Midea Group Co., Ltd. 1 Set
5 .
1 generator Kohler KL-22000-D3 American Kohler Electromechanical Equipment 1 Set
2 Charging inverter UPS integrated machine Ancient top SCT1000 Suzhou Guding Energy Technology
3 Service lithium battery Male MODULE12100 AH Shenzhen Xiongyu Power Technology Co., Ltd. 1
4 Manual cable tray DRZ customized DRZ 1 Set
5 Distribution System DRZ customized DRZ 1 Set
6.
1 Car air conditioner Gree KFR-72GW/Aa D3 Zhuhai Gree Electric Co., Ltd. 1 Set
2 Fuel independent plumbing heating equipment Jingwei
YJH-08-1A Beijing Jingwei Auto Equipment Co., Ltd. 1 Set
3 Ventilation sunroof Xinchao DF700B Jiangsu Xinchao Release Parts Co., Ltd. 2 Set
4 Water tank DRZ customized DRZ 1 Set
5 Water system DRZ customized DRZ 1 Set
6 Oil system DRZ customized DRZ 1 Set
7 Stainless steel food storage cabinet customized
8 Water tank DRZ Customized DRZ 1 Set
9 Sewage tank DRZ Customized, 0.2 tons DRZ 1 Set
10 auxiliary tank DRZ Customized, 0.2 tons DRZ 1 Set
11 Venue lighting Lesheng Music student 50W, Jiangsu Yangzhou Lesheng Lighting Equipment 4 Set
12 Interior lighting system interstellar AC220V Star Holdings Group Co., Ltd. 8 Set
13 Emergency lighting DRZ customized DRZ 1 Set
14 Tiantong Satellite Phone China Electric Power Sc610 The 54th Research Institute of China Electronics Technology Group Corporation 1 Set
15 Driving recorder Philips ADR610s Zhenyue Shanghai Management Co., Ltd. 1 Set
16 socket DRZ customized DRZ 1 Set
17 Skirt cabin DRZ customized DRZ 6 Set
18 Single door DRZ customized DRZ 1 Set
19 Stainless steel rear ladder DRZ customized DRZ 1 Set
20 Aluminum ladder DRZ customized DRZ 2 Set
21 Stainless steel guardrail DRZ customized DRZ 1 Set
22 Fire extinguisher DRZ customized DRZ 2 Set
7 .
1 Long row of police lights (including multi-function alarms and megaphones) interstellar
TBD155191G Star Holdings Group Co., Ltd. 1 Set
2 Strobe light interstellar LTE515 Star Holdings Group Co., Ltd. 6 Set
8. 1 Digital radio Hainengda MD780 Hainengda Communication Co., Ltd. 1 Set
2 Digital walkie-talkie Hainengda PD780 Hainengda Communication Co., Ltd. 6 Set
3 Hand-held station Hainengda MCA08 Hainengda Communication Co., Ltd 1 Set
