HOWO 8x4 vacuum sewage suction tank truck for sale

Views: 1758 Author: Dong Runze Special Vehicle Publish Time: 2017-12-08 Origin: Dong Runze Special Vehicle

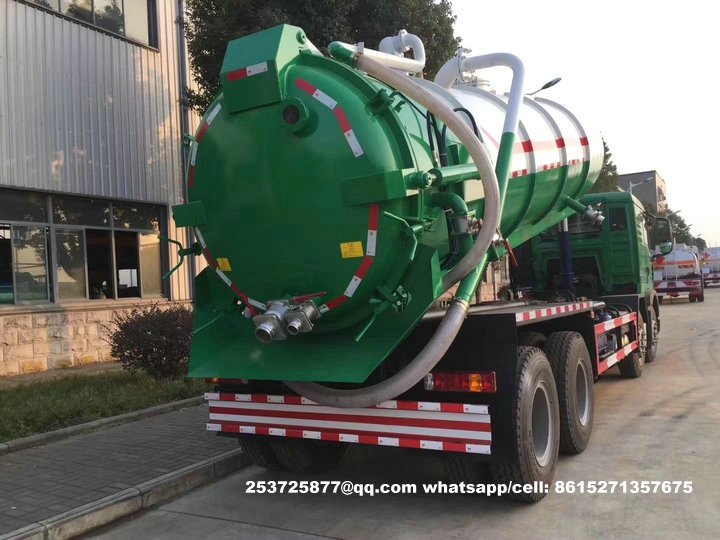

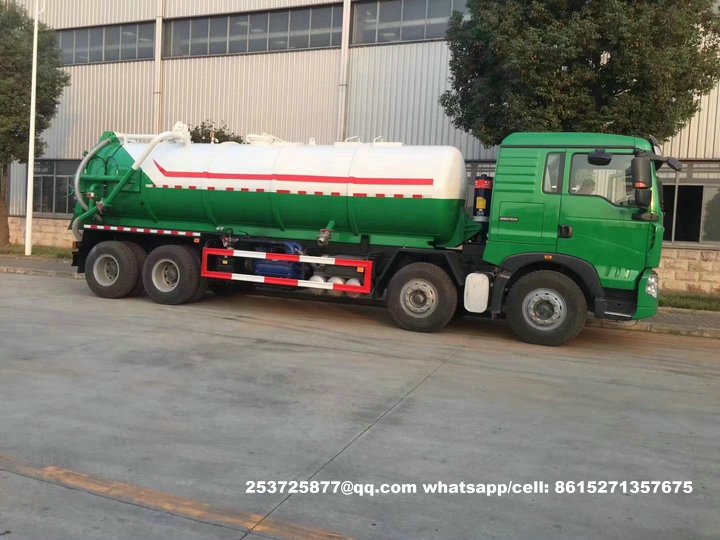

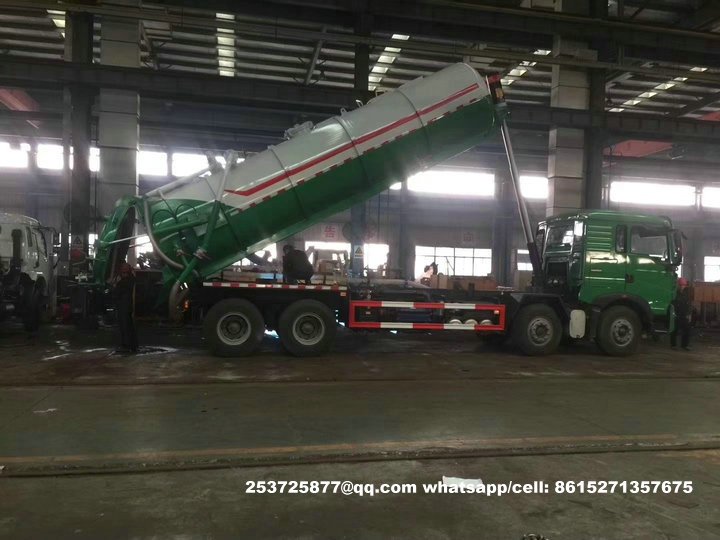

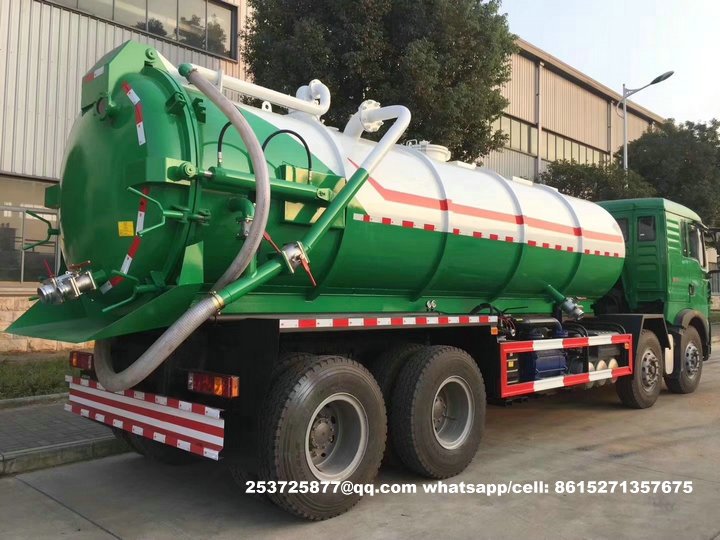

HOWO 8x4 vacuum sewage suction tank truck for sale Vac truck-15T HOWO_1.jpg Vac truck-16T HOWO_1.jpg Vac truck-18T HOWO_1.jpg Vac truck-20T HOWO_1.jpg

SINOTRUK HOWO 8x4 Sewage Suction Vacuum Tank Truck 24000 L

(vacuum tank material opting: carbon steel / stainless steel / aluminum alloy)

(Vacuum tank truck driving side : opting Left hand drive or Right hand drive)

(vacuum tank capacity opting: 16000 L, 18000 L, 20000 L, 22000 L, 24000 L)

(vacuum tank truck & trailer opting: all different drive type truck, and 1, 2, 3, 4 axle & lift axle semi trailer / full trailer )

Following is the mainly specification of HOWO 8x4 vacuum tank truck for reference.

more details parameters of vacuum tank truck, please touch with
Vacuum Tank Truck Model		DRZ5317GYY HOWO 8x4 vacuum tank truck
Cabin / Passenger Capacity		One and half row Seat, HW76 flat top with a bed, with airbag seat, tiltable, with air conditioner, 2+1 passenger. Opting HW70 narrow cabin.
Chassis	Model	ZZ3317M/N
	Overall dimensions	980025003800 mm
	G.V.W	31000 kg
	Net weight	18580 kg
	Design load	24000 kg
	Drive type	8x4
	Suspension F/R	1500/1895 mm
	Wheelbase	1800+3200+1350 mm
	Number of axles	3
	Axle-load	6500/7000/17500 kg (all wheels drive)
	Approach/Departure Angle	19/24 °
	Number of Spring leafs	14/13
	Track F/R	2022/2022/1830/1830 mm
	Tire ( No. & specification)	12.00R20 , 12pcs+1pc ( opting vacuum tire )
	Max speed (Km/h)	≥ 102 km/h
	Brake system	Pneumatic braking
	Steering	ZF8090 steering
	Transmission	HW19710, Mechanical 10 forward + 2 reverse
Engine	Engine model	WD615.47 (EURO 2 emission)
	Type of fuel	diesel
	Power	273 kw ( 371 hp ), opting 336 hp
	Exhaust	9726 ml
Vacuum Tank	Tank capacity	18000 L ,20000 L, 22000 L, 24000 Liters = 18 m3 , 20 m3, 22 m3, 24 m3
	Tank shape	round shape.
	Tanker size	L6500*DN2200 mm (24000 Liters)
	Tank material	Mild steel / stainless steel / aluminum alloy
	Standard equipment	Equipped with vacuum sewage suction pump, rear cover locker hydraulic cylinder, and lift hydraulic cylinder system, oil & air separator, water and air separator, valves, painting, 1, Equipped with special vacuum (rating rotate speed+ 1400r/m, min rotate speed>800 r/m, max suction lift>6 m vacuum > 500 mm Hg, clockwise) 2, Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment. 3, time for full suction < 5 min.

US $70,000-100,000 / Unit | 1 Unit/Units (Min. Order)

More our vacuum tank truck & trailer products reference as below:

we can customize all kinds of truck & trailer in accordance with customer's requirement.
