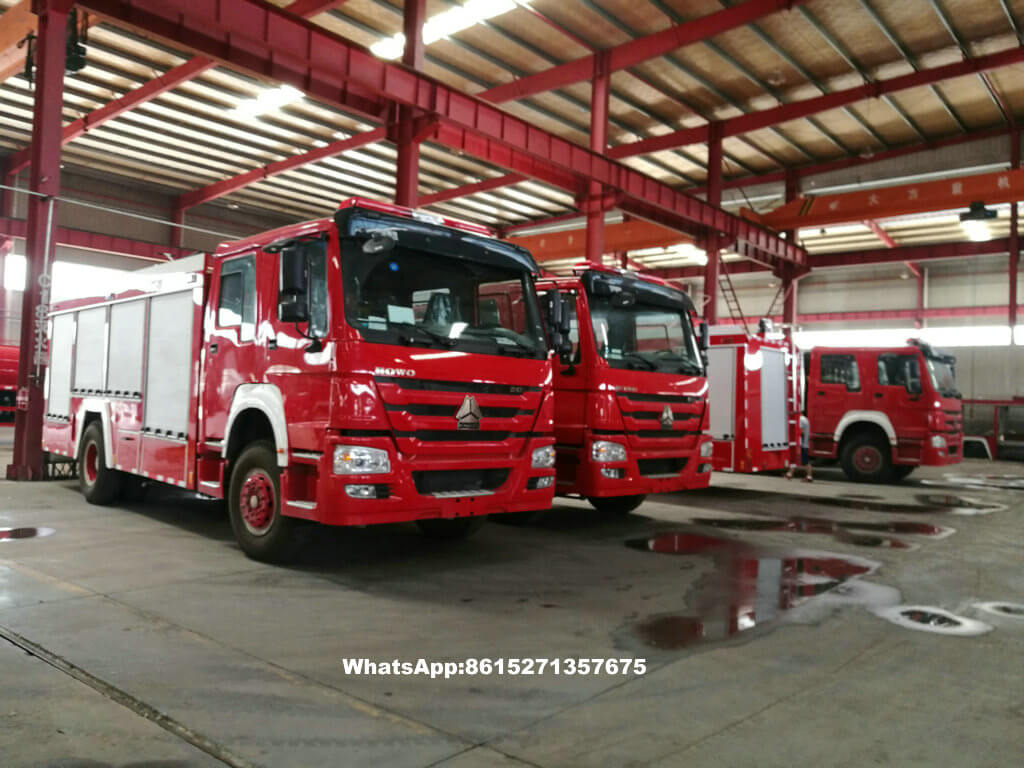

HOWO 8 ton Water Fire Truck Technical specifications
unit price $66800-$75800FOB shanghai port
8 ton Water Fire Truck
Technical specifications
Vehicle performance parameters
1 , Chassis
Number: ZZ5207M4617D5 HOWO chassis
Drive type: 4×2
Wheelbase: 4600mm
Size: 12.00R20
2 , Engine
Model: D10.31-40
Power: 228kW (1900r/min,)
Torque: 1390N·m(1200-1500r/min)
Displacement: 9.726L
Emission compliance: GB17691-2005 IV, GB3847-2005
3 Size parameters:
Overall dimensions (length x width x height): 8580mm×2500mm×3390mm
Wheelbase: 4600mm
Track: 2022mm/1830mm
Minimum ground clearance: 264mm
Hung long (front suspension / Rear suspension): 1500/2480mm
Approach angle / Departure angle: 16°/9°
4 Performance parameter:
Max speed: 100km/h
Minimum turning diameter: ≤18.5m
Maximum gradability: ≥25%
Acceleration noise outside the car: ≤84dB(A)
Specific power: 11.46
5 Quality parameters:
Kg gross mass: 19900kg
Containing water: 8000kg
6, the number of passengers (including driver): 6(person)
Second, the main structure:
1, cab
Knot Construction: flat head metal front double, double the original cab.
Seating settings:2+4 people. Features air respirator cage behind the rear passenger seat 4, and equipped with shock protection device about 1.2 metres height of Office have elaborate safety railing.
Flip: Hydraulic turnover mechanism.
Laboratory equipment for the crew: In addition to the original vehicle equipment, plus a100W sirens, revolving lights switch, PTO switch, possessed light switches and indicator lights, radio power cord.
Lights: Top cab with long rows of flashing police lights installed 。
2 , Capacity tanks:
Liquid-carrying capacity:
l Jug containing water: 8000kg
Material Quality:
Capacity tanks made of high quality carbon steel plates welded together, preventing play on the boards, shelves, reinforcing plate for 3mm, side panels, front and rear cover plate for 4mmroof 3mm tread plate; bottom for 5mm, tank after passivation with preservatives.
Water tank structure: Jug for welded structures, before and after both sides of the plate, tank panels, vertical and horizontal control panels are equipped with increased strength ladder bars. Another maintenance manhole ring and anti-water eddies of turbulent flow structure
l Tank top has 2 entrances porous, with a quick-lock and open the lid of the device.
l Tank top 1 A DN80 mm Relief valve device.
l 1 liquid level indicator.
l 1 outlet
3 Fire pump:
(1) fire pump:
Model: CB20.10/30.60-RS
Rated flow: 60L/s (1.0Mpa time)
30L/s(2.0Mpa Time)
Installation type: The rear-mounted
(2), foam proportion mixing system:
Type: Negative-pressure pump, washing device
Mixing ratio: 6%
4, fire Cannon:
Model: PS30-50D
Location: Car Central
Control mode: Manual
Injection pressure: 1.0Mpa
Flow rate: 50L/s
Range: Water ≥65 m
Horizontal rotation angle: 0~360°
Spray gun elevation: ≥+60°
Spray gun depression angle: ≤-15°
5, pipe system:
(1), the suction pipe:
l 1 A DN 135mm Tank suction pipe system
l 1 DN135mm External suction pipe, inner-tube interface (Cap seal)
(2), water injection pipe
l 1 DN65 around on each side of the passenger compartment mm Outside the water, to the tank water.
l Set within the pump house 1 DN65 mm Automatic and manual pumps to the tank water piping and control valves.
(3), the outlet pipe road:
l Roof rear part 1 fire DN100mm water cannons in pipes and control valves.
l Pump rear set 2 x DN 80mm Road and 2 DN65 pipe and valve.
l Pumping station road flanked on each set 1 DN65 pipe and control valve
(4), put the pipe:
l Water pump at the bottom with 1 DN 18mm Hoses and control valve.
(5), blow-off line:
l Tank bottom 1 DN 40mm The sewage pipes and control valves.
6, PTO:
Type: Sandwich-type full-power PTO
Manipulation: Solenoid valve, pneumatic control
Cooling method: Forced cooling.
Lubrication: Oil-splash lubrication
7 , Storage compartment and pumping stations:
Material: Backbone of high strength carbon steel profiles
Structure: Whole frame welding structure, solid and reliable, to ensure strength and rigidity. Skeleton uses the aluminum joining technology, can maximize space utilization, and variability.
Shutter: All the equipment compartment and the pump room are made of special alloy aluminum rolling doors with locks, handles and Rugged lock, not deformation.After water sealing performance test.
Skirting boards: Steel frame covered with plastic aluminum diamond plate, gas springs and double locking the door, skirting the rear height is less than 450mm, static load is greater than 150Kg, safe and reliable.
Ladder: Right side of the car, easy to combatants on and off.
8、 On the dashboard and the equipment
Dashboard is located in the tail of the car within the pump house, with adequate lighting; all control handles, switches, light near a Chinese identity; water piping layout and operation description of the step. All notes billboards and signs are durable and high adhesion, able to withstand temperature and climatic upheavals caused by the impact, not for a long time missing or illegible.
Dashboard:
l Liquid level gauge 1 only
l Tachometer 1
l Pressure gauge 2
l Vacuum table 1
l Water pump speed regulating device 1 set
l Main power switch 1
l Pump room lighting switch 1
l A variety of switches A number of
9, additional electrical and alarm systems
l Vehicle total power of all electrical equipment below the rated power of the generator 1.4 times;
l Licence holders together with the provisions of GB4785 to meet the typesetting required a licence;
l Cab top-there is a long line of police lights and sirens power 100W , Sirens, police lights, strobe lights circuit for independent additional circuits, controller installed inside the cab;
l Top left and right sides of the car to install the two possessed only light;
l Roof configuration 1 red 1 and circular lights 24V, 60W Full range of fire lighting
l Body left and right upper installed 3 strobe lights (red and blue), installed on each side under 3 With security lights and side retro-reflector (composite type), equipped with front and back outline marker lamps on each side of a turn signal, crew rooms, storage compartment, pumping stations are equipped with lights, and in accordance with the provisions of GB4785
l Side and rear sets reflective film, and in accordance with the provisions of GB7258
10, painting:
Made of high quality paints, body for the big red (fire red), rim of the outer ring, the front bumper is white, screen door for aluminum anodized color.
11, truck equipment and layout
Fire fighting equipment: Equipped with table
Equipment layout:
l Human engineering principle and design of equipment carriers
l By using logic, equipment weight and shape and frequently used placing equipment
l Design according to fight into the ring and fighting equipment integration
l Standing on the ground or the pedal 1-2 access to equipment, to ensure that the fighting expanded player non interference
Third, the General technical requirements:
l All operation switches, instruments, equipment and vehicles that complies with the specification aluminium plate sign
l Vehicle performance in line with the GB7956 the provisions of the fire performance requirements and test methods
l Vehicle performance is in line with the Ministry of public security GA39. 4-92《Provisions of the General technical requirements for tank fire engine fire engine
l Fire pump performance in line with the GB6245 provisions of the performance requirements and test methods for fire pumps
l Vehicle outline dimensions, axle load and masses shall conform to GB1589 vehicles outline dimensions, axle load and mass limits the provisions of
l Vehicle exterior lighting shall conform to GB4785 and signal devices of motor vehicles and their trailers the provisions of regulations on the installation of lighting and light signalling devices
l Vehicle parts by forcing the supplier certification and type approval
l Vehicle appearance in compliance with Ministry of public security, GA3 Relevant provisions of 9.4-92
l All welding firm, smooth, flat
Four, technical documentation:
l Certificate
l Chassis service manual
l Chassis manual
l Chassis warranty card
l Truck tool inventory
l Fire certificate
l Engine number rubbing parts
l Fire equipment list
l Fire engine manual
l Fire pump operating instructions
l The national compulsory product certification (3C)
l Transfer list
l Invoice
l 3C certificate
Appendix 1: truck fire equipment list
SG80 Water Fire Truck
Serial number | The name | Model specifications | Work unit | The number of | Notes |
1 | Suction pipe | Φ135 | Root | 2 | 4m |
2 | Fire hose type 20 | 20-80-20m | Volume | 4 | |
3 | Fire hose type 20 | 20-65-20m | Volume | 8 | |
4 | Water filter | FLF135 | Parts | 1 | |
5 | Suction pipe wrench | FS135 | Parts | 2 | |
6 | Aboveground fire hydrant wrenches | FB450 | Parts | 1 | |
7 | Underground fire hydrant wrenches | FBA800 | Parts | 1 | |
8 | Water separator | FFS80 | Parts | 1 | |
9 | Water collector | FJ135-2B-1.6 | Parts | 1 | |
10 | Hose wrap | FP470 | Parts | 4 | |
11 | Hose strap | FG600 | Parts | 4 | |
12 | Water retaining bridge | FH80 | Deputy | 1 | |
13 | Adapter | Male/Φ65 female Φ80 | Nondescript animals | 2 | |
14 | Special interfaces | Φ65 button/Φ65 male | Nondescript animals | 2 | |
15 | Special interfaces | Φ80 button/Φ80 male | Nondescript animals | 2 | |
16 | DC water gun | QZG19 | Support | 2 | |
17 | Direct spray water | QWJ16 | Support | 2 | |
18 | Dry powder fire extinguisher | MFZ2 | With | 1 | |
19 | Pick | The | 1 | ||
20 | Iron collar | GT06 | The | 1 | |
21 | Spade | 2# | The | 1 | |
22 | Fire axe | - | The | 1 | |
23 | Two bamboo ladder | TEZ61 | Parts | 1 |
