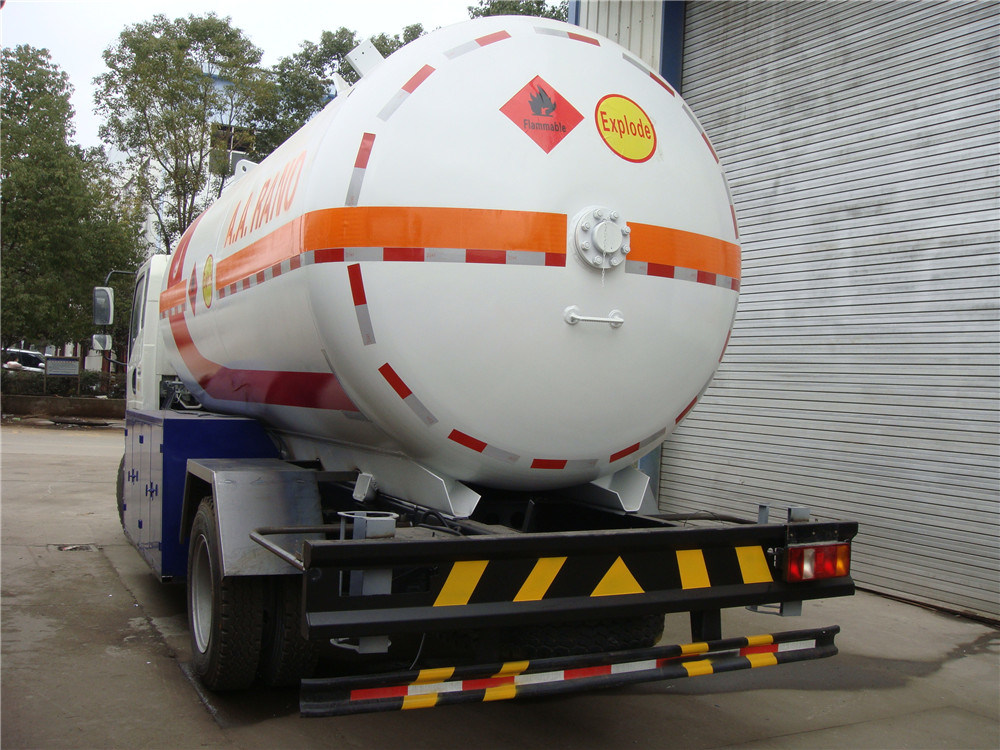

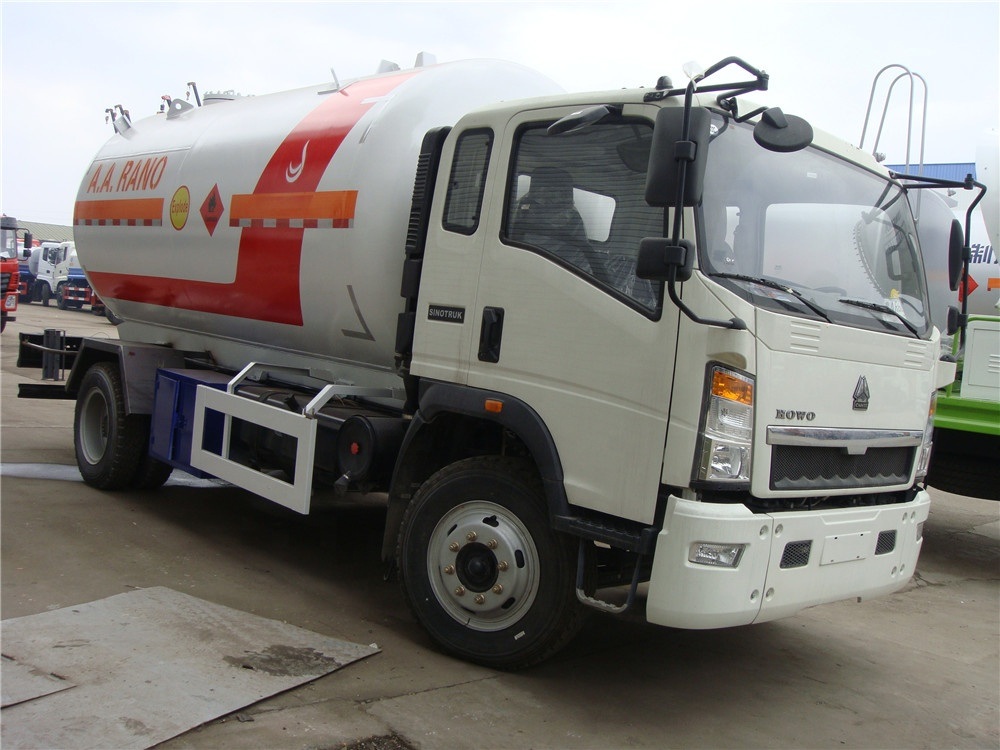

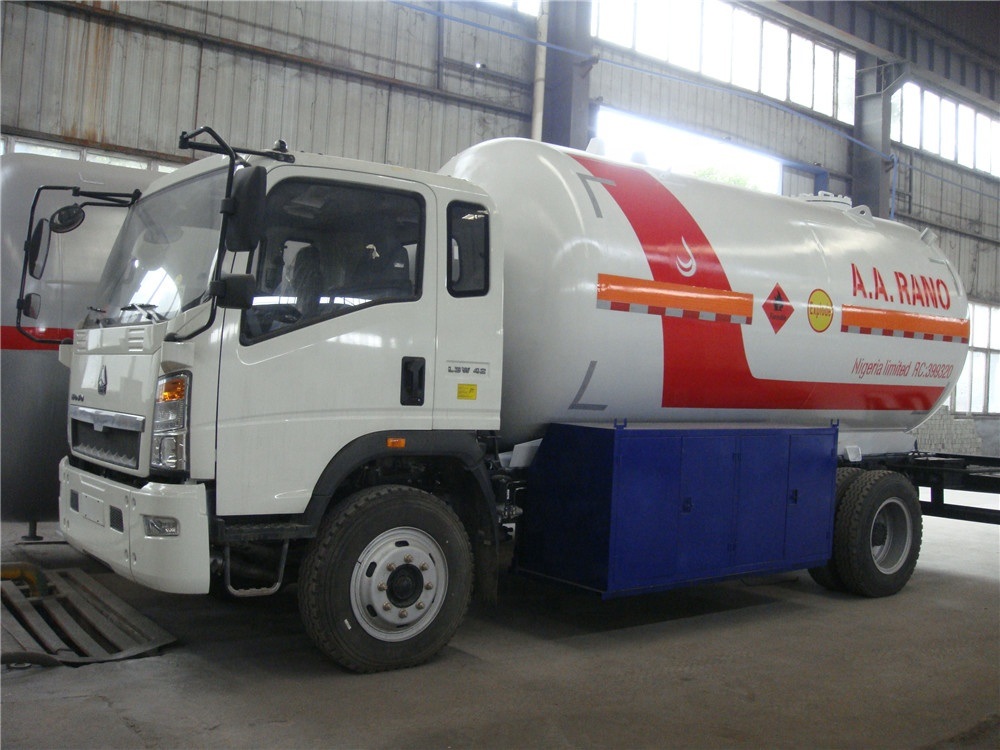

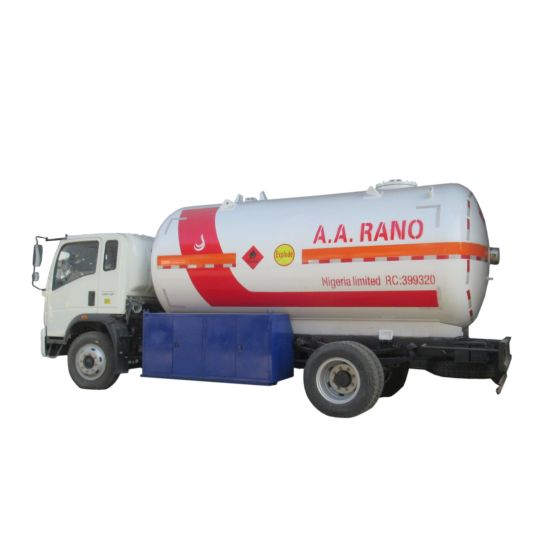

HOWO 5.5m3 (5500 Liters) LPG Bobtail Truck Tanker Mounted with LPG Pump Yqb-5. LPG Dispenser BCS-150 LHD. Rhd
HOWO 5.5m3 (5500 Liters) LPG Bobtail Truck Tanker Mounted with LPG Pump Yqb-5. LPG Dispenser BCS-150 LHD. Rhd
| Quantity: | |
|---|---|
- Shanghai, China
- 3000
- T/T
HOWO 5.5m3 (5500 Liters) LPG Bobtail Truck Tanker Mounted with LPG Pump YQB-5. LPG Dispenser BCS-150 LHD . RHD
Sinotruk HOWO 4x2 7t LPG tanker truck,
15000L LPG transport truck with left or right hand drive, 6wheels
HOWO 4x2 15000L LPG gas tanker truck
8tons LPG bobtail 15M3 LPG filling truck
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.
Features
1) Loading capacity: 2tons 5tons 6tons 8tons 10tons
2) Tank Volume: 3m3, 5m3, 8m3, 10m3, 12m3, 15m3, 18m3/ 3000L, 5000L, 8000L, 10000L, 12000L, 15000L, 18000L etc.
3) Truck engine brand: Weichai Yuchai Yunnei for option
4) Main parts installed on lpg bobtail: blackmer/corken pump, cylinder filling gun, dispenser filling weight scale, flow meter, Pressure Gauge, Level Gauge etc.
Technical parameter for HOWO bobtail tanker
HOWO Truck chassis specs | |||
HOWO Standard Cab with one sleeper; 70° hydraulically tillable to the front as attached photo for ref. | |||
(L x W x H)mm | 7600*2496*3250 | ||
Wheel base (mm) | 4500 | ||
Wheel track (front/rear) (mm) | 1205/2495 | ||
Approach/Departure angle(°) | 18/12 | ||
Tare Weight | 8700 | ||
Loading Capacity | 15000 | ||
Front axles loading capacity | 3200 | ||
Rear axles loading capacity | 8200 | ||
Max. driving speed(km/h) | 90 | ||
Engine | Brand | Yu Chai Power | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power(HP) | 140HP | ||
Emission standard | Euro 2 | ||
Transmission | WLY6T51 | ||
Tire | 8.25R20, 6 pieces including one spare tire | ||
6MT (12cbm) LPG tank Specs | |
Tank Capacity | 12 CBM |
Filling medium | Liquefied Petroleum Gas (Propane) |
Tank Dimension (diameter*thickness*length) | 2000*10*4950mm |
Tank material | Q345R high tension steel, 10mm Thick Tank Body |
Designed pressure | 1.61Mpa |
Working temperature | -20 to 50 centi-degree |
Corrosion Allowance | 1mm |
Filling Ratio | 0.55-0.57tons/cbm |
tech2
| LPG FILLING TRUCK | ||
| # | Descriptions | Specifications and types |
| General | Truck Brand | DRZE |
| Chassis Brand | Sinotruk howo | |
| Approx. Dimension | 5995*2500*2300 mm | |
| GVW./Kerb Wt. | 5790 / 2860 kg | |
| Cab | Cab Capacity | 2 persons' seat |
| Air Conditioner | Air Conditioner is optional | |
| Chassis | Drive Type | 4X2,left hand drive or right hand drive |
| Fuel Type | Diesel | |
| Engine Make & Model | Chaochai engine | |
| Power | 120hp | |
| Displacement | 3856 ml | |
| Emission Standard | Euro II or EURO III or Euro IV | |
| Brake | Air Brake | |
| Wheelbase/No.of axle | 3360 3800mm / 2 | |
| Tyre Specfication | 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Automative metallic paint | |
| Tanker | medium in tanker | Propane |
| Medium density | 0.42 ton/cubic meter | |
| Tanker capacity | 5.5 CBM/6m3/8m3 | |
| Tank material: | Q345R or Q370R | |
| Design pressure | 1.61mpa | |
| Pump | Pump mode | YQB-5 |
| Operating differential pressure | Less than 0.5 mpa | |
| Pump flow rate | 15.5 m3/h | |
| Inlet pressure | Less than 1.0 mpa | |
| Shaft power | 3.6 KW | |
| Number of revolutions | 780r/min | |
| Lpg dispenser | mode | BCS-150 |
| Rated Power | 30w | |
| Max loading weight | 150 kg | |
| Mini loading weight | 1 kg | |
| Structure& Function | Intake valve,Into liquid valve ,liquid vale ,90mm valve,equipped with manhole to see inside . | |
Cell :+8615271357675
