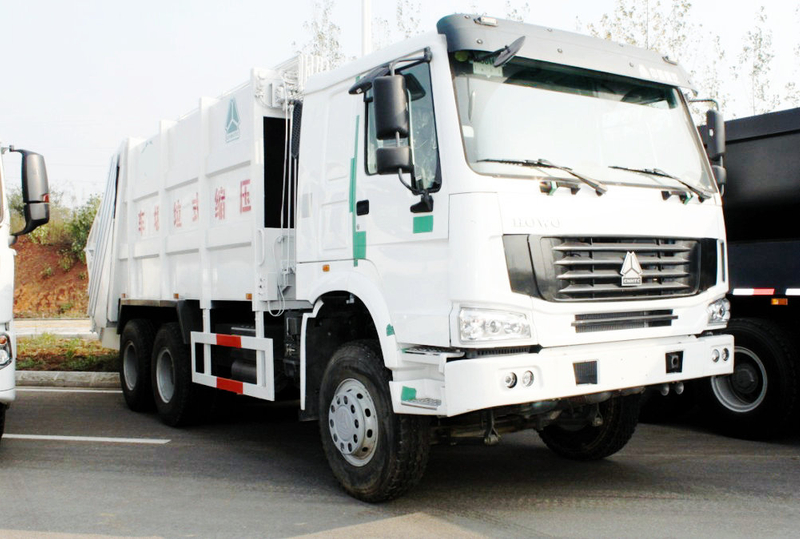

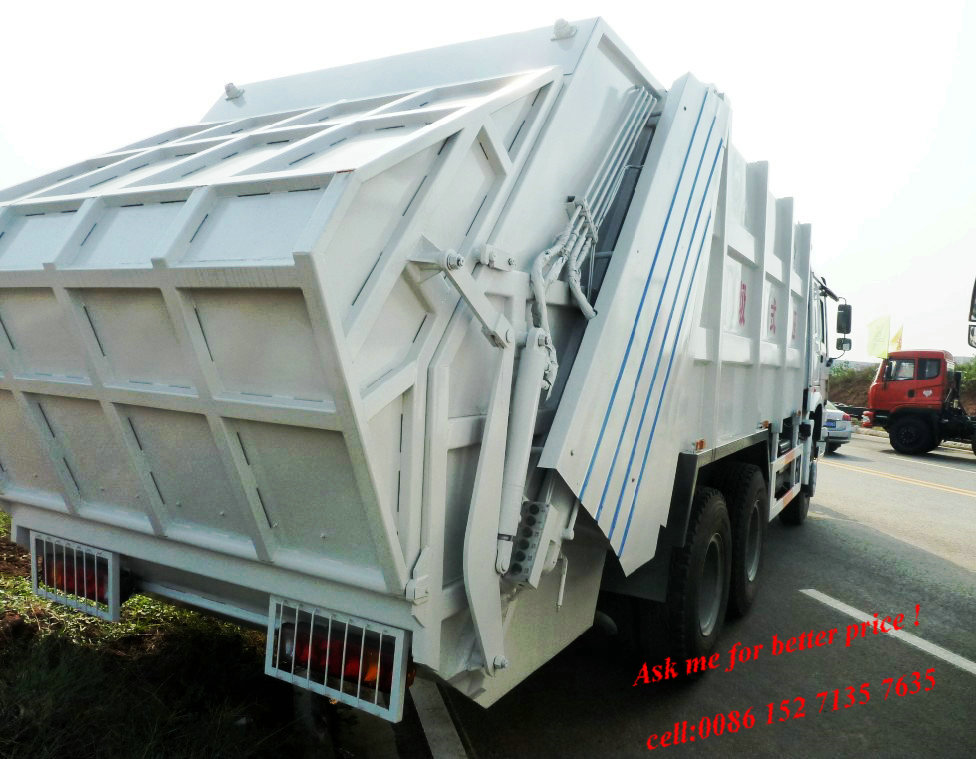

HOWO 22~25m3 Compressed Garbage Truck
| Availability: | |
|---|---|
| Quantity: | |
HOWO 22~25m3 compressed garbage truck
HOWO 22~25m3 compressed garbage truck
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
Compactor Garbage Truck
| Chassis | ZZ3257M3841 |
| Engine | Diesel Engine model:WD615.87,Euro II Maximum output:290 hp(213KW)at 2200 rpm, option 196Kw@2200rpm Single cylinder air compressor |
| Transmission | HW15710,10 forward & 2 reverse |
| Front Axle | HF9 |
| Rear Axle | HC16 |
| Dimensions in mm | Wheel base 3625+1350, 3800+1350,4325+1350mm Front wheel track 2022 Rear wheel track 1830 Approach angle(°) 19 Departure angle(°) 24 Overall dimension 9695x2500x3290 |
| Weight in kg | Dead weight 14870 Gross vehicle weight 25000 |
| Performance | Maximum gradeability(%) 40 Minimum ground clearance(mm) 298 Minimum turning circle(m) 15.4 Fuel consumption(1/100km) 28 |
| Body | Volume of filler(m3) 2.5 Time of one filling cycle(s) ≤25 Lifting time of filler (s) 8-10 Time of discharge (s) ≤45 Max compression force (kg) >35000 |
Price: FOB/DAF/CNF/CIF
Payment term: T/T, prepay 30% as subscription, balance will be paid after the clients inspect the trucks in our factory before delivery.
If this is not the particular one you are looking for, don't worry, we have a variety of selections for you.
Just contact us directallly, we will be more than happy to help and serve you.
| COMPACTOR BODY INFORMATION | |||||
| Shape | Smooth Body (Optional) | ||||
| Body Capacity (m3) | 20 | ||||
| Hopper Capacity (m3) | 1.6 | ||||
| Gate size (width x height) (mm) | 1380 x 1350 | ||||
| Operation Mechanism | manual & automatic | ||||
| Discharging System | horizontal push-out | ||||
| Loading Time [one cycle] (sec) | 25~30 | ||||
| Discharge Time (sec) | 30~35 | ||||
| Hydraulic System Working Pressure (Mpa) | 16.2 | ||||
| Compression Ratio | 2.5-3 to 1 | ||||
| Body Material | Carbon steel made of Q235B | ||||
| Plate thickness | Body | Floor | 4 | ||
| Roof | 5 | ||||
| Side | 4 | ||||
| Hopper | Side(upper) | 5 | |||
| Side(lower) | 5 | ||||
| Bottom | 5 | ||||
| Discharge plate | 4 | ||||
| Press plate | 5 | ||||
Our Trash compactor truck equipped with China famous hydraulic cylinders and components, adopted by advanced German electronic controlling hydraulic system for realizing manual and intelligent controlling operation, Italy multi-way valve is optional;
The carriage of our Trash compactor truck is designed with circular arc with good appearance.
Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck etc.
TIC TRUCKS , www.truckinchina.com
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
Compactor Garbage Truck
| Chassis | ZZ3257M3841 |
| Engine | Diesel Engine model:WD615.87,Euro II Maximum output:290 hp(213KW)at 2200 rpm, option 196Kw@2200rpm Single cylinder air compressor |
| Transmission | HW15710,10 forward & 2 reverse |
| Front Axle | HF9 |
| Rear Axle | HC16 |
| Dimensions in mm | Wheel base 3625+1350, 3800+1350,4325+1350mm Front wheel track 2022 Rear wheel track 1830 Approach angle(°) 19 Departure angle(°) 24 Overall dimension 9695x2500x3290 |
| Weight in kg | Dead weight 14870 Gross vehicle weight 25000 |
| Performance | Maximum gradeability(%) 40 Minimum ground clearance(mm) 298 Minimum turning circle(m) 15.4 Fuel consumption(1/100km) 28 |
| Body | Volume of filler(m3) 2.5 Time of one filling cycle(s) ≤25 Lifting time of filler (s) 8-10 Time of discharge (s) ≤45 Max compression force (kg) >35000 |
Price: FOB/DAF/CNF/CIF
Payment term: T/T, prepay 30% as subscription, balance will be paid after the clients inspect the trucks in our factory before delivery.
If this is not the particular one you are looking for, don't worry, we have a variety of selections for you.
Just contact us directallly, we will be more than happy to help and serve you.
| COMPACTOR BODY INFORMATION | |||||
| Shape | Smooth Body (Optional) | ||||
| Body Capacity (m3) | 20 | ||||
| Hopper Capacity (m3) | 1.6 | ||||
| Gate size (width x height) (mm) | 1380 x 1350 | ||||
| Operation Mechanism | manual & automatic | ||||
| Discharging System | horizontal push-out | ||||
| Loading Time [one cycle] (sec) | 25~30 | ||||
| Discharge Time (sec) | 30~35 | ||||
| Hydraulic System Working Pressure (Mpa) | 16.2 | ||||
| Compression Ratio | 2.5-3 to 1 | ||||
| Body Material | Carbon steel made of Q235B | ||||
| Plate thickness | Body | Floor | 4 | ||
| Roof | 5 | ||||
| Side | 4 | ||||
| Hopper | Side(upper) | 5 | |||
| Side(lower) | 5 | ||||
| Bottom | 5 | ||||
| Discharge plate | 4 | ||||
| Press plate | 5 | ||||
Our Trash compactor truck equipped with China famous hydraulic cylinders and components, adopted by advanced German electronic controlling hydraulic system for realizing manual and intelligent controlling operation, Italy multi-way valve is optional;
The carriage of our Trash compactor truck is designed with circular arc with good appearance.
Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck etc.
TIC TRUCKS , www.truckinchina.com
