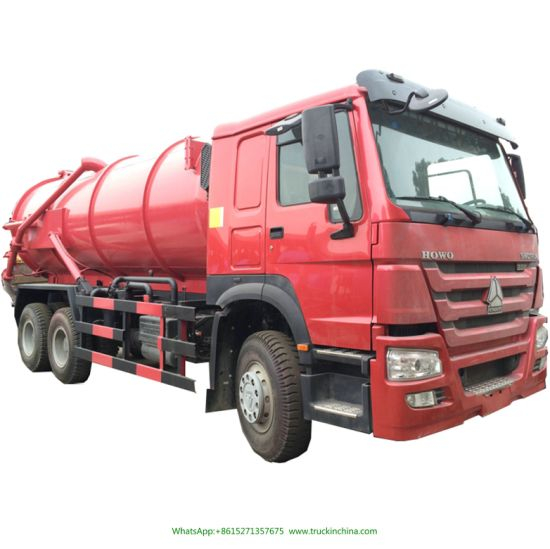

HOWO 12-20 Cbm Vacuum Suction Sewage Tanker Truck
| Quantity: | |
|---|---|
-
DRZ5250GXWZ
-
Sino truck HOWO
-
8705
-
Shanghai, China
-
1000
-
T/T, Western Union
Vacuum Sewage Suction Truck Sewage Suction Trucks With High Quality
HOWO 6x4 6x6 371hp Vacuum Suction Truck 14000L Sewage Suction Truck Septic Tanker Truck , HOWO 6x4 6x6 371hp Widely used cleaning Tanker truck 12000L-16000L Suction sewage truck
| Items | Descriptions | Specifications and Types |
| General | Truck Name | Sewage suction truck |
| Drive Type | 6*4 | |
| Gross Vehicle Weight(kg) | 25000 | |
| Curb Weight (kg) | 12050 | |
| Overall Dimensions L*W*H(mm) | 8900×2500×3600 | |
| Engine | Engine Model | WD615.69 |
| Engine Brand | SINOTRUK | |
| Fuel Type | Diesel | |
| Power | 250kw/336HP | |
| Emission Standard | Euro II | |
| Displacement(ml) | 9760 | |
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | |
| Chassis | Chassis Brand | HOWO |
| Front/Rear Axle Load(KG) | 7000/18000 (parallel installed) | |
| Tire No. | 10 | |
| Tire Specification | 295/80R22.5 Tubless tire | |
| Wheelbase (mm) | 4325+1350 | |
| Axle No. | 3 | |
| Gear Box | HOWO 10 speed forward with 2 reverse, manual | |
| Steering Wheel | Left hand drive with power-assisted | |
| Brake | Air brake | |
| Cab | Flat roof with single sleeper, with A/C | |
| Sucking System | Tank Volume(L) | 18000 |
| Tank shape | Cylindrical | |
| Tank Material | 5-6mm thick carbon steel | |
| Vacuum Pump | Double Wei Yi pump | |
| Suction Depth(m) | More than 6 meter |
| Main body material | Q235A carbon steel / 6MM with 2 Strengthen rolled steel rings reinforcement, end of the tank with 8mm carbon steel. |
| Vacuum pumps model | Rotary vane type 50QZXDG-45/400 or 65QZXDG-68/400 |
| vacuuming both sewage and sludge | |
| Maximum AOB | ≥45° |
| Effective suction | ≥ 5 |
| Vacuum system(MPa) | ≥11 |
| Lifting time(s) | ≤45 |
| Cover opening Angle(°) | ≥75° |
| Cover open time (s) | ≤25 |
| Suction pipe diameter (mm) | 100 |
| length of the Hose | 18ft*4pcs |
| Tanks full sucked time (min) | ≤12 |
Product features:
1. Brand: Chinese Famous brand Sinotruk HOWO, competitive price and reliable quality.
2. Cabin: HW70 with no sleeper bed, HW76 with one sleeper bed, HW79 with two sleeper bed. With air conditioner.
3. Right hand drive, and left hand drive are both avaliable.
4. Transmission: manual control, 10 or 12 forwards, and 2 reverses.
5. Different emmission standard for option. EURO-II, EURO-III, EURO-4 etc.
6. Drive Type: 4x2, 6x4, 6x6 off road truck chassis.
7. Equipment : Equipped with special vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise)
8. Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment
Time for full sucktion<5min
The parameter of HOWO 6x4 6x6 371hp Widely used cleaning Tanker truck 12000L-16000L Suction sewage truck :
| Cabin | HW 76 Standard Cab, Right hand drive, one sleeper. A/C, With two bunks, 70° hydraulically tillable to the front as attached photo for ref. (picture just for reference) | ||||
| Vehicle Main Dimensions | (L x W x H)mm | 10400x2500x3450 | |||
| Wheel base (mm) | 5800+1400 | ||||
| Wheel track (front/rear) (mm) | 2022/1830 | ||||
| Approach/Departure angle(°) | 16/15 | ||||
| Weight in KGS | Tare Weight | 12000KG | |||
| Loading Capacity | 20000 | ||||
| Front axles loading capacity | HF9 1x9000 | ||||
| Rear axles loading capacity | ST16 2x16000 | ||||
| Max. driving speed(km/h) | 90 | ||||
| Engine | Brand | Sinotruk | |||
| Model | WD615.47 | ||||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||
| Horse Power(HP) | 371HP | ||||
| Emission standard | Euro | ||||
| Gearbox | HW19710, 10 Forwards gear & 2 reverse | ||||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||||
| Steering Gear | ZF 8098, power steering, hydraulic steering with power assistance | ||||
| Fuel tank (L) | 300L | ||||
| Tire | 12R22.5 radial steel tire 11 Pieces including one spare | ||||
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||||
| UPPER EQUIPMENT | |||||
| Tanker Capacity | 16 cubic meters | ||||
| Tank Material | Material: Q235 high tension steel, Body Thickness 6mm, End Plate thickness 8mm, With Hydraulic Controlled Rear Door and Middle lifting. | ||||
| Vacuum Suction Pump | Chinese Famous Brand, 4" diameter Rubber tube in 6 meters long, Vertical Suction Range 6 meters under ground level, Full Tank Suction time about 9 minutes, Vacuum Pressure -0.092Mpa. | ||||
The pictures of HOWO 6x4 6x6 371hp Widely used cleaning Tanker truck 12000L-16000L Suction sewage truck
HOWO 10 CBM Vacuum suction sewage truck
Cesspit Emptier
Euro 3, Euro 4 septik truck sewage tanker Cesspool Emptying Truck Septic tank Truck
voulme of tank 10CBM 10000L more or less
Material of tank Carbon steel. Thickness: 6mm
Details:
Place of Origin: | Suizhou Hubei China |
|---|---|
| Brand Name: | Sinotruk HOWO |
| Certification: | ISO, CCC, BV, SGS |
| Model Number: | TIC5160GXW4ZZ |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD43000-45000 / Set |
| Packaging Details: | bulk,ro-ro,container |
| Delivery Time: | 25 days after receiving deposits |
| Supply Ability: | 50 sets per month |
Detailed Product Description
Tank Capacity: | 12000 L | Tank Material: | Q235 |
| Tank Shape: | Cylinder-shaped | Whole Tank Dimension: | 4500*1800 Mm |
| Whole Truck Dimension: | 8300*2490*3400 Mm | F/R Axle Load: | 6000/10000kg |
| Wheel Base: | 4500 Mm | Engine Power: | 220 Hp |
12000L Sinotruk HOWO 220 hp 4x2 Suction Sewage Vacuum Tank Truck
Description:
The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5 min; suction width: ≥ 8 m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.
Applications:
Rinsing underground sewage pipes, the collection and transportation of sludge and city life waste and building operations such as muddy water in liquid waste and other functions.
Competitive Advantage:
1. Equipped with special vacuum pump, power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment. Time for full suction < 5min
2. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.
3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.
4. The diesel engine ( air compressor unit ), providing compressed air.
Specifications:
Truck chassis specification | Item | unit | parameter | ||
Chassis model | ZZ1164K4516D1 | ||||
Overall dimensions | mm | 8300x2490x3400 | |||
GVW | kg | Appro × 16000 | |||
Mass in working order | Appro × 6805 | ||||
Wheel base | mm | 4500 | |||
Exhaust / hp | ml / hp | 6494 / 220 | |||
Max speed | km / h | 95 | |||
Tire specification | 10.00 - 20 | Engine type | YC6J220-46 | ||
Traction system | 4 × 2 | Number of Tyres | 6 | ||
Number of axles | 2 | Electric system | 24 V | ||
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | ||
F / R Axle load ( kg ) | 6000 / 10000 | ||||
Engine | The truck, diesel engine, water cooled, direct injection, 220 horse power | ||||
Special function Specification | Tank Capacity ( L ) | 12000 | |||
Tank Dimension ( mm ) | 4500 x Φ1800 | ||||
Equipped with high-power vacuum suction sewage pump. Tanker with lifting function, with double hydraulic cylinder, rear cover can hydraulic open with self-flowing valve. Equipped with power take off, transmission shaft, , pipe network, sewage pipe for observing and cleanout equipment. , SINO TRUCK vacuum tanker truck, SINOTRUCK sewage suctionvehicle HOWO septic suction truck, HOWO Vacuum suction sewage truck | |||||
http://www.truckinchina.com/Vacuum-truck-Combined-Jetting-c76669986.html
Emission Standard | EUR 2 | ||
Driving Type | 4×2 | ||
Sewage tank volume (L) | 10000 liters | ||
Dimensions | |||
Wheelbase(mm) | 4700 | ||
Overall Dimension(mm) | 7850x2490x3250 | ||
Weight parameters | |||
GVW(kg) | 16000 | ||
Rated Payload (kg) | 7360 | ||
Curb weight(kg) | 8510 | ||
Front axle load(T) | 7 Ton front axle load capacity | ||
Rear axle load(T) | Styre 10 Ton rear axle load capacity | ||
Front axle span(mm) | 2020 | ||
Rear axle span(mm) | 1850 | ||
Front/rear overhang(mm) | 1560/2133 | ||
Max speed(km/h) | 99 | ||
Engine performance | |||
Engine model | YC6J190-30 | ||
Engine manufacture | Yuchai engine | ||
Engine type | Straight in-line,6 cylinders,water-cooling,direct injection | ||
Displacement(L) | 6.494L | ||
Max. output(kw/Hp) | 140kw/190hp | ||
Drive line system | |||
Clutch | GF420J styre technology, Dry-type single shock spring clutch | ||
Transmission | 9 forwarder,1 reverse gear, Mechanical control, manual operation | ||
Spring suspension type-Leaf spring mechanical suspension | |||
No. of leaf of spring | |||
Brake system | |||
Service braking | Pneumatic braking system | ||
Parking braking | Spring brake, acting on the front and rear axle, emergency braking | ||
Cab description | |||
Crew cut, one and half cab,3 passengers allowed, air-conditioner, the cab can be tippable Forwardly, all metal enclosed cab. | |||
Tire specification | |||
Tire specification | 10.00-20,total 6 tires | ||
Sewage suction tanker system description | |||
Suction pump | Vacuum sewage suction pump | ||
Vacuum degree (kpa) | 90Kpa | ||
Pump type | vacuum pump model:50QZXDG-30/40 | ||
Rated speed (R/min) | 500r/min | ||
Pump speed (L/s) | 318m3/h | ||
Suction range (m) | »8m | ||
Lift angle of tank (°) | 30° | ||
Tank material | Q235A | ||
Full suction time (m) | About 6 minutes | ||
Absolute working pressure (Mpa) | 10Mpa | ||
Inlet /outlet hole diameter (mm) | DN100 | ||
| Model | Manufacturer |
| TIC5150GXW3 | TIC DRZE |
| Tank body | Standard dump body |
| Cubic volume (m3) | 8-10 |
| Body length (mm) | 5150 |
| Body width(mm) | 1790 |
| Tank material | Excellent Q235A carbon steel |
| Tank shape | Roundness |
| Vacuum pump information | |
| Manufacturer | China famous Weilong |
| Type | vacuum pump XD-44 2units pump |
| Displacement (Ml/R) | 63 |
| Pressure (Mpa) | 16 |
| Roate speed (R/min) | 500-3000 |
| Max Vertical Suction (m) | ≥8 |
| Absolute Working Pressure (pa) | 8500 |
| Rated Speed (RPM) | 500 |
| Rated Pumping Speed (L/s) | 98 |
| Pump inlet diameter (mm) | 50 |
| Container Filling Time (s) | ≤4 |
| Container Emptying time (s) | ≤4 |
| Max Vertical Suction (m) | ≥8 |
| Absolute Working Pressure (pa) | 8500 |
| Rated Speed (RPM) | 500 |
| Hose diameter (MM) | 100 |
| Discharge angle (.) | 45 |
| Engine | |
| Model | YC4E160-33 |
| Type | Diesel ,4-cycle, 4 cylinder in line,Water cooled |
| Max output power(kw/rpm) | 139/1600 |
| Maxtorque(N.m/rpm) | 2200 |
| Displacement (ml) | 4260 |
| Emission standard | Euro 3 |
| Transmission& Clutch | |
| Model | HW90710C ( china famous ) |
| Type | 7 Forward and 1 Reverse Speed |
| Gearshift | Manual (Mechanical) |
| Clutch | 390 mm Dry and Double Plate Clutch |
| Front Axle | |
| Type | HOWO famous diecasting I-beam |
| Suspension type | Multiple leaf main springs |
| Capacity (kg) | 5000 |
| Rear Axle | |
| Type | Casting iron, Axles |
| Suspension type | Multi leaf spring, |
| Capacity (kg) | 10000 kgs |
| Rear axle ratio | 5.98 |
| Main Technical Specification | |
| Drive type | 4x2 |
| Wheel base (mm) | 4700 |
| Overall Length (mm) | 7850 |
| Overall Width (mm) | 2500 |
| Overall Height (mm) | 3200 |
| Kerb weight (kg) | 7300 |
| Payloading capacity (kg) | 10000 |
| G.V.W (kg) | 17390 |
| Max. traveling speed (km/h) | 90 |
| Front track (mm) | 2020 |
| Rear track (mm) | 1860 |
| Min. ground clearance (mm) | 215 |
| Cab & Tire | |
| Type | Forward control, all steel welded construction, cabin Painting. Radio |
| Seat | 3 seats |
| Air conditioner system | Manual control |
| Tire size | 9.00-20-18PR |
| No. of Tire | 6 + 1 |
| Electric System | |
| System voltage | 24V, Negative earth |
| Batteries (V/Ah) | 24/123 |
| Steering system | |
| Type of steering gear | Recirculating ball and screw type |
| Adjustment of wheel | Tilt and telescopic |
| Steering wheel position | Left hand drive |
| Fuel capacity | |
| Tank capacity (L) | 200 |
| Fuel consumption for 100km (L) | 25 |
2. Packing and Shipping:
Truck is nude packing, shipping in container, in bulk , in ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!
3. Company Information:
Hubei Dong Runze Special Vehicle Equipment Co., Ltd. & TIC TRUCKS INDUSTRY CO.,LIMITED is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Our advantage:
(1) We have own factory located in Suizhou---the special truck town of China.We can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitve price.
(2) We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
(3) There is a stronge professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.
If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.
4. Our Service:
Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
We highly recommend this sewage suction tank truck. It's in an excellent condition and also with good quality and competitive price. Further information, pls feel free to cantact with me or visit our website, we will offer our best service.
If you have any requirements about special trucks, kindly let me know, I will do my best fo provide the most suitable type and competetive price for you.
Looking forward to receiving your inquiry!
Sewage Tank,Sewer JettingTruck,Vacuum Suction tanker , vacuum suction truck ,vacuum truck,Sewer Jet Truck ,vacuum sewage suction truck ,Septic Tank Truck ,Cesspit Emptier
Vacuum Sewage Suction Truck Sewage Suction Trucks With High Quality
HOWO 6x4 6x6 371hp Vacuum Suction Truck 14000L Sewage Suction Truck Septic Tanker Truck , HOWO 6x4 6x6 371hp Widely used cleaning Tanker truck 12000L-16000L Suction sewage truck
| Items | Descriptions | Specifications and Types |
| General | Truck Name | Sewage suction truck |
| Drive Type | 6*4 | |
| Gross Vehicle Weight(kg) | 25000 | |
| Curb Weight (kg) | 12050 | |
| Overall Dimensions L*W*H(mm) | 8900×2500×3600 | |
| Engine | Engine Model | WD615.69 |
| Engine Brand | SINOTRUK | |
| Fuel Type | Diesel | |
| Power | 250kw/336HP | |
| Emission Standard | Euro II | |
| Displacement(ml) | 9760 | |
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | |
| Chassis | Chassis Brand | HOWO |
| Front/Rear Axle Load(KG) | 7000/18000 (parallel installed) | |
| Tire No. | 10 | |
| Tire Specification | 295/80R22.5 Tubless tire | |
| Wheelbase (mm) | 4325+1350 | |
| Axle No. | 3 | |
| Gear Box | HOWO 10 speed forward with 2 reverse, manual | |
| Steering Wheel | Left hand drive with power-assisted | |
| Brake | Air brake | |
| Cab | Flat roof with single sleeper, with A/C | |
| Sucking System | Tank Volume(L) | 18000 |
| Tank shape | Cylindrical | |
| Tank Material | 5-6mm thick carbon steel | |
| Vacuum Pump | Double Wei Yi pump | |
| Suction Depth(m) | More than 6 meter |
| Main body material | Q235A carbon steel / 6MM with 2 Strengthen rolled steel rings reinforcement, end of the tank with 8mm carbon steel. |
| Vacuum pumps model | Rotary vane type 50QZXDG-45/400 or 65QZXDG-68/400 |
| vacuuming both sewage and sludge | |
| Maximum AOB | ≥45° |
| Effective suction | ≥ 5 |
| Vacuum system(MPa) | ≥11 |
| Lifting time(s) | ≤45 |
| Cover opening Angle(°) | ≥75° |
| Cover open time (s) | ≤25 |
| Suction pipe diameter (mm) | 100 |
| length of the Hose | 18ft*4pcs |
| Tanks full sucked time (min) | ≤12 |
Product features:
1. Brand: Chinese Famous brand Sinotruk HOWO, competitive price and reliable quality.
2. Cabin: HW70 with no sleeper bed, HW76 with one sleeper bed, HW79 with two sleeper bed. With air conditioner.
3. Right hand drive, and left hand drive are both avaliable.
4. Transmission: manual control, 10 or 12 forwards, and 2 reverses.
5. Different emmission standard for option. EURO-II, EURO-III, EURO-4 etc.
6. Drive Type: 4x2, 6x4, 6x6 off road truck chassis.
7. Equipment : Equipped with special vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise)
8. Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment
Time for full sucktion<5min
The parameter of HOWO 6x4 6x6 371hp Widely used cleaning Tanker truck 12000L-16000L Suction sewage truck :
| Cabin | HW 76 Standard Cab, Right hand drive, one sleeper. A/C, With two bunks, 70° hydraulically tillable to the front as attached photo for ref. (picture just for reference) | ||||
| Vehicle Main Dimensions | (L x W x H)mm | 10400x2500x3450 | |||
| Wheel base (mm) | 5800+1400 | ||||
| Wheel track (front/rear) (mm) | 2022/1830 | ||||
| Approach/Departure angle(°) | 16/15 | ||||
| Weight in KGS | Tare Weight | 12000KG | |||
| Loading Capacity | 20000 | ||||
| Front axles loading capacity | HF9 1x9000 | ||||
| Rear axles loading capacity | ST16 2x16000 | ||||
| Max. driving speed(km/h) | 90 | ||||
| Engine | Brand | Sinotruk | |||
| Model | WD615.47 | ||||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||
| Horse Power(HP) | 371HP | ||||
| Emission standard | Euro | ||||
| Gearbox | HW19710, 10 Forwards gear & 2 reverse | ||||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||||
| Steering Gear | ZF 8098, power steering, hydraulic steering with power assistance | ||||
| Fuel tank (L) | 300L | ||||
| Tire | 12R22.5 radial steel tire 11 Pieces including one spare | ||||
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||||
| UPPER EQUIPMENT | |||||
| Tanker Capacity | 16 cubic meters | ||||
| Tank Material | Material: Q235 high tension steel, Body Thickness 6mm, End Plate thickness 8mm, With Hydraulic Controlled Rear Door and Middle lifting. | ||||
| Vacuum Suction Pump | Chinese Famous Brand, 4" diameter Rubber tube in 6 meters long, Vertical Suction Range 6 meters under ground level, Full Tank Suction time about 9 minutes, Vacuum Pressure -0.092Mpa. | ||||

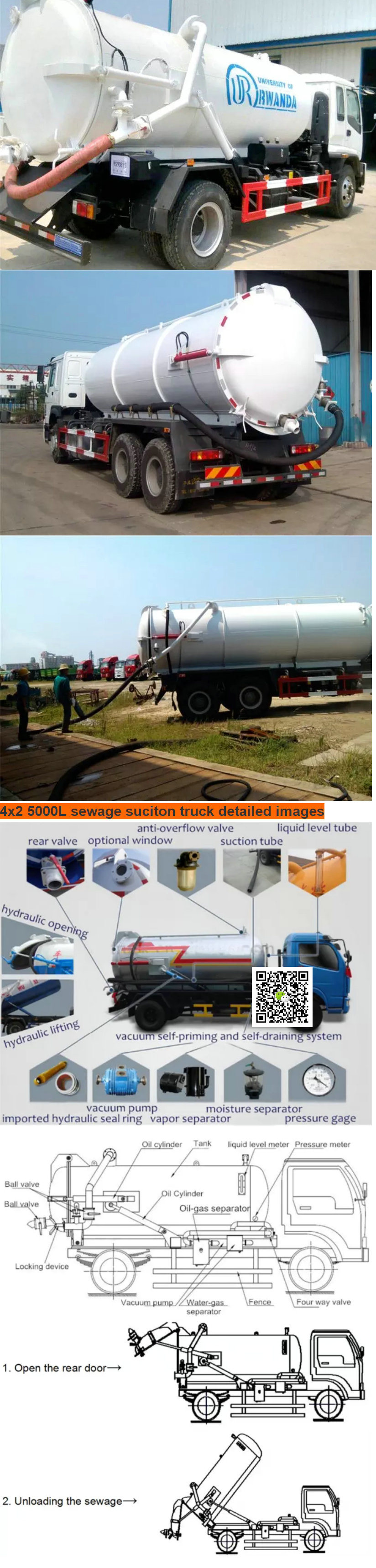

The pictures of HOWO 6x4 6x6 371hp Widely used cleaning Tanker truck 12000L-16000L Suction sewage truck
HOWO 10 CBM Vacuum suction sewage truck
Cesspit Emptier
Euro 3, Euro 4 septik truck sewage tanker Cesspool Emptying Truck Septic tank Truck
voulme of tank 10CBM 10000L more or less
Material of tank Carbon steel. Thickness: 6mm
Details:
Place of Origin: | Suizhou Hubei China |
|---|---|
| Brand Name: | Sinotruk HOWO |
| Certification: | ISO, CCC, BV, SGS |
| Model Number: | TIC5160GXW4ZZ |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD43000-45000 / Set |
| Packaging Details: | bulk,ro-ro,container |
| Delivery Time: | 25 days after receiving deposits |
| Supply Ability: | 50 sets per month |
Detailed Product Description
Tank Capacity: | 12000 L | Tank Material: | Q235 |
| Tank Shape: | Cylinder-shaped | Whole Tank Dimension: | 4500*1800 Mm |
| Whole Truck Dimension: | 8300*2490*3400 Mm | F/R Axle Load: | 6000/10000kg |
| Wheel Base: | 4500 Mm | Engine Power: | 220 Hp |
12000L Sinotruk HOWO 220 hp 4x2 Suction Sewage Vacuum Tank Truck
Description:
The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5 min; suction width: ≥ 8 m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.
Applications:
Rinsing underground sewage pipes, the collection and transportation of sludge and city life waste and building operations such as muddy water in liquid waste and other functions.
Competitive Advantage:
1. Equipped with special vacuum pump, power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment. Time for full suction < 5min
2. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.
3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.
4. The diesel engine ( air compressor unit ), providing compressed air.
Specifications:
Truck chassis specification | Item | unit | parameter | ||
Chassis model | ZZ1164K4516D1 | ||||
Overall dimensions | mm | 8300x2490x3400 | |||
GVW | kg | Appro × 16000 | |||
Mass in working order | Appro × 6805 | ||||
Wheel base | mm | 4500 | |||
Exhaust / hp | ml / hp | 6494 / 220 | |||
Max speed | km / h | 95 | |||
Tire specification | 10.00 - 20 | Engine type | YC6J220-46 | ||
Traction system | 4 × 2 | Number of Tyres | 6 | ||
Number of axles | 2 | Electric system | 24 V | ||
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | ||
F / R Axle load ( kg ) | 6000 / 10000 | ||||
Engine | The truck, diesel engine, water cooled, direct injection, 220 horse power | ||||
Special function Specification | Tank Capacity ( L ) | 12000 | |||
Tank Dimension ( mm ) | 4500 x Φ1800 | ||||
Equipped with high-power vacuum suction sewage pump. Tanker with lifting function, with double hydraulic cylinder, rear cover can hydraulic open with self-flowing valve. Equipped with power take off, transmission shaft, , pipe network, sewage pipe for observing and cleanout equipment. , SINO TRUCK vacuum tanker truck, SINOTRUCK sewage suctionvehicle HOWO septic suction truck, HOWO Vacuum suction sewage truck | |||||
http://www.truckinchina.com/Vacuum-truck-Combined-Jetting-c76669986.html
Emission Standard | EUR 2 | ||
Driving Type | 4×2 | ||
Sewage tank volume (L) | 10000 liters | ||
Dimensions | |||
Wheelbase(mm) | 4700 | ||
Overall Dimension(mm) | 7850x2490x3250 | ||
Weight parameters | |||
GVW(kg) | 16000 | ||
Rated Payload (kg) | 7360 | ||
Curb weight(kg) | 8510 | ||
Front axle load(T) | 7 Ton front axle load capacity | ||
Rear axle load(T) | Styre 10 Ton rear axle load capacity | ||
Front axle span(mm) | 2020 | ||
Rear axle span(mm) | 1850 | ||
Front/rear overhang(mm) | 1560/2133 | ||
Max speed(km/h) | 99 | ||
Engine performance | |||
Engine model | YC6J190-30 | ||
Engine manufacture | Yuchai engine | ||
Engine type | Straight in-line,6 cylinders,water-cooling,direct injection | ||
Displacement(L) | 6.494L | ||
Max. output(kw/Hp) | 140kw/190hp | ||
Drive line system | |||
Clutch | GF420J styre technology, Dry-type single shock spring clutch | ||
Transmission | 9 forwarder,1 reverse gear, Mechanical control, manual operation | ||
Spring suspension type-Leaf spring mechanical suspension | |||
No. of leaf of spring | |||
Brake system | |||
Service braking | Pneumatic braking system | ||
Parking braking | Spring brake, acting on the front and rear axle, emergency braking | ||
Cab description | |||
Crew cut, one and half cab,3 passengers allowed, air-conditioner, the cab can be tippable Forwardly, all metal enclosed cab. | |||
Tire specification | |||
Tire specification | 10.00-20,total 6 tires | ||
Sewage suction tanker system description | |||
Suction pump | Vacuum sewage suction pump | ||
Vacuum degree (kpa) | 90Kpa | ||
Pump type | vacuum pump model:50QZXDG-30/40 | ||
Rated speed (R/min) | 500r/min | ||
Pump speed (L/s) | 318m3/h | ||
Suction range (m) | »8m | ||
Lift angle of tank (°) | 30° | ||
Tank material | Q235A | ||
Full suction time (m) | About 6 minutes | ||
Absolute working pressure (Mpa) | 10Mpa | ||
Inlet /outlet hole diameter (mm) | DN100 | ||
| Model | Manufacturer |
| TIC5150GXW3 | TIC DRZE |
| Tank body | Standard dump body |
| Cubic volume (m3) | 8-10 |
| Body length (mm) | 5150 |
| Body width(mm) | 1790 |
| Tank material | Excellent Q235A carbon steel |
| Tank shape | Roundness |
| Vacuum pump information | |
| Manufacturer | China famous Weilong |
| Type | vacuum pump XD-44 2units pump |
| Displacement (Ml/R) | 63 |
| Pressure (Mpa) | 16 |
| Roate speed (R/min) | 500-3000 |
| Max Vertical Suction (m) | ≥8 |
| Absolute Working Pressure (pa) | 8500 |
| Rated Speed (RPM) | 500 |
| Rated Pumping Speed (L/s) | 98 |
| Pump inlet diameter (mm) | 50 |
| Container Filling Time (s) | ≤4 |
| Container Emptying time (s) | ≤4 |
| Max Vertical Suction (m) | ≥8 |
| Absolute Working Pressure (pa) | 8500 |
| Rated Speed (RPM) | 500 |
| Hose diameter (MM) | 100 |
| Discharge angle (.) | 45 |
| Engine | |
| Model | YC4E160-33 |
| Type | Diesel ,4-cycle, 4 cylinder in line,Water cooled |
| Max output power(kw/rpm) | 139/1600 |
| Maxtorque(N.m/rpm) | 2200 |
| Displacement (ml) | 4260 |
| Emission standard | Euro 3 |
| Transmission& Clutch | |
| Model | HW90710C ( china famous ) |
| Type | 7 Forward and 1 Reverse Speed |
| Gearshift | Manual (Mechanical) |
| Clutch | 390 mm Dry and Double Plate Clutch |
| Front Axle | |
| Type | HOWO famous diecasting I-beam |
| Suspension type | Multiple leaf main springs |
| Capacity (kg) | 5000 |
| Rear Axle | |
| Type | Casting iron, Axles |
| Suspension type | Multi leaf spring, |
| Capacity (kg) | 10000 kgs |
| Rear axle ratio | 5.98 |
| Main Technical Specification | |
| Drive type | 4x2 |
| Wheel base (mm) | 4700 |
| Overall Length (mm) | 7850 |
| Overall Width (mm) | 2500 |
| Overall Height (mm) | 3200 |
| Kerb weight (kg) | 7300 |
| Payloading capacity (kg) | 10000 |
| G.V.W (kg) | 17390 |
| Max. traveling speed (km/h) | 90 |
| Front track (mm) | 2020 |
| Rear track (mm) | 1860 |
| Min. ground clearance (mm) | 215 |
| Cab & Tire | |
| Type | Forward control, all steel welded construction, cabin Painting. Radio |
| Seat | 3 seats |
| Air conditioner system | Manual control |
| Tire size | 9.00-20-18PR |
| No. of Tire | 6 + 1 |
| Electric System | |
| System voltage | 24V, Negative earth |
| Batteries (V/Ah) | 24/123 |
| Steering system | |
| Type of steering gear | Recirculating ball and screw type |
| Adjustment of wheel | Tilt and telescopic |
| Steering wheel position | Left hand drive |
| Fuel capacity | |
| Tank capacity (L) | 200 |
| Fuel consumption for 100km (L) | 25 |
2. Packing and Shipping:
Truck is nude packing, shipping in container, in bulk , in ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!
3. Company Information:
Hubei Dong Runze Special Vehicle Equipment Co., Ltd. & TIC TRUCKS INDUSTRY CO.,LIMITED is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Our advantage:
(1) We have own factory located in Suizhou---the special truck town of China.We can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitve price.
(2) We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
(3) There is a stronge professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.
If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.
4. Our Service:
Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
We highly recommend this sewage suction tank truck. It's in an excellent condition and also with good quality and competitive price. Further information, pls feel free to cantact with me or visit our website, we will offer our best service.
If you have any requirements about special trucks, kindly let me know, I will do my best fo provide the most suitable type and competetive price for you.
Looking forward to receiving your inquiry!
Sewage Tank,Sewer JettingTruck,Vacuum Suction tanker , vacuum suction truck ,vacuum truck,Sewer Jet Truck ,vacuum sewage suction truck ,Septic Tank Truck ,Cesspit Emptier
