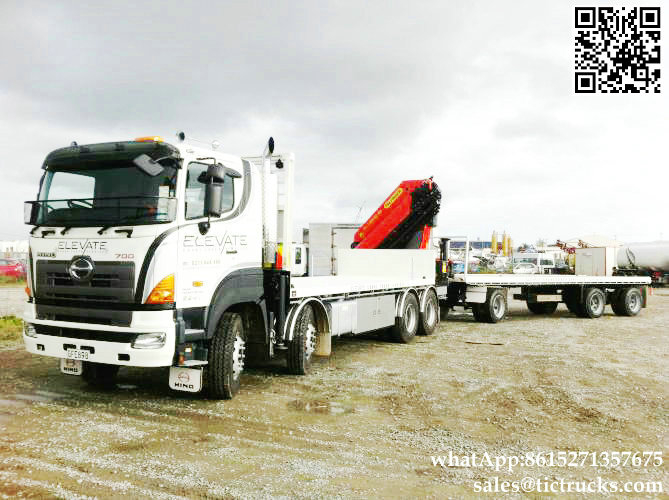

HINO 700 8x4 Truck Mounted Crane Palfinger Cranes 30T.m
| Availability: | |
|---|---|
| Quantity: | |
HINO 700 Hino FY 700 Series 8x4 LORRY LOADER CRANE SPK32080
SPK32080 Crane Hino 700 8X4 Truch Mounted Crane
HINO 700 8x4 truck mounted crane Palfinger cranes 30T.m
HINO 700 Hino FY 700 Series 8x4 LORRY LOADER CRANE SPK32080
SPK32080 Crane Hino 700 8X4 Truch Mounted Crane
HINO 700 8x4 truck mounted crane Palfinger cranes 30T.m
HINO 700
FAST 12-Speed Manual-Gearbox,
DANA Rear axle load capacity 13T,Tire 11.00R 20 Radial tires.
BOX SIZE:8200*2350*800 mm
CRANE:
XCMG Brand,crane load 10ton Optional 12ton, 14tons.
Type:Lorry-mounted crane with telescopic boom,
Optional:Lorry-mounted crane with foldable arm
| Products Technical Specification | ||
| Brand-Series | HINO | |
| Product Name | 8*4 Truck mounted crane | |
| Chassis Model | YC1310FY2PY4 | |
| Emission Standard | Euro 4 | |
| Fuel type | Diesel | |
| Cabin | HINO 700,With A/C,Sleeper | |
| Whole vehicle main dimensions (mm) | Overall dimensions (L×W×H) | 10920*2550*3800 |
| Cargo body size | 8200*2400*2400 | |
| Wheel base | 1850+4300+1410 | |
| Front overhang | 1410 | |
| Rear overhang | 3020 | |
| Min. ground clearance | 500 | |
| Weight data (kg) | G.V.W | 31000 |
| Curb weight (chassis) | 12000 | |
| Max payload | 40000 | |
| Whole vehicle main performance | Max. speed (km/h) | 80 |
| Max. slope of climb (%) | 30 | |
| Engine | Model | P11C-VK |
| Maximum power | 259kw / 350hp | |
| Number of cylinders | 6 | |
| Displacement (L) | 10.52 | |
| Engine Manufacturer | Shanghai Hino Engine Co., Ltd. | |
| Transmission | Model | 12JSD160TA |
| Number of gears | 12 forward gears& 2 reverse | |
| Axle | Rear Load capacity (ton) | Dongfeng Dana axle gear imported core Bridge |
| Suspension | Leaf spring | 10/10/13,11/11/13 |
| Steering Wheel | left/right hand drive | LHD |
| Brake system | Service brake | Air braking |
| Electric device | Rated voltage | 24V |
| Tyres & Quantity | 11.00R20 & 12+1 | |
| Crane Description | ||
| Brand | XCMG | |
| Type | Straight Crane | |
| Model | SQ10SK3Q | |
| Max Lifting Capacity (kg) | 10000 | |
| Maximum lift height (m) | 12 | |
| Recommend Power (kw) | 28 | |
| Max Lifting Moment (t.m) | 25 | |
| Max Oil Flow of Hydraulic System (L/min) | 63 | |
| Max Pressure of Hydraulic System (MPa) | 26 | |
| Oil Tank Capacity (L) | 160 | |
| Rotation Angle (°) | All Rotation | |
| Crane Weight (kg) | 3800 | |
| Installation Space (mm) | 1150 | |
| SQ10SK3Q Lifting capability diagram | ||
| Working radius (m) | 2.5 / 4.5 / 7 / 9 / 12 | |
| Lifting capacity (kg) | 10000 / 5500 / 3200 / 2300 / 1500 | |
1.which brands of chassis do you want?
eg,Dongfeng, FAW-J5-J6,FOTON-FORLAND-AUMAN,SHACMAN-F3000-M3000,SINOTRUK-HOWO-A7,BeiBen-V3,IVECO-HONGYAN-GENLYON,JAC,JMC,QL,YUEJIN,KAMA,T-KING,KARRY,etc,
2.what kind of crane do you want?
Straight arm crane or Folding arm crane
3.Load capacity of crane lifting ?
1ton 2.1tons 3.2tons 4tons 5tons 6.3tons 8tons 10tons 12tons 14tons 16tons 25tons 30tons 50tons,etc.
4.which brands of crane do you want?
DRZE,XCMG,UNIC, Sany-Palfinger,HYVA,SHIMEI,etc
| Palfinger Folding arm crane | |||||
| model | Farthest weight (Kg) | Working radius (m) | Lifting height (m) | Operating form | Crane type (including fixed arm) |
| SPK8500A | 1000 | 7.5 | 8.5 | Ground (Down) | three |
| SPK12000A | 1260 | . 8.1 | 9.1 | Ground (Down) | three |
| SPK15500A | 1570 | 8 | 9 | Ground (Down) | three |
| SPK15500B | 1230 | 10.1 | 11.1 | Ground (Down) | four |
| SPK18500B | 1600 | 10.2 | 11.2 | Ground (Down) | four |
| SPK23500B | 2040 | 10.1 | 11.3 | Ground (Down) | four |
| SPK23500C | 1570 | 12.3 | 13.5 | High altitude (upper operation) | Fives |
| SPK32080B | 2900 | 9.9 | 12.1 | Ground (Down) | four |
| SPK32080C | 2260 | 11.9 | 13.1 | Ground (Down) | Fives |
| SPK36080C | 2300 | 12.2 | 13.5 | Ground (Down) | Fives |
| SPK38502 | 2550 | 12 | 13.3 | High altitude (upper operation) | Fives |
| SPK42502C | 2700 | 12 | 13.3 | High altitude (upper operation) | Fives |
| SPK42502D | 1900 | 16.6 | 17.9 | Ground (Down) | six |
| SPK 5002C | 3450 | 12 | 13.3 | High altitude (upper operation) | Fives |
| SPK5002D | 2300 | 16.6 | 17.9 | High altitude (upper operation) | six |
| SPK61502C | 4700 | 12 | 13.3 | High altitude (upper operation) | Fives |
| SPK61502D | 3100 | 16.6 | 17.9 | High altitude (upper operation) | six |
HINO 700
FAST 12-Speed Manual-Gearbox,
DANA Rear axle load capacity 13T,Tire 11.00R 20 Radial tires.
BOX SIZE:8200*2350*800 mm
CRANE:
XCMG Brand,crane load 10ton Optional 12ton, 14tons.
Type:Lorry-mounted crane with telescopic boom,
Optional:Lorry-mounted crane with foldable arm
| Products Technical Specification | ||
| Brand-Series | HINO | |
| Product Name | 8*4 Truck mounted crane | |
| Chassis Model | YC1310FY2PY4 | |
| Emission Standard | Euro 4 | |
| Fuel type | Diesel | |
| Cabin | HINO 700,With A/C,Sleeper | |
| Whole vehicle main dimensions (mm) | Overall dimensions (L×W×H) | 10920*2550*3800 |
| Cargo body size | 8200*2400*2400 | |
| Wheel base | 1850+4300+1410 | |
| Front overhang | 1410 | |
| Rear overhang | 3020 | |
| Min. ground clearance | 500 | |
| Weight data (kg) | G.V.W | 31000 |
| Curb weight (chassis) | 12000 | |
| Max payload | 40000 | |
| Whole vehicle main performance | Max. speed (km/h) | 80 |
| Max. slope of climb (%) | 30 | |
| Engine | Model | P11C-VK |
| Maximum power | 259kw / 350hp | |
| Number of cylinders | 6 | |
| Displacement (L) | 10.52 | |
| Engine Manufacturer | Shanghai Hino Engine Co., Ltd. | |
| Transmission | Model | 12JSD160TA |
| Number of gears | 12 forward gears& 2 reverse | |
| Axle | Rear Load capacity (ton) | Dongfeng Dana axle gear imported core Bridge |
| Suspension | Leaf spring | 10/10/13,11/11/13 |
| Steering Wheel | left/right hand drive | LHD |
| Brake system | Service brake | Air braking |
| Electric device | Rated voltage | 24V |
| Tyres & Quantity | 11.00R20 & 12+1 | |
| Crane Description | ||
| Brand | XCMG | |
| Type | Straight Crane | |
| Model | SQ10SK3Q | |
| Max Lifting Capacity (kg) | 10000 | |
| Maximum lift height (m) | 12 | |
| Recommend Power (kw) | 28 | |
| Max Lifting Moment (t.m) | 25 | |
| Max Oil Flow of Hydraulic System (L/min) | 63 | |
| Max Pressure of Hydraulic System (MPa) | 26 | |
| Oil Tank Capacity (L) | 160 | |
| Rotation Angle (°) | All Rotation | |
| Crane Weight (kg) | 3800 | |
| Installation Space (mm) | 1150 | |
| SQ10SK3Q Lifting capability diagram | ||
| Working radius (m) | 2.5 / 4.5 / 7 / 9 / 12 | |
| Lifting capacity (kg) | 10000 / 5500 / 3200 / 2300 / 1500 | |
1.which brands of chassis do you want?
eg,Dongfeng, FAW-J5-J6,FOTON-FORLAND-AUMAN,SHACMAN-F3000-M3000,SINOTRUK-HOWO-A7,BeiBen-V3,IVECO-HONGYAN-GENLYON,JAC,JMC,QL,YUEJIN,KAMA,T-KING,KARRY,etc,
2.what kind of crane do you want?
Straight arm crane or Folding arm crane
3.Load capacity of crane lifting ?
1ton 2.1tons 3.2tons 4tons 5tons 6.3tons 8tons 10tons 12tons 14tons 16tons 25tons 30tons 50tons,etc.
4.which brands of crane do you want?
DRZE,XCMG,UNIC, Sany-Palfinger,HYVA,SHIMEI,etc
| Palfinger Folding arm crane | |||||
| model | Farthest weight (Kg) | Working radius (m) | Lifting height (m) | Operating form | Crane type (including fixed arm) |
| SPK8500A | 1000 | 7.5 | 8.5 | Ground (Down) | three |
| SPK12000A | 1260 | . 8.1 | 9.1 | Ground (Down) | three |
| SPK15500A | 1570 | 8 | 9 | Ground (Down) | three |
| SPK15500B | 1230 | 10.1 | 11.1 | Ground (Down) | four |
| SPK18500B | 1600 | 10.2 | 11.2 | Ground (Down) | four |
| SPK23500B | 2040 | 10.1 | 11.3 | Ground (Down) | four |
| SPK23500C | 1570 | 12.3 | 13.5 | High altitude (upper operation) | Fives |
| SPK32080B | 2900 | 9.9 | 12.1 | Ground (Down) | four |
| SPK32080C | 2260 | 11.9 | 13.1 | Ground (Down) | Fives |
| SPK36080C | 2300 | 12.2 | 13.5 | Ground (Down) | Fives |
| SPK38502 | 2550 | 12 | 13.3 | High altitude (upper operation) | Fives |
| SPK42502C | 2700 | 12 | 13.3 | High altitude (upper operation) | Fives |
| SPK42502D | 1900 | 16.6 | 17.9 | Ground (Down) | six |
| SPK 5002C | 3450 | 12 | 13.3 | High altitude (upper operation) | Fives |
| SPK5002D | 2300 | 16.6 | 17.9 | High altitude (upper operation) | six |
| SPK61502C | 4700 | 12 | 13.3 | High altitude (upper operation) | Fives |
| SPK61502D | 3100 | 16.6 | 17.9 | High altitude (upper operation) | six |
