Gullwing trailers for sale
Enclosed Trailers with Gull Wing Enclosures
Pro-tecktor enclosures combine exceptional aerodynamic design and phenomenal protection. The front and rear access doors provide easy, safe loading and unloading
Trailer Specifications · Trailer Accessories · Trailer Features · Open Bed Trailers · Utility Trailers

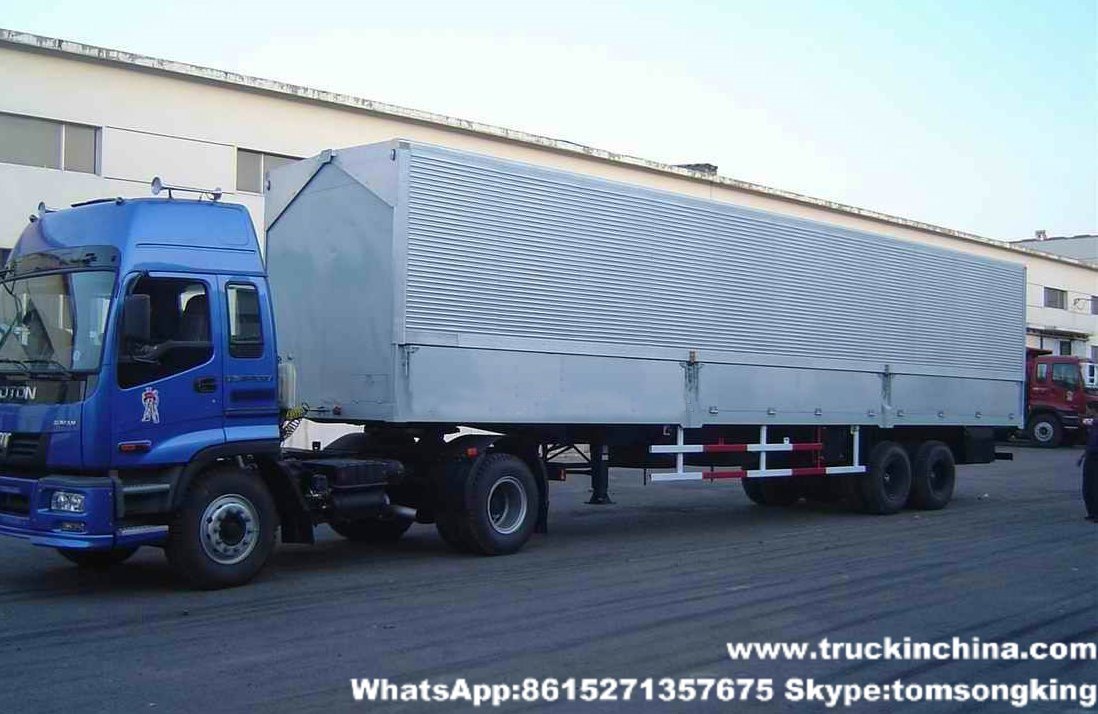

Name: 3 axle hydraulic gullwing trailer
Loading capacity: 40 tons
Overall dimension: 9600*2500*3900mm
Side panel: aluminum panel
Axle: 13T*3 (FUWA, Anqiao, Man, York or BPW)
Frame: Q550 high tension steel
Tanker body: High tension steel, 8mm thickness
Kingpin: 2'' Kingpin JOST
Landing gear: Double speed JOST
Spare tyre carrier: 1~2
Brake system: Wabco dual line pneumatic brake line
Electrical system: 12/24V, 7 pin socket (US, EU or Australian standard)
Accessories: Handrail, ladders, fire extinguisher
Light: tail lamp, side lamp, brake lamp, etc. All LED.
Surface process: Sandblasted
Painting: base coating + surface painting.
Gullwing trailer an advanced or updated model from curtain side trailer, instead of covered by fabric, both side of the box is fixed by metal panel which can be fully opened like the wing of a seagull. The power of the side panel can be driven by power take-off or separated engine. The main structure of the trailer is made from high tension steel for a higher strength, the side door can be made from steel as well or more reasoally, by aluminum panel which is ligher for saving more power during opening and closing. The side aluminum panel can also be printed with logo or banners assigned. It's a very reasonal design of pallet cargo, such as courier pallet, rice, beverage, fruits, etc, transportation in rural area.
Side door fully open
Power driven by PTO or by manual
Suitable for crates, bags, pallets transportation
Main components purchased from famous brand
The gullwing trailer is similar like a box type trailer. To ship the unit complete, freight cost, which is charged by cubic meter, is higher than other type such as lowboy. If local welding condition allows, it is suggested to ship the gullwing separately and assemble locally at destination. Otherwise, higher freight cost must be considered.
