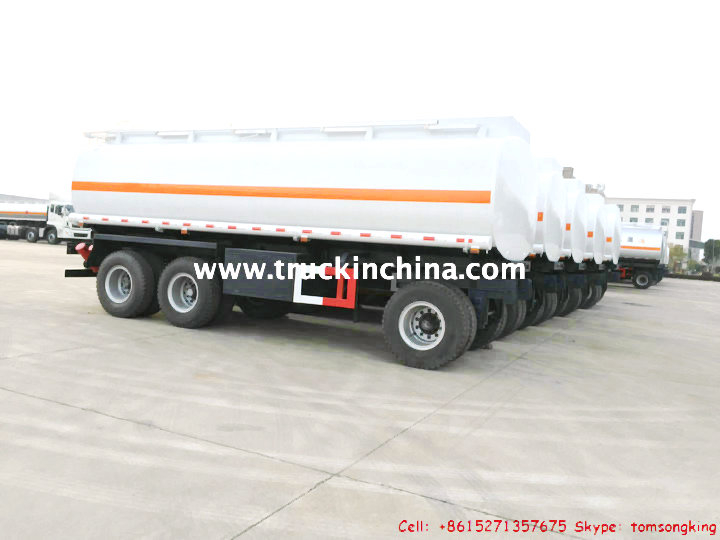

Full tank trailer 3axles Tanker Fuel /Water/oil diesel <Customization>

Full tank trailer 3axles Tanker Fuel /Water/oil diesel
Quantity:

Full tank trailer Tanker Fuel /Water/oil diesel fuel tank trailer<Customization> 3axles tank capacity 15000L~22000L EXW$20000~25000

Full tank trailer 2axles Tanker Fuel /Water/oil <Customization> diesel fuel tank trailer

 with pump engine

 Specification  15000   ~22,000 liter  tanker trailer specifications just for reference





         DIMENSIONS




         Tare  Weight




         4500kg




         Payload




         15000----22000 kg




         Total  Weight




         18000 ----25500kg




         Overall  Length




         Refer drawing




         Overall  Width




         Refer drawing mm (maximum 2)




         Overall  Height




         Refer drawing




         Wheel track




         Refer drawing mm




         Wheel base




         Refer drawing mm




         STANDARD SPECIFICATION




         Main  Frame




         Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes 505mm Height, Top Flange 14mm,width 140mm; Middle Flange 6mm ;Bottom Flange 16mm,width 140mm




         Axle




         Two Units of Dongfeng DANA axles.




         Suspension




         3-axle spring Suspension




         Landing Gear




         No




         Wheel Rim




         6---12units




         Tyre




         6 --12 units of size 10.00-20 ; 11.00-20;11.00R20;11.00R22.5




         Pneumatic Braking System




         30/30 spring brake chamber (S Cam); eliable local brand 40L air tank ;  reliable local brand standard coppery air-connector.




         Electrical  System




         24V 7-pin socket; reliable local brand standard red rear lights, orange turning lights, red rear reflectors, 3 orange side lights and 3 orange side reflectors each side 6, standard Cable.




         Tank




         15000---22,000 litres capacity





         Shell baffles 6 mm  carbon steel




         Tank fittings




         Manhole covers top filler



          Bottom coupling DN80 discharge system




         Painting




         as client requirement





 TIC TRUCKS www.truckinchina.com

fuel tankers Pup Trailer12- Pup Trailer tankfuel tankers Pup Trailer14- Pup Trailer tankIVECO 682 fuel tankers04- Pup Trailer tank_0001
