Customization, Cost and Control Built How You Want it, at a Price You Can Afford. f

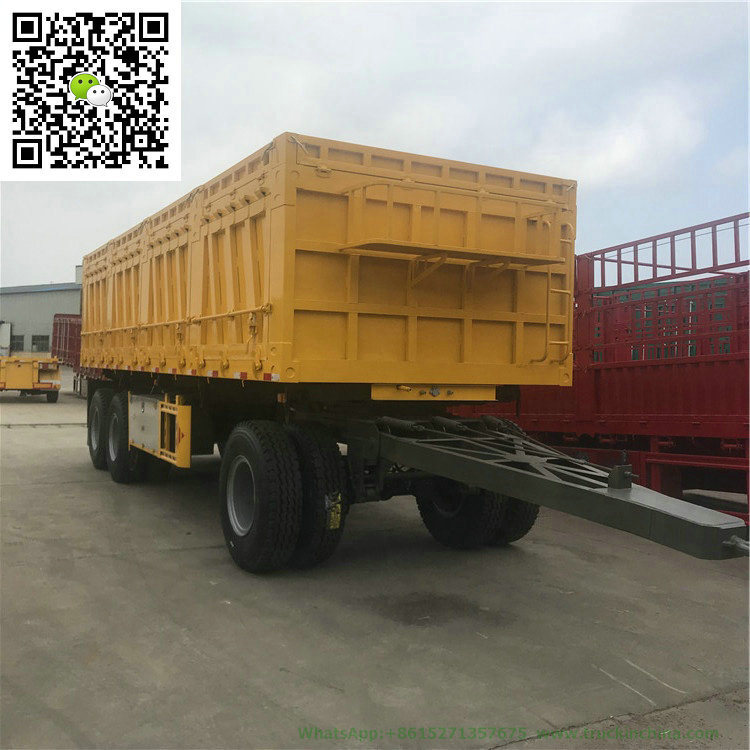

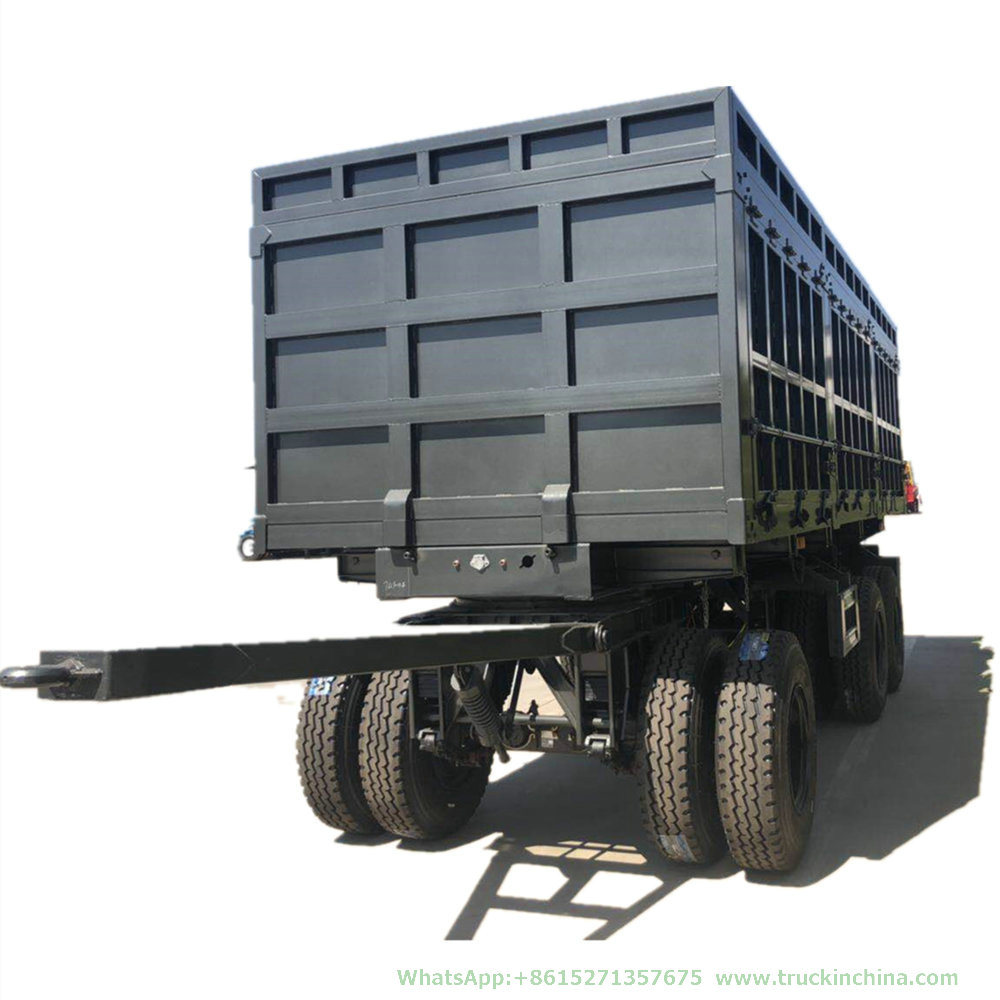

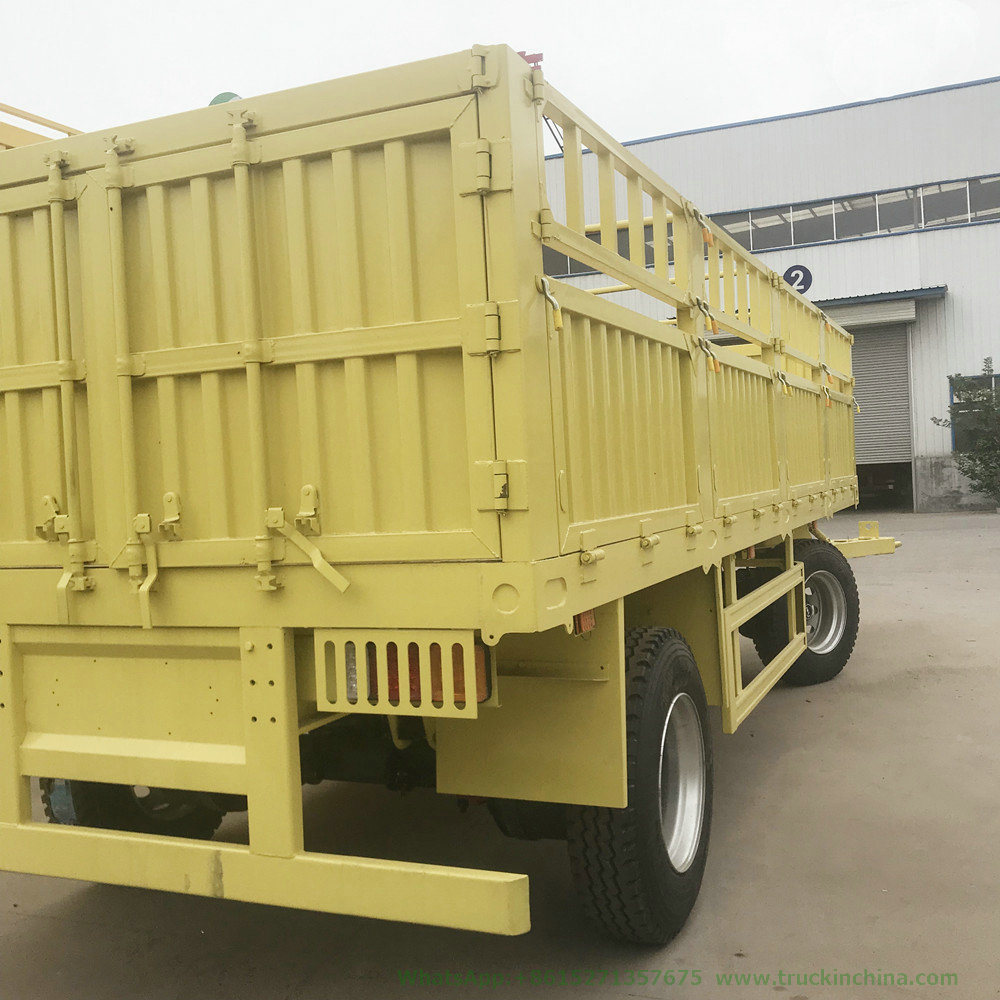

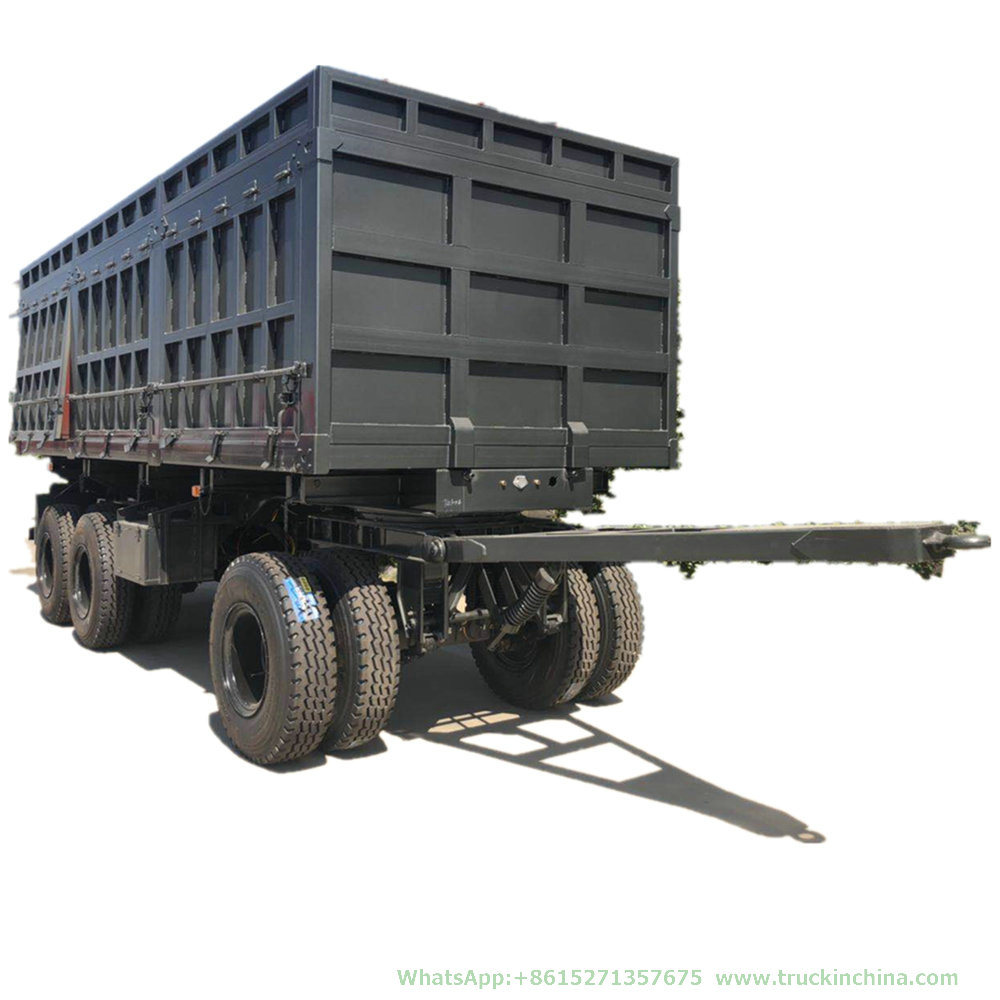

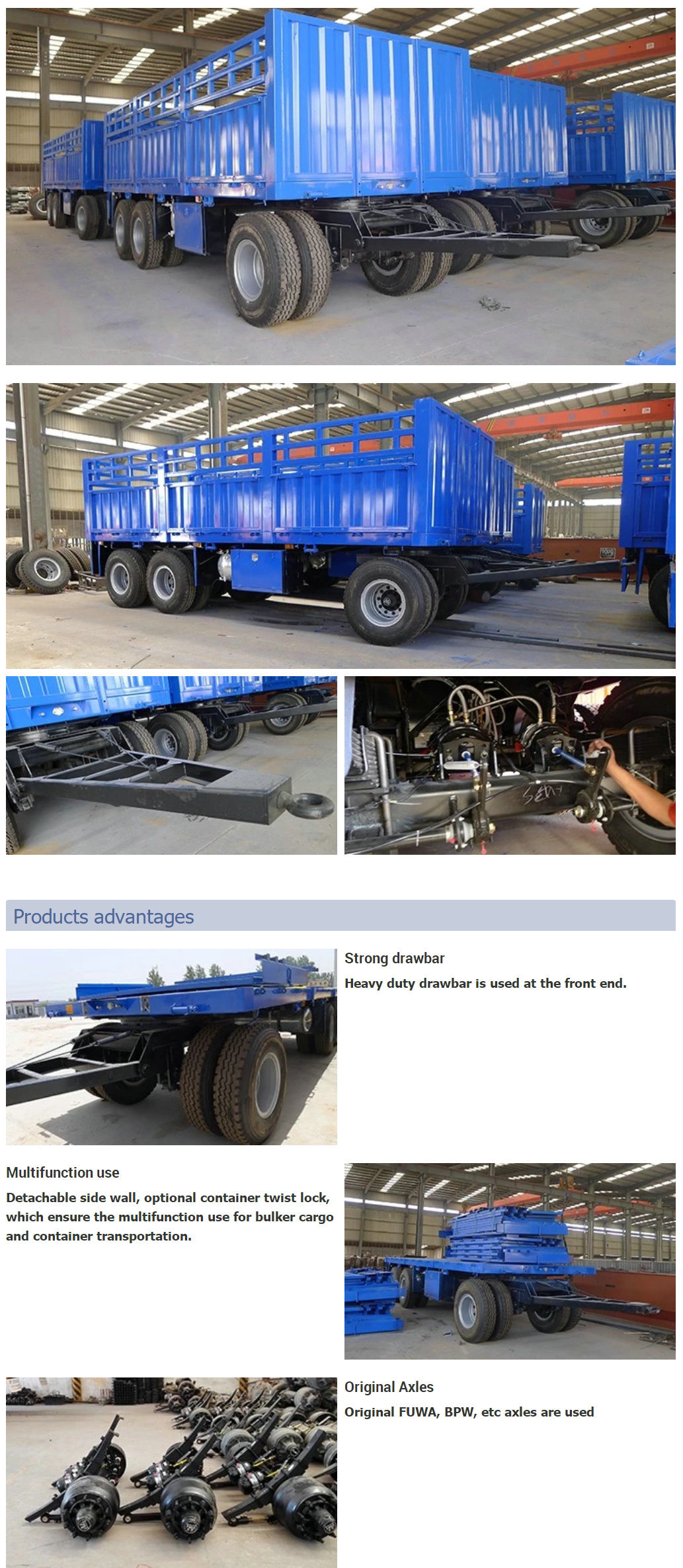

3 Axle 30 Ton Drawbar Stake Full Trailer

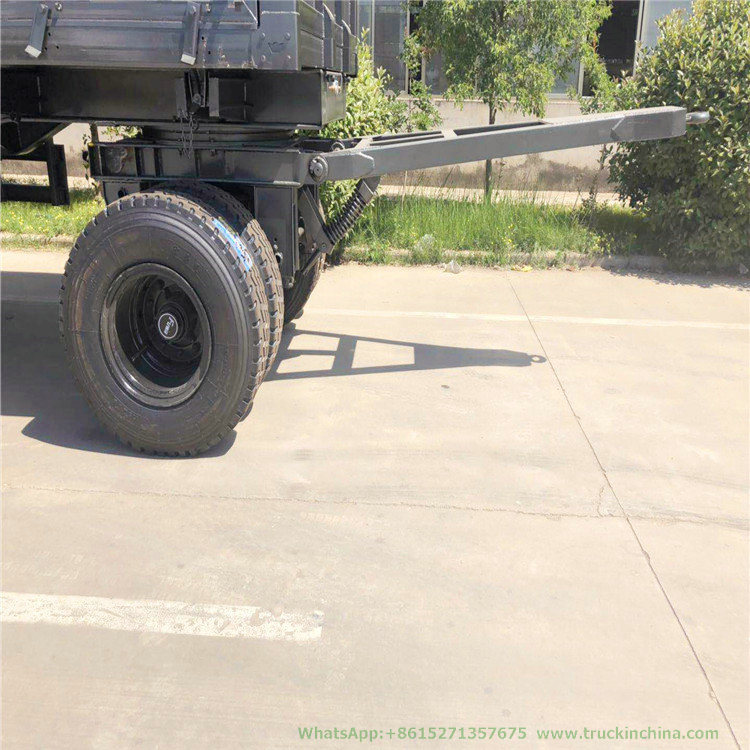

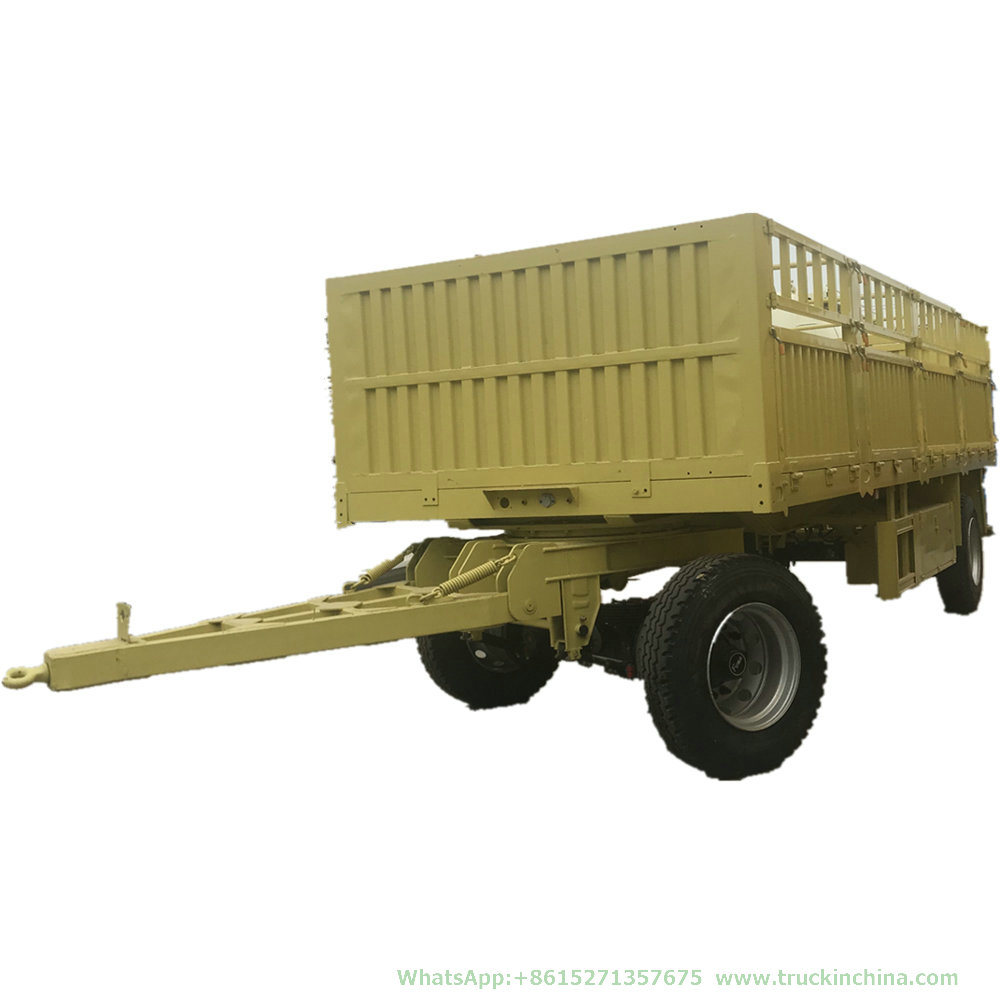

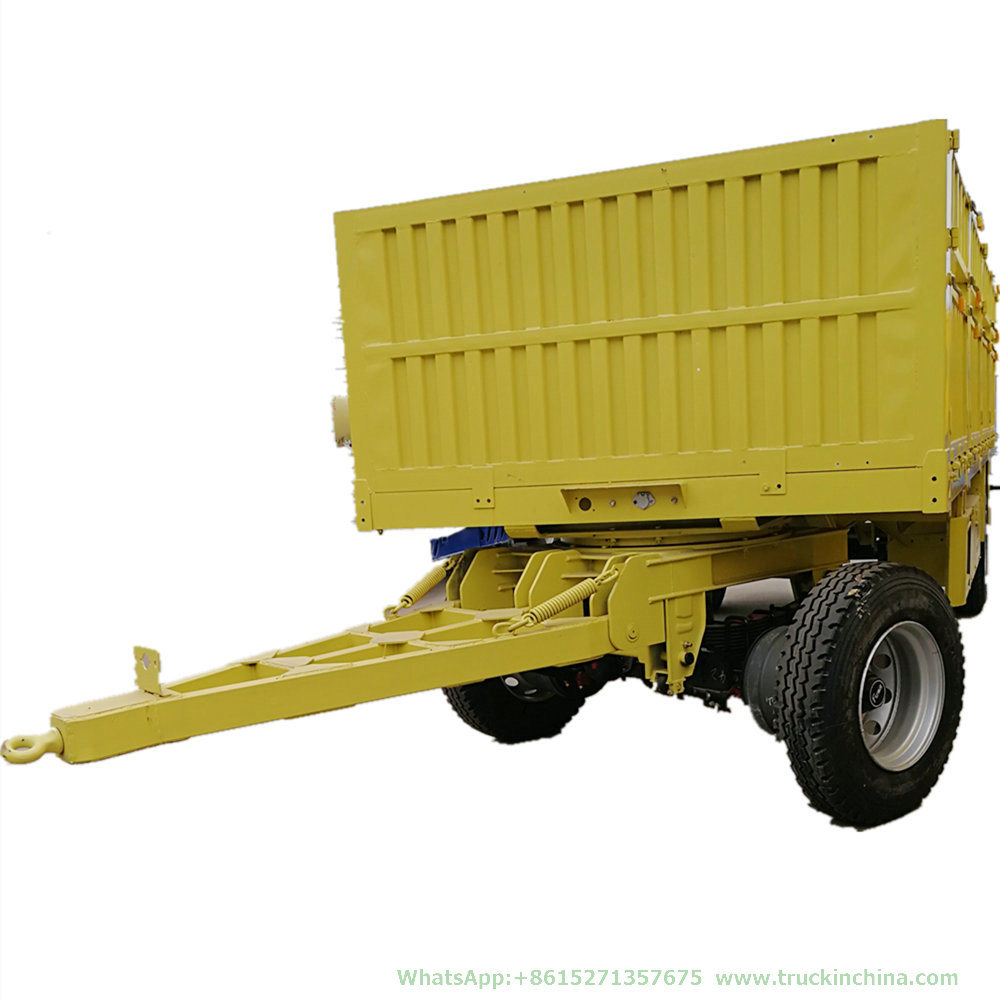

2 Axles Dolly Full Trailer With Draw Bar For Sale
Axle:
Famous Brand Axle Support
Trailer Durable and High Truck Attendance Rate
Chassis:
China Best Q345B-T700 support Stronger Main Beam
Tire:
Good Quality Tire support Trailer Running Safety&Smoothly
King Pin:
JOST Detachable Type support Durable and Fast&Easy Replace
Emergency Valve:
Fast Response,Low Failure support Safetly⪻otect Tire Longer Time Use
Parameters:
| Overall Dimension | 7000*2500*1500mm or Customized |
| Curb Weight | 3.5T |
| Loading Capacity | 30T |
| Main Beam Spec. | T700/Q345 Steel, Height:500mm, Plate Thickness:8-16mm |
| Side Frame | Channel Steel |
| Cross Brace | Channel Steel/Bending Steel |
| Suspension | Mechanical Suspension, Air Suspension or Optional/ Tandem or Single Suspension |
| Leaf Spring | 10-layers leaf spring(90mm*13mm*10pcs) |
| Axle Spec. | 13T/16T/20T BPW or FUWA brand |
| King Pin | 2"(50mm)or3.5"(90mm) JOST Brand |
| Tire | 11.00R20/12.00R20/ 12R22.5 |
| Brake Chamber | 2sets |
| Electric System | 24V, One Set 6-core Standard Cable |
| Light | Tail lamp with turn signal,brake light & reflector,side lamp etc |
| Painting | Sand blasting, prime coating, surface painting,color optional, wax polishing |
| Packing | FCL Container, Ro-ro Shipment or Optional |

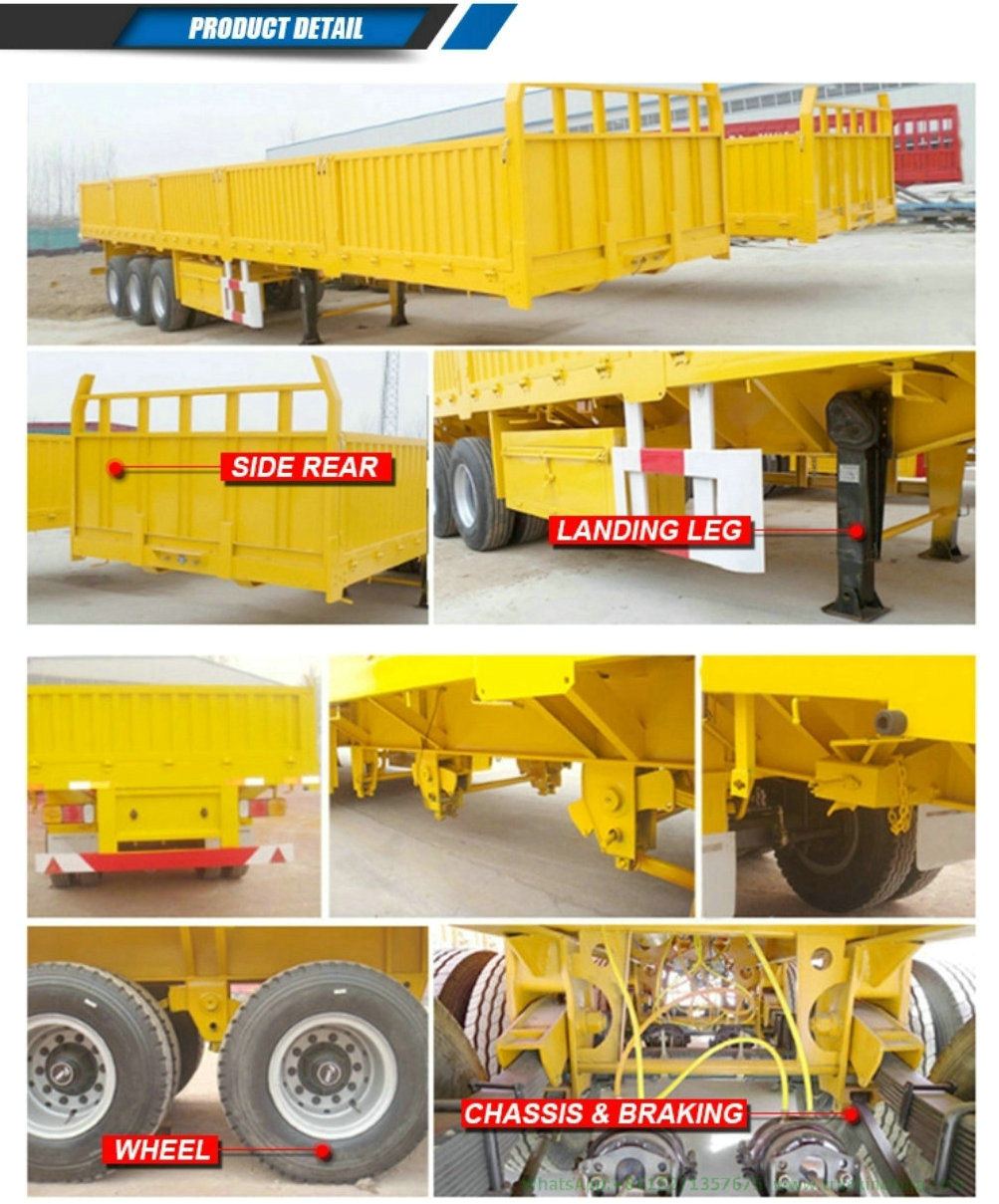

3-Axle Stake Semi Trailer with Dolly for Cargo Transportation 12 Wheels Dolly Trailer
Tare Weight |
4500kg |
Payload |
15000----35000 kg |
Total Weight |
18000 ----39900kg |
Overall Length |
Refer drawing |
Overall Width |
Refer drawing mm (maximum 2) |
Overall Height |
Refer drawing |
Wheel track |
Refer drawing mm |
Wheel base |
Refer drawing mm |
STANDARD SPECIFICATION |
Main Frame |
Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes 505mm Height, Top Flange 14mm,width 140mm; Middle Flange 6mm ;Bottom Flange 16mm,width 140mm |
Axle |
FUWA/ BPW / L1 ,Dongfeng DANA axles. |
Suspension |
3-axle spring Suspension |
Landing Gear |
No |
Wheel Rim |
6---12units |
Tyre |
6 --12 units of size 10.00-20 ; 11.00-20;11.00R20;11.00R22.5 |
Pneumatic Braking System |
30/30 spring brake chamber (S Cam); eliable local brand 40L air tank ; reliable local brand standard coppery air-connector. |
Electrical System |
24V 7-pin socket; reliable local brand standard red rear lights, orange turning lights, red rear reflectors, 3 orange side lights and 3 orange side reflectors each side 6, standard Cable. |
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
| Overall parameter | | Tare weight | 5500kg | | Payload | 14000kg | | Dimension | 6500×2500×1470(mm) | | Product | 3 axle full trailer for heavy full trailer is safe, simple and durable, trailer itself is without power, need the tractor to tow it or forklift truck, full trailer greatly improve the effeciency of goods transfer,reduce the manpower cost. | Frame |
| Main beam height | 300mm | Platform thickness | 3mm diamond steel plate |
| Upper plate thickness | 14mm | Turntable | Equiped |
| Lower plate thickness | 16mm | Electrical voltage | 24V |
| Web plate thickness | 8mm | Receptacle | 7 wire harness |
| Axle |
| Axle weight load | 13T | Suspension | FUWA brand |
| Axle brand | FUWA or BPW | Steel spring | 12pieces |
| Wheel |
| Wheel base | / | Rim | 9.00-9.20 |
| Wheel track | -/1840 | Tire specs. | 1200R22.5 |
| Number of tires | 8pieces | Tire brand | LingLong,Taitong |
Axle:
Famous Brand Axle Support
Trailer Durable and High Truck Attendance Rate
Chassis:
China Best Q345B-T700 support Stronger Main Beam
Tire:
Good Quality Tire support Trailer Running Safety&Smoothly
King Pin:
JOST Detachable Type support Durable and Fast&Easy Replace
Emergency Valve:
Fast Response,Low Failure support Safetly⪻otect Tire Longer Time Use
Parameters:
| Overall Dimension | 10000*2500*3500mm or Customized |
| Curb Weight | 9.0T |
| Loading Capacity | 30-50T |
| Main Beam Spec. | T700/Q345 Steel, Height:500mm, Plate Thickness:8-16mm |
| Side Frame | Channel Steel |
| Cross Brace | Channel Steel/Bending Steel |
| Suspension | Mechanical Suspension, Air Suspension or Optional/ Tandem or Single Suspension |
| Leaf Spring | 10-layers leaf spring(90mm*13mm*10pcs) |
| Axle Spec. | 13T/16T/20T BPW or FUWA brand |
| King Pin | 2"(50mm)or3.5"(90mm) JOST Brand |
| Tire | 11.00R20/12.00R20/ 12R22.5 |
| Brake Chamber | 2sets |
| Electric System | 24V, One Set 6-core Standard Cable |
| Light | Tail lamp with turn signal,brake light & reflector,side lamp etc |
| Painting | Sand blasting, prime coating, surface painting,color optional, wax polishing |
| Packing | FCL Container, Ro-ro Shipment or Optional |
Carry Box Roller Turntable Full Draw Bar Dolly Trailer
| Overall Dimension | 7000*2500*1500mm or Customized |
| Curb Weight | 5.0T |
| Loading Capacity | 40T |
| Main Beam Spec. | T700/Q345 Steel, Height:500mm, Plate Thickness:8-16mm |
| Side Frame | Channel Steel |
| Cross Brace | Channel Steel/Bending Steel |
| Suspension | Mechanical Suspension, Air Suspension or Optional/ Tandem or Single Suspension |
| Leaf Spring | 10-layers leaf spring(90mm*13mm*10pcs) |
| Axle Spec. | 13T/16T/20T BPW or FUWA brand |
| King Pin | 2"(50mm)or3.5"(90mm) JOST Brand |
| Tire | 11.00R20/12.00R20/ 12R22.5 |
| Brake Chamber | 2sets |
| Electric System | 24V, One Set 6-core Standard Cable |
| Light | Tail lamp with turn signal,brake light & reflector,side lamp etc |
| Painting | Sand blasting, prime coating, surface painting,color optional, wax polishing |
| Packing | FCL Container, Ro-ro Shipment or Optional |
