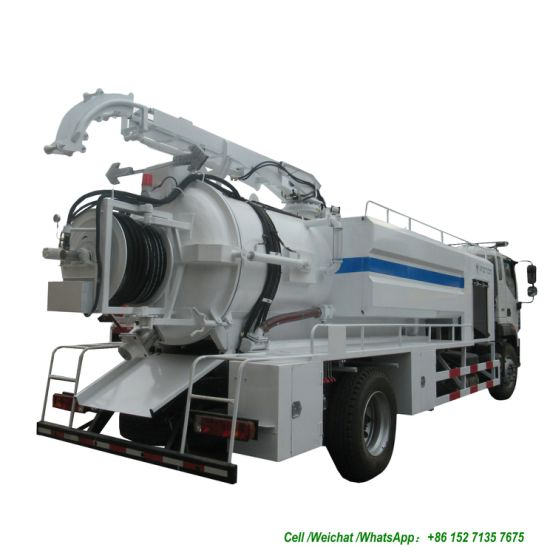

Foton Sewer High Pressure Jetting Combined Vacuum Pump Suction Truck (10m3 -12 m3 Right Hand Drive EURO 5 Sewage Cleaning Tanker)
| Quantity: | |
|---|---|
-
DRZ5160
-
FOTON
-
8705
-
Shanghai, China
-
800
-
T/T
Foton Sewer High Pressure Jetting Combined Vacuum Pump Suction Truck (10m3 -12 m3 Right Hand Drive EURO 5 Sewage Cleaning Tanker)
Cesspit Emptier Vacuum Tanker Truck
For Cesspool Emptier
carbon - stainless steel
| m | Descriptions | Spesifications and Types | ||
| Vehicle | Brand | DRZE | ||
| Overall Dimensions L*W*H | 8670*2500*3690mm | |||
| Weights | GVW. | 16000kgs | ||
| Kurb Weight | 10520kgs | |||
| Rated Payload | 5350kgs | |||
| Chassis | Chassis Brand | Sino truck | ||
| Drive Type | 4x2 | |||
| Steering | LHD or RHD | |||
| Engine | Brand | Foton engine | ||
| Power | 190-266HP | |||
| Emmission Level | EURO 2 or Euro 3 or EURO 5 | |||
| Performance | Max. Speed | 76km/h | ||
| Wheel base | 3800,4700 mm | |||
| Tyre Specifications | 11.00-20 18PR,11.00R20 18PR,12.00-20 | |||
| No. of Tyre | 6 pcs (1 spare tyre included) | |||
| Cab | Cab Capacity | 2 persons allowed | ||
| Body/Superstructure | Tank | Capacity | water tanker 4m3 sewer tanker 8m3 | |
| Material | 5mm or 6mm high quality carbon steel | |||
| Vacuum pump &high pressure pump | China famous vacuum pump and high pressure pump | |||
| Vacuum rate | 99% thorically | |||
| Suction head | 6m | |||
| Rotation speed | 500 rpm,low noise,high efficiency | |||
| Basic Equipments | Install vacuum pumps and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose | |||
| Paint | Tank color is according to client's requirements. | |||
| Optional Equipments | Italy or Spain vacuum pumps | |||
| Stainless steel | ||||
| Anti-rust coating inside tank | ||||
| Volume of tank | Sewage Sludge | 5-8 m3 |
| Clean Water | 1.5 -4m3 | |
| Color | Painted in the corporation's colours with logo on both front doors as specified by the client | |
| Material of tanker | 6mm Carbon steel | |
| Special function | Suction height | ≥5 (m) |
| Suction time | 250(S) | |
| Maximum Inclination Angle | ≥45° | |
| Maximum vacuum | ≥11 Mpa | |
| Lifting time | ≤45 S | |
| The Cover opening Angle | ≥75° | |
| The cover opening time | ≤25 S | |
| Suction pipe | 3m length and 100 mm in diameter | |
The pictures are for your reference only.
Sewage suction truck capacity from 3000 litres to 20,000 litres
Fecal suction truck capacity from 3000 litres to 10,000 litres
septic tank truck, sewage suction truck, toilet truck,sewer truck,
| Tank | Capacity | 8000 -12000Liters | |
| Material | 6mm high quality carbon steel Q235/Q345 | ||
| Vacuum | Pump | China famous vacuum pump | |
| Rating rotate speed | 1400R/M | ||
| Min rotate speed | > 800R/M | ||
| Max. Suction head lift | >6 meters | ||
| Time for full suction | < 15min | ||
| Basic Equipments | a. The vacuum pump and hydraulic system are driven by the engine power through the power take-off(PTO); b. The suction truck is equipped with a level inspection window and a self-flowing port, a hand washing device, an anti-overflow valve, a suction pipe of 8 meters, a hydraulic opening of the rear door, and a SK-15 water circulation vacuum pump. The suction truck has a large suction stroke and suction. Besides, the tank has a lifting function. | ||
| Coating | a. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects. b. The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability. c. Tank color is customerized if necessary | ||
| Optional Equipments | Italy or Spain vacuum pumps | ||
| Stainless steel | |||
| Anti-rust coating inside tank | |||
| Vehicle brand | AUMARK C | AUMARK C | AUMARK C | Aumark C | Aumark C | Aumark C | Aumark C | Aumark C | Aumark C | Aumark C | AUMARK C | AUMARK C | AUMARK C | AUMARK C | AUMARK C | AUMARK C | AUMARK C | AUMARK C | AUMARK C | AUMARK C | AUMARK C | AUMARK C | AUMARK C | AUMARK C | AUMARK C | |
| Vehicle model | BJ1039V4JD3-F | BJ1039V4JD3-F | BJ1049V8JD6-F1 | BJ1051VCJEA-F | BJ1051VCJEA-F | BJ1051VCJEA-F | BJ1051VCJEA-F1 | BJ1051VCJEA-F1 | BJ1051VCJEA-F1 | BJ1069VDJEA-FA | BJ1061VCJEA-F | BJ1061VCJEA-F | BJ1069VDJEA-FA | BJ1061VCJEA-F | BJ1061VCJEA-F | BJ1061VCJEA-F | BJ1061VCJEA-F1 | BJ1061VCJEA-F1 | BJ1089VDJED-F1 | BJ1061VCJEA-F1 | BJ1129VHPEG-F | BJ1129VHPEG-F | BJ5129VJCEK-F | BJ1129VHPEG-F1 | BJ1129VHPEG-F1 | |
| Cabin | Single row seat tiltable | Single row seat tiltable | 1800 Single row seat tiltable | A1995 Single row seat tiltable | A1995 Single row seat tiltable | L1995 Single row seat tiltable | L1995 Single row seat tiltable | A1995 Single row seat tiltable | A1995 Single row seat tiltable | One row seat,tiltable | Single row seat tiltable | Single row seat tiltable | A1995 Single row seat tiltable | A1995 Single row seat tiltable | A1995 Single row seat tiltable | L1995 Single row seat tiltable | Single row seat tiltable | Single row seat tiltable | A1995 Single row seat tiltable | A1995 Single row seat tiltable | One and half row seat tiltable | One and half row seat tiltable | One and half row seat tiltable | One and half row seat tiltable | One and half row seat tiltable | |
Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 4955×1900×2240 4890×1820×2700 | 4955×1900×2240 4890×1820×2700 | 5995×1900×2260 5875×1840×2190 | 5995×2150×2320 | 5995×2150×2320 5875×2030×2230 | 5995×2150×2320 5875×2030×2230 | 5995×2150×2320 5875×2030×2230 | 5995×2150×2320 5875×2030×2230 | 5995×2150×2320 5875×2030×2230 | 5995×2150×2320(CBU) 5875×2030×2230 | 6995×2250×2350 | 6995×2250×2350 | 6995×2230×2320 | 6995×2250×2350/6725× 2100×2280 | 6995×2250×2350/6725× 2100×2280(chassis) | 6995×2250×2350/6725× 2100×2280(chassis) | 6995×2250×2350(CBU) 6725×2100×2280 | 6995×2250×2350(CBU) 6725×2100×2280 | 7995×2250×2400/7725× 2100×2350(CHASSIS) | 6995×2250×2350/6725× 2100×2280(chassis) | 8480×2270×2510 | 8445×2490×2500 | 8995×2450×3635 | 8480×2270×2510/8310× 2270×2440 | 8480×2270×2510/8310× 2270×2440 |
Inner dimensions of the cargo body (LxWxH)mm | 3200×1810×380 | 3200×1810×380 | 4230×1810×380 | 4230×2050×400 | 4230×2050×400 | 4230×2050×400 | 4230×2050×400 | 4230×2050×400 | 4230×2050×400 | 4230×2050×400 | 5150×2050×550 | 5150×2050×550 | 5150×2050×400 | 5150×2050×550/5150×2050 ×2000 | 5150×2050×550 | 5150×2050×550 | 5150×2050×550 | 5150×2050×550 | 6150×2050×550 | 5150×2050×550 | 6200×2100×550 | 6200×2300×550 | 6750×2300×2300 | 6200×2100×550 | 6200×2100×550 | |
| Driving type | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | |
| Wheel base (mm) | 2600 | 2600 | 3360 | 3360 | 3360 | 3360 | 3360 | 3360 | 3360 | 3360 | 3800 | 3800 | 3800 | 3800 | 3800 | 3800 | 3800 | 3800 | 4500 | 3800 | 4700 | 4700 | 5200 | 4700 | 4700 | |
| Wheel track (front/rear) | 1490/1425 | 1490/1425 | 1490/1425 | 1730 /1590 | 1730/1590 | 1730 /1590 | 1730 /1590 | 1730 /1590 | 1730 /1590 | 1730/1590 | 1685 /1615 | 1665 /1615 | 1692/1594 | 1665/1615 | 1685/1615 | 1685 /1615 | 1665/1615 | 1665/1615 | 1.055555556 | 1685/1615 | 1710/1680 | 1830/1800 | 1818/1800 | 1710/1680 | 1710/1680 | |
| Min. ground clearance | ≥180 | ≥180 | ≥180 | 180 | ≥182 | 180 | ≥180 | 180 | 180 | ≥180 | 180 | 180 | ≥180 | 180 | ≥190 | 180 | ≥190 | ≥190 | 180 | ≥190 | 180 | ≥180 | ≥180 | ≥180 | ≥180 | |
Weight data | Curb weight (kg) | 2300(CBU) 1940(Chassis) | 2300(CBU) 1940(Chassis) | 2500/2100(chassis) | 3070 | 3070/2600(chassis) | 3070/2600 | 3120/2650 | 3120/2650 | 3120/2650 | 3000 | 3770 | 3650 | 3145/2700 | 3650/3000 | 3770/3000(chassis) | 3700/3090(chassis) | 3700(CBU) 3090(chassis) | 3700(CBU) 3090(chassis) | 3370(chassis) | 3820/3050(Chassis) | 6050 | 4600 | 5400 | 4800 4050 | 4800 4050 |
| Rated payload (kg) | 1070 | 1070 | 1865 | -- | -- | -- | -- | -- | -- | 3955 | -- | 4650 | 3160 | 4650/4200() | -- | -- | -- | -- | -- | -- | 5995 | 9990 | 7995 | -- | -- | |
| Persons in cab | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Gross vehicle weight | 3500 | 3500 | 4495 | 6500 | 6500 | 6500 | 6500 | 6500 | 6500 | 7150 | 8200 | 8495 | 6500 | 8495/7395 | 8200 | 8200 | 8200 | 8500 | 8550 | 8200 | 12240 | 14785 | 13495 | 10800 | 10800 | |
| Whole vehicle main performance | Max. speed(km/h) | 110 | 110 | 110 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 105 | 95 | 99 | 95 | 99 | 99 | 105 |
| Max. slope of climb | 0.3 | 0.3 | ≥30 | ≥30 | ≥30% | ≥30 | ≥30 | ≥30 | ≥30 | ≥20 | ≥30 | ≥30 | ≥30 | ≥30 | ≥30% | ≥30 | ≥30 | ≥30 | ≥30 | ≥30 | ≥30 | ≥30 | ≥30 | ≥30 | 25 | |
| Fuel consumption | 9.6 | 9.6 | ≤12 | ≤14.7 | 11 | ≤14.7 | ≤13L | ≤13L | ≤13L | ≤14.7 | ≤14.7 | ≤14.7 | 12 | 14 | 14 | ≤14.7 | ≤15L | 14 | -- | ≤15L | ≤17 | ≤17 | ≤17 | 16L | 17 | |
| Min. turning diameter | 13 | 13 | 14.3 | 15 | 14.5 | 14.5 | 15 | 15 | 15 | 14.5 | 16 | 16 | 16 | 16 | 16 | 14.5 | 17 | 16.2 | -- | 17 | 20.5 | 20.5 | 20.5 | 21 | 20.7 | |
Engine | Model | ISF2.8s4107P (Euro ) | ISF2.8s4107P (Euro ) | ISF2.8s4148T(Euro) | ISF3.8s3141(Euro) | ISF3.8s3141 (Euro ) | ISF3.8s3141(Euro) | ISF3.8s4141 (Euro ) | ISF3.8s4141 (Euro ) | ISF3.8s4141 (Euro ) | ISF3.8s3141 | ISF3.8s3154(Euro) | ISF3.8s3154(Euro) | ISF3.8s3141(Euro) | ISF3.8s3141(Euro) | ISF3.8s3154(Euro ) | ISF3.8s3154(Euro) | ISF3.8s4154 (Euro ) | ISF3.8s4154 (Euro ) | ISF3.8s4154(Euro ) | ISF3.8s4154 (Euro ) | ISF3.8s3168(Euro) | ISF3.8s3168(Euro) | ISF3.8s3168(Euro) | ISF3.8s4168 (Euro ) | ISF3.8s4168 (Euro ) |
Type | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke , Water- cooling,turbocharging middle | Four-cylinder,In-line,Four- stroke , Water- cooling,turbocharging middle | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke , Water- cooling,turbocharging middle | Four-cylinder,In-line,Four- stroke , Water- cooling,turbocharging middle | Four-cylinder,In-line,Four- stroke , Water- cooling,turbocharging middle | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | Four-cylinder,In-line,Four- stroke,Water-cooling,turbocharging middle cooling | |
| Displacement(L) | 2.78 | 2.78 | 2.78 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 4 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 3.76 | 4 | 3.76 | |
| Rated power(kw/rpm) | 80/3600 | 80/3600 | 110/3200 | 105/2600 | 105/2600 | 105/2600 | 105/2600 | 105/2600 | 105/2600 | 105/2600 | 115/2600 | 115/2600 | 105 | 115/2600 | 115(2600) | 115/2600 | 115(2600) | 115(2600) | 115/2600 | 115(2600) | 125/2600 | 125/2600 | 125/2600 | 125(2600) | 125(2600) | |
| Max torque | 280/1400~2400 | 280/1400~2400 | 360/1800~2700 | 450/(1200~2200) | 450/(1200~2200) | 450/(1200~2200) | 450/(1200~2200) | 450/(1200~2200) | 450/(1200~2200) | 450/(1200~2200) | 500/(1200~1900) | 500/(1200~1900) | 450/(1200~2200) | 500/1200~1900 | 500/1200-1900 | 500/(1200~1900) | 500/1200~1900 | 500/1200~1900 | 500/1200~1900 | 500/1500 | 600/(1300~1700) | 600/(1300~1700) | 600/(1300) | 600/(1300-1700) | 600/(1300-1700) | |
Gearbox | Model | 5S400 | 5S400 | 5S400 | 651B | 651B | 651B | 651B | 651B | 651B | 651B | 651B | 651B | 651B | 651B | 651B | 651B | 651B | 651B | 651B | 651B | 6G120 | 6G120 | 6G120 | ZFE2407 | ZFE2407 |
Speed ratio | 5.015/2.543/1.536/1.000/0.78 9/4.481 | 5.015/2.543/1.536/1.000/0.78 9/4.481 | :5.015;:2.543; :1.536;:1.000; 0.789;R:4.481 | I:5.513,II:3.417,III: 2.115,IV:1.381,V:1.000,VI:0.795,R:5.128 | I:5.513,II:3.417,III: 2.115,IV:1.381,V: 1.000,VI:0.795,R: | I:5.513,II:3.417,III: 2.115,IV:1.381,V: 1.000,VI:0.795,R: | I:5.513,II:3.417,III: 2.115,IV:1.381,V: 1.000,VI:0.795,R: | I:5.513,II:3.417,III: 2.115,IV:1.381,V: 1.000,VI:0.795,R: | I:5.513,II:3.417,III: 2.115,IV:1.381,V: 1.000,VI:0.795,R: | I:5.513,II:3.417,III: 2.115,IV:1.381,V: 1.000,VI:0.795,R: | I:5.513,II:3.417,III: 2.115,IV:1.381,V: 1.000,VI:0.795,R: | I:5.513,II:3.417,III: 2.115,IV:1.381,V: 1.000,VI:0.795,R: | 5.513,3.417,2.115, 1.381,1,0.795,R5.128 | 5.513,3.417,2.115, 1.381,1,0.795,R5.128 | I:5.513,II:3.417,III: 2.115,IV:1.381,V: 1.000,VI:0.795,R: | I:5.513,II:3.417,III: 2.115,IV:1.381,V: 1.000,VI:0.795,R: | I:5.513,II:3.417,III: 2.115,IV:1.381,V: 1.000,VI:0.795,R: | I:5.513,II:3.417,III: 2.115,IV:1.381,V: 1.000,VI:0.795,R: | I:5.513,II:3.417,III: 2.115,IV:1.381,V: 1.000,VI:0.795,R: | I:5.513,II:3.417,III: 2.115,IV:1.381,V: 1.000,VI:0.795,R: | 6.012;3.292;2.004; 1.376;1;0.789;5.395 | 6.012;3.292;2.004; 1.376;1;0.789;5.395 | 6.012;3.292;2.004; 1.376;1;0.789;5.395 | 6.02/3.21/2.07/1.4/1.0/0.79/R 5.58 | 6.012;3.292;2.004; 1.376;1;0.789;5.395 | |
Clutch | Type | diaphragm springφ310×φ190 | diaphragm springφ310×φ190 | diaphragm springφ310*φ190 | diaphragm springφ330*φ200 | diaphragm springφ330*φ200 | diaphragm springφ330*φ200 | diaphragm springφ330*φ200 | diaphragm springφ330*φ200 | diaphragm springφ330*φ200 | φ330×φ200single disc,dry type,diaphragm spring | φ350*φ220 diaphragm spring | φ350*φ220 diaphragm spring | Valeo springφ330*φ200 | φ350*φ220 diaphragm spring | diaphragm springφ350*φ220 | diaphragm springφ350*φ220 | diaphragm springφ350*φ220 | diaphragm springφ350*φ220 | diaphragm springφ350*φ220 | diaphragm springφ350*φ220 | φ380*φ250 diaphragm spring | φ380*φ250 diaphragm spring | φ380*φ250 diaphragm spring | diaphragm springφ380*φ250 | diaphragm springφ380*φ250 |
Rear axle | Type/Main reducer ratio | Whole banjo type,Speed ratio:4.875 | Whole banjo type,Speed ratio:4.875 | Whole banjo type,Speed ratio:4.3 | Whole banjo type,Speed ratio: 4.11 | Whole banjo type,Speed ratio:4.11 | Whole banjo type,Speed ratio:4.11 | Whole banjo type,Speed ratio:4.11 | Whole banjo type,Speed ratio:4.11 | Whole banjo type,Speed ratio:4.11 | Whole banjo type,Speed ratio:4.11 | Whole banjo type,Speed ratio:4.33 | Whole banjo type,Speed ratio:4.33 | Whole banjo type,Speed ratio:4.11 | Whole banjo type,Speed ratio:4.33 | Whole banjo type,Speed ratio:4.33 | Whole banjo type,Speed ratio:4.33 | Whole banjo type,Speed ratio:4.33 | Whole banjo type,Speed ratio:4.33 | Whole banjo type,Speed ratio:4.33 | Whole banjo type,Speed ratio:4.33 | Whole banjo type,Speed ratio:4.875 | Whole banjo type,Speed ratio:5.286 | Whole banjo type,Speed ratio:5.125 | Whole banjo type,Speed ratio:4.875 | Whole banjo type,Speed ratio:4.875 |
Suspension | Front suspension/Leaf spring number | non-independent suspension, leaf spring/3 | non-independent suspension, leaf spring/3 | non-independent suspension, leaf spring/7 | non-independent suspension, leaf spring/3+1 | non-independent suspension, leaf spring/3+1 | non-independent suspension, leaf spring/3+1 | non-independent suspension, leaf spring/3+1 | non-independent suspension, leaf spring/3+1 | non-independent suspension, leaf spring/3+1 | non-independent suspension, leaf spring:3+1 | non-independent suspension, leaf spring/9 | non-independent suspension, leaf spring/9 | non-independent suspension, leaf spring/9 | non-independent suspension, leaf spring/9 | non-independent suspension, leaf spring/9 | non-independent suspension, leaf spring/9 | non-independent suspension, leaf spring/9 | non-independent suspension, leaf spring/9 | non-independent suspension, leaf spring/9 | non-independent suspension, leaf spring/9 | non-independent suspension, leaf spring/8 | non-independent suspension, leaf spring/8 | non-independent suspension, leaf spring/8 | non-independent suspension, leaf spring/8 | non-independent suspension, leaf spring/8 |
| Rear suspension/Leaf spring number | non-independent suspension, leaf spring/6 | non-independent suspension, leaf spring/6 | non-independent suspension, leaf spring/4+5 | non-independent suspension, leaf spring/6+7 | non-independent suspension, leaf spring/6+7 | non-independent suspension, leaf spring/6+7 | non-independent suspension, leaf spring/6+7 | non-independent suspension, leaf spring/6+7 | non-independent suspension, leaf spring/6+7 | leaf spring, non-independent suspension, with auxiliary leaf spring:6+7 | non-independent suspension, leaf spring/11+7 | non-independent suspension, leaf spring/11+7 | non-independent suspension, leaf spring/6+6 | non-independent suspension, leaf spring/11+7 | non-independent suspension, leaf spring/11+7 | non-independent suspension, leaf spring/11+7 | non-independent suspension, leaf spring/11+7 | non-independent suspension, leaf spring/11+7 | non-independent suspension, leaf spring/8+7 | non-independent suspension, leaf spring/11+7 | non-independent suspension, leaf spring/10+10 | non-independent suspension, leaf spring/10+10 | non-independent suspension, leaf spring/10+10 | non-independent suspension, leaf spring/10+10 | non-independent suspension, leaf spring/10+10 | |
Steering gear | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Mechanical circular ball type with power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | Circular ball type,Power steering | |
Brake system | Service brake | front:hydraumatic double cylinder dick,working radiusR108,rear:drum | front:hydraumatic double cylinder dick,working radiusR108,rear:drum | front:disc brake,,R120.5 rear:drum brake,φ300×75 | Pneumatic drum brake Φ310*100 | Pneumatic drum brake Φ 310*100 | Pneumatic drum brake Φ 310*100 | Pneumatic drum brake Φ 310*100 | Pneumatic drum brake Φ 310*100 | Pneumatic drum brake Φ 310*100 | Drum brake(Dual circuits pneumatic brake) | Pneumatic drum brake Φ 310*100/130 | Pneumatic drum brake Φ 310*100/130 | Pneumatic drum brake Φ 310*100 | Pneumatic drum brake Φ 310*100/130 | Pneumatic drum brake Φ 310*100/130 | Pneumatic drum brake Φ 310*100/130 | Pneumatic drum brake Φ 310*100/130 | Pneumatic drum brake Φ 310*100/130 | Pneumatic drum brake | Pneumatic drum brake Φ 310*100/130 | Pneumatic drum brake Φ 320*130 | Pneumatic drum brake Φ 360*130 | Pneumatic drum brake Φ 400*130/180 | Pneumatic drum brake Φ 360*130 | Pneumatic drum brake Φ 360*130 |
| Parking brake | Centra drum brake | Centra drum brake | Centra drum brake | Air cut brake | Air cut brake | Centra drum brake | Centra drum brake | Air cut brake | Air cut brake | Air cut brake | Air cut brake | Air cut brake | Air cut brake | Air cut brake | Air cut brake | Centra drum brake | Air cut brake | Air cut brake | Air cut brake | Air cut brake | Air cut brake | Air cut brake | Air cut brake | Air cut brake | Air cut brake | |
| Auxiliary brake | -- | -- | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake | |
| Wheels and tyre size | 195/75R16 | 6.50R15 | 205/75R16 | 7.00R16 | 7.00R16 | 7.00R16 | 6+1/7.00R16 | 7.00R16 | 215/75R17.5 | 6+1/7.00R16 | 7.50R16 | 8.25R16 | 7.00R16 | 8.25R16 | 7.50R16 | 7.50R16 | 8.25R16 | 8.25R16 | 215/75R17.5 | 7.50R16 | 8.25R20 | 9.00-20 | 9.00-20 | 6+1/8.25R20 | 6+1/8.25R20 | |
| Electric | Rated voltage | 12V | 12V | 12V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V |
| Fuel tank (L) | 80L | 80L | 80L | 80L | 80 | 80L | 80L | 80L | 120L | 120 | 120L | 120L | 120L | 120L | 120 | 120L | 120L | 120L | 120L | 120L | 200L | 200L | 200L | 120L | 120L | |
Basic equipment | A/C,Heater,Clutch booster,Adjustable steering wheel,Power steering,cruise | A/C,Heater,Clutch booster,Adjustable steering wheel,Power steering,cruise | Heater,Clutch booster, Adjustable steering wheel, Power steering | electronic accelerator,Heater, A/C,Clutch booster, Adjustable steering wheel, Power steering,Exhaust brake,cruise,ABS,Center control lock Electro driven | Heater,Clutch booster, Adjustable steering wheel, Power steering,cruise,ABS ,rearview mirror defrost | A/C,Heater,Clutch booster,Adjustable steering wheel,Power steering | Electronic throttle, Tachometer,Heater,A/C, Clutch booster,Adjustable steering wheel,Power steering,Exhaust brake, CD Center control lock | Heater,A/C,Clutch booster,Adjustable steering wheel,Power steering, cruise,ABS,rearview mirror defrost | Heater,Clutch booster,Power steering,CD,cruise ,reverse radar,running recorder | Clutch booster,Electric flameout, power steering,tachometer, Heater,Adjustable steering wheel,Exhaust brake | Adjustable steering wheel,Clutch booster , Power steering,A/C,Cruise,ABS ,Center control lock,Electro-driven window glass lifter CD,Traveling data | Adjustable steering wheel,Clutch booster , Power steering,loading sensing pressure proportoining valve | Electronic throttle,Heater, A/C,Clutch booster, Adjustable steering wheel, Power steering | Heater,Clutch booster, Adjustable steering wheel, Power steering,cruise | Heater,Clutch booster, Adjustable steering wheel, Power steering,ABS | A/C , Heater,Clutch booster,Adjustable steering wheel,Power steering, cruise | Heater,A/C,Clutch booster,Adjustable steering wheel,Power steering, Exhaust brake,CD+Center control lock,Electro-driven window glass lifter | Heater,A/C,Clutch booster,Adjustable steering wheel,Power steering, AUX+radio,+Center control lock,Electro-driven window glass lifter running recorder | Heater,Clutch booster,Power steering,CD,cruise ,reverse radar,running recorder | Heater,A/C,Clutch booster,Adjustable steering wheel,Power steering,ABS | Heater,Clutch booster,Adjustable steering wheel,Power steering,,Cruise | Heater,Clutch booster,Adjustable steering wheel,Power steering, | Heater,Clutch booster,Adjustable steering wheel,Power steering, | Heater,A/C,Clutch booster,Adjustable steering wheel,Power steering, Exhaust brake | Heater,A/C,Clutch booster,Adjustable steering wheel,Power steering, running recorder,cruise, AUX+radio | |
option | radio+CD+Center control lock+Electro-driven window glass lifter+reverse radar+ABS+loading sensing pressure proportoining valve | Basic equipment+Center control lock+Electro-driven window glass lifter+radio+CD+reverse radar+ABS+PTO+loading | A/C+cruise+Center control lock+Electro-driven window glass lifter+radio+CD+reverse radar+ABS | none | A/C+MP3 | MP3+loading sensing pressure proportoining valve+CD+Center control lock+Electro-driven window glass lifter+loading sensing | ABS+loading sensing pressure proportoining valve | MP3+CD+Center control lock ,Electro-driven window glass lifter | loading sensing pressure proportoining valve | ruise+Multimedia Audio+ ABS+Disc brake(Front)Drum brake(Behind)+mp3+ Load sensing proportioning valve\ | basic equipment | CD+A/C | Center control lock,Electro- driven window glass lifter,CD,ABS,Traveling data recorder | MP3 | A/C++MP3CD+Center control lock,Electro-driven window glass lifter | MP3+valve+CD+Center control lock,Electro-driven window glass lifter+loading sensing pressure proportoining valve | ABSloading sensing pressure proportoining valve | Basic equipment | loading sensing pressure proportoining valve+ABS+A/C , Center control lock+Electro-driven window glass lifter,air guide sleeve | CD+Center control lock,Electro-driven window glass lifter+MP3 | Basic equipment | A/C+Center control lock+Electro-driven window glass lifter | Basic equipment+A/C++CD+Center control lock+Electro-driven window glass lifter | CD+Center control lock,Electro-driven window glass lifter+MP3 | Basic equipment | |
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
Looking forward to receiving your inquiry!
