| [ Main Technical Parameters ] |

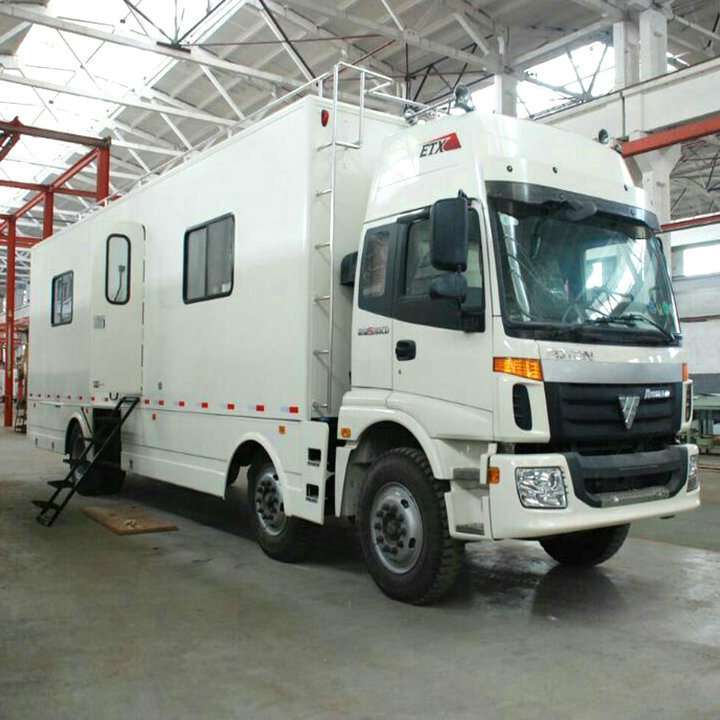

| Production name | DRZ030XSHB5 left hand drive mobile Kitchen food vending van with low price for sale |
| GVW(kg) | 12355 | Rated weight (Kg) | |
| Curb weight (kg) | 12160 | Cab seats (man) | 3 |
| Overall dimensions(mm) | 11825×2490×3650 | Cabinet size(mm) | 8695×2430X2150 |
| Approach / departure angle(°) | 21/10 | F/R overhang(mm) | 1365/3000 |
| Number of axles | 3 | Wheel base(mm) | 1860+5600 |
| Axle-load(Kg) | 2885/2885/6585 | Max speed(Km/h) | 90 |
| [ Chassis Technical Parameters ] |
| Chassis model | BJ1203VKPHP-S | Chassis Name | |
| Brand | FOTON | Manufacturer | Beijing FOTON |
| Tire specification | 10.00-20 18PR | Number of tire | 8 |
| Front track base(mm) | 1900/1900 | Rear track base(mm) | 1847 |
| Fuel Type | Diesel | Emission standard | Euro III |
| Gearbox | 6 forward gears and 1reverse |
| Cab | Auman ETX2200 wide Single row with air condition, left steering wheel |
| Engine model | Engine Manufacturer | Displacement (ml) | Max power(Kw) | Max Horsepower(hp) |
| 6D230-e3P | Tianjin Leiwo engine | 5980 | 170 | 231 |
Configuration Instructions :

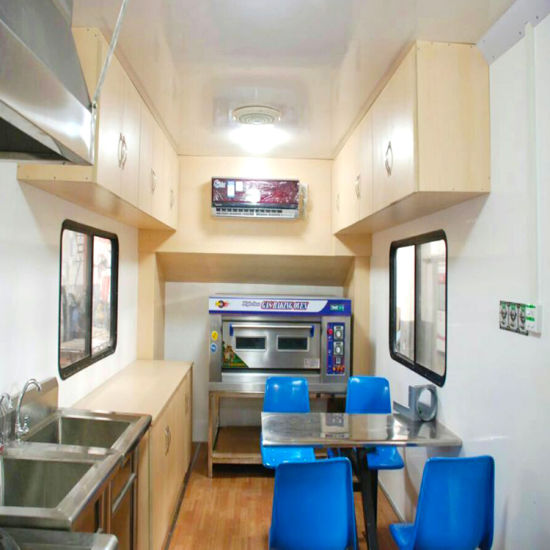

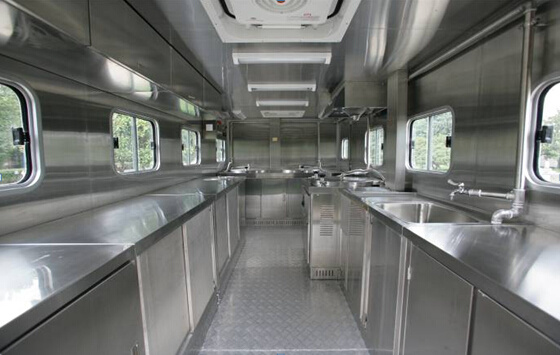

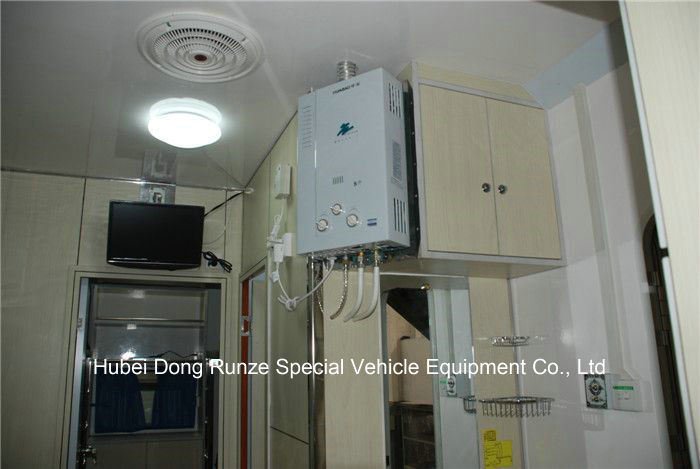

| The compartments is made of cold-rolled steel sheet or glass fiber reinforced plastic material , the compartments with heat insulation function , and the floor made of skidproof , waterproof and wear-resistant aluminum checkered plate ; The top of the compartments is closed and can not open , but the left and right side and the back can be expanded and there is vending bar on both left and right side. The internal compartments is installed with LED vending floodlights or two columns spotlight (5pcs / column), top exhaust fan,megaphone, master switch, USB interface, large space locker; The outside of the compartments is installed two loudspeakers, 105A battery, 220V external power supply interface , 15m external power supply cord, telescopic truck pedal; different truck color and skin stickers are optional . |
| Optional Configuration : | Internal compartments equipment can be customized according to user's requirements such as generator/freezer/cold drink machine/stand booth/cooker, etc.; the left and right sides of the compartments body can choose different structure forms of side panel: the selling windows can be also choosed on any side of the the truck body according to customer demand , the bottom board can be unfold to extend the cargo area in vending operations; the glass sliding window can be also choosed on both side of the compartments body. The back door of the compartment can choose single open door, double flat open door or lift-up door. Both compartments' sides and the back door can be optional advertising glass roller light box or LED screen. Truck roof can choose overhead air conditioning, baggage holder, left and right sides can choose sunshade ,the tail can choose crawling ladder. |
