DRZ5*
-
FOTON
-
8705909990
Customizing ask for better Price.

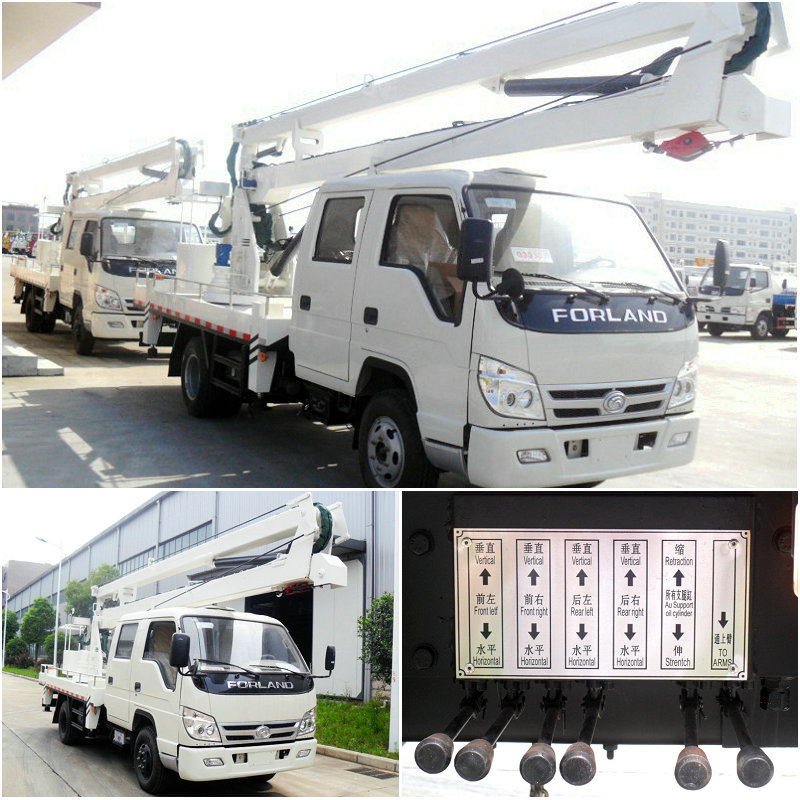

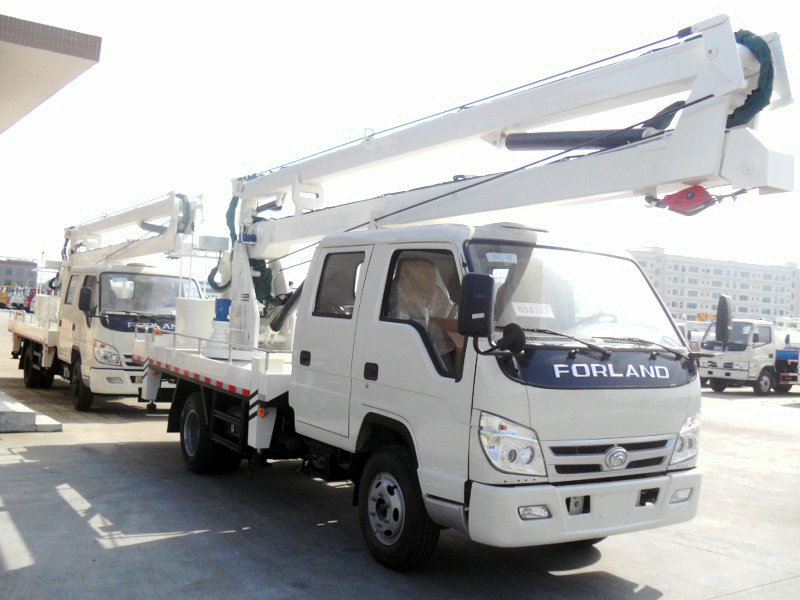

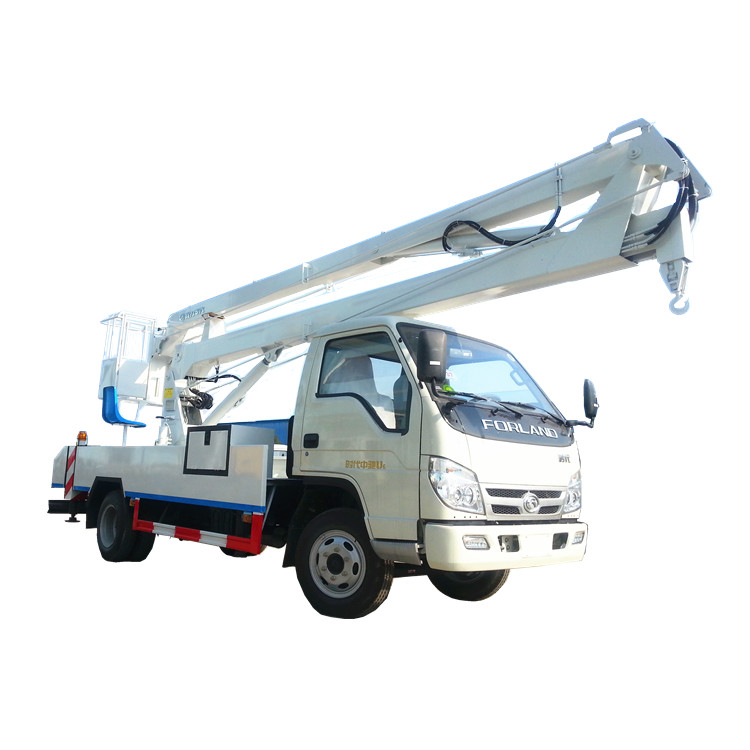

boom trucks aerial bucket truck
| Technical parameters | ||||
| The total mass(kg) | 7495 | Curb Weight(kg) | 7300 | |
| Rated quality(kg) | xx | Chassis Model | BJ1079VCJFA-AA | |
| Approach / departure angle(°) | 23/12 | Front/Rear overhang | 1120/2450 | |
| Dimensions(mm) | 8370*2300*3500 | Number of spring | 9/11+7 | |
| Number of axles | 2 | Maximum speed | 95 | |
| Tire Specifications | 7.50-16 12pr,7.50r16 12pr | Number of tires | 6 | |
| Front track | 1685,1665 | Rear track | 1630 | |
| Wheelbase(mm) | 3800 | Axle load | 3000/4495 | |
| Emission Standards | Euro II/Euro III/Euro IV | Type of fuel | Diesel | |
| Engine parameters | ||||
| Engine Model | CA4DC2-12E4 | Engine Manufacturer | CHINA FAW GROUP | |
| Engine Displacement(ml) | 3168 | Engine power(kw) | 91 | |
| Modified Description | 1. Basic equipment: 1.height of working: 12-16m, 360°all rotation, three folding arms, single hydraulic cylinder, and rated load of cage: 200-250kg. | |||
| Basic composition | Chassis , PTO, gear pump, chassis parts, folding arms/telescopic arms, oil cylinder, pipeline system, working cage, rotating mechanism, hydraulic system, electrical system. | |||
| Application | Convenient moving, used in narrow roads and streets. Aerial work platform can be used in aloft working of electricity, street lamp, municipal administration, gardens, and transportations and so on. | |||
