Forland mini 3cbm sweeper truck for sale

Views:1444     Author:Dong Runze Special Vehicle     Publish Time: 2017-11-10      Origin:Dong Runze Special Vehicle

Forland mini 3cbm sweeper truck for sale

Forland mini 3cbm sweeper truck for sale

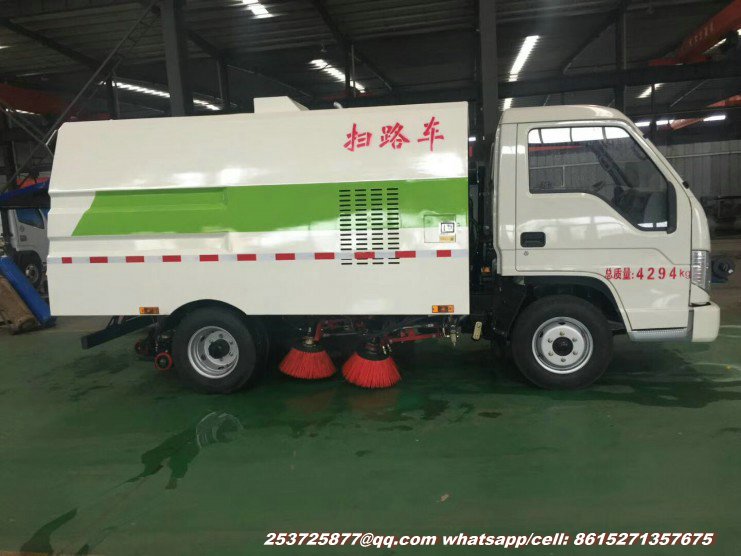

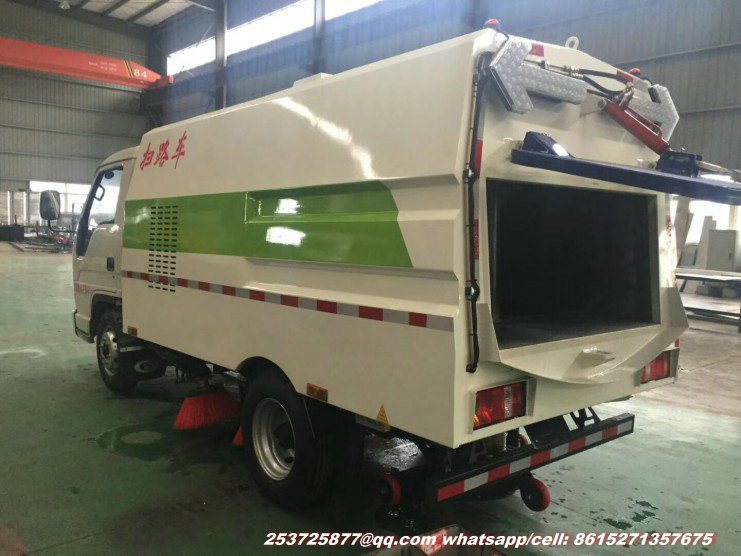

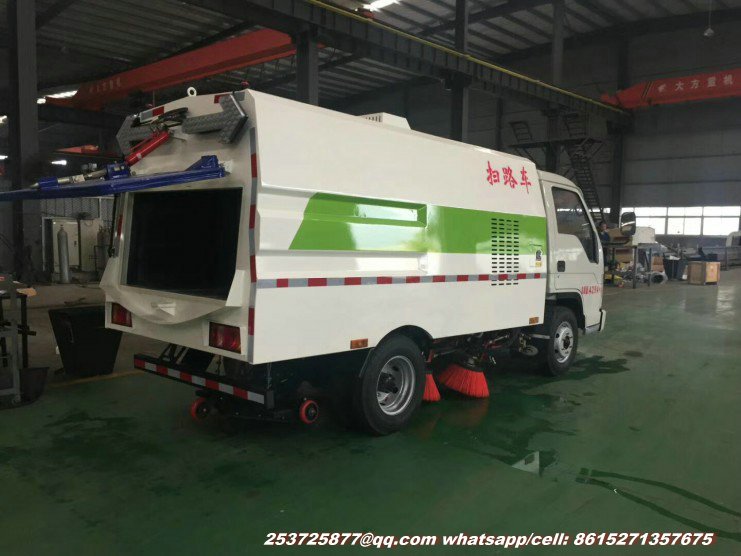

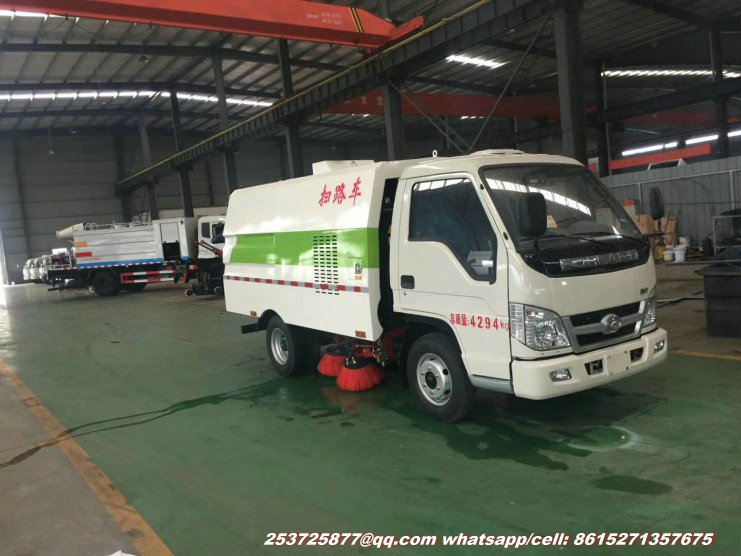

US $26,000-28,000 / UnitForland 4x2 3cbm sweeper lorry_1.jpgForland 4x2 3cbm sweeper_1.jpgForland 4x2 sweeper lorry_1.jpgForland 4x2 sweeper truck_1.jpg

Forland 4x2 3cbm sweeper truck for sale

Truck Specification

Chassis model

Forland

Cab

Forland king cab, with power steering. Electronic flameout,without a/c

Driving Type

4*2 Left hand driving or righ hand drive

Max Speed (km/h)

95

Maximum climbing angle

30%

Overall dimension(mm)

5845*1980*2160

GVW( kg)

4500

Mass in working order ( kg)

2500

Wheelbase(mm)

2600

F/R track base (mm)

1503/1494

F/R overhang (mm)

1040/1852

Approach/Departure Angel

20/12

Tire

6.50-16 (6+1)

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

6-speed

Bridge

Front axle

1T

Rear axle

4T

Enging

Model

Cy4102

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

2700

Max output power/rotate speed (hp /rpm )

61/2500

Max torque/rotate speed(N.m/rpm)

800/1400-1600

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Auxiliary brake

engine exhaust brake

Eletric system

24v

Product Images

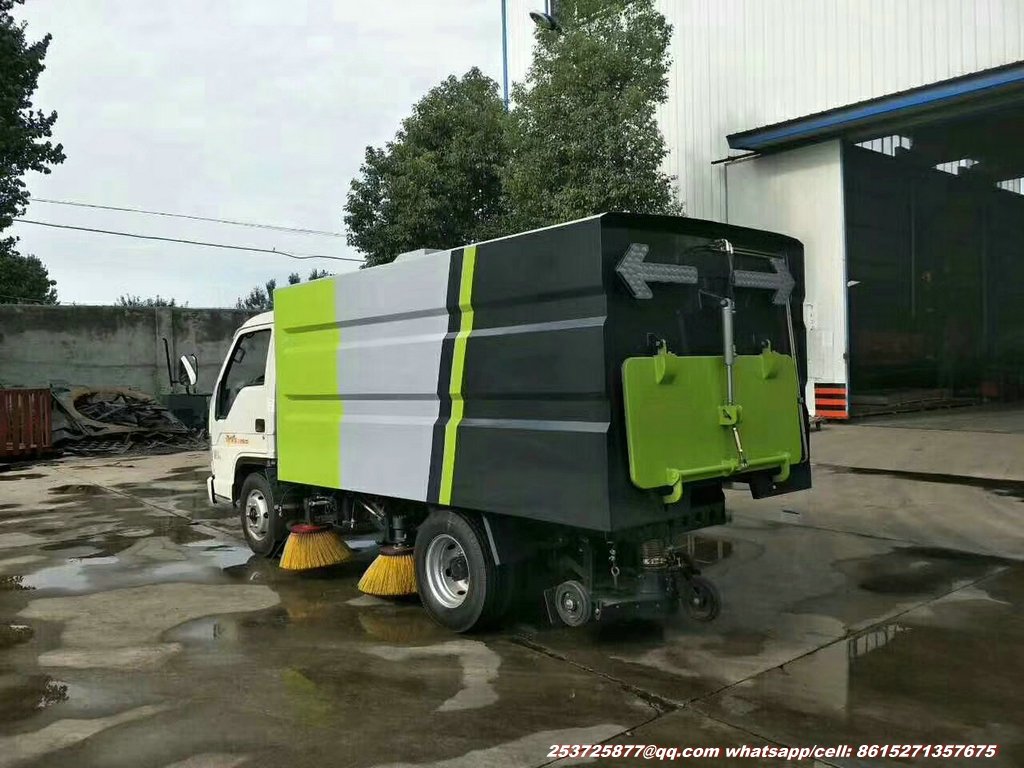

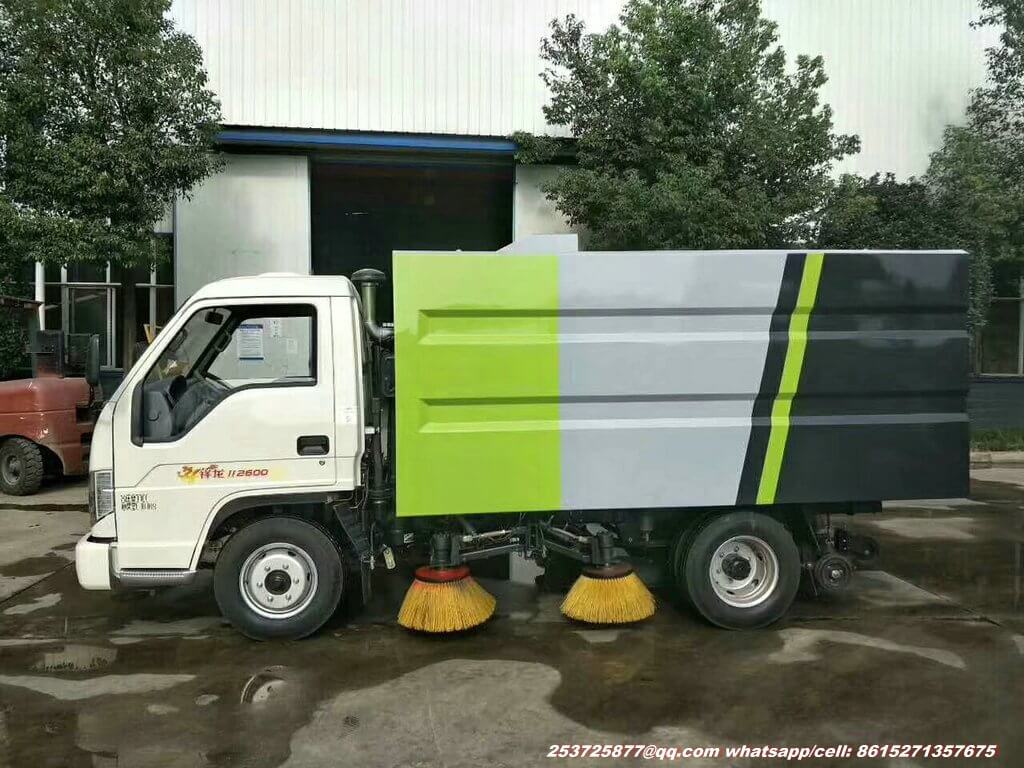

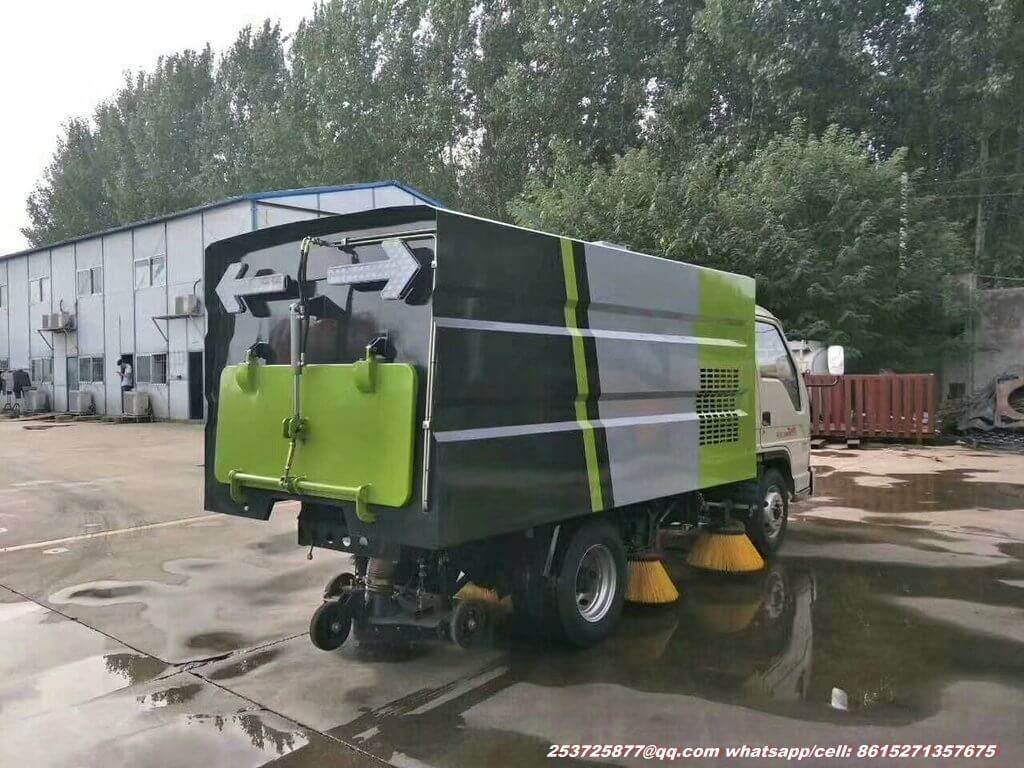

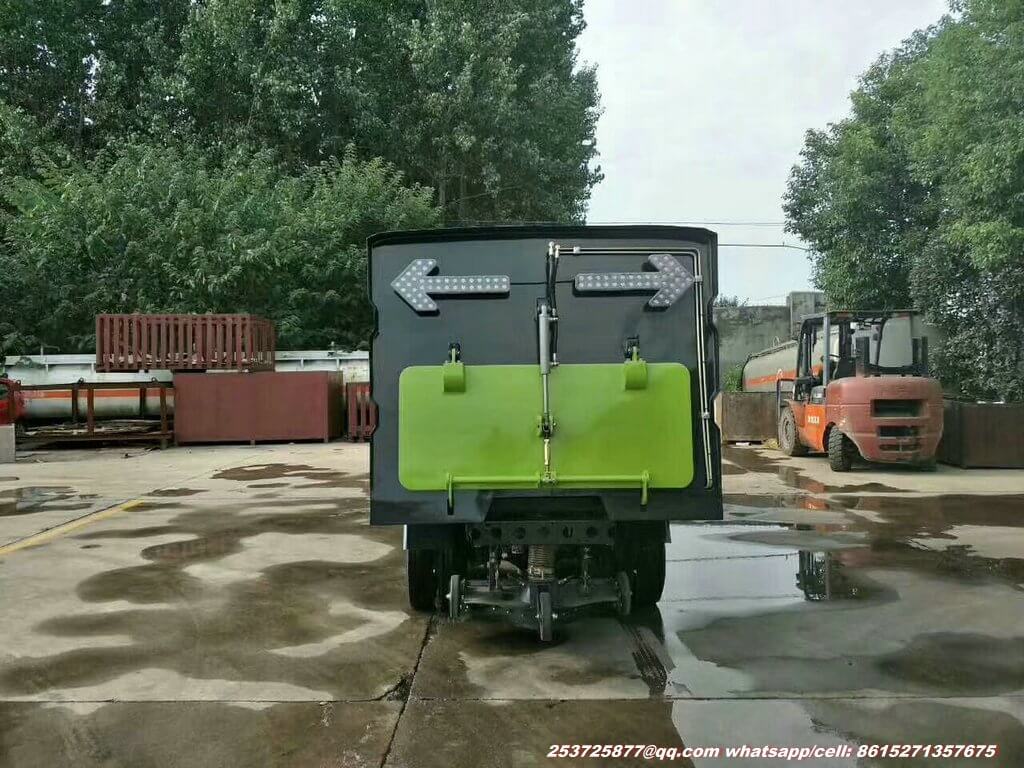

mini foton sweeper Trucks -17.jpgmini foton sweeper Trucks -16.jpgmini foton sweeper Trucks -14.jpgmini foton sweeper Trucks -15.jpg
