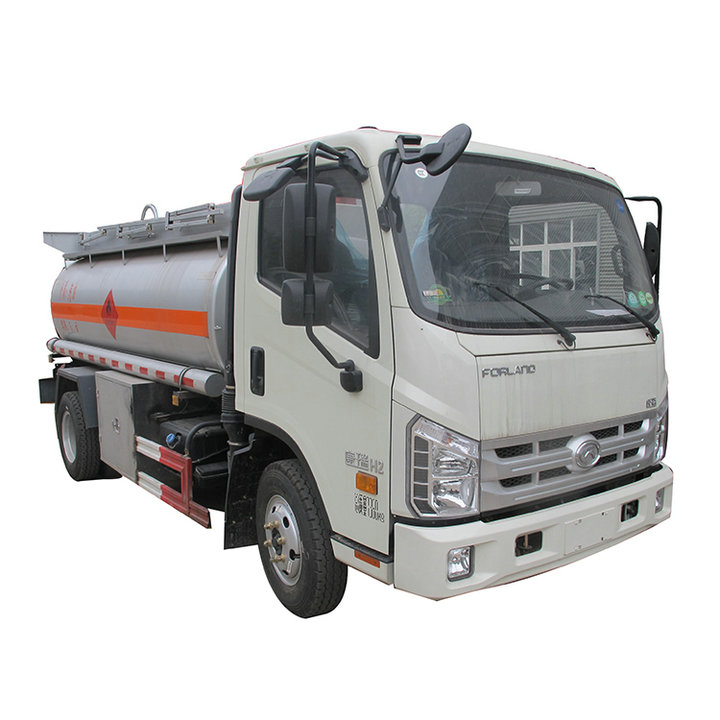

Forland Fuel Refueling Truck 3785L (1000 Gallons) With PTO Oil Pump RHD / LHD
Wheel base 3360mm Dimension 5995×2100× 2500(mm)
FOB: | |
---|---|
Quantity: | |
| |
Forland Fuel Refueling Truck 3785L (1000 Gallons) With PTO Oil Pump RHD / LHD
Wheel base 3360mm Dimension 5995×2100× 2500(mm)
Fuel Tank Truck, Oil Tank Truck, Refuel Truck with dispenser
Function:
Fuel tank truck (also called oil tank truck, fuel tanker truck, oil tanker, fuel bowser, diesel dispensing truck, petrol fuel tank, oil transfer truck, fuel oil tank truck) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.
Features:
---- FOTON - Aumaark high grade chassis, perfect performance.
---- FOTON - CUMMINS engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.
Vehicle parameters | |||
Vehicle Model | DRZ5043 | Vehicle Brand | DONG RUN ZE |
Overall dimensions | 5995×2100× 2500(mm) | Curb weight | 5860kg |
Loading capacity | 4m3,5m3 ,6 m3 |
Vehicle main dimension | Overall dimension(LxWxH)mm | 5995*1900*2900(REF) |
Chassis model | BJ1059VCJD6-C | |
wheel base(mm) | 3360 | |
wheel track(front/rear)(mm) | 1530/1425 | |
Approach/Departure angle | 22/21 | |
Weight in KGS | GVW | 4945 |
Curb weight | 4370 | |
Rear axles loading capacity | 8Tx1 | |
Max driving speed(km/h) | 90 | |
Engine | Brand | Dongfeng Cummins |
Model | BJ493ZLQ1 | |
(CC)KW | 5900/125 | |
Emission standard | Europe II | |
Transmission | LC5T88 | |
Drive system | RHD | |
Tire | 7.00-16 | |
Others | One spare tyre,power steering ,120L oil tanker |
Chassis parameters | |||||
Chassis model | Chassis brand | FOTON | |||
Overall dimensions | 5875x1915x2150mm | Wheel base | 3360mm | ||
Front/rear wheel track | 1415/1485mm | Front/rear suspension | 1085/1430mm | ||
Approach/departure angle | 23/19° | Maximum speed | 95km/h | ||
Chassis Manufacturer | BEIQI FOTON MOTOR CO.,LTD | ||||
Cab | Configuration | D1695 single row cab,allowable 2 passengers,with warm air,all English signs in car body, English instruction ,international general accessories,double front windshield,power switch | |||
Color | White,other color is optional | ||||
Engine | Model | 4DW91-63NG2 | |||
Emission | Euro 2 | ||||
Type | 4 cylinders,in-line,turbo charger,diesel engine | ||||
Rated power | 98hp | ||||
Displacement | 2545ml | ||||
Bore x stroke | 90x100mm | ||||
Manufacturer | Wuxi Diesel Engine Branch | ||||
Tire | Size | 6.50-16 Double star nylon tire | |||
Number | 6+1 nos | ||||
Fuel tank | 70L iron oil tank | ||||
Rear axle | 4.0 tons | ||||
Drive form | 4X2 | ||||
Rated voltage | Camel brand,24V,DC | ||||
Transmissions | 5 speed forward 1 reverse | ||||
Steering device | Steering wheel | ||||
Steering wheel | Left hand drive | ||||
Selective configuration | Steel wire tire,air conditioner | ||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard |
Fuel tank structure parameters | ||||
Tank dimensions | 3850×1640×1140mm | Tank volume | 6000L | |
Tank material | Carbon steel | Tank thickness | 5mm | |
Color and Logo | Optional | |||
Standard configuration | Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose. | |||
Selective configuration | Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins. |
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
DFAC Aluminium Alloy Oil Liquid Tank Truck 28000 - 32000L Loading Capacity
IVECO 21000 Liters Fuel Delivery Trucks , Petrol Tank Truck With Diesel Engine
Forland Transport Liquid Tank Truck / Mobile Refueling Truck 3000L-4000L
FAW 8X4 Aluminum Road Liquid Tank Truck For Fuel Transportation 30000L
FOTON Petroleum Oil / Gasoline Delivery Truck , Crude Oil Tanker Truck 32000L
FOTON Fuel Delivery Truck
Forland 3000 - 4000- 5000 liters Liters Small Oil Tanker For Petroleum Oil /Gasoline/ Petrol/ Diesel Delivery With PTO Pump
Fuel tank truck is also known as mobile refueling truck, computer tax refueling truck, fuel tanker truck, oil tanker truck, oil tank truck, petrol tanker truck, gasoline tanker truck,it's mainly used for transport and storage gasoline, diesel, crude oil, lubricants and coal tar and so on.
According to different uses and different environment, there are a variety of fuel or transportation functions, with oil absorption, pump oil, a variety of oil packaging, distribution and other functions.
shipping parking
1, attached parts and tools put into standard export box.
2, Oil Tank Truck will be cleaned and covered with wax before delivery.
3, Oil Tank Truck will be covered by waterproof cloth at the departure port.
4,Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers` requirements.
5,some small Oil Tank Truck can be put into container according to its overall dimensions.
