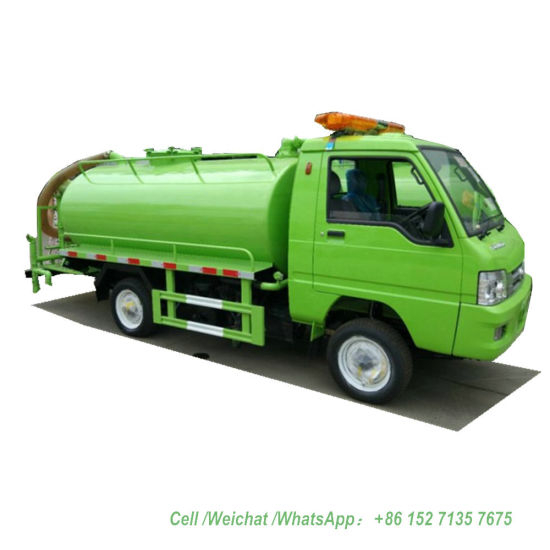

Forland 3000liters Septic Tank Vacuum Trucks (4X2 RHD Vacuum Tanker for Wast Water Sewage)
| Quantity: | |
|---|---|
-
DRZ5040
-
FORLAND
-
8705
-
Shanghai, China
-
800
-
T/T
carbon - stainless steel
RHD OR LHD 4x4 - 4x2
Clean water Tank Capacity Litres
Sewer water tank capacity 3000 litres
High pressure pump High pressure pump pressure 16mpa, flow rate 130L/min
Vacuum pump China famous brand water ring pump sk-6
RHD OR LHD Truck
The pictures are for your reference only.

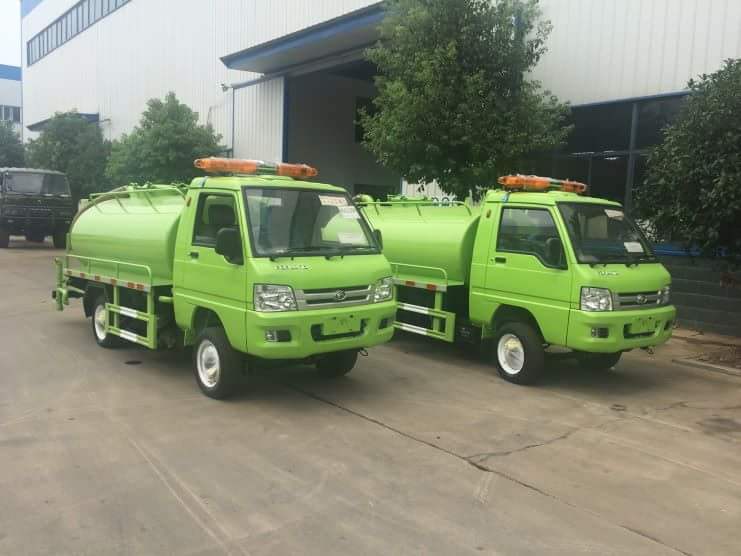

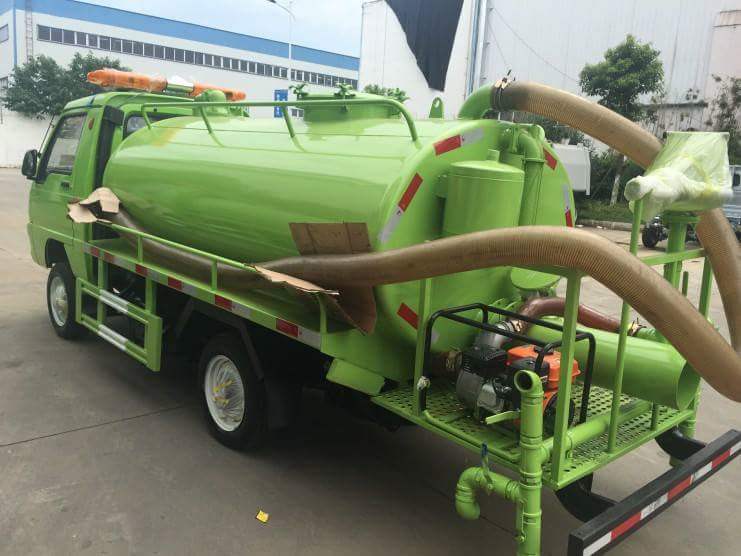

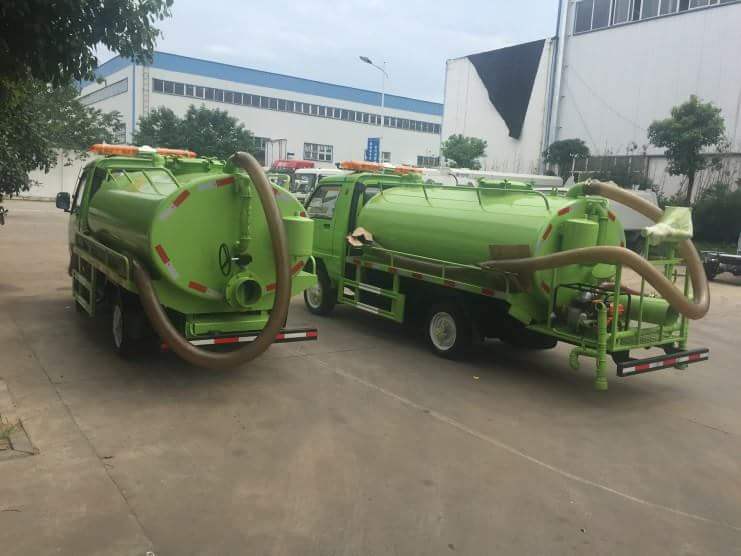

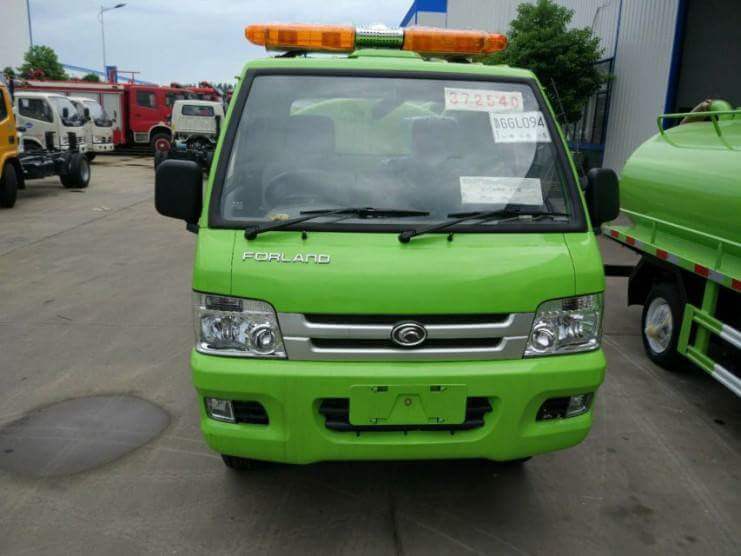

Forland 4x2 RHD 3000liters septic vacuum trucks
Truck Specification | ||
Chassis model | Forland | |

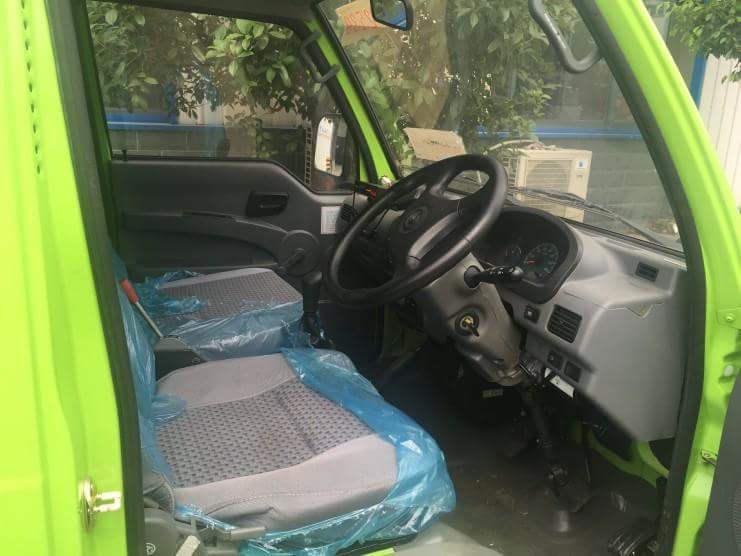

Cab | Forland single row cab, with power steering. Electronic flameout,without a/c | |
Driving Type | 4*2 Left hand driving | |
Max Speed (km/h) | 95 | |
Overall dimension(mm) | 4760*1600*1920 | |
GVW( kg) | 4000 | |
Mass in working order ( kg) | 1000 | |
Wheelbase(mm) | 2456 | |
F/R track base (mm) | 1506/1466 | |
F/R overhang (mm) | 1032/1668 | |
Approach/Departure Angel | 25/14 | |
Tire | 175/70R14(6+1) | |
Clutch | Single-plate dry diaphragm spring clutch | |
Steering | Hydraulic steering with power assistance | |
Gear box | 5-speed | |
Bridge | Front axle | 1T |
Rear axle | 3T | |
Enging | Model | LQ480 |
Fuel Type | Diesel fuel | |
Type | Water-cooled four-stroke,, direct injection, turbocharged | |
Exhaust(ml) | 1800 | |
Max output power/rotate speed (hp /rpm ) | 51 | |
Max torque/rotate speed(N.m/rpm) | 1.800L | |
Braking system | Service Brake | Compressed air brake |
Park Brake | Spring energy | |
Auxiliary brake | engine exhaust brake | |
Eletric system | 24v | |
Sewage suction truck capacity from 3000 litres to 20,000 litres
Fecal suction truck capacity from 3000 litres to 10,000 litres
septic tank truck, sewage suction truck, toilet truck, sewer truck, vacuum truck
Detailed Product Description
Right hand drive or left hand drive FOTON forland 4x2 3000Liters 4000Liters vacuum tank sewage suction truck hot sales
Vehicle information list | |||
Truck brand | Forland | ||
Truck model | BSX5040GXW | ||
Total mass | 5980 | Tanker volume | 4000L |
Rated mass | 3000 | Vehicle size | 5255×1890×2410 |
Curb weight | 2550 | Cabin seat | 2 |
A/D angle | 23/17 | F/R hang | 1090/1365 |
Axles | 2 | Wheel base | 2800 |
Axles loading | 1480/2500 | Max speed | 90 |
Chassis information list | |||
Chassis model | BJ1043V8JD5-S1 | ||
Tyre quantity | 6 | Tyre size | 6.50-16 |
Leaf spring quantity | 7/7+5 | Front track | 1415,1510 |
Fuel type | Diesel | Rear track | 1425 |
Standard | Euro III | ||
Engine model | 4D22E 92HP | Displacement/power | 2540ml/67kw |
Material: - | Carbon Steel | ||
Capacity of the tank | 3 m3 | ||
type | Cylindrical, thickness of the tank 5 mm. The container is equipped with splash walls and reinforced around it's circumference by U-profiles | ||
over pressure. | 0.5 bars | ||
Inclination | towards the rear | ||
Construction | completely welded,full welding | ||
Indicator mark level of the sewage on the tank | for maximum and minimum | ||
Tailgate | tightly locked with bolts, can be opened over the whole section laterally for maintenance and cleaning purposes. It shall be equipped with four inspection glasses | ||
.Valve | Four way cock for suction and pressure, protection valve in front of vacuum pump | ||
Drive | Direct drives from power take off Mechanically or Hydraulically. | ||
Filling level indication | by sight glass including mechanical clearing connection mounted right in front of the tank If there is additional indication systems takes the priority | ||
Vacuum pump | Rotary type Air cooled | ||
Capacity | 300 m3/h | ||
Location | between the cab and tanker or at the side of the tanker | ||
Suction(Lifting capacity | minimum 0.2 m3 per minute at a depth of not less than 10 meter | ||
Drives | Direct from power take off. | ||
Suction and pressure system non return valve | DN 80, non-return valve and silencer in the pressure line | ||
valve | Four-way-cock for suction and pressure manually controlled | ||
safety valve | for maintenance of the pressure. | ||
. | Corrosion-resistance ball float valve with one ball at the highest point of the sludge tank. Safety pot with cyclonic cleaner. Easy maintenance by special cleaning door Ball float valve in the safety pot Fine mesh filter in the suction part of the vacuum pump with easily inter changeable rust proof filter element Oil filling at the end of the pipe High capacity cyclone between sewage tank and vacuum pump | ||
Two hose trays | L=3200mm(volume according to space) open, made of galvanized steel, are fitted at the right-and-left-hand side | ||
Suction hoses | oil resistance,light,Flexible heavy duty suction hose,L=3 meters, dia100 mm,14PCS | ||
Connection | efficient, airtight and have simplified design, compatible with couplings on truck. | ||
Hose retainer located in the tank sides. | |||
4000liters Forland Small Fecal Tanker Truck
Chassis model |
| BJ1043V9JE6-MS | |
Dimensions | mm | 5990*1990*2350 | |
Fact cubage | cbm | 4 | |
Engine (Weichai Power Co., Ltd) |
| CA4DC2-10E3 (Euro3 emission standard) | |
Exhaust & engine power |
| 3168ml, 76kw | |
Max speed |
| 90km/h | |
| Mass in working order | kg | 2755 |
G.V.W | 4400 | ||
Axle load | 1760/2640 | ||
Wheel base |
mm | 3200 | |
F/R track base | 1590/1525 | ||
Suspension | 1100/1620 | ||
Approach/departure angel | ° | 23/17 | |
Tire specification |
| 6.50-16, 6.50R16, 7.00-16, 7.00R16 | |
Number of axles |
| 2 | |
Basic equipment of sludge tank truck
Imported vacuum pump, power-take-off, hydraulic cylinders, control valves , pressure gauge,
water gas separator , oil water separator, level inspection window, suction hose,pipeline system,etc.
1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed
hydraulically. With full opening design, discharge can be very quick&complete.
2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
3.Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit
emptier.

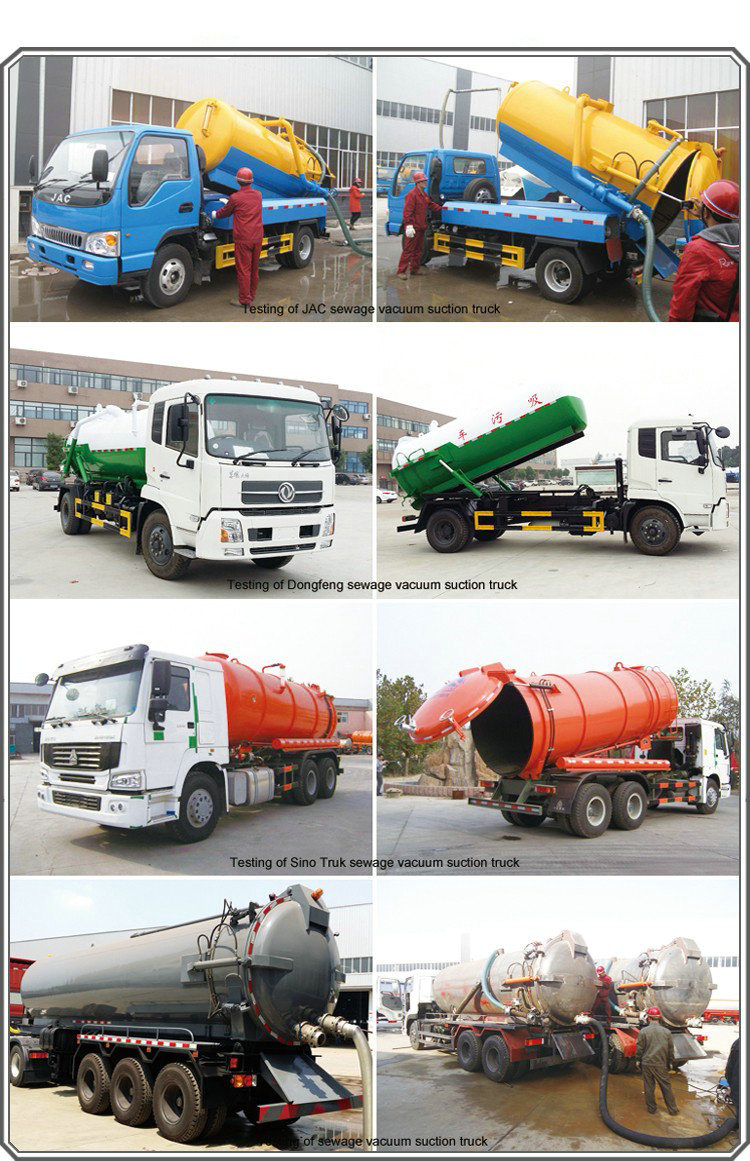

brand new high pressure vacuum suction truck
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
Looking forward to receiving your inquiry!
