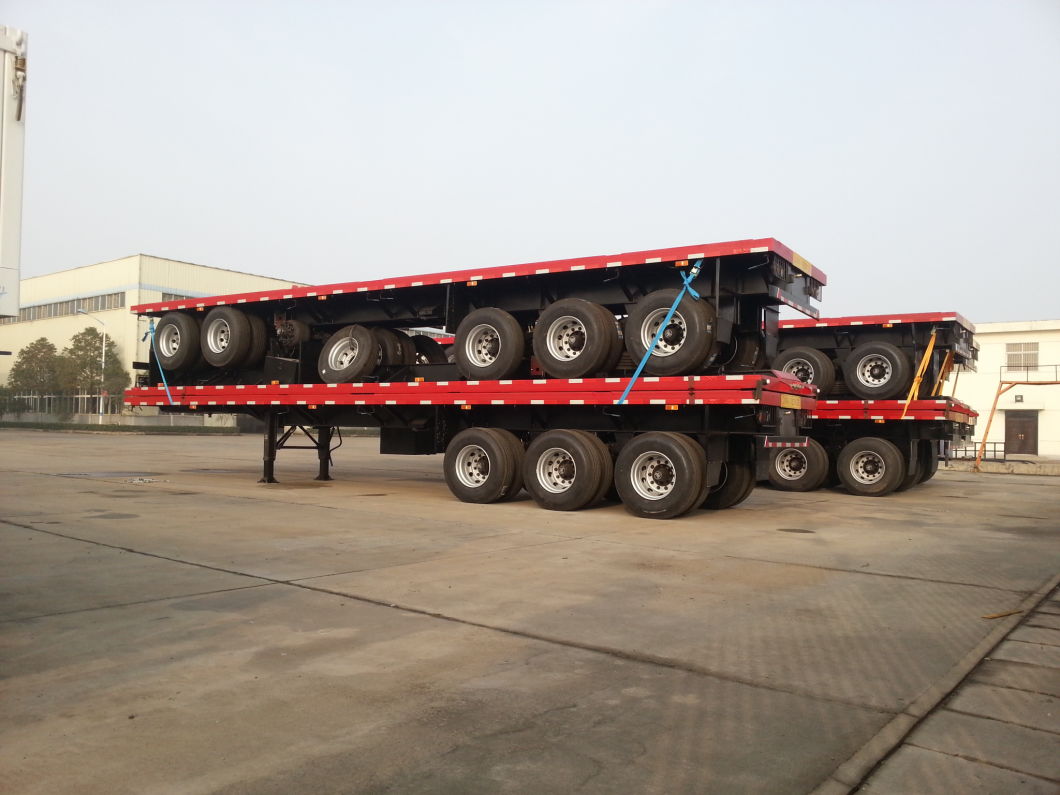

Flatbed Trailer for Cargo Transport Side Wall Removable or 40FT Container 45ton (Multi-Functions)
| Quantity: | |
|---|---|
- Shanghai, China
- 200sets Per Month
- T/T, Western Union
Flatbed Trailer For Cargo Transport Side Wall Removable Or 40FT Container 45Ton Multi-Functions
bed semi trailer
| Trailer Model | 3 Axle flatbed Semi Trailer |

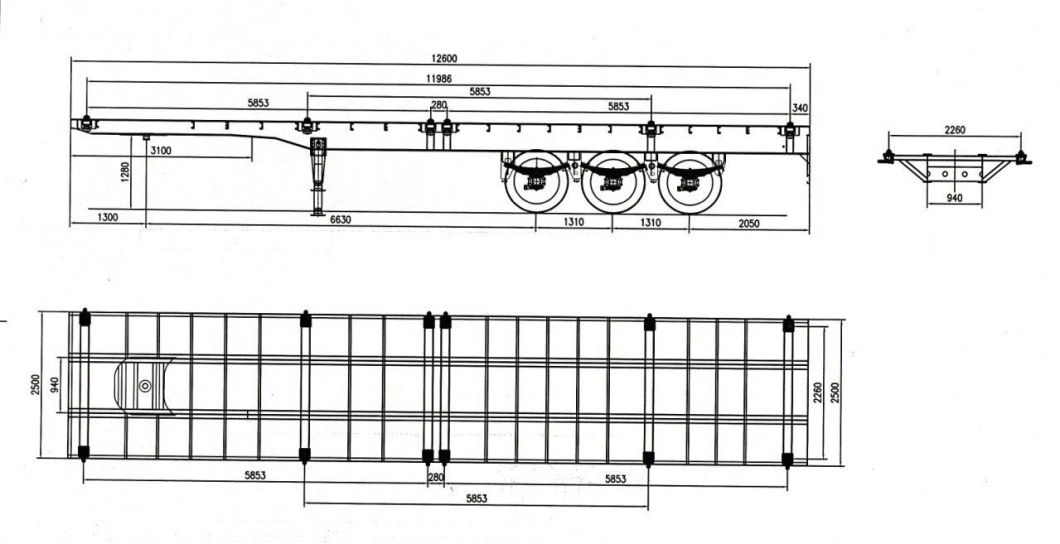

| Overall Dimension(Lx W x H)(mm) | 12500*2500*1500 |
| Note | This semi trailer also can be loading containers(20ft.40ft..) as the flat bed semi trailer |
| Axle Brand | FUWA 13TON Axle |
| Axle Number | Three |
| Suspension system | Mechanical suspension american type |
| Steel Spring | Leaf spring 90x16mm 8 pcs |
| The material of Main beam | Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes.Top flange 14mm,width140mm;Middle Flange 8mm;bottom flange16mm,width 140mm |
| Kingpin | 2'' bolt-in king pin |
| Wheel rim | 9.0 12 pcs |
| Container Twist Locker | 12 no. twist lock for 1x20ft,2x20ft,1x40ft container |
| Tire Type and quantity | 12R22.5 12units |
| Tool Box | 1 Standard |
| Landing Gear | brand two-speed,manual operating ,heavy duty landing gear 28T |
| Brake system | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks .24V |
| Side Guard | According to customer's requirement |

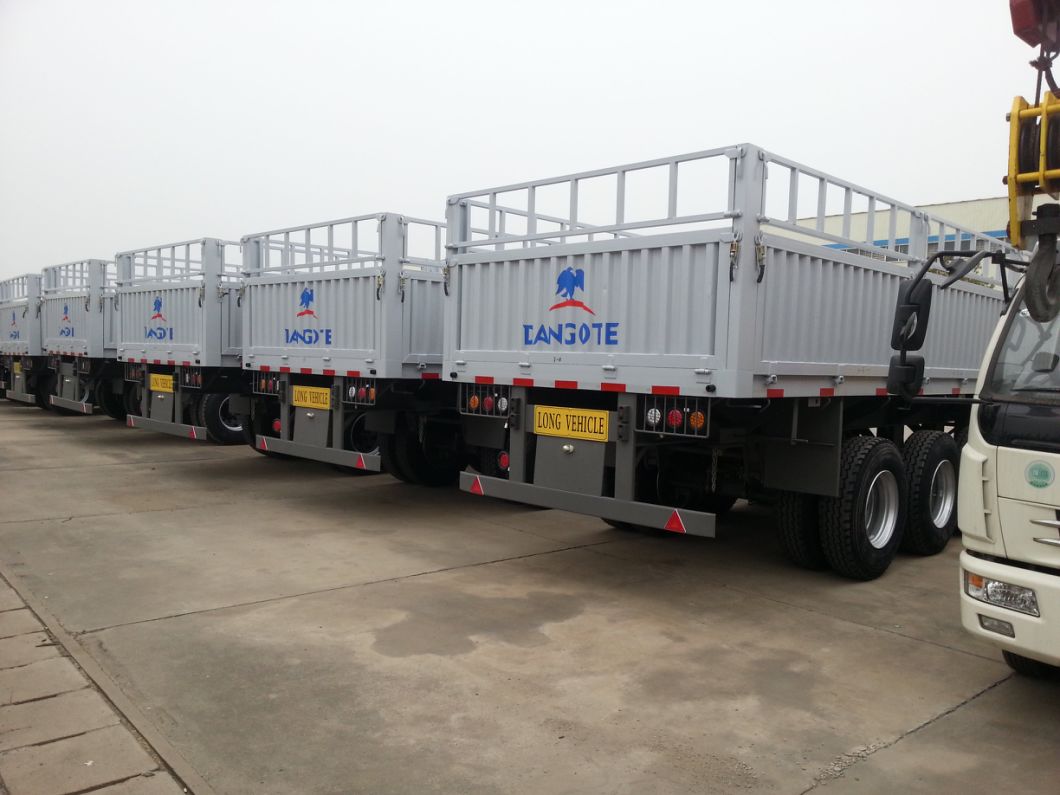

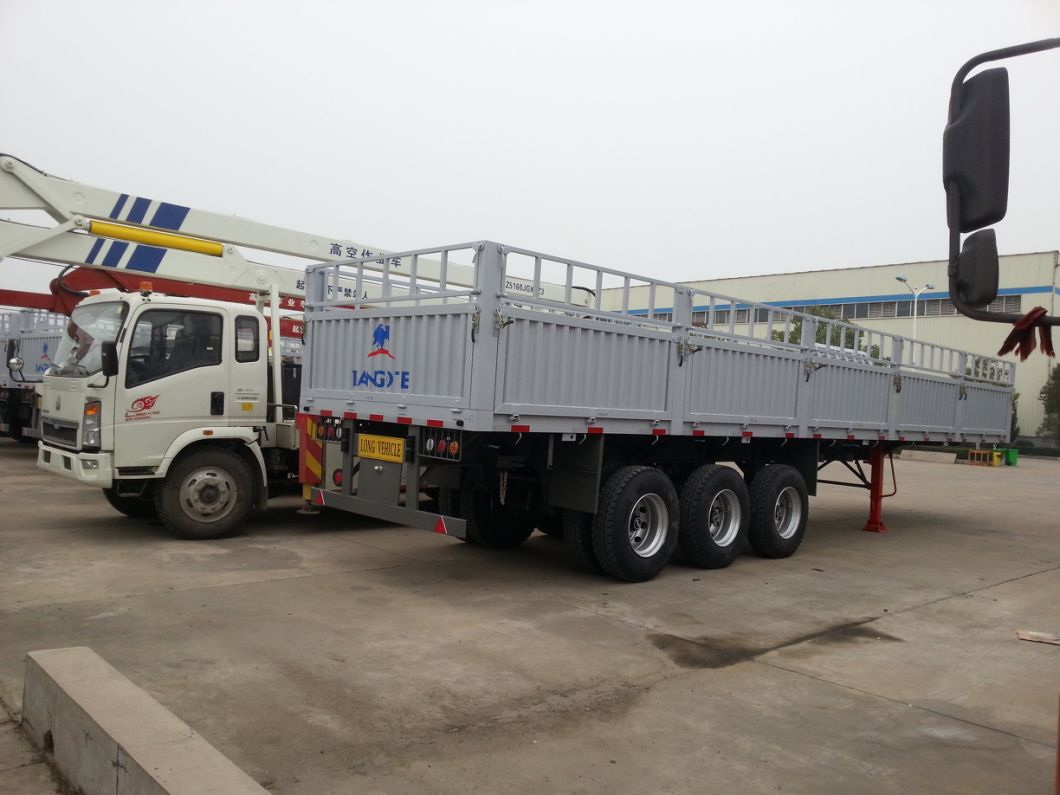

| Multi-Functions 45-80Tons Side Wall Detachable Flatbed Semi Trailer (Other Size Optional) | |
| Manufacture | Special Vehicle Manufacturing Co., Ltd |
| Model | DRZ9350TJZG |
| Axle NO | 3 pcs |
| Wheel Base | 7380+1320+1320 (mm) |
| Outside Dimension | 12450X2500X1580 L×W×H (mm) |
| Tyre specifications | 12.00R20 14PR Radio Tire |
| Tyre No | 12 +1 Spare Tire |
| leaf-spring Pcs | 12 pcs |
| Axle load | 13 T |
| Suspension | Mechanic Heavy Duty Leaf Spring Suspension |
| Material & Thickness | main beams Q345B/ST52-3 through cross beams Q235 Main beam Height: 500 mm Upper flange : 14mm Mid web : 8 mm Lower flange: 16mm Side Beam: 160 mm |
| Brake System | Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber. |
| Electrical System | 24V, 7core socket, lights according to European standards. |
| Payload | 50Tons |
| High Side Wall | 800mm |
| Tool Box | 1 box of standard tools |
| Spare tire carrier | 1 set |
| Color and Logo | Depends on the buyer's requirement. |
| The traction pin | 3.5' or 2' |
| Pin Height | According to the height of the tractor saddle. |
| Tare Weight | 6.9 Tons |
| Floor | 4mm diamond plate |
40-100Ton heavy duty lowbed semi-trailers/low bed trailer
FUWA axle (Chinese brand) or BPW axle (German brand), JOST landing gear (American brand), JOST kingpin, Orient star valve (Chinese brand), WABCO ABS system (optional component). All of the parts can choose Chinese brand or famous brands from Germany, Japan, US or UK, just according to customer's requirement. Special size for your design
Usage:To transport rail vehicles, mining machinery, forestry machinery, engineering machinery, such as excavators, bulldozers, loaders, paver, crane, etc)
