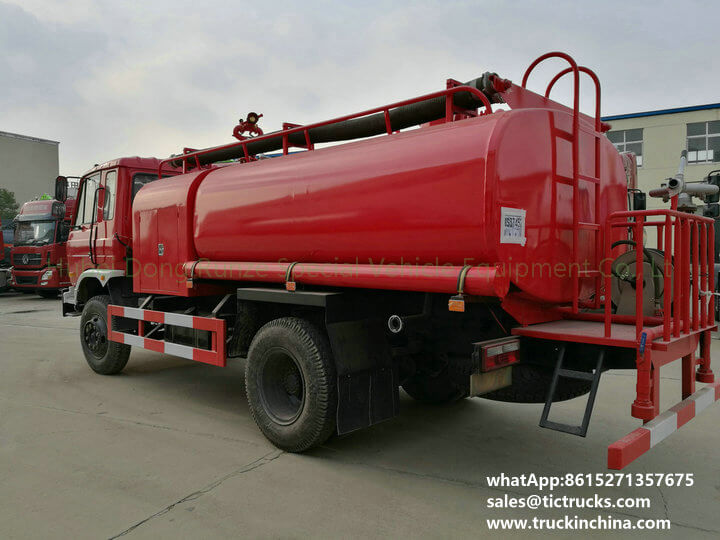

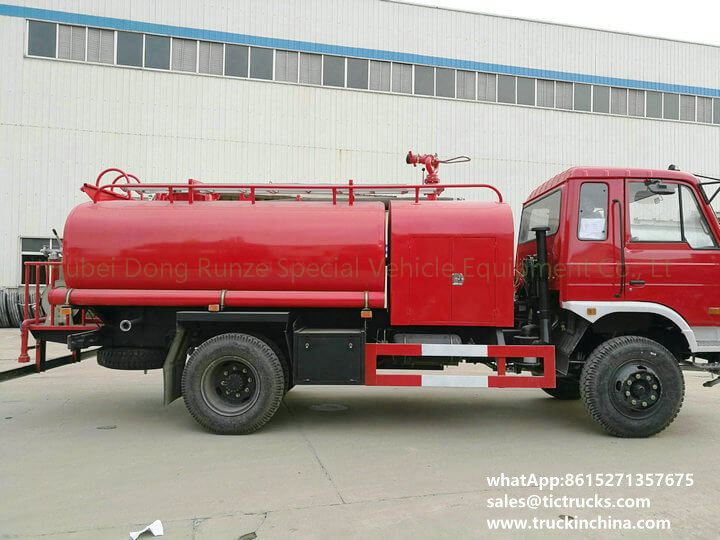

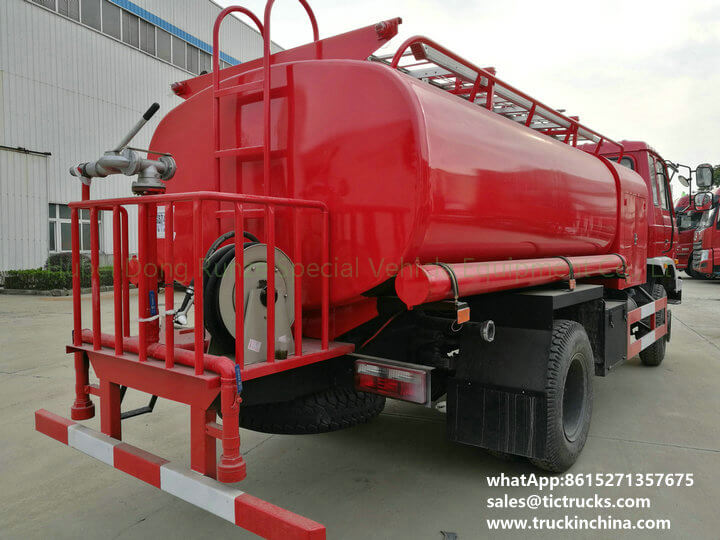

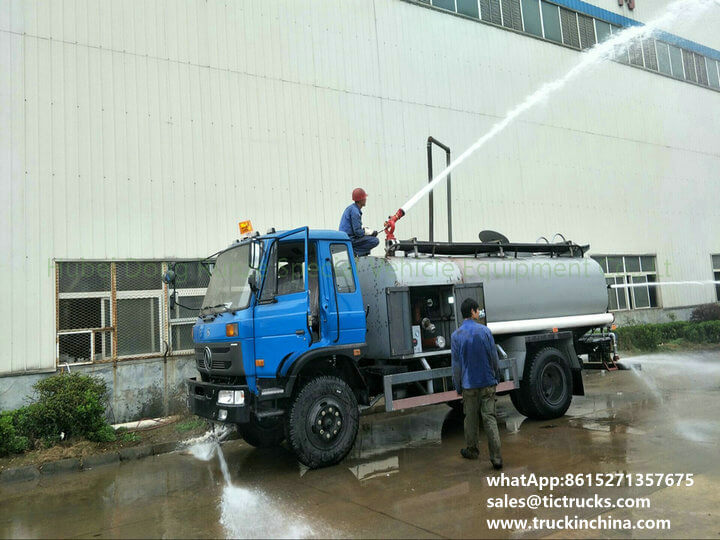

Fire fighting water tank lorry truck 7200L,1600Gallon
| FOB: | |
|---|---|
| Availability: | |
| Quantity: | |
|
| |
-

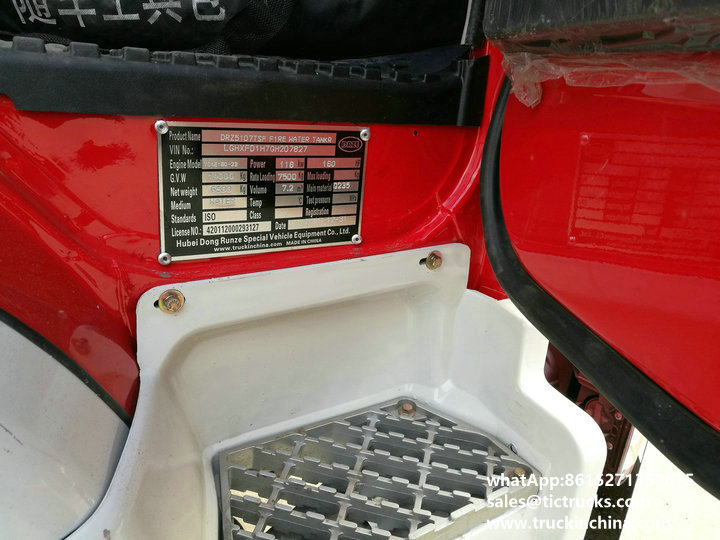

DRZ5107TSF
-
DRZ
-
8705309000
Fire fighting water tank lorry truck 7200L,1200-1600Gallon
CB10/30 fire pump.

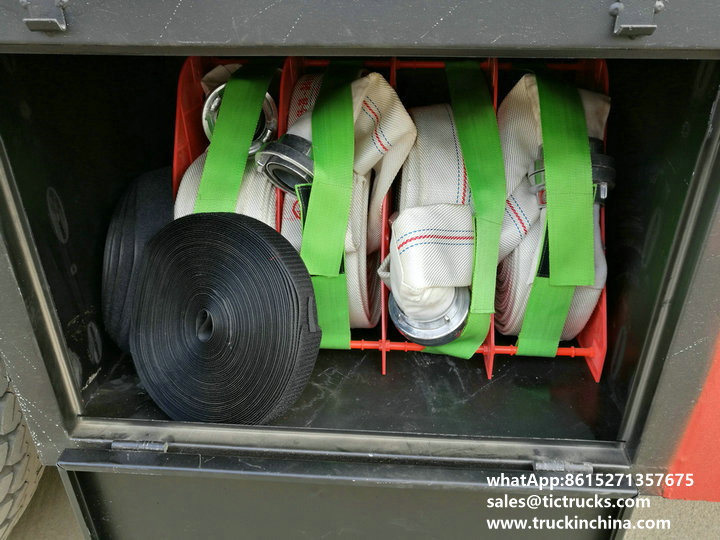

Fire hoses (B/S system) (65 mm*20m*4sets)
Fire fighting water tank lorry truck 7200L,1200-1600Gallon
CB10/30 fire pump.
Fire hoses (B/S system) (65 mm*20m*4sets)
Fire fighting water tank lorry truck 7200L,1200-1600Gallon
Body | |
Name | Water tank lorry |
Country of origin | China |
Cab | cabin (two doors) with |
Air - Condition, | |
Minimum Size of Tyre | 900-20 |
The number of Tyre | 6+1 (Spare tyre) |
Minimum speed | 100 Km/hr |
Water tank capacity | 1500 gal (To reduce the |
action of Water waves.) | |

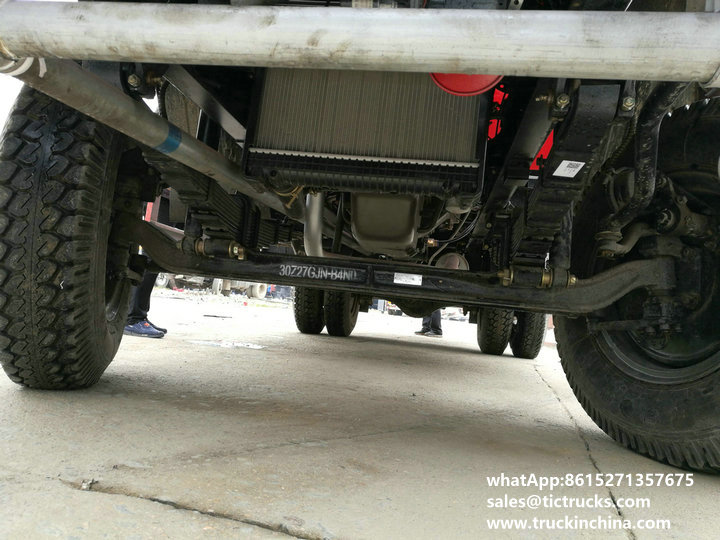

Suspension (Front) | Leaf Spring (11) Nos |
Suspension (Rear) | Leaf Spring (12+5) Nos |
Vehicles dimension (mm) | 7720x2400x3070 |
Water tank dimension (mm) | 3250x2100x1200 |
(Minimum) | |
Wheelbase (mm) | 3950 |
Required U Shape (6") at the end od realy pipe. | |
Search light must be fitted left or right. | |
Engine | |
Minimum Engine Rated power | 96 KW/130 HP |
Engine type | 4 Stroke Water Cooling |
Direct Injection | |
Engine Fuel | Diesel Oil |
Driving type | 4 x 2 |
Gear Link | Lug type |
Ball quality is required to improve in the transfer gear box. | |
Pump and Pipe | |

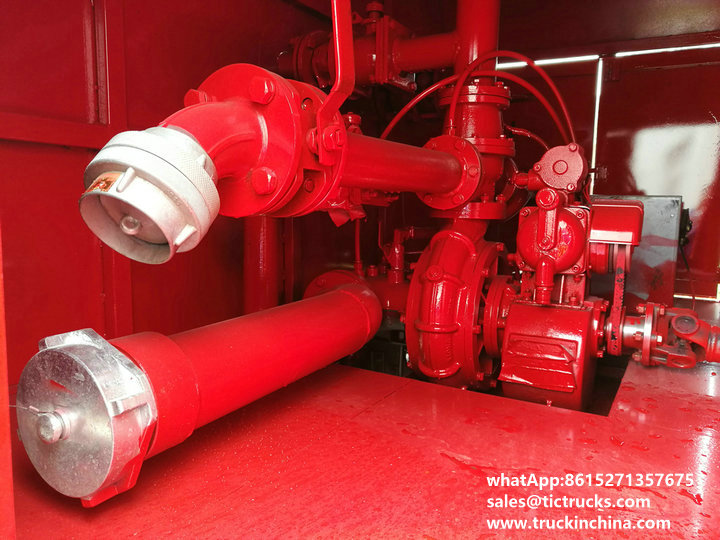

Type of fire pump | Centrifugal pump |
Minimum fire pressure | 1.0 mpa |
Minimum fire pump capacity | 30 L/S |
Fire fighting pump Suction depth | > 7m |
Fire fighting pump Suction | < 35 s |
Time | |
Delivery outlet (B/S type) | 65 mm (2 1/2 inch) |
Fire fighting nozzle range | > 55m |

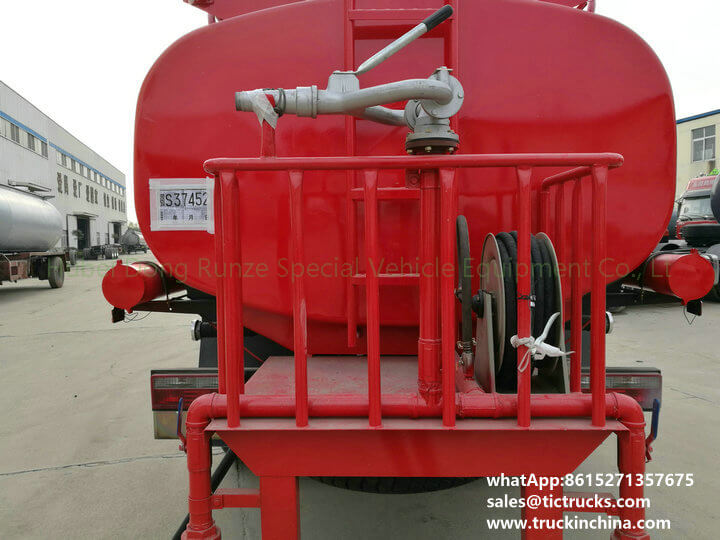

Rotation angle of fire fighting | 360° |
Turrent Nozzle | |
Pipe Line (Inlet) | 4"Ø one on both side |
Pipe Line (Outlet) | 2 1/2"Ø two on both side |
Vacuum pump Valve must be located on the control box. | |
Pump inlet pipe must be located (1")above the tank base. | |
Vacuum cut-off quality is required to improve. | |
Rod system is possible for pump gear. | |
Main pump should be fitted (4") ball valve. | |
Accessories | |
Fire Electric siren | 1-Nos |
Emergency ratation lamp | 1-Nos |
Fire axe | 1-Nos |
Fire hook | 1-Nos (Must be applied to climb) |

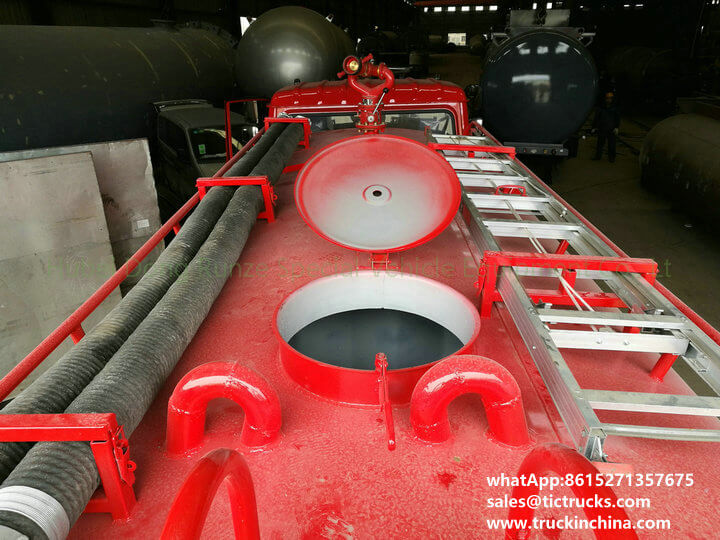

Fireman ladder (Extension ladder) | 1-Nos (Metal Ladder) |
(30' <) | |
Jet & Spray Nozzle | 1-Nos |
Jet Nozzle | 1-Nos |
Fire hoses (B/S system) (65 mm | 4-Nos |
20 m) | |
Suction pipe (Length 4m)(Æ100mm) | 2-Nos |
Water Filter (Æ100mm)( Metal) | 2-Nos |
Suction pipe wrench | 2-Nos |
Fire hydrant wrench (Æ100mm) | 2-Nos |
Pipe quality is required to improve. | |
To contain fire extiinguisher. (3 Kg) | |
Seat of hydraulic jack and wheel spanner quality | |
|
Fire fighting water tank lorry truck 7200L,1200-1600Gallon
Body | |
Name | Water tank lorry |
Country of origin | China |
Cab | cabin (two doors) with |
Air - Condition, | |
Minimum Size of Tyre | 900-20 |
The number of Tyre | 6+1 (Spare tyre) |
Minimum speed | 100 Km/hr |
Water tank capacity | 1500 gal (To reduce the |
action of Water waves.) | |
Suspension (Front) | Leaf Spring (11) Nos |
Suspension (Rear) | Leaf Spring (12+5) Nos |
Vehicles dimension (mm) | 7720x2400x3070 |
Water tank dimension (mm) | 3250x2100x1200 |
(Minimum) | |
Wheelbase (mm) | 3950 |
Required U Shape (6") at the end od realy pipe. | |
Search light must be fitted left or right. | |
Engine | |
Minimum Engine Rated power | 96 KW/130 HP |
Engine type | 4 Stroke Water Cooling |
Direct Injection | |
Engine Fuel | Diesel Oil |
Driving type | 4 x 2 |
Gear Link | Lug type |
Ball quality is required to improve in the transfer gear box. | |
Pump and Pipe | |
Type of fire pump | Centrifugal pump |
Minimum fire pressure | 1.0 mpa |
Minimum fire pump capacity | 30 L/S |
Fire fighting pump Suction depth | > 7m |
Fire fighting pump Suction | < 35 s |
Time | |
Delivery outlet (B/S type) | 65 mm (2 1/2 inch) |
Fire fighting nozzle range | > 55m |
Rotation angle of fire fighting | 360° |
Turrent Nozzle | |
Pipe Line (Inlet) | 4"Ø one on both side |
Pipe Line (Outlet) | 2 1/2"Ø two on both side |
Vacuum pump Valve must be located on the control box. | |
Pump inlet pipe must be located (1")above the tank base. | |
Vacuum cut-off quality is required to improve. | |
Rod system is possible for pump gear. | |
Main pump should be fitted (4") ball valve. | |
Accessories | |
Fire Electric siren | 1-Nos |
Emergency ratation lamp | 1-Nos |
Fire axe | 1-Nos |
Fire hook | 1-Nos (Must be applied to climb) |
Fireman ladder (Extension ladder) | 1-Nos (Metal Ladder) |
(30' <) | |
Jet & Spray Nozzle | 1-Nos |
Jet Nozzle | 1-Nos |
Fire hoses (B/S system) (65 mm | 4-Nos |
20 m) | |
Suction pipe (Length 4m)(Æ100mm) | 2-Nos |
Water Filter (Æ100mm)( Metal) | 2-Nos |
Suction pipe wrench | 2-Nos |
Fire hydrant wrench (Æ100mm) | 2-Nos |
Pipe quality is required to improve. | |
To contain fire extiinguisher. (3 Kg) | |
Seat of hydraulic jack and wheel spanner quality | |
|
