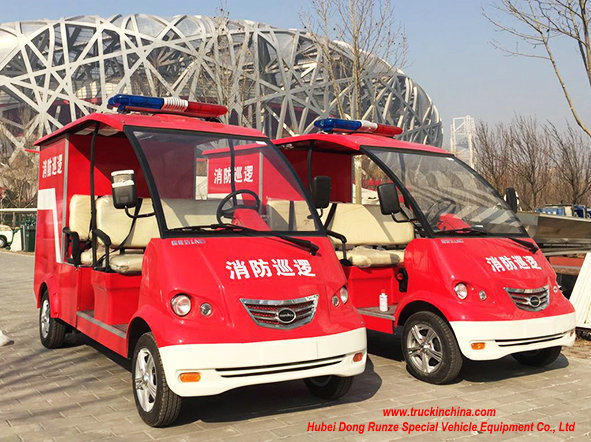

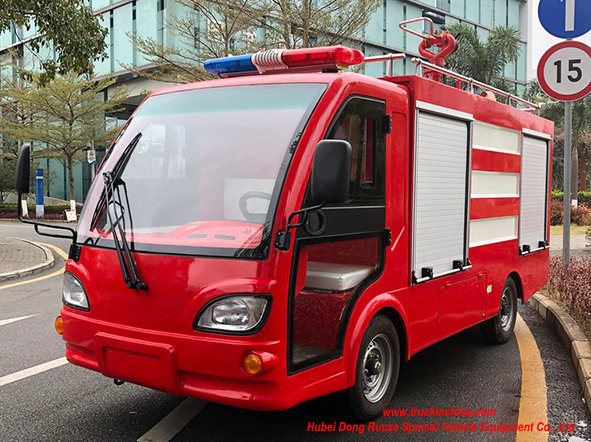

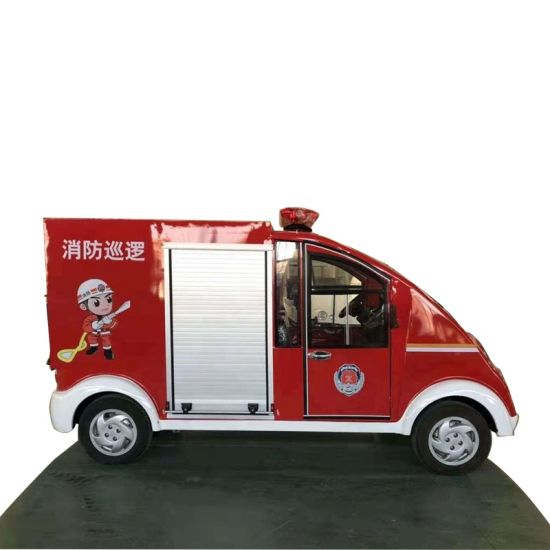

Fire Patrol Mini -2-Seats-Electric-Fire-Truck

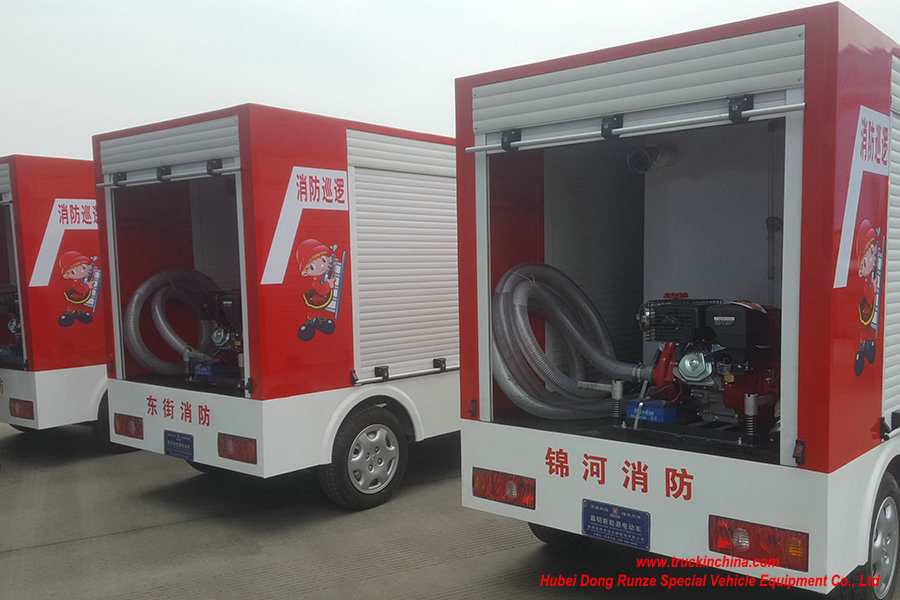

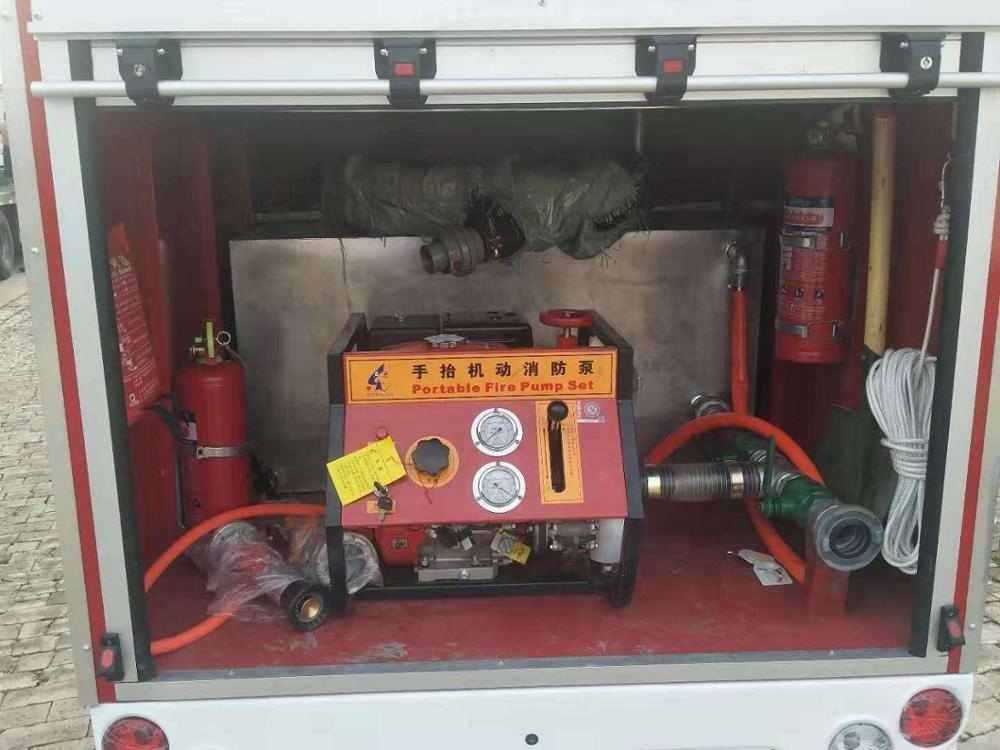

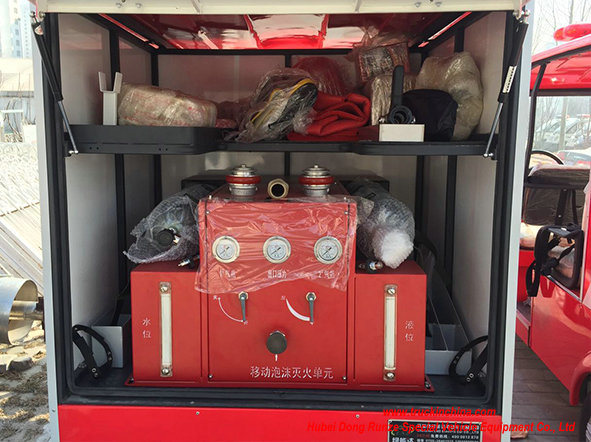

Motor Fire Pump Portable pump
Cell /+8615271357675
| Main technical parameters |
| Electrical system | Electronic control | 72V-400A full intelligent electronic control | |
| | Battery | 12V100ah, 6 sets of large capacity deep cycle maintenance free batteries | |
| | Motor | 4KW AC motor | |
| | Charger | Vehicle-mounted smart charger | |
| | Charging time | 8-10 hours (discharge rate 80%) | |
| | Charging input voltage | 220V | |
Technical Parameters
| Length × width× height | 3650×1540×1980 | Braking distance | 5m |
| | Vehicle equipment quality | 850kg | Maximum travel speed | 30-40/h |
| | Vehicle load | 800kg | Rated occupant | 2 people |
| | Front and rear track | 1350/1232mm | Maximum grade | 20% |
| | Wheelbase | 2560mm | Minimum turning radius | 6m |
| | Minimum ground clearance | 150mm | Empty car battery | 100km |

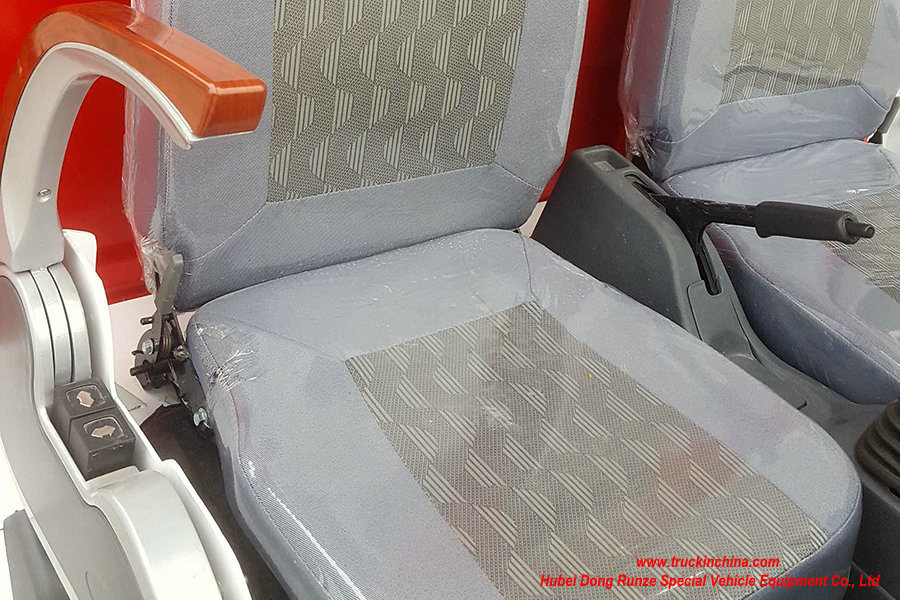

| Body parameters | Seat | Single row of black seats |
| | Car body | Automotive Grade Metal Stamping Forging Welding Forming + Steel Iron Frame |
| | meter | Meter display (voltage, current, speed, mileage, light, front and rear steering, etc.) |
| | rearview mirror | Manual exterior mirror |
| | Lights and signals | Combination headlights, turn signals, combined taillights, brake lights, electric horns |
| | sound | Car MP3 player + dual speakers |
| | switch | Start switch, light and wiper combination switch, forward and reverse gear position switch |
| | Car door | Have |
| | Frame | Steel frame |
| | Water tank | Stainless steel water tank Water storage capacity 500kg |
| Chassis system | Motion transfer system | Infinitely variable speed system |
| | Rotating system | Rack and pinion steering machine |
| | Front axle and suspension | Independent suspension |
| | Rear axle and suspension | Integral rear axle (12.49) + high strength leaf spring + barrel hydraulic shock absorption |
| | Braking System | Front disc type, rear drum type hydraulic brake, double circuit hydraulic brake, parking brake device |
| | Tire | 12*4.5+155R12 vacuum tire |

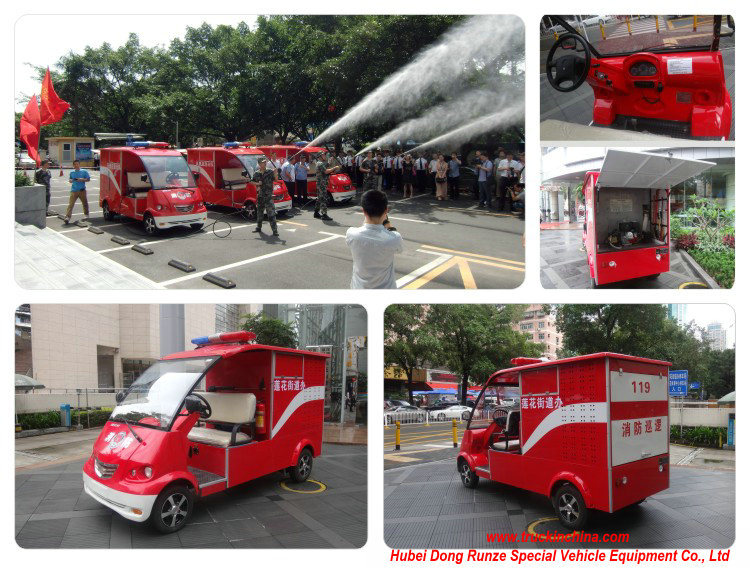

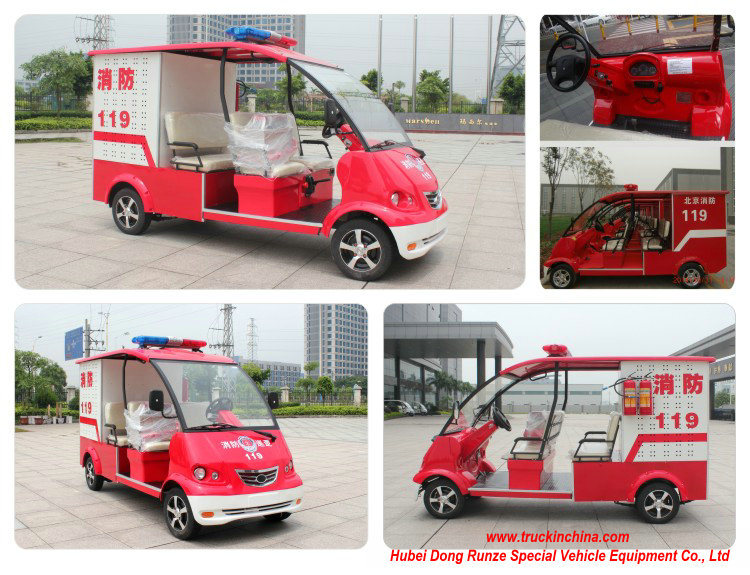

The pictures are for your reference only.
electric fire truck features:
1.There are multi-functional, multi-purpose, appearance, ride comfort, driving smart features.

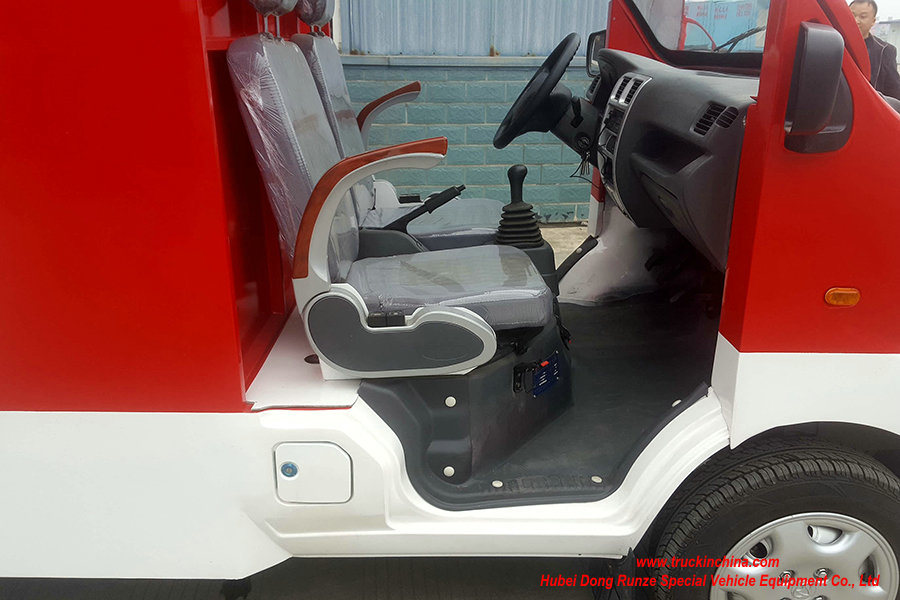

2.Both sides of the open cockpit design to facilitate the operator to get off.
3.The vehicle has a strong safety, comfort and maneuverability,
4.Applicable to the streets, communities, factories, schools, places of scenic spots, such as fire, security patrols, law enforcement.
electric fire truck specifications:
| Technical specification | dimension L*W*H | 3700×1450×2170(mm) |
| passenger | 2 |
| Cargo dimension:L*W*H | 1500×1280×1100(mm) |
| Max Grade Ability | 10% |
| Turning radius | ≤6(m) |
| Max speed(full load) | 20(km/h) |
| gradeability(full load ) | 10% |
| Tread | Front 1180 / Rear 1200(mm) |
| Carrying capacity | 800(kg) |
| Whole vehicle weight | 1150kg |
| Travel range | 80-100(km) | Wheel base | 2570(mm) |
| Ground clearance | ≥150(mm) | Braking range | ≤6(m) |
| Electric system | Battery | 8pcs, 48V,225AH,Leoch battery |
| Charger | China domestic brand |
| Controller | Curtis |
| Motor | 4KW,China domestic brand |
| Tire :aluminum alloy hub,front wheel 145/70R12,rear wheel 155/R12C,vacuum |
| Police light Certificate by China government |

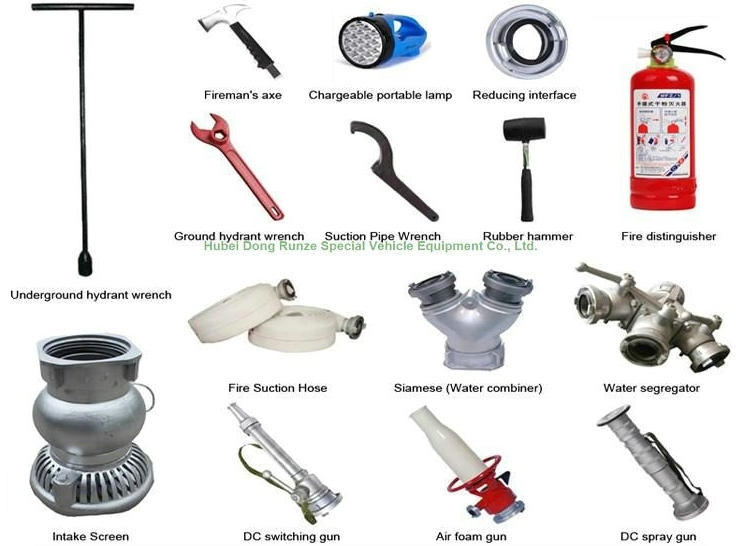

| Tool list | Fire hammer | 1pc | fire axe | 1pc |
| Fire spade | 1pc | Fire tongs | 1pc |
| fire hose | 1set | Fire hydrant wrench | 1pc |
| crowbar | 1root | dry powder extinguisher | 2 bottle |
| Fire breathing apparatus | 2pc | Flashlight | 1 pc |
| Loud speaker | 1pc | Lap belt | 2pcs |
| fire fighting Glove | 2 set | fire fighting helmet | 2pcs
|
HOWO Foam Fire Truck 4 X 4 Off Road All Wheel Drive with 6500Liters Water Foam Tank
Similar Keywords: foam truck tanker, fire fighting tank truck, fire and rescue truck, fire appliance, fire engine, fire apparatus, fire truck tank, fire service truck, fire fighting vehicle
Structural classification
The structure of the rescue vehicle consists of the chassis of the vehicle, the bodywork of the bodywork (built-in rescue equipment), the power take-off and transmission, the generator (shaft or independent generator), winch (hydraulic or electric) Generally arm-type, behind the body), lifting lighting systems, electrical systems. According to the different uses of emergency rescue fire trucks, the specific configuration of the car is not the same, such as truck crane, winch, generator, landing lights, not necessarily all the rescue vehicles have. Emergency rescue fire trucks are divided into ordinary rescue vehicles, chemical rescue fire engines, special rescue vehicles (such as earthquake rescue vehicles, etc.).Rescue fire truck Category:
Emergency rescue fire engines can be divided into: light and heavy vehicles two types.
Light car configuration: Qingling chassis as a carrier, special features are: traction, power generation, lighting and rescue rescue tools.
Heavy-duty vehicle configuration: with Isuzu Dongfeng Chassis as a carrier, special functions are: lifting, traction, power generation, lighting and rescue rescue tools.
Function type
Car equipped with a variety of fire-fighting equipment, firefighters special protective equipment, fire dismantling tools and fire detectors, is responsible for rescue mission special fire truck.
Chassis model: EQ1168GU5
Chassis manufacturer: dongfeng motor company
Rescue crane: XCMG 5 tons, maximum hoisting of 7.4m, prewinch calibration tension of 8000kgf(3629kg)
Generator: imported Honda generator, voltage 380V, power 10kv/A, manual start/electric start
Lighting system: main lamp stand 4+1000W automatic lifting searchlight head DC12V, lifting height 7.6m, air pump AC220V, electric control box AC380V, electric remote control
Force extractor: sandwich type full power extractor
Engine: isb190-50 (190 HP)
Tire model: 9.00-20 16PR
Overall dimensions: 7360 x 2480 x 3330mm
The wheelbase: 4700 mm
| Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price |
| | | | L | mm | mm | | | | RMB | USD |
| DRZ5050GXFSGE | DONGFENG | EQ1050NJ20D3 | 2500 | 6260X1900X2750 | 3300 | CY4102-C3F | 95/Euro 3 | 6.15-16 | 135800 | 19980 |
| DRZ5060GSSXFE | DONGFENG | EQ1060TJ20D3 | 5000 | 5980X1980X2380 | 3300 | CY4102-C3F | 95/Euro 3 | 7.00-16 | 101200 | 14890 |
| DRZ5090GSSXFE | DONGFENG | EQ1090T9ADJ3AC | 6000 | 6995X2285X2980 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 122300 | 17990 |
| DRZ5090GXFSGE | DONGFENG | EQ1090T9ADJ3AC | 4000 | 7025X2095X2840 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 170400 | 25060 |
| DRZ5100GSSXFE | DONGFENG | EQ1100FKJ | 7000 | 7350X2440X2990 | 3950 | YC4E140-33 | 140/Euro 3 | 9.00-20 | 123300 | 18140 |
| DRZ5108GSSXFE | DONGFENG | EQ1108KJ | 9000 | 7450X2480X3185 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 147400 | 21680 |
| DRZ5108GXFSGE | DONGFENG | EQ1108KJ | 5000 | 7490X2500X2280 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 192500 | 28310 |
| DRZ5126GXFSGE | DONGFENG | EQ1126KJ1 | 6000 | 8315X2500X3300 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 249700 | 36730 |
| DRZ5141GSSXFE | DONGFENG | EQ1141KJ | 11000 | 8105X2490X3250 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 159400 | 23450 |
| DRZ5141GXFSGE | DONGFENG | EQ1141KJ | 6000 | 8115X2500X3300 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 247700 | 36430 |
| DRZ5253GSSXFE | DONGFENG | EQ5253GFJ2 | 15000 | 9950X2480X3750 | 4350+1300 | B210 33 | 210/Euro 3 | 10.00-20 | 212600 | 31270 |
| DRZ5090GXFSGPME | DONGFENG | EQ1090T9ADJ3AC | 2400 | 7025X2095X2840 | 3800 | B140 33 | 140/Euro 3 | 7.50R16 | 197500 | 29050 |
| DRZ5070GXFSGQ | ISUZU | QL1070A1KWY | 3000 | 6820X2000X2820 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-16 | 218100 | 32080 |
| DRZ5160GXFSGQ | ISUZU | QL1160AMFRY | 6000 | 8360X2485X3420 | 4500 | 6HK1-TCNG40 | 240/Euro 4 | 10.00-20 | 457300 | 67250 |
| DRZ5250GXFSGQ | ISUZU | QL1250DRFZY | 15000 | 9775X2490X3560 | 5100+1300 | 6HK1-TCSG40 | 280/Euro 4 | 11.00-20 | 621800 | 91450 |
| DRZ50703GXFSGQ | ISUZU | QL10703HWRY | 2500 | 6260X1980X2780 | 3360 | 4JB1CN | 98/Euro 4 | 7.00-15 | 182000 | 26770 |
| DRZ51609GXFSGQ | ISUZU | QL11609MFRY | 6000 | 8070X2500X3370 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 | 378000 | 55590 |
| DRZ5167GXFSGZ | SINOTRUK | ZZ1167M4617C | 8000 | 8820X2500X3450 | 4600 | WD615.92 | 266/Euro 3 | 11.00-20 | 401600 | 59060 |
| DRZ5257GSSXFZ | SINOTRUK | ZZ1257M4641W | 20000 | 9895X2496X2958 | 4325+1350 | WD615.92 | 266/Euro 2 | 12.00-20 | 295300 | 43430 |
| DRZ5257GXFSGZ | SINOTRUK | ZZ1257N4347C | 15000 | 9680X2500X3650 | 4325+1350 | WD615.69 | 336/Euro 3 | 12.00-20 | 476800 | 70120 |
| DRZ5257GXFSGZ1 | SINOTRUK | ZZ1257S4647C | 16000 | 10265X2500X3580 | 4600+1350 | WD615.96 | 375/Euro 3 | 12.00-20 | 473300 | 69610 |
Special Specification:
1. Front located 4 ton wrecker shovel, equipped with highpower lifter,
can easily adjust the height of the wrecker shovel, convenient for
switching between driving and operation state of wrecker.
2. double row cab,exclude driver, also can take 2+3 person.
3. the top of the cab is equipped with professional fire warning lights.
4. available to install a full power disconnected power takeoff between
the gearbox and engine.
5. water tank volume is 4 cubic meters.
6. high-power water pumps which can spout 40-50 meters of water column.
7. available to install 2 fire fans and 2 fire fighting high-pressure water cannons.
8. can be equipped with fire extinguishers, fire hammer,
fire shovel, fire hose, fire fighting racket and other professional
fire fighting equipments
