Fast Eaton Transmission Power Take-Off SDQ34/29LGQ1 PTO For 8JS85TE-C to Chile SDQ24/69LGQ1 for Dongfeng To South Africa

Views: 21751     Author: Tom     Publish Time: 2022-06-30      Origin: DRZE

Fast Eaton Transmission Power Take-Off SDQ34/29LGQ1 PTO For 8JS85TE-C to Chile SDQ24/69LGQ1 for Dongfeng To South Africa

Fast Eaton Transmission  Power Take-Off SDQ34/29LGQ1 PTO For  8JS85TE-C to Chile


 SDQ-DF24/69 ,SDQ24/69LGQ1 PTO for Dongfeng Truck To South Africa

17K1/17KT6K-00030 Power Take-Off、

17K17-00030/17G1A7-15 Power Take-Off、

17K23-00030/17G0A7-15  Power Take-Off

 Fast Eaton Transmission  Power Take-Off  PTO For 8JS85TE

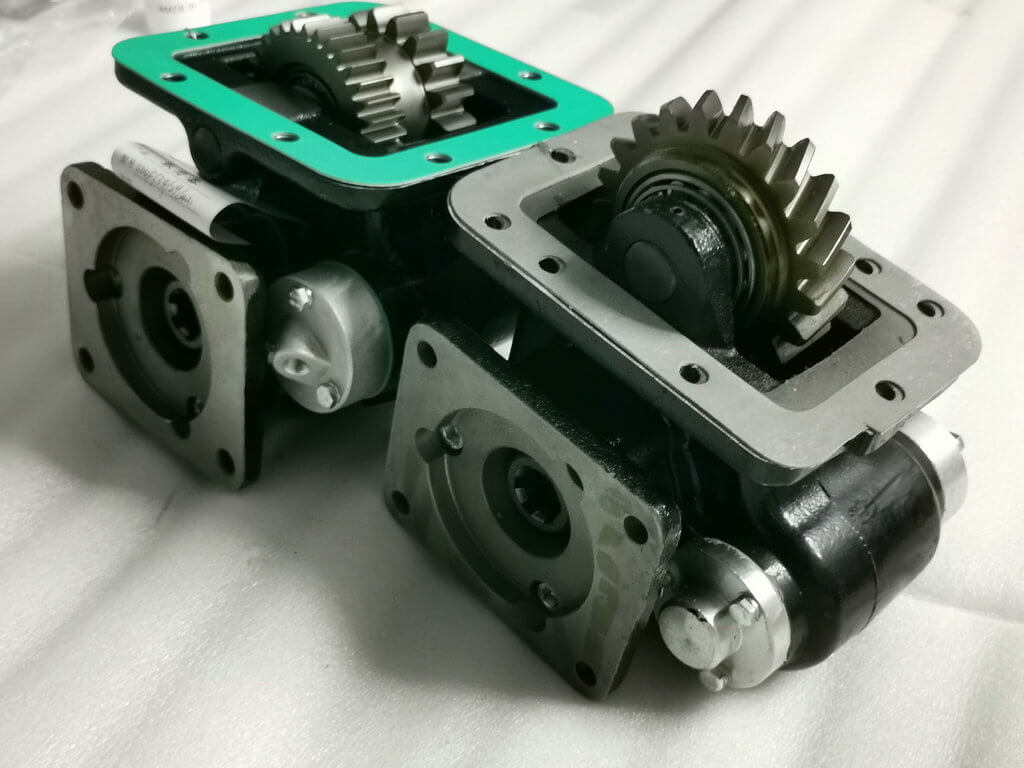

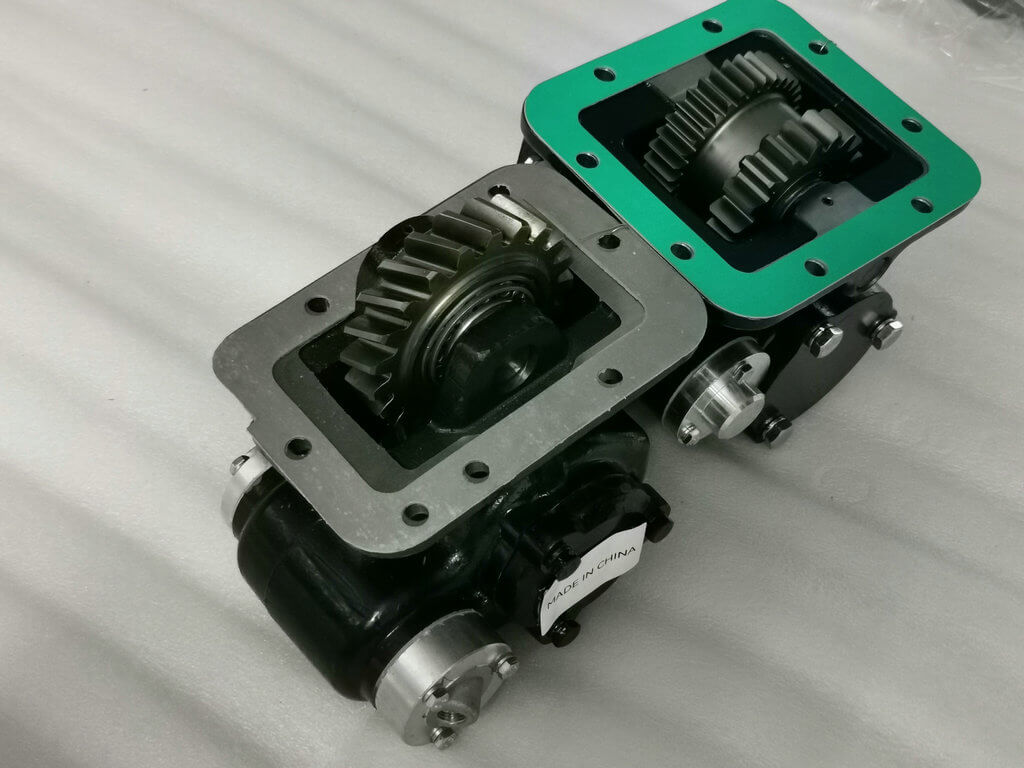

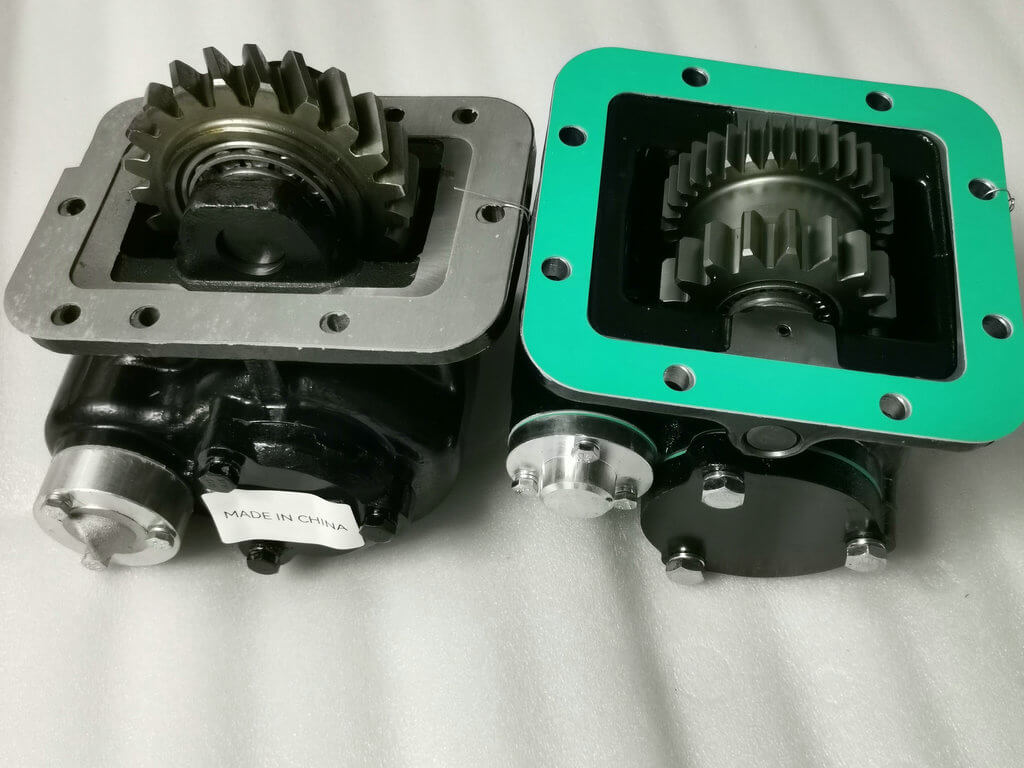

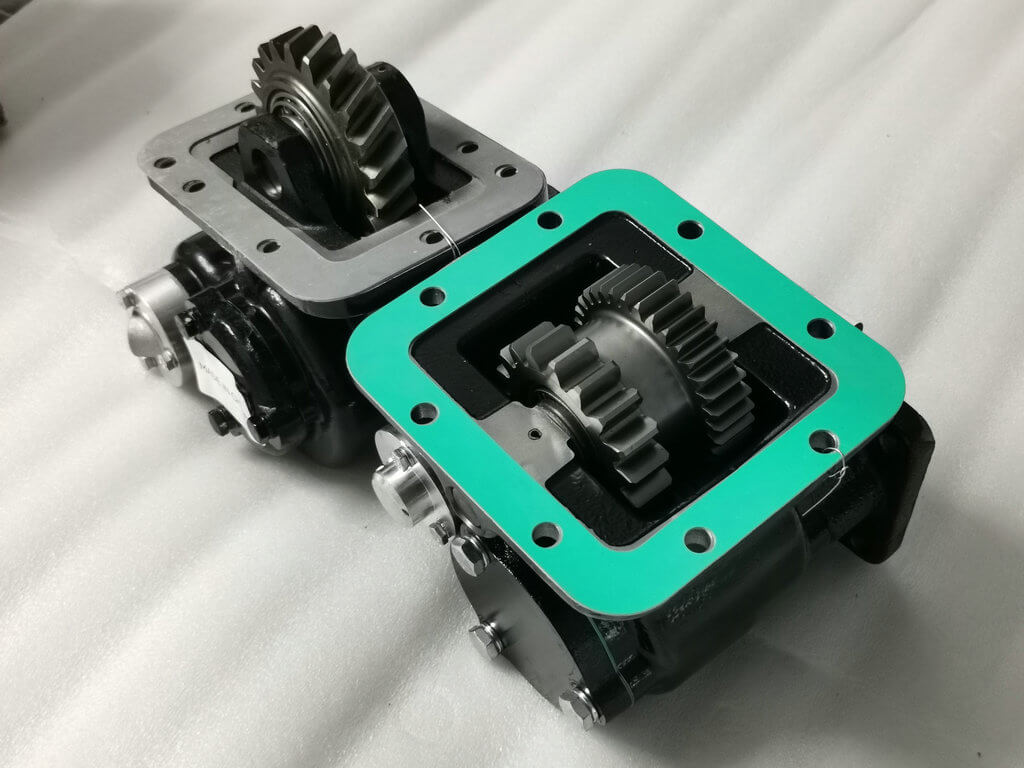

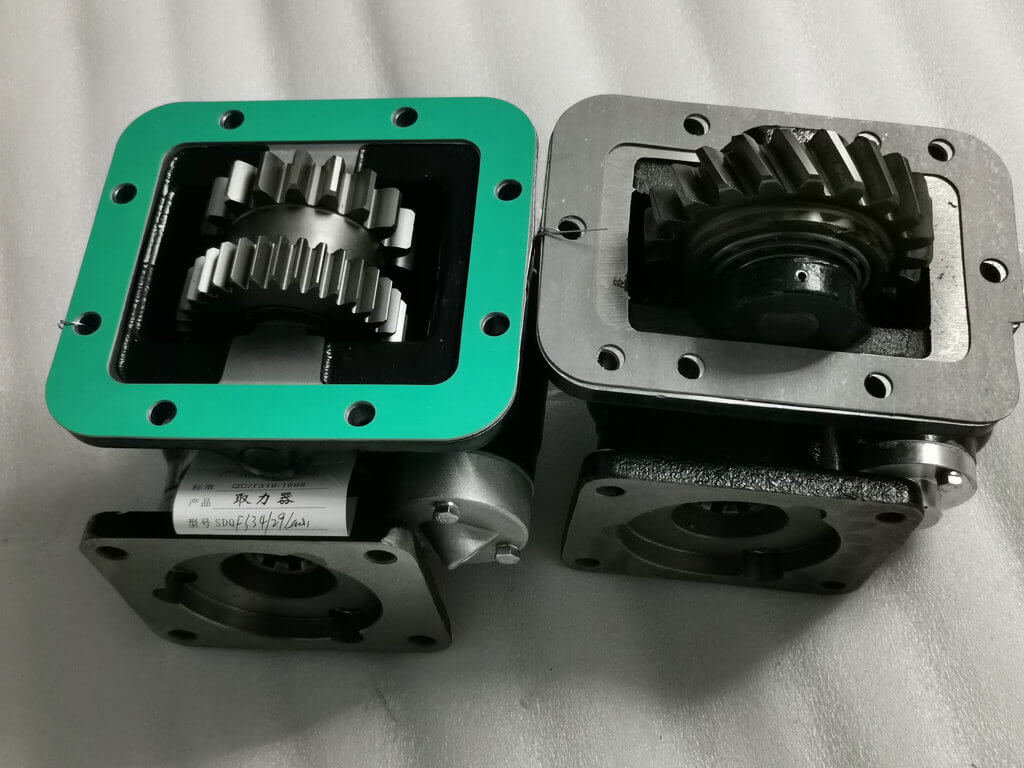

SDQ34-29LGQ1 PTO For 8JS85TE-C (SDQ24-69LGQ1 for Dongfeng) (6)SDQ34-29LGQ1 PTO For 8JS85TE-C (SDQ24-69LGQ1 for Dongfeng) (17)SDQ34-29LGQ1 PTO For 8JS85TE-C (SDQ24-69LGQ1 for Dongfeng) (8)SDQ34-29LGQ1 PTO For 8JS85TE-C (SDQ24-69LGQ1 for Dongfeng) (13)SDQ34-29LGQ1 PTO For 8JS85TE-C (SDQ24-69LGQ1 for Dongfeng) (1)SDQ34-29LGQ1 PTO For 8JS85TE-C (SDQ24-69LGQ1 for Dongfeng) (10)SDQ34-29LGQ1 PTO For 8JS85TE-C (SDQ24-69LGQ1 for Dongfeng) (14)SDQ34-29LGQ1 PTO For 8JS85TE-C (SDQ24-69LGQ1 for Dongfeng) (9)

Marks

Description

Quantity

Net Weight /Gross weight

Measurement

SDQ34/29LGQ1

MADE IN CHINA

PTO For 8JS85TE-C

1

15KG/15.6KG

24*25*30CM

Part No. Description Quantity Gross weight Measurement
SDQ24/69LGQ1

PTO  SDQ24/69LGQ1 21Teeth

17KT6K-00030  17G0A7-15 , 17JK35-00030, 17K1(K17、K23)-00030  17G1A7-15,  17JK07-00030-E,  17FT67-00030, Power Take-Off

1 14KGS 22*23*24CM

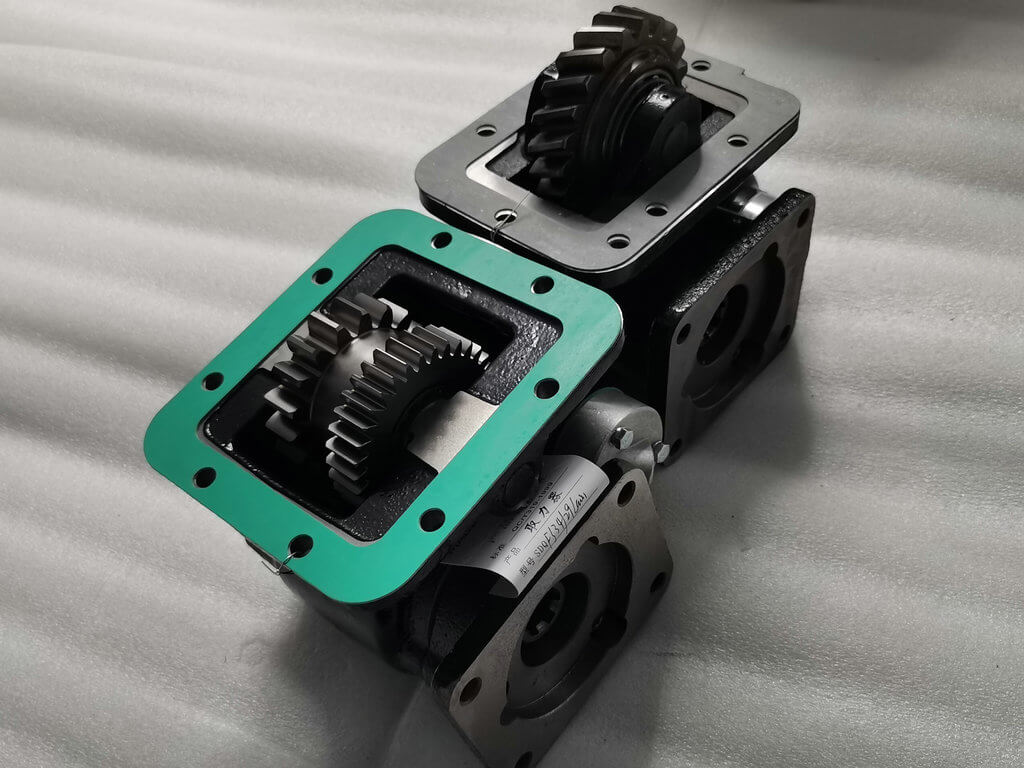

SDQ34-29LGQ1 PTO For 8JS85TE-C (SDQ24-69LGQ1 for Dongfeng) (2)

SDQ Model list of Power Take-Off

FAW Jiefang power takeoff

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-YQ12/68

1.24

250

CA6T-123/TS6-53

Internal spline / flange

Pneumatics

2

SDQ-YQ12/72

1.199

250

CA6T-123/TS6-53

Internal spline / flange

Pneumatics

3

SDQ-YQ13/70

1.08

300

CATS6-75A/1700940-680

Internal spline / flange

Pneumatics

4

SDQ-YQ15/75

1.006

350

CATS6-75(74)、

TZ1700940H4G、CA6T-138

Internal spline / flange

Pneumatics

5

SDQ-YQ15/52

1.179

400

CA6T138

Internal spline / flange

Pneumatic (dynamic clutch)

Dongfeng series power take off (DFAC)

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-DF21/33

1.044

250

17C-00030、17G0A4-08、

Internal spline / flange

Pneumatics

2

SDQ-DF22/47

1.2

600

Dt0690 overdrive

Internal spline / flange

Pneumatics

3

SDQ-DF22/47-A

1.03

600

Dt0690 overdrive

Internal spline / flange

Pneumatics

4

SDQ-DF24/42

1.2

600

DF6S900

Internal spline / flange

Pneumatics

5

SDQ-DF24/42-B

1.03

450

DF6S900

Internal spline / flange

Pneumatics

6

SDQ-DF24/45

1.2

600

DF6S900

Internal spline / flange

Pneumatics

7

SDQ-DF24/45-B

1.03

450

DF6S900

Internal spline / flange

Pneumatics

8

SDQ-DF24/65

1.06

400

DF6S-750

Internal spline / flange

Pneumatics

9

SDQ-DF24/64

1.06

400

DF6S750/DF6S650

Internal spline / flange

Pneumatics


10


SDQ-DF24/69


1.211


350

17K1/17KT6K-00030、

17K17-00030/17G1A7-15、

17K23-00030/17G0A7-15

Internal spline / flange

Pneumatics


11


SDQ-DF25/63


1.23


350

17G1A7-41/17F40(44/62)

/17g0a7-21 (41) / jiangft 650H

Internal spline / flange

Pneumatics


12


SDQ-DF26/31


1.45


350

DC6J70T/17G0A3-08(09/15/

25/96)/Zqc6t-75 / 750

Internal spline / flange

Pneumatics



13



SDQ-DF27/21



1.845



350

DC85JTZ/17G0Z56-010/17G 0A3-33(35/36)/17G0010-N9

002/14G0A3-32(34)

/DC6J85TZ



Internal spline / flange



Pneumatics


14


SDQ-DF27/53


1.35


350

17G0A9-Z67D/DC7J100TB/1

7G0A9-45(-24-00030)

Internal spline / flange

Pneumatics

15

SDQ-DF27/55

1.216

300

17g0a3-32 (33 / 34 / 35 / 36) straight

Connecting gear / dc6j85tz (direct gear)

Internal spline / flange

Pneumatics

16

SDQ-DF27/65

1.07

350

DC7J100TC、17G0A9-Z66D

Internal spline / flange

Pneumatics

17

SDQ-DF27/66

1.26

350

Dc6j85tz (overdrive)

/17G0A3-54/1700010-A9000

Internal spline / flange

Pneumatics

18

SDQ-DF28/55

1.3

400

17GOA3-38/17N29-00030

Internal spline / flange

Pneumatics

19

SDQ-DF28/65

1.55

350

Dc7j120tb (overdrive)

/01-00030

Internal spline / flange

Pneumatics


20


SDQ-DF28/72


1.84


350

Dc7j120tc (direct gear)

/01-00030 (stop order)

Internal spline / flange

Pneumatics

Jac Xingrui series power take off (JAC)

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-XR50/35

1

300

LC6T35,LC6T55 ,WLY6TS55

Internal spline / flange

Pneumatics

2

SDQ-XR50/45

1.1

280

LC6T46/LC6T450

Internal spline / flange

Pneumatics

3

SDQ-XR50/60

1.1435

300

LC6T540

Internal spline / flange

Pneumatics

4

SDQ-XR50/63

1.11

300

LC6T540/15CO7027

Internal spline / flange

Pneumatics

5

SDQ-XR50/65

1.6433

250

ML642A-A9

Internal spline / flange

Pneumatics

6

SDQ-XR50/67

1.1541

250

ML532A

JAC ML532A

Internal spline / flange

Pneumatic / manual

7

SDQ-XR50/69

1.1

280

LC6T46/LC6T450

Internal spline / flange

Pneumatics

8

SDQ-XR50/71

1.17

200

LC5T97/LC5T30

Internal spline / flange

Pneumatics

9

SDQ-XR50/74

1.03

200

LC5T35/LC5T40

Internal spline / flange

Pneumatics

10

SDQ-XR23/55

1.12

300

LC6T450M1

Internal spline / flange

Pneumatic / manual

11

SDQ-XR37/77

1.55

200

ML532C

Internal spline / flange

Pneumatic / manual

Qingling Isuzu series power take off (Isuzu)

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-WS51/62

1.3

150

Msb-5m / starray lc5t88

Internal spline / flange

Pneumatics

2

SDQ-WS38/63

1

150

Msb-5m / starray lc5t88

Internal spline / flange

Pneumatic / manual

3

SDQ-WS32/64

1.095

300

MYY-6S

Internal spline / flange

Pneumatic / manual


4


SDQ-WS35/74


1.63


180

MSB-5M/MSB-5S/MSB-5SM/LC5T88


LC5T25/LC5T255M3/LC5T28


Internal spline / flange

Pneumatic / manual vacuum

5

SDQ-WS52/77

1.18

250

MLD-6Q/MLD6A

Internal spline / flange

Pneumatics

JMC series power take off

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-GT32/65

(SDQ- 51/65)

1.26

250

6MT1420/DN3-70030-E0/KN3

Internal spline / flange

Pneumatic / manual

2

SDQ-GT51/67

1.2

200

JC5T28/5T26.5/MTI280JD

Internal spline / flange

Pneumatic / manual

3

SDQ-GT32/65-A

1.315

250

6MT1420/DN3-70030-E0/KN3

Internal spline / flange

Pneumatic / manual

4

SDQ-GT32/65-B

1.09

250

6MT1420/DN3-70030-E0/KN3

Internal spline / flange

Pneumatic / manual

5

SDQ-GT32/65-C

1.26

250

6MT1420/DN3-70030-E0/KN3

Internal spline / flange

Pneumatic / manual

ZF series power take off

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-ZF51/38

1.077

300

ZF6S500/ZF6S600/ZF6S558

ZF6S508/ZF6S458

Internal spline / flange

Pneumatics

2

SDQ-ZF51/44

1

250

ZF5S400

Internal spline / flange

Manual

3

SDQ-ZF48/39

1.063

250

ZF5S408/ZF5S328

Internal spline / flange

Pneumatics

4

SDQ-ZF211/65

0.772

650

TraXon12

Internal spline / flange

Pneumatics

Fast Group-Joint venture of Eaton clutch power take off

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-FS212/70

0.94

600

12JSD160TA

Internal spline / flange

Pneumatics

2

SDQ-FS212/70-A

0.78

600

12JSD160TA

Internal spline / flange

Pneumatics

3

SDQ-FS19/31

(QD40A)

1.09

400

8JS75

Internal spline

Pneumatics

4

SDQ-FS24/37

( QCZ70A)

0.93

600

6J80T

Internal spline / flange

Pneumatics

5

SDQ-FS211/60

1.1

350

6DS40TB-D/6DS60TB-D

6DS60TA-D

Internal spline / flange

Pneumatics


6


SDQ-FS211/70


0.94


600

Fuller / fast / rt-11509c

8JS100S/17G0A9-22

Internal spline / flange

Pneumatics


7


SDQ-FS211/70-A


0.78


600

Fuller / fast / rt-11509c

8JS100S/17G0A9-22

8JS118TA-B  211/70

Internal spline / flange

Pneumatics

8

SDQ-FS34/29

QD40J



400

8JS75

8js75tc


Internal spline / flange

Pneumatics

WanLiYang series power take off (WLY)

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-WL24/37

1.176

250

10H30

Internal spline / flange

Pneumatics

2

SDQ-WL24/38

1.077

300

6G55

Internal spline / flange

Pneumatics

3

SDQ-WL24/40

1.333

300

6G40A

Internal spline / flange

Pneumatics

4

SDQ-WL31/39

1.1

300

6G40A

Internal spline / flange

Pneumatics

5

SDQ-WL24/43

1.087

300

5G40

Internal spline / flange

Pneumatic / manual / vacuum

6

SDQ-WL24/44

1.043

300

6G40B

Internal spline / flange

Pneumatics

7

SDQ-WL24/59

1.094

300

6G120/6G70

Internal spline / flange

Pneumatics

8

SDQ-WL24/60

1.3

300

6TS40

Internal spline / flange

Pneumatics

9

SDQ-WL24/63

1.39

180

5TS32

Internal spline / flange

Pneumatic / manual

10

SDQ-WL 24/63-B

1.39

180

5G32A

Internal spline / flange

Pneumatic / manual

11

SDQ-WL 24/66

1.359

180

5TS32-C

Internal spline / flange

Pneumatic / manual

12

SDQ-WL 24/66-B

1.146

180

5G32B/5G32C

Internal spline / flange

Pneumatic / manual

13

SDQ-WL 24/67

SDQ-WL 25/67

1.147

300

6T120/6S46/6S51

Internal spline / flange

Pneumatics

14

SDQ-WL 24/70

1.15

200

6S46B (2015-4-25  stop produce)

Internal spline / flange

Pneumatic / manual

15

SDQ-WL 24/71

SDQ-WL 25/71

1.11

300

6S51B/6S46B

Internal spline / flange

Pneumatic / manual

16

SDQ-WL 24/72

1.133

300

6TS55E/6TS60

Internal spline / flange

Pneumatic / manual

17

SDQ-WL23/63

1.35

350

10H46

Internal spline / flange

Pneumatics

18

SDQ-WL23/71

1.15

400

7TS60

Internal spline / flange

Pneumatics

19

SDQ-WL24/75

1

400

7TS60B

Internal spline / flange

Pneumatics

20

SDQ-WL25/70

1.244

400

7TS60C

Internal flange / spline

Pneumatics

21

SDQ-WL24/73

1.07

400

7TS60D

Internal spline / flange

Pneumatics

22

SDQ-WL25/33

1.228

350

10h46 (right)

Internal spline / flange

Pneumatics

23

SDQ-WL27/70

1.08

150

5TS40

Internal spline / flange

Pneumatics

24

SDQ-WL31/46

1.2

180

5TS40

Internal spline / flange

Pneumatics

25

SDQ-WL211/100

1

1000

9G90

Internal spline / flange

Pneumatics

Heavy duty  Sinotruck power take off

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-ZD27/61

1.1

600

DC7J120T

Flange flange

Pneumatic (dynamic clutch)

2

HW50

0.739

500

HW14710/HW18710

HW15710/HW19710

Internal flange / spline

Pneumatics

3

HW70

0.793

700

HW18709/HW18710

Internal spline / flange


4

HW80Q-F301


800

HW90510C1

Flange flange

Pneumatics

5

HW140Q-F301

0.84

1400

HW12706

Flange flange

Pneumatics

6

HW140Q-F302

0.84

1400

HW12706

Flange flange

Pneumatics

7

HW140Q-F303

0.84

1400

HW12706

Flange flange

Pneumatics

8

HW140Q-F305

0.84

1400

HW12706

Flange flange

Pneumatics

9

HW60Q-F300

0.686

600

HW12706

Flange flange

Pneumatics

Other series of power take-off

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-HL211/65

0.772

650

Soda gearbox 12sob1500

Internal spline / flange

Pneumatics

2

SDQ-HL211/100

1

1000

Soda gearbox 12sob1500

Internal spline / flange

Pneumatics

3

SDQ-NQ42/26

1.15

150

NAC 2830.5  stop order

Internal spline / flange

Pneumatics

4

SDQ-NQ42/27

1.15

150

NAC 2830.5

Internal spline / flange

Pneumatics

5

SDQ-SQ42/77

1.13

300

SAIC sc50m6d

Internal spline / flange

Pneumatics


New energy series power take off

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-LK31/38

1.043

300

Suzhou Lvkon transmission

6s100

Internal spline / flange

Pneumatics

2

SDQ-LK24/36

SDQ38/36

1.136

300

Suzhou Lvkon transmission

j6s95

J6S95 PTO SDQ-LK38/36LGQ1

Internal spline / flange

Pneumatics

3

SDQ-LK20/56

1.148

300

Suzhou Lvkon transmission

j2s130

Internal spline / flange

Pneumatics

Export series power take off

Serial number

Model of power take-off

speed ratio

Output torque

(N.m)

Matching gearbox

Output mode

control mode

1

Pto1000 series

0.6- 1.88

300

EATON FS 3005/4005

EATON 6305

Internal flange / spline

Pneumatics




2




Pto2000 series




0.6- 1.88




350

Eaton fuller Eaton rt-11109a / rt-6609a rt-7608a

Allison Ellison

M-5600/M-6600/S-5600 S-6600




Internal spline / flange




Pneumatics

3

3131(BZ)

0.84-2.9

4

450

Allison Ellison

MD-3000/MD-4000

Internal spline / flange

Hydraulic (dynamic clutch)


4

3252(BZ)

0.81-1.8

5


300

Allison Ellison

MD-3000/MD-4000

Internal spline / flange

Hydraulic (dynamic clutch)


5

3151(BZ)


0.84-2


540

Allison Ellison

MD-3000/MD-4000

Internal spline / flange

Constant mesh


6


3300


0.74-1


390

Allison Ellison

MD-1000/MD-2000

Internal spline / flange

Hydraulic (dynamic clutch)

7

PTO852

1.13

650

Allison

Internal spline / flange

Hydraulic (dynamic clutch)



8



103K_03(BZ)



0.77-0.55



650

ZF ZF

S5-50/90

S6-65/66/70/75/80/90 6S-800/1000/1005/1200



Flange flange



Pneumatics



9



1010K_03 (BZ)



0.76



420

ZF ZF

S5-50/90

S6-65/66/70/75/80/90 6S-800/1000/1005/1200



Flange flange



Pneumatics



Gearbox Transmission Model

PTO  Model

PTO Options

speed ratio

Torque  N.m

Teeth

Truck brand

 C171702021-8C CA6-75AB19  CATS6-62  CA6T-123   6T120    JS6-550  TS6-53(Direct

—8C

SDQ12/68(stop order)

1.19

350

Straight 25   Helical 23

FAW

C10032 C18117 C20131 C24412

4205D4-010A

FAW

WLY653-1050-00  653H386-14


FAW

TZ1700940-11  CATS6-53  FD6T-53          CA6T123(Straight    HY6-53     6T53-24S(K)


SDQ12/72

1.199

250

23

FAW

CATS6-74  CA6T138  1700945-449  CA6T-138(FAW Eaton

6-74

SDQ15/75

1.006

350

Straight 25   Helical 19

FAW

17V20  17V70-00030  FT13A-00030  YC5-42A 17JK52-00030(JiangKai 5



1.37

300

Straight 19   Helical 25

DFAC Dollicar

17D45-00030  17000D-010  17000D4-010  17C-00030

140-2

SDQ21/33

1.044  0.982

350

Helical 25

DFAC Dollicar 145

BS05(17DS52-00030)  17JR09      BS02(17CLD39HFB-00030    17CLD26-00030)  17GDA1-BJ800  17JK47HFA-00030

FLQ2533QW-0010

10F46-146-33

DKQ25/33QN

17DAC10-00030  17F41-00030  YC5-42A    17V70-00030  17G37-00030  17Q37-00030       17Q01-00030  17001A-00030

42056B1-010

SDQ22/25

0.828

300

Helical 21

DFAC Dollicar

1700010-C60111  C68632  C60617  C68031   VLY540-150-08    17JK52-00030(JiangKai5档)

145-5

WLY10H46-89-07


YC5-30B  TC5-35QC12(Tangchi    YC5-35JH1  17G0A5-BG05       TC5-35B29(Tangchi  1700010-Q17421(Jiangshan JC5-20T23(ganzhou 17G0A8-LB27  17G0A88-QB80  17G1A8-20  17G0A5-EG05-B


SDQ23/30

1.15

250

Helical 24

Furika

LG520Q3  LG525Q  Mengwo1700010-Q17571   MW525CL  17G0AB02  WLY520

525

SDQ23/32

1.24

170

Helical 31

FOTON Furika

SDQ33/32

Helical 34

SYC07  1700010-C64001(JiangshanWLY500-70-00(5ratio1  1700010-E31121  TC5-30HKA20(Tangchi TC5-30HFE9(Tangchi  YC5-30V06  LG535QHZJB1

1061

SDQ23/37

1.238

200

Helical 29

FOTON Furika

WLY5TS32-73-00

5T88-8快速

SDQ24/63

1.03

250


DongfengDFAC Dollicar

WLY6TS55E    WLY6TS60

55E

SDQ24/72

1.03

250


DongfengDFAC Dollicar

WLY6G40A

6G40A

SDQ24/40

1.03

250


DongfengDFAC Dollicar

WLY6G40B

6G40B

SDQ24/44

1.03

250


DongfengDFAC Dollicar

WLY7TS60B

7TS60B

SDQ27/74

1.03

250


KINGRUN

WLY6G120   WLY6G70

6G120

SDQ24/59

1.03

250


Dongfeng

WLY6G55

6G55

SDQ24/38

1.03

250


DongfengDFAC Dollicar

WLY5G32A

5G32

SDQ24/66-B

1.03

250


DongfengDFAC Dollicar

WLY5G40

5G40

SDQ24/43

1.03

250


DongfengDFAC Dollicar

DF6S900(170010-90617)     1700010-LD4001

KD-19

SDQ24/42

1.22

500

Straight 24   Helical 21

KINGRUN

1.03

Straight 23   Helical 25

DF6S900(170010-KW100)     1700020-90651 17KW100-00020

KF-17

SDQ24/45

1.2

550

Straight 23   Helical 17

KINGRUN

1.03

Straight 21   Helical 21

DTO690(641 LD6201)

KINGRUN  EURO 6

SDQ24/47

1.03

500


KINGRUN

WLY6T40

6T100-8

SDQ24/60

1.12

300

Helical 32

Dongfeng DFAC Dollicar

17LQ100-00020  DF6S750


SDQ24/64

1.06

400

Helical 23

Dongfeng DFAC Dollicar

DF6S750RBA  17TS19-00030  1700KBA  17KD100-00030

4205KBA-010B

SDQ24/65

1.06

400

Helical 19

KINGRUN  145

WLY6S46B  WLY6T120


SDQ24/67

1.09

380

Helical 25

Dongfeng


6T120

17KT6K-00030  17G0A7-15(Jiangshan 17JK35-00030(JiangKai6档) 17K1(K17K23)-00030  17G1A7-15  17JK07-00030-E(JiangKai  17FT67-00030

145-6

SDQ24/69

1.211

350

Helical 21

145

4205KD1-010

17D100-00030

145-6III

SDQ24/69-1



Helical 21

145

646B  MLY6S51B-20B-00

6S51

SDQ24/70(stop order)

1.15

200

29

FOTON

WLY6TS55B-63-32  WLY6S51B-20C-00  WLY6TS55B-58-32

142

SDQ24/71

1.15

200

Helical 25

DongfengDFAC Dollicar

17G0A3-09(17EZO9E8A)

153-6  BL160

SDQ26/31-1

1.24

350

Straight 14

EQ153

DC85JTZ  17G0A3-(33/35/36)  17G0Z56-010  17G0010-N9002  14G0A3-(32/34)  DC6J85TZ

1208

SDQ27/21

1.845

350

Straight 15

EQ1208

DC6J85TZ  17G0A3-54  1700010-N9000


SDQ27/66

1.26

450

Helical 18

EQ1208

17G0A3-38  17N29-0003      17G0A3-B62D  17G0A3-N29  1700010-N9001  17DJL-00030


SDQ28/55

1.03

400

Helical 17

KINGRUN

DC7J120TB(Speeding)


SDQ28/65

1.55

350

Helical 16

KINGRUN

CAS5-20B10 CAS525C3 LG520EQ GLD5-20E4


SDQ33/32

1.24

250

Helical 34

Dongfeng  FOTON FAW

CAS5-25B10 CAS5-20B10       QLD5-20E4( )

1041  BD42

SDQ34/32

1.192

250

Helical 32

WLY525E-89-127               sanhe 1700010-Q17421

2830.5


SDQ42/27

1.15

200

30

IVECO NAVECO

LC6T35


SDQ50/35

1

300

Straight 22   Helical 26

JAC

LC6T46(A2Q25)  LC6T450MT(AZQ28)         WLYZ6S46(

646

SDQ50/45

1.1

280

Straight 14

FOTON  AUMARK

WLY6S46

646前窗

SDQ50/69

1.187

350

Helical 28

LC6T540 15CO7027


SDQ50/63

1.13

350

Helical 29

JAC

LC5T97 LC5T30( 6teeth)

5T97

SDQ50/71

1.17

250

Helical 31

LC5T400M1(A2Q08)

5T35

SDQ50/74

1

200

Helical 31

FOTON Oling

NISSAN ZF5S400V


SDQ51/44

1.5

200

Straight 32   Helical 42

NISSAN

MSB-5M(A2Q05) LC5T88(6 teeth

ISUZU QINGLING

SDQ51/62

1.22

250

Helical 37

ISUZU QINGLING

MSB-5M(A2Q05) LC5T88(6 teeth

ISUZU QINGLING

SDQ51/63

1.03

250

Helical 38

ISUZU QINGLING

 DN3-70030-E0 6MT1420

DN3

SDQ51/65

1.26

350

Helical 32

ISUZU QINGLING

MSB-5S/5M/5SM  5MT1280JD  JC526T3D

1021  5T88

SDQ51/74

1.633

250

Helical 35

JMC small FOTON

WLY5TS32C-58-32

Dongfeng

WLY5TS32-31-32




Dongfeng   FOTON

JC528T8

1021  5T88

SDQ51/67

1.2

200

Helical 41

JMC

ISUZU MRB6P( EURO3)


SDQ52/74

1.16

350

25

ISUZU QINGLING

MRB6Q  MLD6Q

5T ISUZU

SDQ52/77

1.18

400

Helical 30

ISUZU QINGLING

8JS85E  17JK-G18569(JiangKai

85E 8JS85E

QD40A

SDQ34/29LGQ1

1.01

350

Straight 18   Helical 19

FAST, Dongfeng

RT-11609A  RT-11509C

8JS118TA-B

SDQ211/70

Q.8

700

Dongfeng, FAWHongyan IVECO, Steyr, Auman, Northern Benz BEIBEN,JACSHCAMAN

17G0A9-22 9JS135T-B


SDQ211/70-1

1

400

9JS119T-B(1700010-K14E3)


SDQ211/70-3

0.86

400

9JS119TA


SDQ211/70-4

1

500

RTO-11609B  RT-11509F


SDQ211/70-5

0.94

650

12JS160TA


SDQ212/70-1

0.88

650

Dongfeng, Hongyan IVECO, Steyr, Auman, Northern Benz BEIBEN,JACSHCAMAN

12JD160TA 12JD180T


SDQ212/70-2

A5J38T


QC20A

1.61



FOTON



HWP type Power Take-Off




No

PTO Model

Ratio

Torque

Transmission

Output Mode

Control

Position

1

HWP-X23/55CHQ

1.1206

300N.M

LC6T450M1

Spline

Pneumatic

Side

2

HWP-X23/55TQ

1.1206

300N.M

LC6T450M1

Flange

Pneumatic

Side

3

HWP-X30/71CHQ

1.5517

250N.M

LC5T30

Spline

Pneumatic

Side

4

HWP-X30/71TQ

1.5517

260N.M

LC5T30

Flange

Pneumatic

Side

5

HWP-X31/63CHQ

1.1099

300N.M

LC6T540

Spline

Pneumatic

Side

6

HWP-X31/63TQ

1.1099

300N.M

LC6T540

Flange

Pneumatic

Side

7

HWP-X31/74CHQ

1.5621

250N.M

LC5T40

Spline

Pneumatic

Side

8

HWP-X31/74TQ

1.5621

250N.M

LC5T40

Flange

Pneumatic

Side

9

HWP-I35/62CHS

1.2971

200N.M

MSB-5M

Spline

Manual

Side

10

HWP-I35/62TS

1.2971

200N.M

MSB-5M

Flange

Manual

Side

11

HWP-X35/65CHQ

1.6433

250N.M

ML642A

Spline

Pneumatic

Side

12

HWP-X35/65TQ

1.6433

250N.M

ML642A

Flange

Pneumatic

Side

13

HWP-X35/65CHQ-A

1.096

250N.M

ML642A

Spline

Pneumatic

Side

14

HWP-X35/65TQ-A

1.096

250N.M

ML642A

Flange

Pneumatic

Side


15



HWP-I35/74CHQ

1.8



250N.M

MSB-5M



Spline


Pneumatic



Side

1.536

LC5T28

1.82

LC5T88


16



HWP-I35/74TQ

1.8



250N.M

MSB-5M



Flange


Pneumatic



Side

1.536

LC5T88

1.82

LC5T28


17



HWP-I35/74CHS

1.8



250N.M

MSB-5M



Spline

Manual



Side

1.536

LC5T28

1.82

LC5T88


18



HWP-I35/74TS

1.8


MSB-5M



Flange

Manual



Side

1.536

LC5T28

1.82

LC5T88


Note



The above listed are the models and special specifications of common power take-off assemblies, or if you need to customize, please call for details.




Model Of Power Takeoff

Handling Out Method

Operation Mode

Speed Ratio

Rated Torque

Suitable Transmission Model

01 WanLiYang series






WLY525

Internal spline

Manual, pneumatic

1.56

200

WLY525  CA525

WLY525

Protrusion connection

Manual, pneumatic

1.56

200

WLY525  CA525

WLY5T32

Internal spline

Manual, pneumatic

1.46

150

WLY5T26  5T32

WLY5T32

Protrusion connection

Manual, pneumatic

1.46

150

WLY5T26  5T32

WLY5GS32

Internal spline

Pneumatic

1.5

150

WLY5GS32

WLY5GS32

Protrusion connection

Pneumatic

1.5

150

WLY5GS32

WLY6T46

Internal spline

Pneumatic

1.73

250

WLY6T46

WLY6T46

Protrusion connection

Pneumatic

1.73

250

WLY6T46

WLY6T40

Internal spline

Pneumatic

1.65

250

WLY6T40

WLY6T40

Protrusion connection

Pneumatic

1.65

250

WLY6T40

WLY5S100

Internal spline

Pneumatic

1.65

200

WLY5S100

WLY5S100

Protrusion connection

Pneumatic

1.65

200

WLY5S100

WLY540

Internal spline

Pneumatic

1.32

300

WLY540

WLY540

Protrusion connection

Pneumatic

1.32

300

WLY540

WLY526

Internal spline

Pneumatic

1.43

200

WLY526

WLY526

Protrusion connection

Pneumatic

1.56

200

WLY5T26

WLY530

Internal spline

Pneumatic

1.63

200

WLY5-30

WLY530

Protrusion connection

Pneumatic

1.63

200

WLY5-30

WLY535

Internal spline

Pneumatic

1.42

200

WLY5-35

WLY535

Protrusion connection

Pneumatic

1.42

200

WLY5-35

WLY5T97

Internal spline

Pneumatic

1.46

150

WLYT92

WLY5T97

Protrusion connection

Pneumatic

1.46

150

WLYT92

WLY6T100

Internal spline

Pneumatic

1.68

250

WLY6T100-8

WLY6T100

Protrusion connection

Pneumatic

1.68

250

WLY6T100-8

WLY653

Internal spline

Pneumatic

1.68

250

WLY653

WLY653

Protrusion connection

Pneumatic

1.68

250

WLY653

WLY650

Internal spline

Pneumatic

1.57

300

WLY650

WLY650

Protrusion connection

Pneumatic

1.57

300

WLY650

WLY8S85E

Internal spline

Pneumatic

1.37

300

WLY8S85

WLY8S85E

Protrusion connection

Pneumatic

1.37

300

WLY8S85

WLY5T88

Internal spline

Pneumatic

1.56

250

WLY5T26

WLY5T88

Protrusion connection

Pneumatic, manual

1.56

150

WLY5T26

02 monvo series






MW515JB

End key

Chang He

1.93

120

MW515 MW517

MW515JB-H

spline

Chang He

1.93

120

MW515 MW517

MW515EQF

End key

Manual

1.93

120

MW515 MW517

MW515EQF

Protrusion connection

Manual

1.93

120

MW515 MW517

MW520GAEC

End key

Chang He

1.86

120

MW520GA

MW520GE

End key

Chang He

1.86

120

MW520GE

MW520GAHB4-4

End key

Chang He

1.86

120

MW520GAHB

MW520F-2

Single bond

Manual

1.72

180

MW520

MW520F1-3

Internal spline

Manual, pneumatic

1.72

180

MW520

MW520F2

Protrusion connection

Manual, pneumatic

1.72

180

MW520

MR70

End key

Manual

1.79

150

MR70

MR70

Protrusion connection

Manual

1.79

150

MR70

MT78Q

Internal spline

Manual, pneumatic

1.67

200

MT78Q

MT78Q

Protrusion connection

Manual, pneumatic

1.67

200

MT78Q

MR78

Internal spline

Manual

1.83

200

MR78

MR78

Protrusion connection

Manual

1.83

200

MR78

MT85Q-2

Internal spline

Manual, pneumatic

1.62

250

MT85

MT85Q-2

Protrusion connection

Manual, pneumatic

1.62

250

MT85

MT85EC3

Internal spline

Manual, pneumatic

1.62

250

MT85

MT85EC3

Protrusion connection

Manual, pneumatic

1.62

250

MT85

MR85Q

Internal spline

Manual, pneumatic

1.62

250

MR85

MR85Q

Protrusion connection

Manual, pneumatic

1.62

250

MR85

MR85E

Internal spline

Manual, pneumatic

1.72

250

MR85

MR85E

Protrusion connection

Manual, pneumatic

1.72

250

MR85

MR78QF

Internal spline

Manual, pneumatic

1.67

200

MR78Q

MR78QF

Protrusion connection

Manual, pneumatic

1.67

200

MR78Q

MW525F-1

End key

Manual

1.42

250

MW525F1-3

MW520QDL

Internal spline

Manual, pneumatic

1.42

250

MW520

MW520QDA

Protrusion connection

Manual, pneumatic

1.42

250

MW520

03 Dongfeng series






DF5S300

Internal spline

Pneumatic

1.57

250

DF5S300

DF5S300

Protrusion connection

Pneumatic

1.57

250

DF5S300

DF5S40

Internal spline

Pneumatic

1.49

300

DF5S40

DF5S40

Protrusion connection

Pneumatic

1.49

300

DF5S40

DF5S550

Internal spline

Pneumatic

1.47

300

DF5S550

DF5S550

Protrusion connection

Pneumatic

1.47

300

DF5S550

DF5S600

Internal spline

Pneumatic

1.53

300

DF5S600

DF5S600

Protrusion connection

Pneumatic

1.53

300

DF5S600

DF6S650

Internal spline

Pneumatic

1.57

300

DF6S650

DF6S650

Protrusion connection

Pneumatic

1.57

300

DF6S650

DF6S900

Internal spline

Pneumatic

1.58

350

DF6S900

DF6S900

Protrusion connection

Pneumatic

1.58

350

DF6S900

04 Jianghuai series






LC5T88

Internal spline

Pneumatic, manual

1.56

150

QL15C-04/SDQ51

LC5T88

Protrusion connection

Pneumatic, manual

1.56

150

QL15C-02

LC5T26

Internal spline

Pneumatic, manual

1.63

150

QL15C-03

LC5T26

Protrusion connection

Pneumatic, manual

1.63

150

QL15C-03

LC5T97

Internal spline

Pneumatic, manual

1.57

200

QL15A-01

LC5T97

Protrusion connection

Pneumatic, manual

1.57

200

QL15A-01

MSB-5M

Internal spline

Manual

1.56

150

QL15C-02

MSB-5M

Protrusion connection

Manual

1.56

150

QL15C-02

LC6T46

Internal spline

Manual

1.79

250

SDQ50/69LGQ1

LC6T46

Protrusion connection

Manual

1.79

250

SDQ50/69PQ1

LC6T55

Internal spline

Manual

1.56

300

QL30M-01

LC6T55

Protrusion connection

Manual

1.56

300

QL30M-01

LC6T450

Internal spline

Manual

1.47

300

QL30E-06

LC6T450

Protrusion connection

Manual

1.47

300

QL30E-06

LC6T540

Internal spline

Pneumatic

1.47

300

HWP-X31/63TQ

LC6T540

Protrusion connection

Pneumatic

1.47

300

HWP-X31/63TQ

LC5T400

Internal spline

Pneumatic

1.53

300

SDQ50/74PQ1

LC5T400

Protrusion connection

Pneumatic

1.53

300

QL15D-06

LC5T150

Internal spline

Pneumatic

1.43

300

QL12J

LC5T150

Protrusion connection

Pneumatic

1.43

300

QL12J-01

LC5T28

Internal spline

Pneumatic

1.57

200

HWP-T38/63CHQ

LC5T28

Protrusion connection

Pneumatic

1.57

200

HWP-T38/63CHQ

LC5T190

Internal spline

Pneumatic

1.63

300

QL12G/QL12G-02

LC5T190

Protrusion connection

Pneumatic

1.63

300

QL12G/QL12G-02

LC5T30

Internal spline

Pneumatic

1.49

200

SDQ50/71LGQ1

LC5T30

Protrusion connection

Pneumatic

1.49

200

SDQ50/71PQ1

ML642

Internal spline

Pneumatic

1.51

300

SDQ5065PS-B

ML642

Protrusion connection

Pneumatic

1.51

300

SDQ5065PS-B

05 Shaanxi fast






8JS85E

Internal spline

Pneumatic

1.26

300

8JS85E

8JS85F

Internal spline

Pneumatic

1.32

300

8JS85F

8JS85C

Internal spline

Pneumatic

1.17

300

8JS85C

8JS60T

Internal spline

Pneumatic

1.42

300

6DS60T

8JS118

Internal spline

Pneumatic

1.53

350

8JS118

8JS119

Internal spline

Pneumatic

1.53

350

9JS119

06 heavy truck series






DC5J80

Internal spline

Pneumatic

1.47

300

DC5J80

DC6J65

Internal spline

Pneumatic

1.61

300

DC6J65

DC6J85

Internal spline

Pneumatic

1.47

300

DC6J85

DC6J95

Internal spline

Pneumatic

1.41

350

DC6J95

DC7J120

Internal spline

Pneumatic

1.37

350

DC7J120

HW25505

Internal spline

Pneumatic

1.37

350

HW25505

HW90510

Internal spline

Pneumatic

1.4

350

HW90510

07 Changtai series






SC5T45

Internal spline

Pneumatic

1.54

300

SC5P45

SC6E-45

Internal spline

Pneumatic

1.47

300

SC6E-45

SC6T53

Internal spline

Pneumatic

1.47

300

SC6T53

SC5D

Internal spline

Pneumatic

1.51

300

SC5D

SC6J85

Internal spline

Pneumatic

1.42

300

SC6J85

SC7E

Internal spline

Pneumatic

1.54

350

SC7E

8S-45

Internal spline

Pneumatic

1.57

300

SC85-45

SC8S×one

Internal spline

Pneumatic

1.61

300

SC8S×one

SC6S

Internal spline

Pneumatic

1.48

300

SC6S

SC6S×one

Internal spline

Pneumatic

1.51

300

SC6S×one

08 FAW






CA525

Hand  spline chain

Manual

1.57

150

CA5-25

CA539

Internal spline

Pneumatic

1.44

200

CA5-38

CA653

Internal spline

Pneumatic

1.47

250

CA6-53

CA6-75

Internal spline

Pneumatic

1.47

250

CA6-75

CA6-85

Internal spline

Pneumatic

1.47

300

CA6-85

CA6-120

Internal spline

Pneumatic

1.38

300

CA-120

CA6-150

Internal spline

Pneumatic

1.43

300

CA6-150

CA7-90

Internal spline

Pneumatic

1.47

350

CA7-90

CA7-100

Internal spline

Pneumatic

1.47

350

CA7-100

09 Tang Ling Jiangshan






TC528

Internal spline

Manual pneumatic

1.31

150

TC5-28

TC535

Internal spline

Manual pneumatic

1.43

200

TC5T35

TC545

Internal spline

Pneumatic

1.47

250

TC5-45

TC6T53

Inner  spline

Pneumatic

1.47

250

TC653

TC650

Inner  spline

Pneumatic

1.54

300

TC650

JS550

Inner  spline

Pneumatic

1.47

300

JS550

JS5646

Internal spline

Pneumatic

1.53

250

JS646

JS6-950

Internal spline

Pneumatic

1.49

300

JS6-950

JS6-750

Internal spline

Pneumatic

1.52

300

JS6-750



SUCCESS CASES

More >>

Contact Us

EMAIL:Sale@tictrucks.com,
TEL: +86-152-7135 7675 (Mr. King) ; TEL: +86-135-9782 8741 (Mr. Xi);
 WeiChat: king253725877 ; Keanxisong
truck in china weichat made in china truck
 Add:Wuhan Office 1: No.1 Taizong Avenue Gaoqiao Industry Park Taiwanese  Investment Area Dongxihu District Wuhan City, Hubei Province, P.R China
Address CRRC Factory : No. 8 Jiliangdadao,Zengdu Economic Development Zone,Suizhou City, Hubei Province, P.R China P.O. Box 441300
Address Yuchai DTA Truck Factory : No. 121, Liangshui 1St Road, Zengdu Economic Development Zone Suizhou City, P.R. China  P.O. Box 441300  .......

Hubei Dong Runze Special Vehicle Equipment Co., Ltd. All rights reserved. 2009-2024 XML Site Map webmail   Made-in-China.com    https://tictrucks.en.made-in-china.com/
 www.truckinchina.com ,www.tictrucks.com
