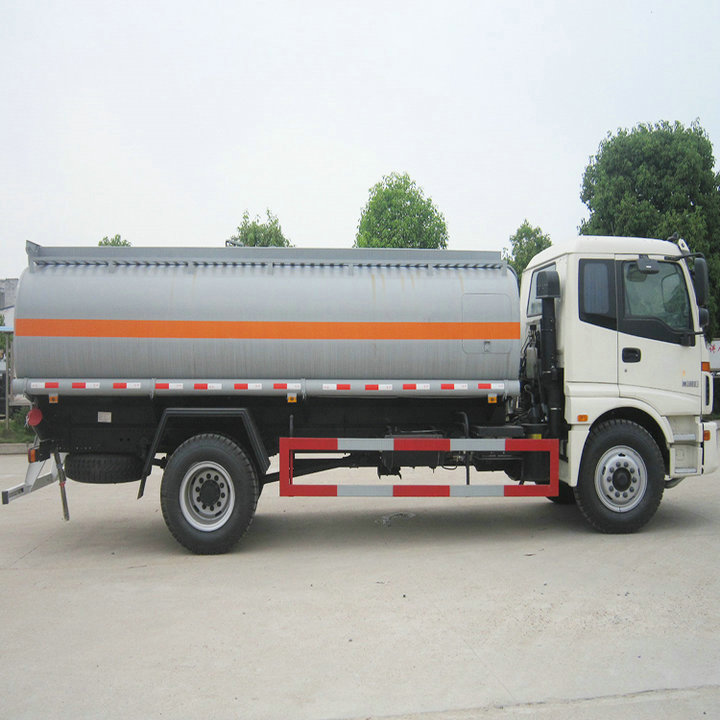

FOTON Fuel Delivery Truck With Stainless Steel Tank PTO Fuel Pump 12CBM
Tank dimensions 5600x2200x1400mm
Tank volume 12000L-15000L
Tank material Carbon steel
Tank thickness 5mm
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
DRZ5
-
DRZ
-
8705909990
FOTON Fuel Oil Tanker Truck With Stainless Steel Fule Tank PTO Fuel Pump 12CBM
Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration
Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several compartments.
| Fuel tank structure parameters | ||||
| Tank dimensions | 5600x2200x1400mm | Tank volume | 12000L | |
| Tank material | Carbon steel | Tank thickness | 5mm | |
| Color and Logo | Optional | |||
| Standard configuration | Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose. | |||
| Selective configuration | Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins. | |||
Refuelling Fuel Tank Truck
| Vehicle Model | DRZ5163GYYBJ | Vehicle Brand | DRZE |
| Overall dimensions | 9000x2496x2760mm | Curb weight | 7760kg |
| Tank dimensions | 5600x2200x1400mm | Tank volume | 12000L-15000L |
| Chassis parameters | |||||
| Chassis model | BJ5163GLFFG-S | Chassis brand | FOTON | ||
| Overall dimensions | 8455X2405X2700mm | Wheel base | 5000mm | ||
| Front/rear wheel track | 1960/1847mm | Front/rear suspension | 1365/2440 mm | ||
| Approach/departure angle | 16/11° | Maximum speed | 79km/h | ||
| Chassis Manufacturer | Beijing Foton Daimler Motor Co., Ltd. | ||||
| Cab | Configuration | ETX2200 cab(with sleeping berth),allowable 3+2 passengers, ETX interior, air conditioner, machinery seat | |||
| Color | White, other color is optional | ||||
| Engine | Model | B210 33 | |||
| Emission | Euro 3 | ||||
| Type | 6 cylinders, in-line,diesel engine | ||||
| Rated power | 210hp, rated power speed 2500rpm | ||||
| Displacement | 5900ml | ||||
| Max.torque | 700N.m | ||||
| Bore x stroke | 102x120mm | ||||
| Manufacturer | Beijing Foton Cummins Engine Co. Ltd. | ||||
| Tire | Size | 10.00R20 steel wire tire | |||
| Number | 6+1 nos | ||||
| Fuel tank | 200L aluminum fuel tank | ||||
| Clutch | Φ380 diaphragm clutch | ||||
| Rear axle | 10 tons | ||||
| Drive form | 4X2 | ||||
| Suspension | Multi leaf springs | ||||
| Rated voltage | 24V, DC | ||||
| Transmissions | Gear box 8JS105T, 8 speed forward 1 reverse. | ||||
| Steering device | Power assisted steering | ||||
| Steering wheel | Left hand drive | ||||
| Selective configuration | |||||
| If there is a slight change in the chassis parameters above, please take the actual product as the standard | |||||
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
