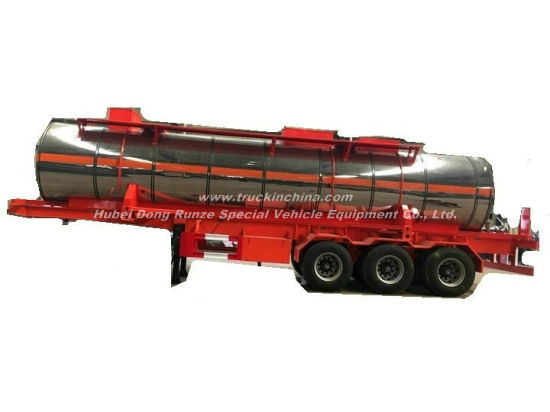

3Axles Stainless Steel Emulsion Tank Semi Trailer Insulated Cladding Stainless Steel 27.3cbm For Road (Tanker )Tansport UN2426 Ammonium Nitrate (NH4NO3)
Tanker Semi-trailer
tanker semi trailer factory sale
Website: www.truckinchina.com
| DRZ9400GYW | Ammonium Nitrate Emulsion Tank Semitrailer
Technical Parameter | Insulated Tank ,Truck Trailer |
| Overall | Curb Weight | kg | 10000 |
| Rated Loading Weight | kg | 30000 |
| Overall Size (L*W*H) | mm | 11200×2500×3700 |
| Brake System | Pneumatic brake with ABS System. |
| Tyre | Specification | 12R22.5 ; | |
| Number of Tyre | 12+1 Spare Tire | |
| Tanker | Max Capacity | 27300L | 27.3cbm UN2426 |

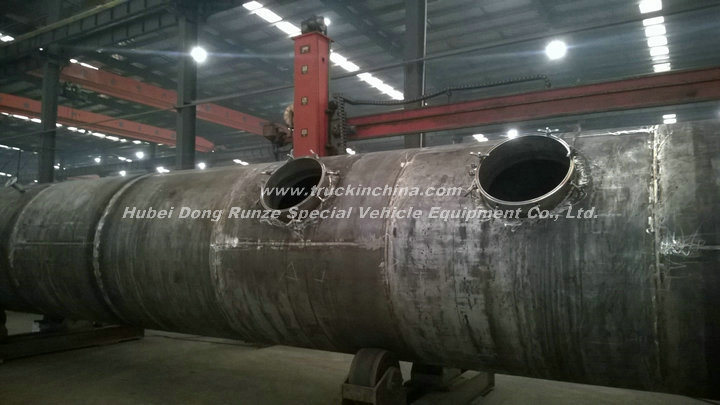

| Manhole | 2 | stainless steel
Bolt connection blind plate, stainless steel breathing valve and 150-200 mm inlet cover ( screw connection fast-opening cover ),
inlet stainless steel overflow spill box (square ) |

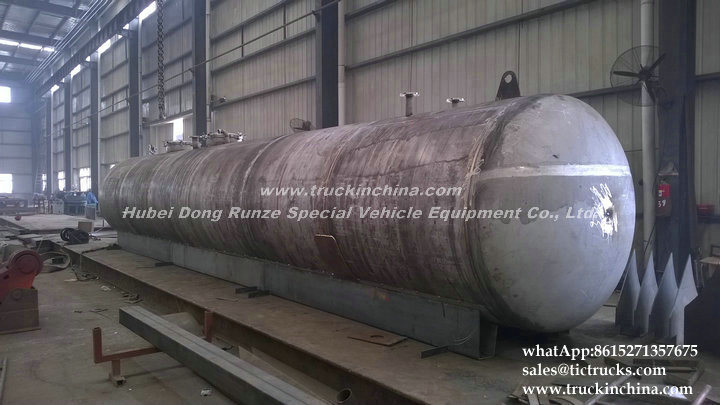

| Material | Stainless steel | SS304 |

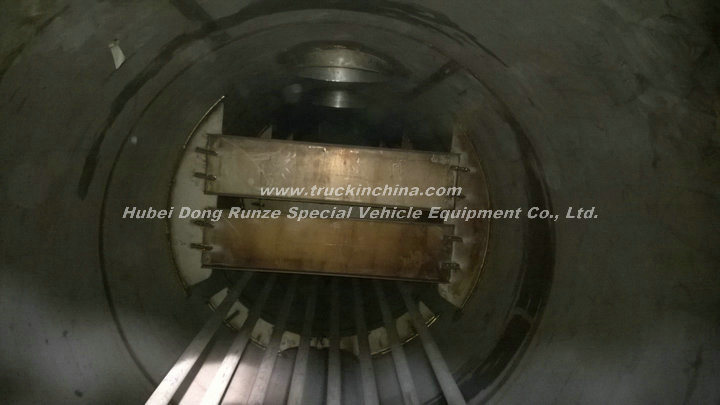

| Thickness | 6mm | Tank insied 5pcs full welded 5mm stainless steel wave baffles |

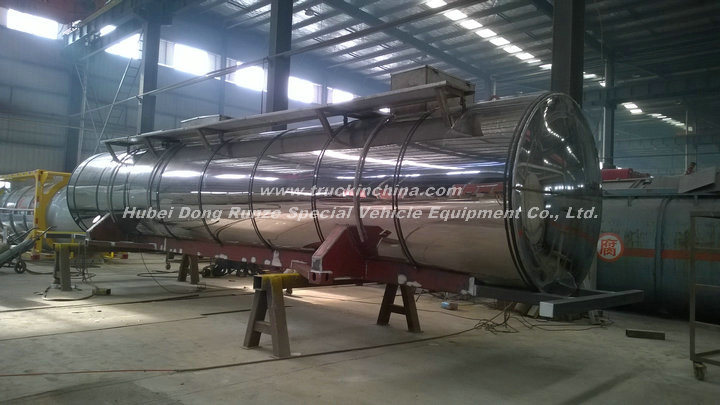

| Insulated System | 120mm cladding stainless steel
40mm Rock Wool And Then Do 80Mm Polyurethane PUF Insulated (Heat preservation and water proof), Stainless Steel Face Matte Panels, Two Layers Of Insulation , The Pad Is Sealed With Sealant, And The Panel Is Connected With Rivets. |

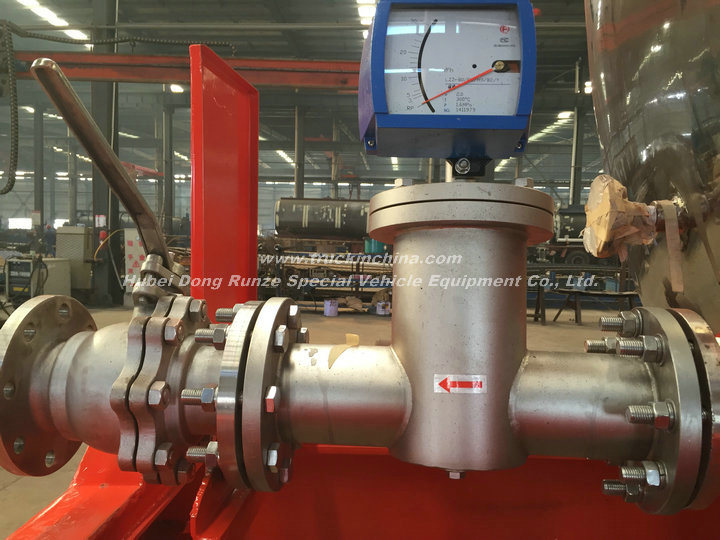

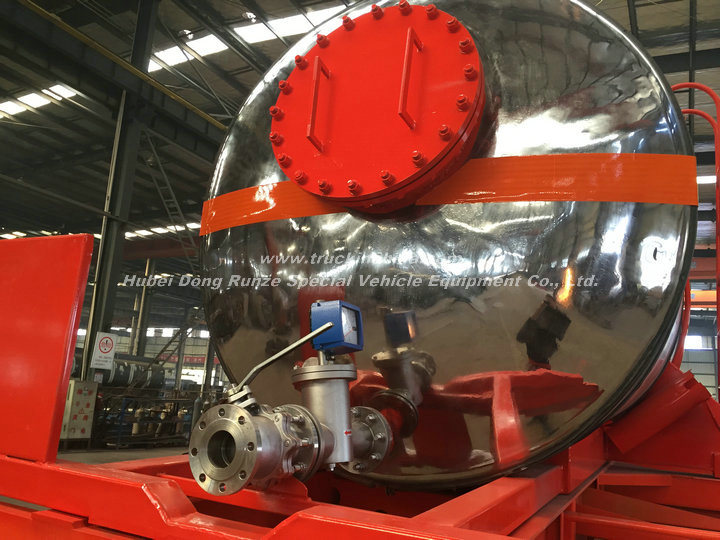

| Discharge | Install One Pneumatic Stainless Steel Master Valve
Two DN80 Stainless Ball Valves (Both Right And Left End Of The Tank)

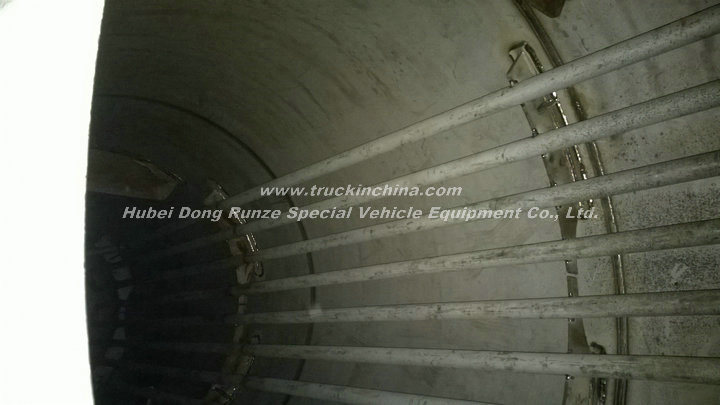

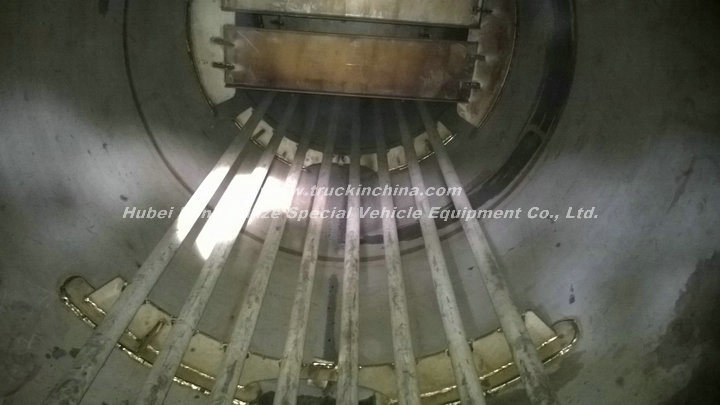

Steam Heating Pipe (With Stainless Steel Protecting Boxes), |
| | Thermometer | Thermometer (The Highest Temperature Should Not Less Than 150 ºC) Installed In The Tank Head |
| Running Gear | FUWA axle 13T*3 wheelbase 5800+1310+1310(mm
Heavy duty spring suspension ,-/8/8/8
12+1 pcs tires 12/R22.5 Tire (9.0*R22.5 steel rims)
3.5" Jost kingpin Option: 2" or 3''
JOST 2-geared mechanical operated landing legs
Electric system Voltage 24V,7 pin socket ;Complete 24V system in explosion proof installation Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights |
| Accessories | - 2 set of spare tire carrier, one tool box , a galvanized water tank
- Stainless steel Ladder:
- Walkway: Width>1500mm
- Two fire hydrant.
- 2pcs 3-meter stainless steel hoses
|
Tanker
Material Steel ,Stainless Steel 304 ,316L, Alloy
Thickness of shell 5mm
Thickness of dish 6mm
Inside baffles 4mm
Compartments 4 to 7 compartments
Volume 35000L to 72000L+ 6% expansion
Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes
Not covering the complete length of the tank.
Tank Equipments (all API Standard)
Each compartment is equipped with
Aluminum Manhole cover 16" or 20"
Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker<
Aluminum Spill Valve 3" or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading. Option: Bottom loading
Running Gear
FUWA axle 13T*4 Option: BPW axle 13T
Heavy duty spring suspension 18*16*9mm
16+1 pcs tires 315/80R22.5 Tire (9.0*R22.5 steel rims)
3.5" Jost kingpin Option: 2"
JOST 2-geared mechanical operated landing legs
Braking System
Double line air brakes Mechanical parking brake, WABCO brake valve
The first axle and the third axle with ABS System.
Electric Installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting
Exterior surface treatment by shot blasting
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Plastic Mudguards, Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools, Heavy duty tail bumper
Contact to get the detail and price cell: (+86)15271357635
