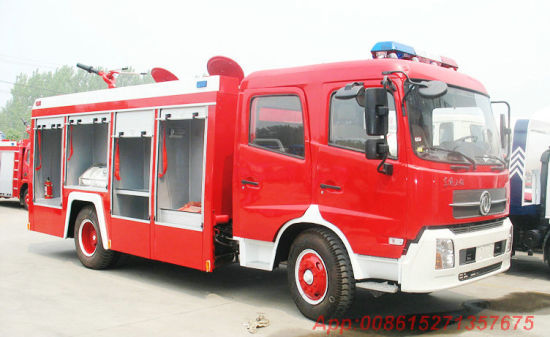

Double Cabin6000L Dongfeng 4X2 Fire Truck for Sale
Double Cabin6000L Dongfeng 4X2 Fire Truck for Sale
| Quantity: | |
|---|---|
-
1000
-
T/T, Western Union
-
Nil
Double Cabin 4*2 Fire Fighting Truck fire fighting truck M: 008615271357635
Euro 3, Euro 4
| 5000mm | DFL1120B13 | 4×2,D530,ISB180-40,5000mm,6DF6S900,4.5T,9T,250mm(7+4),900R20.ABS,,,. | |||||
| DFL1160BX18 | 4×2,D530,EQH160-40,5000mm,6DF6S900,3.6T,8T,250mm,900R20.ABS,,,. | ||||||
| DFL1160BX5 | 4×2,D530,ISB180-40,5000mm,6DF6S900,4.5T,9T,250mm(7+4),900R20.ABS,,,. | ||||||
| 4700mm | DFL1160BX18 | 4×2,D530,EQH160-40,4700mm,6DF6S900,3.6T,8T,250mm,900R20.ABS,,,. | |||||
| 3800mm 4700mm | DFL1120B3 | 4×2,D530,ISDe180 40,3800mm,160L,6DF6S750,4.5T,9T,250mm(7+4),9.00-20,ABS,,,. | |||||
| 4200mm 4500mm | DFL1160BX4 | 4×2,D530,ISB180-40,4200mm4500mm,6DF6S900,4.5T,9T,250mm(7+4),900R20.ABS,,,. | |||||
| 3800mm | DFL1120B19 | 4×2,D530,ISB180-40,3800mm4200mm,6DF6S900,3.6T,8T,250mm,900R20.ABS,,,. | |||||
WELCOME TO OUR FACTORY
Product name | Dongfeng 4*2 water fire truck | |
| Vehicle Main Dimensions | Overall dimension(L×W×H)(mm) | 7900x2500x3270 |
| Tanker volume(l) | water tank 5500L | |
| Wheelbase (mm) | 4500 | |
| Axle number | 2 | |
| Drive type | 4X2 | |
| Steering type | LHD with hydraulic power steering | |
| Max. Drive Speed (km/h) | 90 | |
| Curb weight (kg) | 14900 | |
| Chassis parameter | Chassis Model | EQ5140KLJ |
| Chassis manufacturer: | DONGFENG | |
| Transmission | Manual 10 Forward & 2 reverse. | |
| Brakes | Service brake: dual circuit compressed air brake | |
| Tire | Seven units of 10.00-20 (option:10.00R20) | |
| Engine parameter | Brand | dongfeng |
| Model | B190 33 | |
| Fuel type | Diesel | |
| Engine Type | 6-cylinder in-line with water cooling;4-stroke direct injection, turbo-charging and inter-cooling | |
| Horse Power (hp) | 190HP | |
| Displacement(ml) | 5900ml | |
| Emission Standard | Euro 3 | |
| Superstructure parameter | 1. equipped CB10/40 fire pump(rear)(diversion time≤35s) | |
| 2. Water tanker volume: 5.5m3, tanker material: high quality carbon steel | ||
| 3. equipped with PS40 type fire monitor,(pressure:1.0MPa,flow:40L/s, shot range≥60m,rotation angle: left or right 360°,up or down-30°~80°) | ||
| 4. steel pump room/equipments box ,5-9 Aluminum curtain door | ||
| 5. other equipment: 1600mm long rows of lights in the top of cab | ||
2.2000L water tank+500L foam tank
Fire pump Model: CB10/20 Flow rate: 20L/S
Fire monitor Model: SP20 Throw range≥ 48m
The fire trucks are consists of fluid container, pump room, hose box, power output & transmission system, pipe system and electrical system. It is widely used in urban public security fire brigades, oil and chemical industry, factories and mines, forests, ports and other departments, which can put out a fire quickly, is an ideal fire fighting equipment.
Relying on strong technological capability, we can produce and sell the DONGFENG, SINOTRUCK, JMC, ISUZU, NORTH Benz series water fire truck, foam fire truck, powder 2. Fire truck, emergency rescue fire truck, forest fire truck, water truck with fire pump etc.
EURO4
Our fire truck is widely used for fire fighting of construction, forest, petroleum, chemical industry, factories, mines, oil depot, wharf and other places.
All of our fire trucks with reliable quality, stable performance and reasonable price, and also all are equiped with full fire equipments.
| No. | Name | Specification | Q't | Remark |
| 1 | Suction pipe | Ø125×2000mm | 4PCS | |
| 2 | Fire fighting belt | Ø65×2000mm | 8PCS | |
| 3 | Fire fighting belt | Ø80×2000mm | 4PCS | |
| 4 | Water purifier | FJF125 | 1PC | |
| 5 | Wye | FF65 | 1PC | |
| 6 | Ncreaser | KJ65/80 | 2PCS | |
| 7 | Belt pothook | FG600 | 4PCS | |
| 8 | Belt cloth | FP470 | 4PCS | |
| 9 | Above ground hydrant wrench | FB450 | 1PC | |
| 10 | Underground hydrant wrench | FBX800 | 1PC | |
| 11 | Suction wrench | FS100/125 | 2PCS | |
| 12 | Straight stream shut-off nozzle | QZG19 | 1PC | |
| 13 | Straight stream nozzle | QZ19 | 1PC | |
| 14 | Straight stream multi-jet squirt | QZH19 | 1PC | |
| 15 | Fire fighting axe | GF285 | 1PC | |
| 16 | Tool | GT1 | 1PC | |
| 17 | Fire extinguisher | 1PC |
Fire truck hot sale list
| QL1110TKARY | 3.1 | 4HK1-TC | 129 | 2 | 3815 | 8/10+6 | 235/75R17.5 | CB10/40 | PS40 |
| EQ1126KJ1 | 4 | B190 30 | 136 | 2 | 4700 | 8/10+7 | 9.00-20 | CB10/40 | PS40 |
| DFL1140B2 | 5.5 | B190 30 | 132 | 2 | 4500 | 7/9+6,8/10+8 | 9.00-20 | CB10/40 | PS40 |
| FVR34J2 | 5.5 | 6HK1-TC | 191 | 2 | 4500 | 9/14 | 10.00R20-16PR | CB10/40 | PS40 |
| EQ1141KJ | 5.5 | B190 30 | 136 | 2 | 4500 | 8/10+8 | 10.00-20 | CB10/40 | PS40 |
| ZZ1167M4617C | 8 | WD615.92E | 196 | 2 | 4600 | 10/9+6 | 11.00-20 18PR | CB10/60 | PS50 |
| ZZ1166M4616C1 | 8 | WD615.92E | 196 | 2 | 4600 | 9/9+6 | 11.00-20 | CB10/60 | PS50 |
| ZZ1257N4347C | 11.5 | WD615.95E | 247 | 3 | 4325+1350 | 10/12,4/12 | 11.00-20 18PR | CB10/60 | PS50 |
| ZZ1256M4646C | 11.5 | WD615.92E | 196 | 3 | 4325+1350 | 9/12,10/12,10/- | 11.00-20 | CB10/60 | PS50 |
| CXA34T | 12 | 6HK1-TC | 191 | 3 | 5100+1300 | 9/10 | 11.00-20-18PR | CB10/60 | PS50 |
| ZZ1257S4647C | 12 | WD615.96E | 276 | 3 | 4600+1350 | 10/12,4/12 | 11.00-20 18PR | CB10/60 | PS50 |
| QL1110TKARY | 2.1+0.885 | 4HK1-TC | 129 | 2 | 3815 | 8/10+6 | 235/75R17.5 | CB10/40 | PL32 |
| EQ1126KJ1 | 2.5+1.33 | B190 30 | 136 | 2 | 4700 | 8/10+7 | 9.00-20 | CB10/40 | PL32 |
| DFL1140B2 | 3.5+1.77 | B190 30 | 132 | 2 | 4500 | 7/9+6,8/10+8 | 9.00-20 | CB10/40 | PL32 |
| EQ1141KJ | 3.5+1.77 | B190 30 | 136 | 2 | 4500 | 8/10+8 | 10.00-20 | CB10/40 | PL32 |
| FVR34J2 | 4+1.322 | 6HK1-TC | 191 | 2 | 4500 | 9/14 | 10.00R20-16PR | CB10/40 | PL32 |
| ZZ1167M4617C | 6+1.77 | WD615.92E | 196 | 2 | 4600 | 10/9+6 | 11.00-20 18PR | CB10/60 | PL48 |
| ZZ1166M4616C1 | 6+1.77 | WD615.92E | 196 | 2 | 4600 | 9/9+6 | 11.00-20 | CB10/60 | PL48 |
| ZZ1257N4347C | 8.5+2.66 | WD615.95E | 247 | 3 | 4325+1350 | 10/12,4/12 | 11.00-20 18PR | CB10/60 | PL48 |
| ZZ1256M4646C | 8.5+2.66 | WD615.92E | 196 | 3 | 4325+1350 | 9/12,10/12,10/- | 11.00-20 | CB10/60 | PL48 |
| CXA34T | 9+2.65 | 6HK1-TC | 191 | 3 | 5100+1300 | 9/10 | 11.00-20-18PR | CB10/60 | PL48 |
| ZZ1257S4647C | 12+3.54 | WD615.96E | 276 | 3 | 4600+1350 | 10/12,4/12 | 11.00-20 18PR | CB10/60 | PL48 |
| FVR34J2 | 5.52+0.28 | 6HK1-TC | 191 | 2 | 4500 | 9/14 | 10.00R20-16PR | CB10/40 | PL32 |
| FVR34J2 | 6HK1-TC | 191 | 2 | 4500 | 9/14 | 10.00R20-16PR | |||
| NKR77LLLWCJAY | 4HK1-TC | 96 | 2 | 3360 | 8/6+5 | 7.50-15 | |||
| NJ1056SHXN6 | SOFIM8140.43S3 | 92 | 2 | 3600 | -/5+5,-/4+3,-/5+3 | 6.50R16C |
| EQ1050NJ20D3 | 1.3 | CY4102-C3F | 3856 | 70 | 3300 | 8/9+5 | 7.00-16 | 1404 | 1458 | CB10/20 | PS20 |
| EQ1070TJ9AD3 | 2 | CY4102-E3C | 3900 | 103 | 3800 | 11/9+7 | 8.25-16 | 1835 | 1640 | CB10/20 | PS20 |
| NKR77LLLWCJAY | 2.05 | 4KH1-TC | 2999 | 96 | 3360 | 8/6+5 | 7.50-15 | 1504 | 1425 | CB10/20 | PS20 |
| NKR77PLLWCJAY | 2 | 4KH1-TC | 2999 | 96 | 3815 | 8/6+5 | 7.50-15 | 1504 | 1425 | CB10/20 | PS20 |
| JX1060TSG23 | 2.035 | JX493ZLQ3 | 2771 | 75 | 3360 | 7/5+5 | 7.00-16LT | 1385 | 1425 | CB10/20 | PS20 |
| EQ1092F3GJ2 | 3.27 | EQ6100-30 | 5420 | 99 | 3950 | 8/11+8 | 9.00-20 | 1800 | 1800 | CB10/30 | PS30 |
| DFL1160BX2 | 6 | B190 30 | 4500 | 132 | 4200 | 7/9+6 | 9.00-20 | 1880 | 1800 | CB10/40 | PS40 |
| EQ1141KJ | 6.07 | B190 30 | 5900 | 136 | 4500 | 8/10+8 | 10.00-20 | 1940 | 1860 | CB10/40 | PS40 |
| ZZ1167M4617C | 7 | WD615.92E | 9726 | 196 | 4600 | 10/9+6 | 11.00-20 18PRR | 2022 | 1830 | CB10/40 | PS40 |
| CXA34T | 11.05 | 6HK1-TC | 7790 | 191 | 5100+1300 | 9/10 | 11.00-20-18PR | 1960 | 1855/1855 | CB10/60 | PS50 |
| ZZ1257M4647C | 12.35 | WD615.92E | 9726 | 196 | 4600+1350 | 10/12 | 11.00-20 18PR | 2022 | 1830/1830 | CB10/60 | PS50 |
| EQ1070TJ9AD3 | 1.5+0.442 | CY4102-E3C | 3900 | 103 | 3800 | 11/9+7 | 8.25-16 | 1835 | 1640 | CB10/30 | PL24 |
| EQ1092F3GJ2 | 1.8+1.301 | EQ6100-30 | 5420 | 99 | 3950 | 8/11+8 | 9.00-20 | 1800 | 1800 | CB10/30 | PL24 |
| DFL1160BX2 | 4.05+1.726 | B190 30 | 4500 | 132 | 4200 | 7/9+6 | 9.00-20 | 1880 | 1800 | CB10/30 | PL24 |
| EQ1141KJ | 4.13+1.717 | B190 30 | 5900 | 136 | 4500 | 8/10+8 | 10.00-20 | 1940 | 1860 | CB10/30 | PL24 |
| ZZ1167M4617C | 5+1.77 | WD615.92E | 9726 | 196 | 4600 | 10/9+6 | 11.00-20 18PRR | 2022 | 1830 | CB10/40 | PL32 |
| CXA34T | 9+1.814 | 6HK1-TC | 7790 | 191 | 5100+1300 | 9/10 | 11.00-20-18PR | 1960 | 1855/1855 | CB10/60 | PL48 |
| ZZ1257M4647C | 10+2.08 | WD615.92E | 9726 | 196 | 4600+1350 | 10/12 | 11.00-20 18PR | 2022 | 1830/1830 | CB10/60 | PL48 |
| ZZ1167M4617C | 6+0.5 | WD615.92E | 9726 | 196 | 4600 | 10/9+6 | 11.00-20 18PR | 2022 | 1830 | CB10/40 | PL32 |
| Technical parameter of fire fighting body | ||||
| Liquid tanker | Volume: total 4000L (among, water: 3000L; foam: 1000L) Material: high quality carbon steel plate, anti-rust treatment inside. Structure: welding, there is baffle plate inner Equipment: 2 manholes, with speediness lock and turn on equipment, 2overflow mechanisms, 2drainage exites | |||
| Fire fighting pump and pipeline system | Model of fire fighting pump: CB10/40 Pressure: 1.0Mpa Flux: 40L/s Suction depth: ≥ 7m Suction time: ≤ 35s Installing type: central or rear Pipeline system: Suction pipeline: there is 125mm water inlet, can sop natural water source and sop the water from liquid tanker Water outlet pipeline: there is one middle pressure water outlet on every side, and gun pipeling with dia. ≥ 80mm on the top of tanker Discharge remaining water system: to protect pump and all ball valves | |||
| Fire fighting nozzle | Model: PP24 Range: water ≥ 50m, foam≥ 45m Pressure: 1.0Mpa | |||
| PTO | QJ270 sandwich PTO, splashing-type lubricate, can put out fire when driving | |||
| Material of carriage | Carriage is made of high quality carbon steel and Aluminium embossed sheet | |||
| Pump room | Central type, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. | |||
| Equipment box | Equipment box: at the back of carriage, there is two-layers clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. Structure: whole frame is welded to ensure intension and rigidity. Material: frame is high quality steel, inner plague is aluminium embossed sheet, surface is anodic processed. | |||
| Rolling shutter door | Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock. | |||
| pedal | Adopt air-supporting stucture to overturn easily and safely lock. Material is high quality Q235A, pedal is non-skid aluminum embossed sheet | |||
| Electric control system | 1. Alarm Warning light: Lightweight Rectangular, installed on the top of cab, in accordance with outside of whole truck. Siren: 80W. With FM/ Public Address System and megaphone 2. Light in equipment and pump room can be controlled in carriage. 3. Other light: one light on the top of vehicle, the switch in the cab. | |||
| color | The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck | |||
| Technical requirement | 1. The fire fighting vehicle is accordance with GB7965 performance requirementa and test methods for fire fighting vehicle 2. Tank of foam and water is accordance with GB39.5 General specification for fire fithting vehicle. 3. The outside is very beauty, the surface roughness is accordance with GB39.5 general specification for fire fighting vehicle. All operating switch and meter is accordance with standard nameplate | |||
| Set | Please refer the following set of fire technical equipment With fire hose reel auto-rewind middle pressure monitor. 1/2 inch, 40m | |||
