Dongfeng Water Tanker Fire Truck Export to YANGON MYANMAR
Views: 2130 Author: Tom Publish Time: 2020-05-09 Origin: Dong Runze

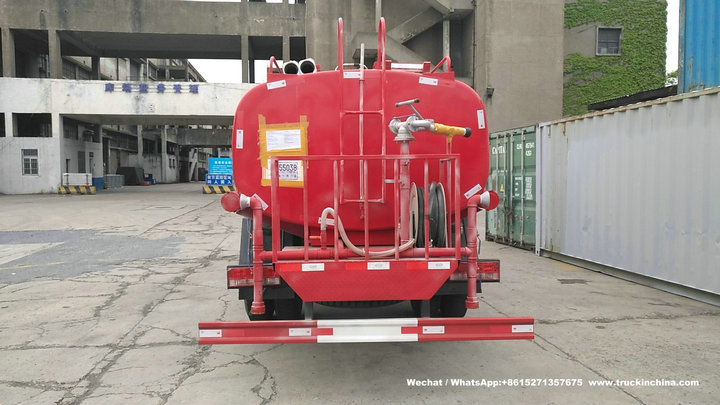

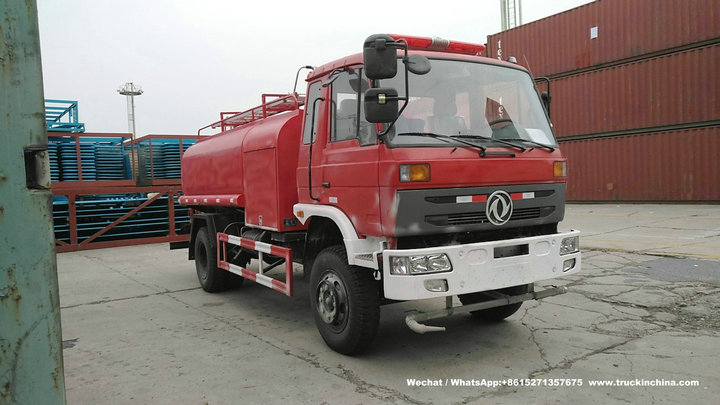

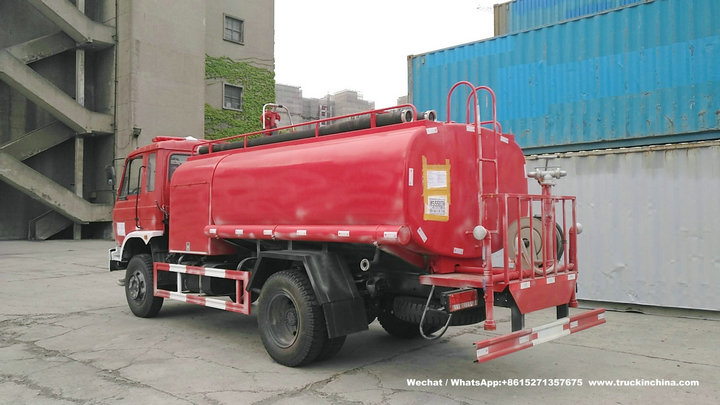

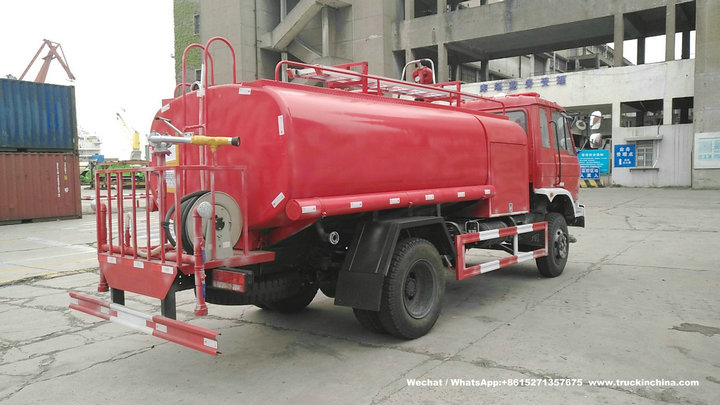

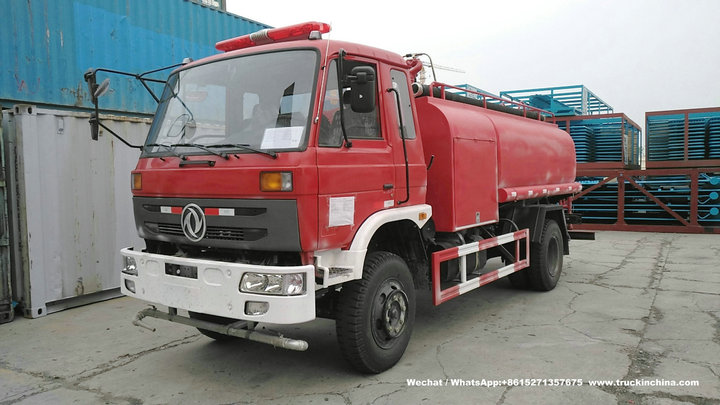

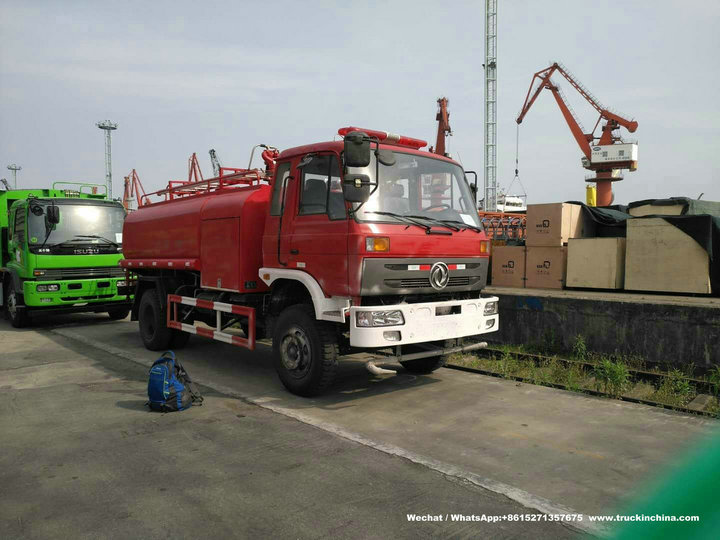

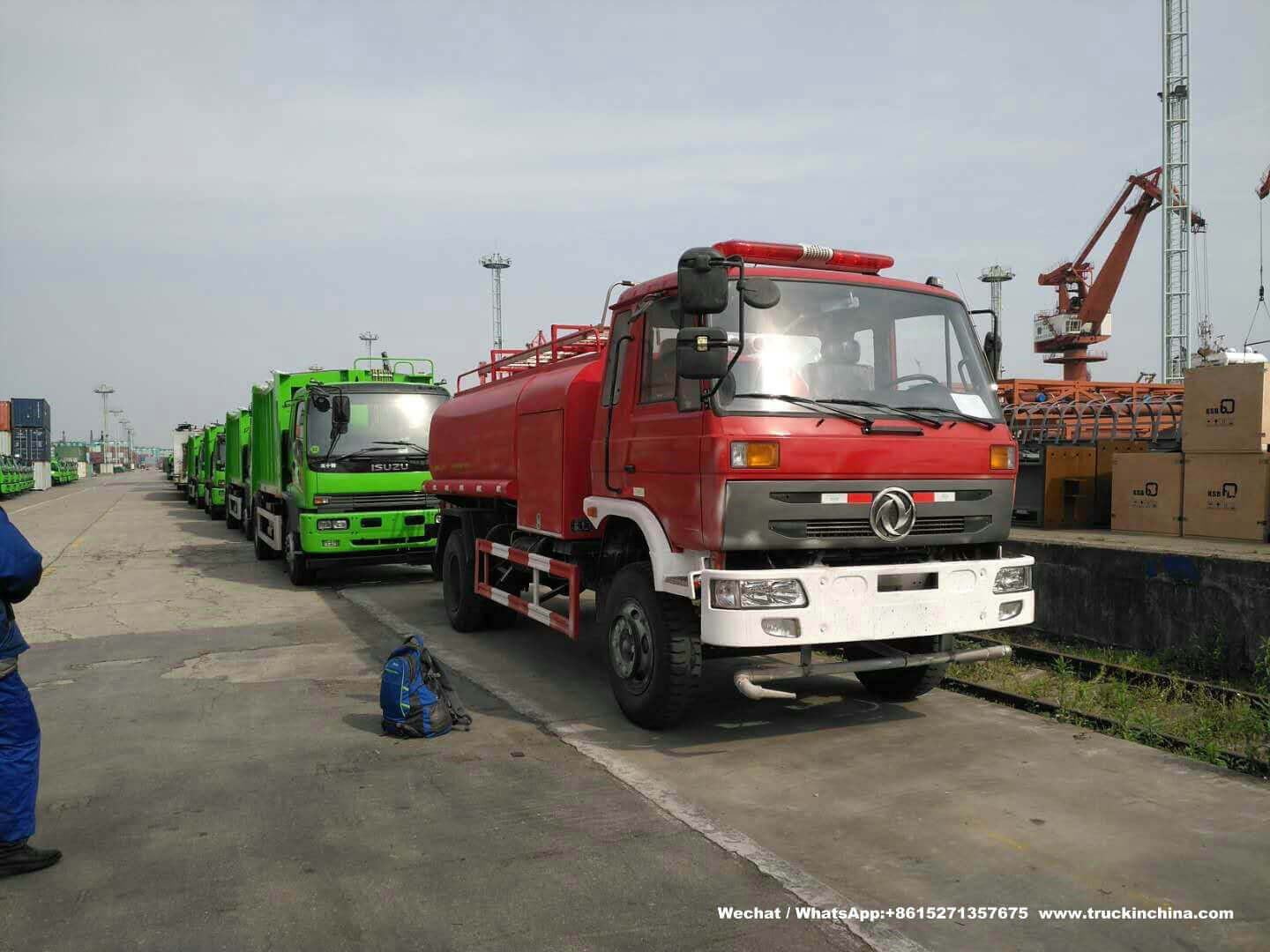

Dongfeng Water Tanker Fire Truck Export to YANGON MYANMAR
This the third time of transaction cooprated 4 Parties contract .
1: Hubei Dong Runze Special Vehicle Equipment Co., Ltd.
2: FIRESYSTEC INC
3: Myanmar Coach Center
4: FORWARDING GUARANTOR XIF INTERNATIONAL FORWARDING CO.,LTD
Transport：FROM SHANGHAI PORT,CHINA TO Yangon Myanmar BY SEA
Price Term: CIF Yangon Myanmar
Term of Payment: By TT
Description of goods | Quantity | Unit Price | Amount |

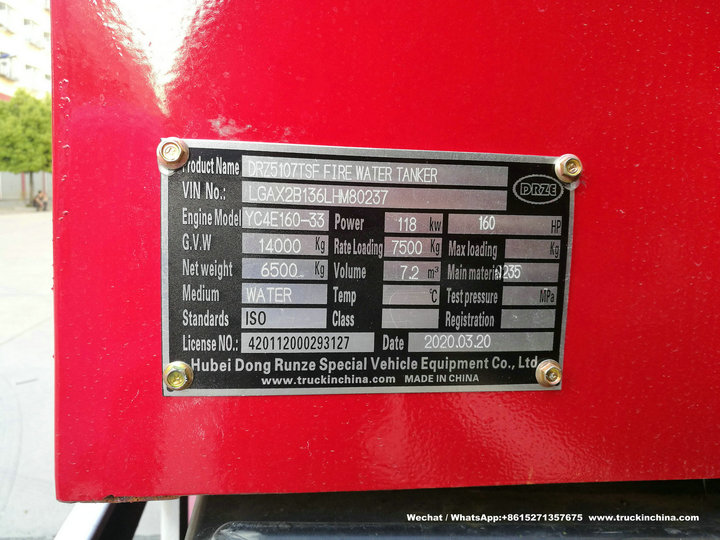

BRAND NEW WATER BOXER (LEFT HAND DRIVE) MODEL : DRZ5107TSF MODEL YEAR : 2020 ENGINE POWER: 160 HP/118 KW LITER :1600 GAL ENGINE MODEL YC4E160-33 No.: IFQ670K00625 VIN: LGAX2B136LHM80237 HS CODE：8705309000 | 01 | $22,700 | $22,700 |
TOTAL $22,700 CIF Yangon Myanmar | |||
SAY: in USD twenty tWO thousaND SEVEN hundred only. | |||
Body | |
Name | Water tank |
Country of origin | China (Dongfeng） |
Cab | cabin (two doors) with |
Air - Condition, | |
Minimum Size of Tyre | 900-20 |
The number of Tyre | 6+1 (Spare tyre) |
Minimum speed | 100 Km/hr |
Water tank capacity | 1500 gal (To reduce the |
action of Water waves.) | |
Suspension (Front) | Leaf Spring (11) Nos |
Suspension (Rear) | Leaf Spring (12+5) Nos |
Vehicles dimension (mm) | 6550x2200x2680;7000x2400x2680 |
Water tank dimension (mm) | 3250x2100x1200 |
(Minimum) | |
Wheelbase (mm) | 3400 /or 3950 |
Required U Shape (6") at the end od realy pipe. | |
Search light must be fitted left or right. | |
Engine | |
Minimum Engine Rated power | 96 KW/130 HP ~135HP |
Engine type | 4 Stroke Water Cooling |
Direct Injection | |
Engine Fuel | Diesel Oil |
Driving type | 4 x 2 |
Gear Link | Lug type |
Ball quality is required to improve in the transfer gear box. | |
Pump and Pipe | |
Type of fire pump | Centrifugal pump |
Minimum fire pressure | 1.0 mpa |
Minimum fire pump capacity | 30 L/S |
Fire fighting pump Suction depth | > 7m |
Fire fighting pump Suction | < 35 s |
Time | |
Delivery outlet (B/S type) | 65 mm (2 1/2 inch) |
Fire fighting nozzle range | > 55m |
Rotation angle of fire fighting | 360° |
Turrent Nozzle | |
Pipe Line (Inlet) | 4"Ø one on both side |
Pipe Line (Outlet) | 2 1/2"Ø two on both side |
Vacuum pump Valve must be located on the control box. | |
Pump inlet pipe must be located (1")above the tank base. | |
Vacuum cut-off quality is required to improve. | |
Rod system is possible for pump gear. | |
Main pump should be fitted (4") ball valve. | |

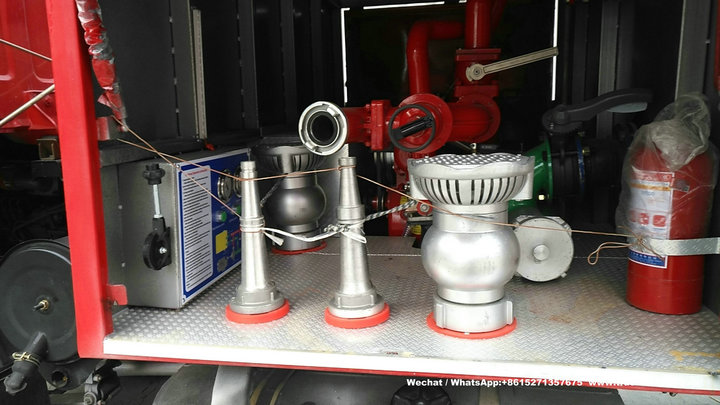

Accessories | |
Fire Electric siren | 1-Nos |
Emergency ratation lamp | 1-Nos |
Fire axe | 1-Nos |
Fire hook | 1-Nos (Must be applied to climb) |
Fireman ladder (Extension ladder) | 1-Nos (Metal Ladder) |
(30' <) | |
Jet & Spray Nozzle | 1-Nos |
Jet Nozzle | 1-Nos |
Fire hoses (B/S system) (65 mm | 4-Nos |
20 m) | |

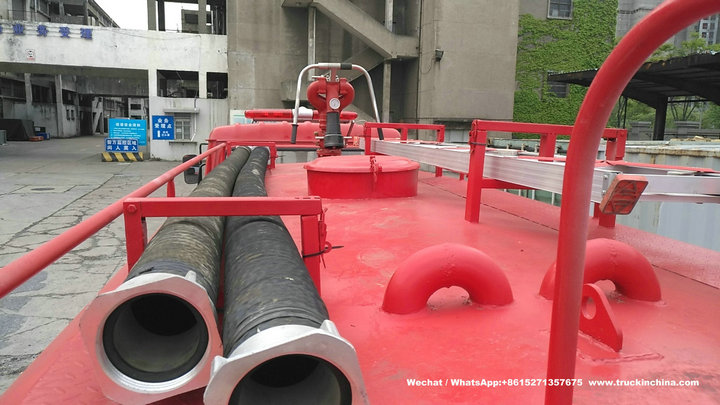

Suction pipe (Length 4m)(Æ100mm) | 2-Nos |
Water Filter (Æ100mm)( Metal) | 2-Nos |
Suction pipe wrench | 2-Nos |
Fire hydrant wrench (Æ100mm) | 2-Nos |
Pipe quality is required to improve. | |
To contain fire extiinguisher. (3 Kg) | |
Seat of hydraulic jack and wheel spanner quality are required to | |
improve. |
