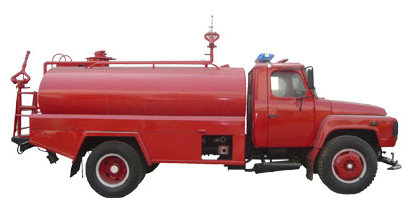

Dongfeng Water Tanker All Wheel Drive 4x4 with Fire Pump Water Tank 5000 L - 6000L Euro 5

Dongfeng Water Tanker All Wheel Drive 4x4 with Fire Pump Water Tank 5000 L -6000L EURO 3/4/ 5
Pump Water Tank 5000 L- 6000L
Fire pump: CB10/30 Low pressure: 30L/s@1.0MPa
Model: SP30 (fire water cannon)
Flow: 30L/s effective range: > 55m/ 1.0mpa.

Price: $ 44000
Discount Price: $ 41200
Quantity:

  • DRZ5110GPSEQ5
  • DFAC
  • 8705309000

Dongfeng Water Tanker All Wheel Drive 4x4 with Fire Pump Water Tank 5000 L -6000L  EURO 3/4/ 5

Pump Water Tank 5000 L- 6000L

Fire pump: CB10/30 Low pressure: 30L/s@1.0MPa

Model: SP30 (fire water cannon)

Flow: 30L/s effective range: > 55m/ 1.0mpa.

DFAC 4x4 All Wheel Drive EQ2110HD5DJ Euro 5 Chassis

Technical specification s
# Engine model Engine displacement Engine power Engine manufacturer
1 ISB170 50 5 900 cc 5.9 L 360 cu in 125 kW 170 hp Dongfeng Cummins Engine Co., Ltd.
2 YC4E160-56 4 260 cc 4.3 L 260 cu in 118 kW 160 hp Guangxi Yuchai Machinery Co., Ltd.
3 YC4E140-56 4 260 cc 4.3 L 260 cu in 103 kW 140 hp Guangxi Yuchai Machinery Co., Ltd.
4 YC4E140-56A 4 260 cc 4.3 L 260 cu in 103 kW 140 hp Guangxi Yuchai Machinery Co., Ltd.
5 ISD160 50 4 500 cc 4.5 L 275 cu in 118 kW 160 hp Dongfeng Cummins Engine Co., Ltd.
Performance
Fuel diesel fuel
Environmental standard GB17691-2005 National V / Euro 5, GB3847-2005
Maximum speed 85 km/h 53 mph
ABS have
Weights and Ground pressure
Curb weight 9210 kg 9.2 t 20,305 lbs
Gross vehicle weight rating 9600 kg 9.6 t 21,200 lbs
Axle load distribution 2615 kg / 6985 kg
2.6 t / 7 t
5,765 lbs / 15,399 lbs
Dimensions
Overall length 6935 mm 22′10″
Overall width 2440 mm 8′1″
Overall height 3540 mm 11′8″
Undercarriage and Suspension
Number of axles 2
Wheelbase 4700 mm,
3950 mm
15′6″,
13′0″
Front track 1810 mm 6′0″
Rear track 1800 mm 5′11″
Front overhang 1065 mm 3′6″
Rear overhang 1920 mm 6′4″
Angle of approach 34°
Angle of departure 16°
Leaf springs 9 / 11+8
Tyres and Wheels
Number of tyres 6
Tyres dimension 9.00-20 12PR, 9.00R20 12PR
Miscellaneous
Seating capacity 3+3
Steering control steering wheel

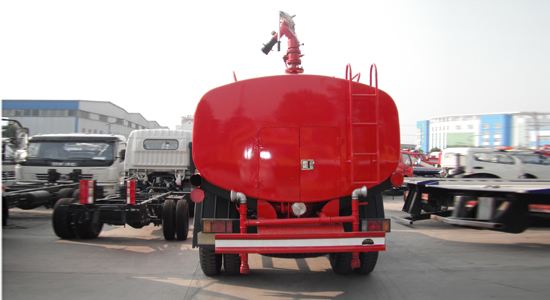

Tanker Fire Truck_1
