Dongfeng Water Sprinkler Tank Truck Euro 3/4/5

Views: 1712     Author: Dong Runze Special Vehicle Equipment     Publish Time: 2017-09-11      Origin: Dong Runze Special Vehicle Equipment

Dongfeng Water Sprinkler Tank Truck Euro 3/4/5

15-20cbm Heavy Duty Dongfeng Water Sprinkler Truck


 Dongfeng KL 6x4 type 240hp~260hp water cannon truck 18000 liter

US $45000-550000  / Unit

1 Unit (Min. Order)

Drive Wheel: 6*4

Engine Capacity: 4 - 6L

Emission Standard: Euro 3

23 Cbm Stainless Steel Water Tank Truck / 18~30 Kl Water Tanker Cart

US $35999-55999  /

Dongfeng KL 6x4 type 240hp~260hp 304 stainless steel water tank 15000 liter

US $45000-550000  /

Name

15-20cbm Large Capacity Dongfeng Water  Sprinkler Special Truck

Item

Specifications

Item

Specifications

Truck Parameter

Model

DRZ5250GSSD4

Chassis Model

DFL1250A11

Gross Weight (kg)

25000

Overall dimensions  (mm)

9980X2500X3350,3690

Payload Weight (kg)

14000, 14065

Tank Volume(mm)

18-20CBM

Curb Weight (kg)

10805

Wheelbase (mm)

4350+1300

Engine Parameter

Model

ISDe270 40

Brand

Dongfeng Cummins

Power/Displacement (kw/ml)

198/6700

Emission Level

Euro 4

Specification

Max speed (km/h)

85

Axle Load(kg)

7000/18000

Cab

3

Front Track (mm)

1986, 2040

Leaf Spring

8/9, 8/10, 9/10

Rear Track (mm)

1860, 1860

Number of Tyres

10

Front/Rear Overhang (mm)

1460/2820,1460/2870

Tyre Specification

11.00-20R

Approach / Departure Angle(°)

14/12,14/11

Number of axles

3



Special Function

Tank Capacity (CBM)

15-20cbm

Tank Dimension (mm)

6500×2250×1450

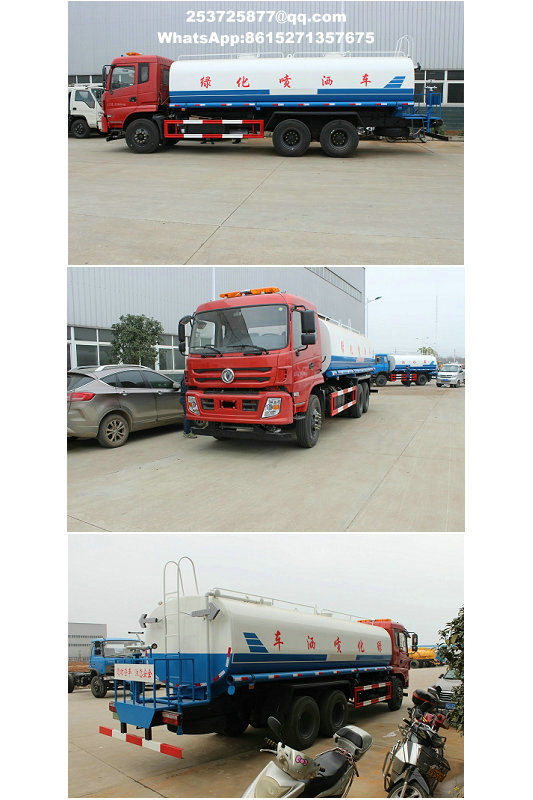

dongfeng water-tanker -24tone-trucks.jpeg

Name

16Ton Dongfeng Water Sprinkler Tank Truck Euro 4

Item

Specifications

Item

Specifications

Truck

Model

DRZ5251GSST4

Gross Weight (kg)

24900

Overall dimensions

10350, 9950×2490×3350mm

Payload (kg)

15250, 14100

Wheelbase (mm)

4350+1300, 4750+1300
  5350+1300, 5850+1300

Curb Weight (kg)

9455, 10605

Front Track (mm)

1960, 1980

Approach Angle

20°, 18°

Rear Track (mm)

1860

Departure Angle

10°, 13°

Number of axles

3

Number of Tyres

6

Traction system

6x2

Tyre Specification

10.00-20,10.00R20

Max speed (km/h)

85

ABS

Paint

White, Blue, Red, etc

Allowable Cab Passengers

3

Front Overhang (mm)

1250, 1450

Body Film

3M

Rear Overhang (mm)

3050, 2850



Chassis

Model

EQ1258VFJ1

Brand

Dongfeng

Emission Level

Euro 4

Gross Weight (kg)

24900

Approach Angle

23°, 20°

Curb Weight (kg)

7900

Departure Angle

16°, 17°, 18°, 19°

Chassis Overall Dimension

970, 1020, 1120,

1170×247×285, 300cm



Leaf Spring

9/10

Engine (Motor)

Brands

Model

Displacement

Rated Power

Dongfeng Cummins

ISB210-40

5.9L

155kw (210hp)

Dongfeng Cummins

ISDE230-40

6.7L

169kw (230hp)

Yuchai

YC6J220-46

6.494L

162kw (220hp)

Yuchai

YC6A240-46

7.255L

177kw (241hp)

Superstructure

Water Tank Capacity

16CBM, 14.8CBM

Maximum Suction Height

7m

Water Tank Dimension

6900×2300×1500mm
  6500×2360×1550mm

Maximum Sprinkling Width

14m

Suction Time

maximum 5 minutes

Maximum Shooting Distance

28m

Tank Material

carbon steel

Mist Spray Distance

15m

Thickness

5mm
