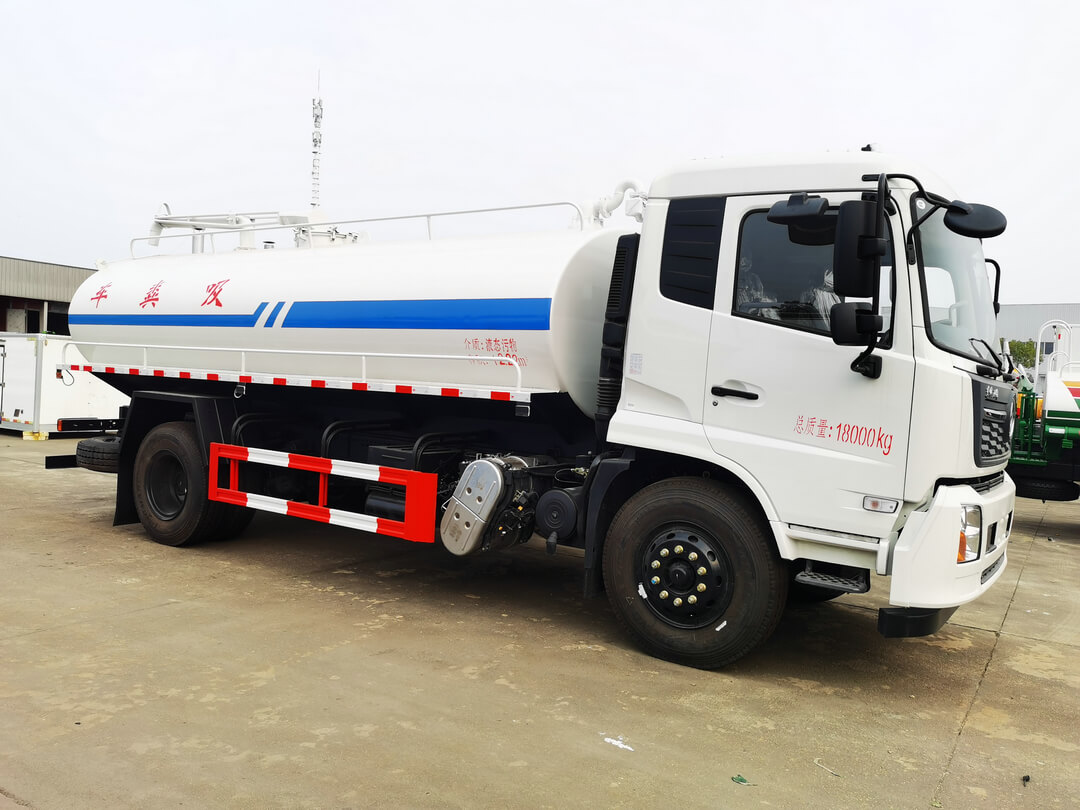

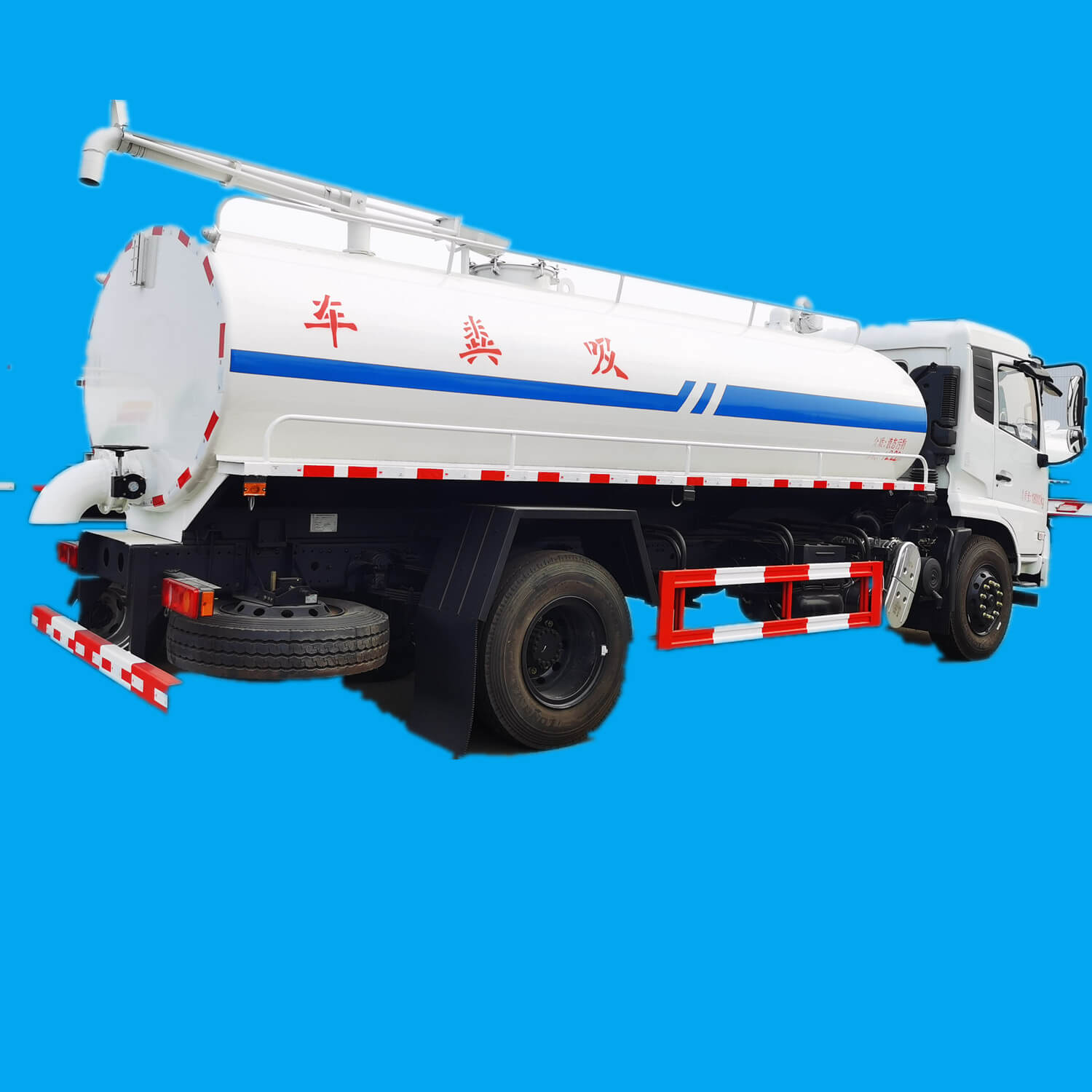

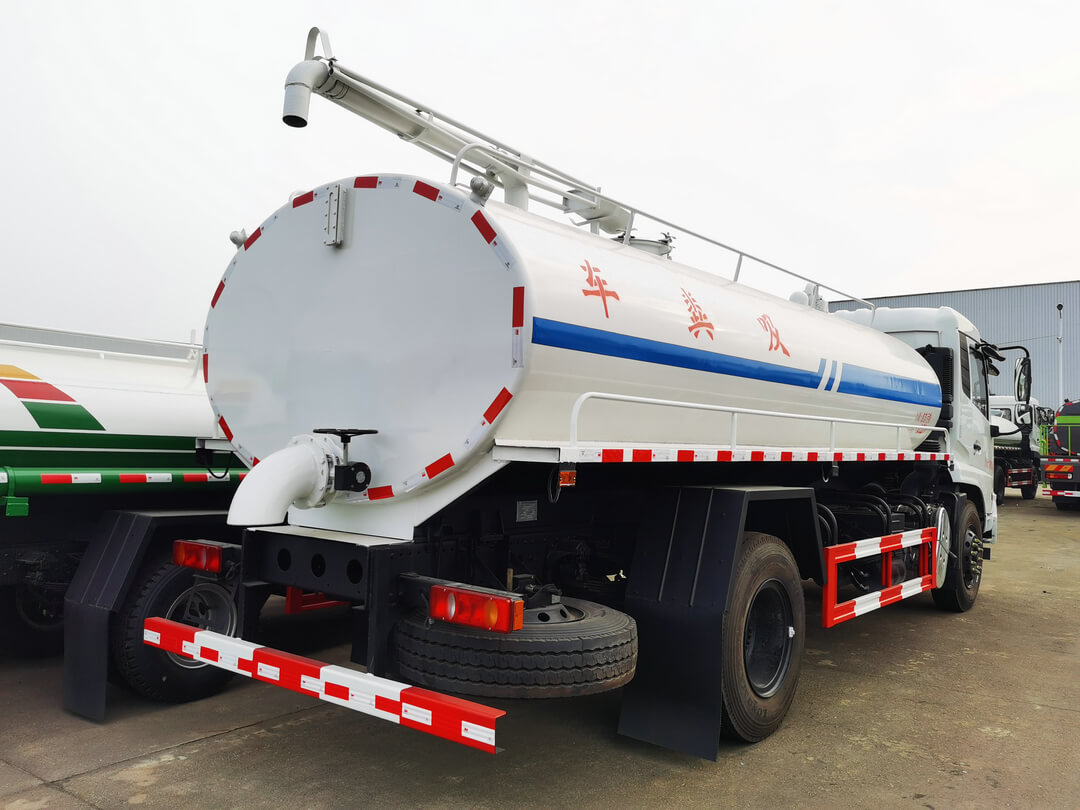

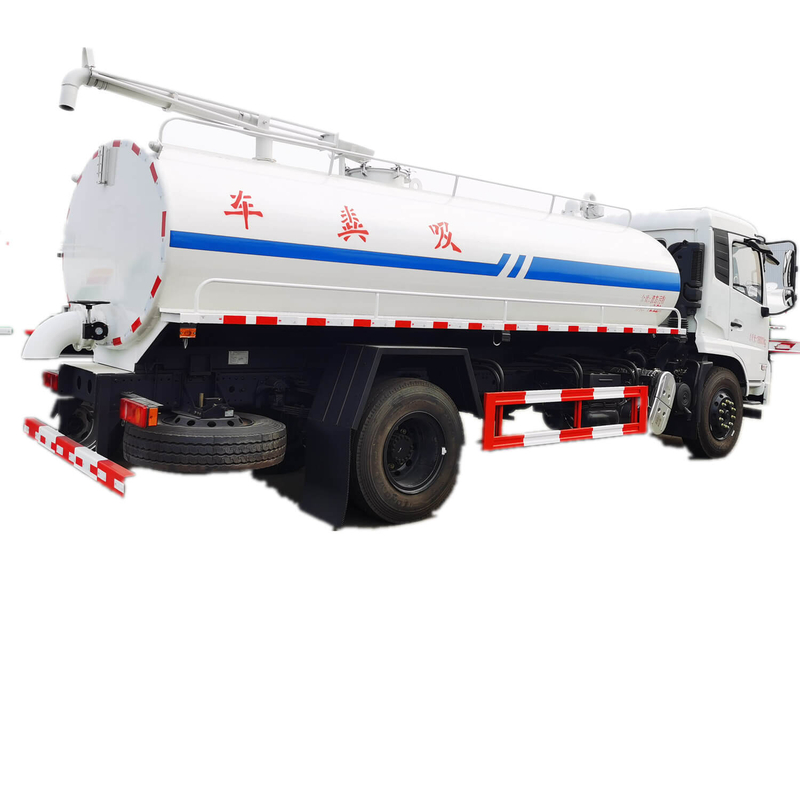

Dongfeng Vacuum Sewer Septic Tank Trucks Double Vacuum Pump 10m3 -12m3

Dongfeng Vacuum Sewer Septic Tank Trucks Double Vacuum Pump
Price: $ 25800
Discount Price: $ 23800
Availability:
Quantity:

  • DRZ
  • 8705909990
  • Shanghai, China
  • 800
  • T/T

Dongfeng 10Ton Septic Tank Trucks Double Vacuum Pump XD-350, XD-420 ,65QZXDH-110...
dongfeng Septic tank trucks 6Cesspit Emptier  Vacuum Tanker Truck

Model Pumping Rate Vac Pressure  Pa Speed
(r/Min)
Power
(Kw)
Inlet & Outlet DN
(Mm)
Applicable Vac Tank Pump Max  Temperature
(ºC)
M3/h L/S
XD-350 350 97 -90000 950 ≤10 ¢50 (4-8)m3 ≤90
XD-420 420 116 -90000 950 ≤12 ¢60 10m3 ≤90
XD-240 240 66 -90000 950 ≤6.5 ¢50 (4-6)m3 ≤90
XD-300 300 83 -90000 950 ≤8 ¢60 (6-8)m3 ≤90
XD-360 360 100
950 10 ¢60 (9-10)m3 ≤90



WL  Series Septic Tank Vacuum Pump

Cesspool Emptying Pump ,vacuum suction Pump , sewage Pump , slurry Pump

50QZXDF-98/8500 1000 8500Pa(91.5%) 98 5.5  For 3-5 Ton Vacuum tanker
50QZXDH-45/7000 800 7000Pa(93%) 45 4  For 1-3 Ton Vacuum tanker
50QZXDG-30/400 500 400Pa(99.6%) 30 3
50QZXDH-68/7000 800 7000Pa(93%) 68 5    For 5-8 Ton Vacuum tanker
50QZXDG-45/400 500 400Pa(99.6%) 45


65QZXDG-68/400 500 400Pa(99.6%) 68   For 8 -20Ton Vacuum tanker

65QZXDH-110/7000 800 7000Pa(93%) 6110   For 8-20 Ton Vacuum tanker
dongfeng Septic tank trucks (3)dongfeng Septic tank trucks (10)dongfeng Septic tank trucks (21)

DFAC Vacuum Truck   (also called cesspit emptier vehicle, sewer cleaning truck, sewage tanker, sewer truck, cesspit emptier, gully emptier, vacuum truck, gully emptier, waste vacuum tanker, vacuum tanker, sewage truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

---- DFAC chassis, perfect performance

---- CUMMINS technology engine option, super powerful, no overhaul within 100,000 km.

---- Vacuum Tanker body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.

Model

Model

Main Specification

Displacement

Unit Price

Biogas digester waste suction truck   waste suction truck

HLN5040GZXE5

Chassis model eq1041sj3bdf, engine model cy4bk551, Euro  5  emission, effective volume of sewage suction tank: 2m3, high-power vacuum sewage suction pump, water vapor, oil-gas separation, sewage suction vehicle is equipped with 6m sewage suction pipe as standard, equipped with air conditioner, ABS, central lock and electric glass

3707ml

US$23,175


HLN5070GZXE5

Chassis model eq1070sj3bdf, engine model cy4bk551, Euro  5  emission, tank effective volume of 5M3, standard configuration of 6m sewage suction pipe, high-power vacuum sewage suction pump, water vapor, oil-gas separator, air conditioner, ABS, central lock and electric glass

3707ml

US$24,444


HLN5110GZXE5

Chassis model: eq1110sj8bdc, engine model;Cy4sk251 (yc4s150-50) is discharged in the fifth Euro  5  year plan, with an effective volume of 7.5m3, a high-power vacuum sewage pump and a water vapor and oil-gas separator.Equipped with air conditioner, ABS, central lock, electric glass and 6m sewage suction pipe

3856ml

US$29,365


HLN5160GZXE5

Chassis model eq1165lj9bde, engine model yc4eg170-50, Euro  5  emission, tank effective volume of 12m3, equipped with air conditioner, ABS, central lock, electric glass, high-power vacuum sewage pump, water vapor, oil-gas separation, and 6m sewage suction pipe

4730ml

US$35,714


Dongfeng 145 manure suction truck

Clw5160gxee5

Chassis model: eq1168glj5 engine model: yc4e160-56, power: 118kW, wheelbase: 3950mm, 9.00-20,

4260ml

US$24,762

Most Lika suction trucks

Clw5081gxee5

Chassis model: eq1080sj8bdc engine model: cy4sk251, power: 115KW, wheelbase: 3800mm, 7.5or16

3856ml

US$20,952

Little Dorica dung truck

Clw5070gxed5

Chassis model: eq1070sj3bdf engine model: cy4bk551, power: 75kW, wheelbase: 3308mm, 7.00-16

3707ml

US$17,778

Fecal suction truck

Smq5070gzxeqe5 biogas digester suction truck

Chassis model: eq1070sj3bdf;Engine model / power (kw): cy4bk551 / 75 (see page 729 for details)

3707ml

US$20,814

Smq5081gxw sewage suction truck

Chassis model: bj1089vejca-aa;Engine model / power (kw): Kunming Yunnei yn36qne / 85 (see page 745 for details)

3612ml

US$29,943

Fecal suction truck

CGJ5073GXEE5

See the configuration table in the technical document

2892ml

US$38,889

Fecal suction truck

DLQ5080GXE5

Chassis model: eq1080sj8bdc, engine model: cy4sk251, power: 115KW, wheelbase: 3800mm, nylon tire, environmental protection

3856ml

US$28,048

Fecal suction truck

DLQ5070GXE5

Chassis model: eq1070dj3bdf, engine model: yc4fa115-50, power: 85KW, wheelbase: 3360mm, nylon tire, environmental protection

3707ml

US$24,730

12 cubic septic truck

SZD5160GXEZ5

Chassis model: eq1160gz5dj, engine model: isb190 50, power: 140kW, wheelbase: 4500mm, nylon tire, environmental protection,


US$34,079

9 cubic septic truck

SZD5110GXE5

Bottom chassis model: eq1110sj8bdc, engine model: cy4sk251, power: 115KW, wheelbase: 3800mm, nylon tire, environmental protection,


US$26,079

5 cubic septic truck

SZD5070GXE5

Chassis model: eq1070sj3bdf, engine model: cy4bk551, power: 75kW, wheelbase: 3308mm, nylon tire, environmental protection and


US$23,365

Tianjin 10m3 manure suction truck

SZD5160GXED5V

Chassis model: dfl1160bx1v, engine model: isb180 50, power: 1322kw, wheelbase: 4700mm, nylon tire, ABS, environmental protection


US$37,397

Fecal suction truck

Hys5122gxee septic truck

Chassis eq1211glnj engine model yc4d140n

4214

US$46,524

Chassis eq1211glnj engine model cy4102

3856


Hys5040gxee5 septic truck

Chassis eq1041sj3bdf engine model cy4bk551

3707

US$32,873

Chassis eq1041sj3bdf engine model yc4fa115-50

2982


Hys5070gxee5 septic truck

Chassis eq1070sj3bdf engine model cy4bk551 Yifeng pump, with Sight Glass level gauge , gravity port, cleaning device, dung suction pipe with boom seat, vacuum pump, water oil separator and anti overflow valve

3707

US$32,873

Chassis eq1070sj3bdf engine model yc4fa115-50 Yifeng pump, with Sight Glass level gauge , gravity port, cleaning device, dung suction pipe with boom seat, vacuum pump, water oil separator and anti overflow valve

2982


Hys5110gxee5 septic truck

Chassis eq1110sj8bdc engine model cy4sk251 Yifeng pump, with Sight Glass level gauge , gravity port, cleaning device, dung suction pipe, suspender seat, vacuum pump, water oil separator and anti overflow valve

3856

US$40,413

Chassis eq1110sj8bdc engine model yc4s150-50 Yifeng pump, with Sight Glass level gauge , gravity port, cleaning device, dung suction pipe with boom seat, vacuum pump, water oil separator and anti overflow valve

3767


Fecal suction truck

Jda5071gxeeq5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3707

US$43,127

2540


3298


Jda5080gxebj5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3760

US$47,651

2780


2771


Jda5110gxeeq5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3856

US$58,206

3857


3767


Fecal suction truck

Scs5030gxebj septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

1499

US$26,389

Scs5041gxe5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3707

US$39,960

2545


3298


Scs5040gxecal septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3707

US$39,960

3298


3760


Scs5073gxebj septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

2545

US$47,651

2672


Scs5080gxebj septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3760

US$49,159

2780


2771


Scs5072gxed5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3707

US$47,500

2545


3298


Scs5111gxebd5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3856

US$62,579

3767


3760


Scs5110gxe5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3856

US$70,119

3857


3767


Scs5160gxed5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

4752

US$82,937

5900


6700


Scs5180gxeq5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

4752

US$64,841

5900


6700


Fecal suction truck

BJ5073GXE-AA

Kangrui H2, wheelbase 3360, quanchai 4b2-115c50 national V power non breaking air brake resources, 5ts32 gearbox, NPR rear axle, 7.00R16 tire, metal paint installation, dynamic rotation, drying tank, shroud, air conditioner and multimedia
4-square manure suction truck, 5 / 6mm thick tank, 40 / 63 vacuum pump, with oil-gas separator, water vapor separator, anti overflow valve and other devices, with optional boom structure

2.545

US$19,095

Fecal suction truck

WFA5041GXEFE5

Chassis: bj1046v9pb4-k2

2270

US$28,571

Engine: 4a2-68c50 50KW vacuum pump model: xd-50


Tank volume: 2.3m3


Overall dimension: 6310×1770×2150mm


WFA5124GXEEE5

Chassis: Dongfeng dfh1120b1

4752

US$50,794

Engine: eqh160-52 118kW vacuum pump model: xd-50


Tank volume: 8.6m3


Overall dimension: 6820×2400×3510/3210/2980mm


WFA5161GXEEE5

Chassis: Dongfeng dfl1160bx1v

4500

US$56,984

Engine: isd180 50 132kw


Vacuum pump model: xd-50


Tank volume: 12.1m3


Overall dimension: 7615×2420×3370mm


WFA5071GXEEE5NG

Chassis: Dongfeng dfa1070sj12n5

3856

US$38,730

Engine: cy4102-n5d 84kw


Vacuum pump model: xd-50


Tank volume: 4.5m3


Overall dimension: 5805×2080×2770mm


WFA5082GXEFE5

Chassis: Futian bj5089xxy-fa

3760

US$43,492

Engine: isf38s5141 105KW


Vacuum pump model: xd-50


Tank volume: 5.6m3


Overall dimension: 6100 / 6125×2140×2890mm


WFA5162GXEEE5

Chassis: Dongfeng eq1160gz5dj

6700

US$53,968

Engine: isd210 50 155kw


Vacuum pump model: xd-50


Tank volume: 12.1m3


Overall dimension: 7740 / 7940×2470×3390mm


Fecal suction truck
(clean energy: natural gas)

WFA5163GXEEE5NG

Chassis: Dongfeng eq1160gd5nj

6494

US$62,063

Engine: yc6j210n-52 155kw


Vacuum pump model: xd-50


Tank volume: 11.2m3


Overall dimension: 7930×2500×3280mm


Fecal suction truck

Zlj5120gxedfe5 manure suction truck

Chassis model: dfh1120b1
Main engine model: eqh160-53
Maximum total mass kg: 12490
Maximum cleaning capacity (m2 / h):
Water tank volume (m)³) :6.9

4752

US$61,111

Zlj5160gxedfe5 manure suction truck

Chassis model: dfl1160bx1v
Main generator model: ISD 210 50
Maximum total mass kg: 15800
Water tank volume (m)³) 9.5

6700

US$67,460

Zlj5070gxeeqe5 manure suction truck

Chassis model: eq1070sj3bdf
Main engine model: cy4bk551
Maximum total mass kg: 7360
Water tank volume (m)³) :4.2

3707

US$43,238

Fecal suction truck

Xzl5070gxe5 septic truck

3308mm/YN27CRE1

2672

US$29,556

Xzl5169gxe5 septic truck

4500mm/ISB190 50

5900

US$49,000

Xzl5060gxe5 septic truck

3360mm/JX493ZLQ5

2771

US$28,048
