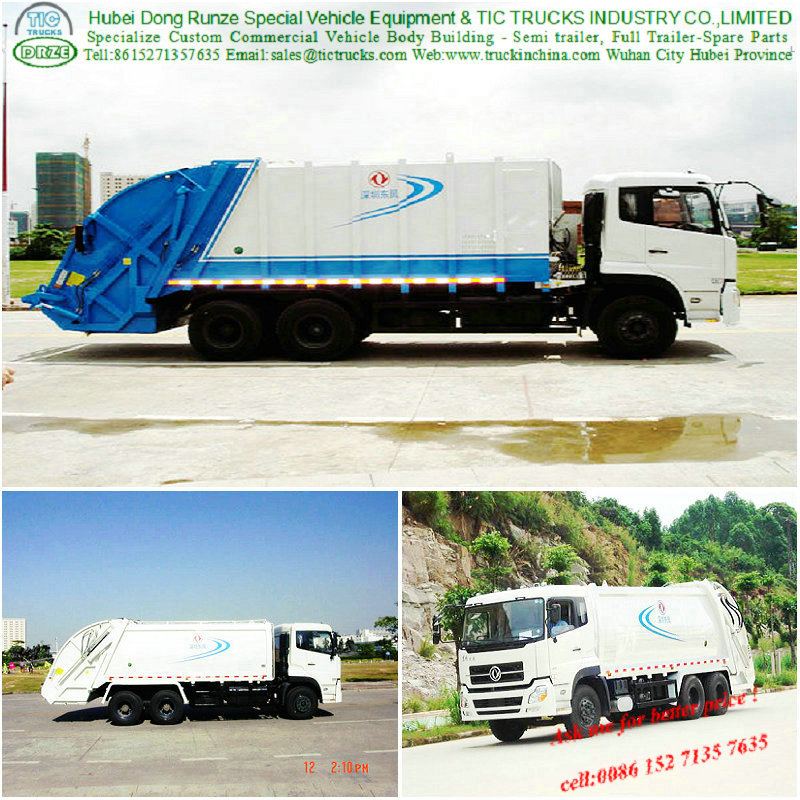

Dongfeng TianlongTrash Compactor Truck Garbage Truck(16-20T)

Dongfeng TianlongTrash Compactor Truck Garbage Truck(16-20T)
Quantity:

 Dongfeng Tianlong compression garbage truck(16-20T)Trash Compactor Truck Left hand driving Compactor Garbage Truck

  Trash Compactor Truck Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
 Waste Compactor Function:
 The machine supports heavy duty operations and is high in performance and low in maintenance , it can collect , compact , store and dump the garbage

 Compactor designs. Have been many and varied , one of the most popular being the traditional "sweep and slide" system where hydraulic-powered plates scoop out the waste from a loading hooper and subsequently compact it aagainst the material already loaded.

 Once the waste is dumped, it is compacted by a large blade called a "packer blade" that pushes the waste to the rear of the vehicle.
Trash Compactor Truck 10 cube garbage truck,garbage compactor truck(Dongfeng Cummins 170hp)

 16~22m3 compressed garbage truck
 /garbage refuse compactor vehicle
  Advantages of factory
  over 10years' exporting experience
  Professional staff ,high working efficiency and responsible
  In cooperation with powerful and reliable shipping service when CIF terms
  TEL :0086-15271357675;8615271357635
  Skype  tomsongking       Dolika compression garbage truck(5-6T)
 Dongfeng Tianlong compression garbage truck(16-20T)
 Trash Compactor Truck  22cube garbage truck,garbage compactor truck(Dongfeng Cummins 270hp)





         Product

         Dongfeng Tianlong compression garbage truck(15-20T)
         Chassis type          DFL1250A11; DFL1250A12
         Cubage(T)          15-20
         Parameters          Overall dimension length/width/height (mm)           10010*2496**3450
         Total Mass(kg)           25000
         Payload(kg)           13350
         Kerb Mass(kg)           11650
         Approach angle/ Departure angle(mm)           25/13
         Front suspension/rear suspension(mm)           1420/2710
         Fuel Type           diesel
         Fuel Consumption/100 km
         Max Speed           98
         Engine          Type           ISDE270 40
         Displacement/Power(kw)           6700 / 198
         Manufacturer          Dongfeng Cummins disel engine company
         Type           6 cylinders,turbcharge inter-cooling
         Chassis          Drive type           6×4
         Wheelbase(mm)           4350+1300; 5350+1300
         Tread(front/rear)           1986/1860,1860
         Front axle           7T
         Rear axle           18T
         Steering gear          Hydraulic assistance
         Transmission          8 forward gear,1 reverse gear,manual mechanical type
         Clutch          Single,dry type, hydraulic remote control
         Braking system          Double rear axle braking su
         Cab          Non-long headed cabin,one sleeper bed in the cab
         Number of spring axle(front/rear)           8/9,8/10
         Tire Type           11.00-20
         Air-condition           With air conditioner






         Special parameter
         Compressed Dustbin capacity (m3)           16~23
         Ground clearance from the fill mouth to ground (mm)          1000
         The Max boken force (KN)           400
         The Max compressed force (KN)           310
         Once cycle  time (s)           28
         The lifting time of filli(mm)           1570









 Price: FOB/DAF/CNF/CIF



 Payment term: T/T, prepay 30% as subscription, balance will be paid after the clients inspect the trucks in our factory before delivery.

 If this is not the particular one you are looking for, don't worry, we have a variety of selections for you.

 Just contact us directallly, we will be more than happy to help and serve you.






         COMPACTOR BODY INFORMATION




         Shape




         Smooth Body (Optional)




         Body Capacity (m3)




         16~23




         Hopper Capacity (m3)




         1.6




         Gate size (width x height) (mm)




         1380 x 1350




         Operation Mechanism




         manual & automatic




         Discharging System




         horizontal push-out




         Loading Time [one cycle] (sec)




         25~30




         Discharge Time (sec)




         30~35




         Hydraulic System Working Pressure (Mpa)




         16.2




         Compression Ratio




         2.5-3 to 1




         Body Material




         Carbon steel made of Q235B




         Plate thickness
         (mm)




         Body




         Floor




         4




         Roof




         5




         Side




         4




         Hopper




         Side(upper)




         5




         Side(lower)




         5




         Bottom




         5




         Discharge plate




         4




         Press plate




         5





 Our Trash compactor truck equipped with China famous hydraulic cylinders and components, adopted by advanced German electronic controlling hydraulic system for realizing manual and intelligent controlling operation, Italy multi-way valve is optional;
 The carriage of our Trash compactor truck is designed with circular arc with good appearance.

 Our factory products line:
 Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck etc.
