Dongfeng Tianjin 8T Falt 2-in-1 Wrecker Truck

Dongfeng Tianjin 8T Falt 2-in-1 Wrecker Truck
Availability:
Quantity:

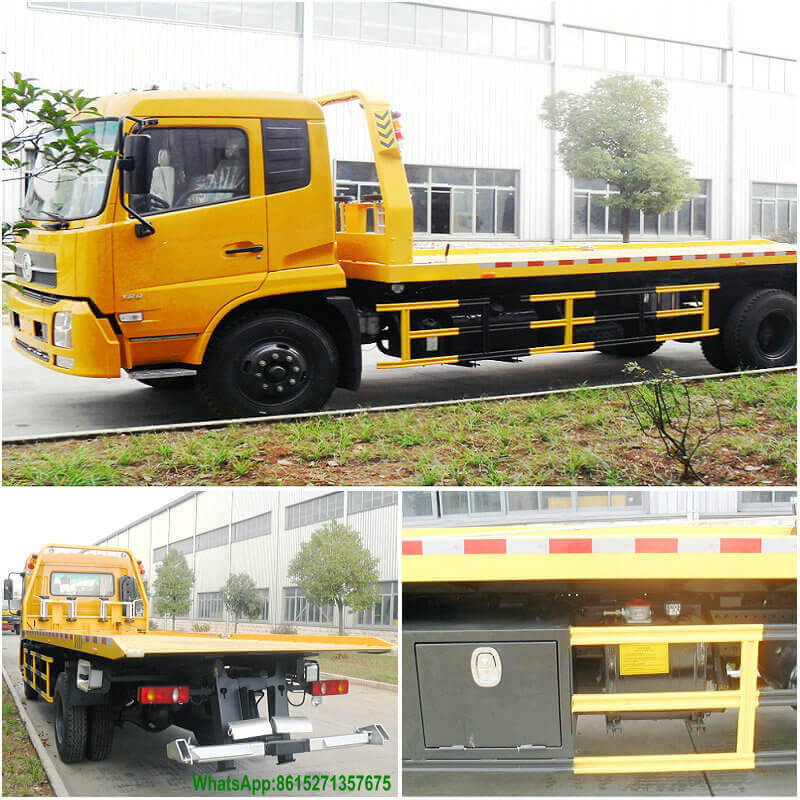

Dongfeng Tianjin 8T falt 2-in-1 wrecker truck

Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

 Description



             Technical Parameters




             Total Mass(kg)




             12495




              Curb Weight(kg)




             9800,10800




              Rated quality(kg)




              XX




              Chassis Model




             DFL1120B13




              Approach/departure angle




             20/10




              Front / rear overhang




             1430/3020,1430/2720




              Dimensions(mm)




             9150*2450*2900




              Number of spring




             7/9+6,8/10+8




              Number of axes




             2




              Maximum speed(km/h)




             95




              Tire Specifications




             9.00-20,9.00R20,255/70R22.5




              Number of tires




             6




              Front track




             1880,1924




              Rear track




             1800




              Wheelbase




             4700,5000




              Axle load




             4400/8095




               Emission Standards




              Euro3/Euro4




              Type of fuel




              Diesel




             Engine parameters




              Engine Model




             ISDe180 40




              Engine Manufacturer




             Dongfeng cummins engine Co.,Ltd




              Engine Displacement(ml)




             4500




              Engine power(kw)




             132




              Modified
              Description




             1. Unitary body, two sides with combined operation device, front bumper with a counterweight.
             2. Equipped with winch, supporting forks, supporting forks stand, chain hook and warning lights.




             Component




             Basic composition: chassis, unitary body, winch, crane, supporting forks, supporting forks stand, chain hook and warning lights.




             Purpose




             This truck is mainly used for road fault vehicle, urban peccancy vehicles and rescue, etc.




              Product advantage




              high quality with best price




Dongfeng Recovery Trucks with crane

 In need of a custom built Recovery Vehicle?



 Well look no further and learn how the skilled team is ready to build your next recovery vehicle to your specifications!



 Whether your starting or expanding a fleet, we can provide an affordable solution to satisfy your recovery needs without sacrificing quality. Our base model recovery bodies are very capable; however, customers have a variety of additional upgrades to build their own recovery vehicle to handle the toughest tasks. We offer customers the freedom to choose everything from recovery body to wheelbase length, hydraulic winch and your choice of color. Only new engines, hydraulic systems and P.T.O. systems are installed to insure dependability and overall customer satisfaction.



 That's our specialty and with a talented team of welders, electricians, and mechanics the craftsmanship is displayed throughout our custom built recovery vehicle.

  8T12D2  Two 80KN hydraulic winch 40m
    Rating Towing Mass 16000 Kg~25000KG




        Boom        Max lifting capacity:       12T
               Max Extended lifting capacity:       5.75T
               Max. Lifting Height mm       4830



       Under lift      Original Lifting Mass Kg       4500

       Rating Lifting Mass Fully Extended Kg
       3500





16T18D2  Two 100KN hydraulic winch 40m
 Rating Towing Mass 25000 Kg~31000KG



       Boom        Max lifting capacity:       18T
               Max Extended lifting capacity:       8T
               Max. Lifting Height mm       6500



        Under lift        Original Lifting Mass Kg       6500 / 7470 / 10120
              全伸出时额定托举质量:
       Rating Lifting Mass Fully Extended Kg
       5500/7310



20T20D2  Two 100KN hydraulic winch 40m
 Rating Towing Mass 25000 Kg~31000KG



        Boom        Max lifting capacity:       20T
               Max Extended lifting capacity:       9T
               Max. Lifting Height mm       6400



      Under lift      Original Lifting Mass Kg       9778

       Rating Lifting Mass Fully Extended Kg
       7310




30DZ3+16T+40ZT1  Two 150KN hydraulic winch 55m
 Rating Towing Mass 38000 Kg~48000KG



        Boom        Max lifting capacity:       25T
              Max Extended lifting capacity:       3.5T
               Max. Lifting Height mm       12000



       Under lift        :Original Lifting Mass Kg       12500/16000

       Rating Lifting Mass Fully Extended Kg
       9500

With 360-degree rotation ,Remote operating device



40DZ3+25T+40ZT1  Two 250KN hydraulic winch 55m
 Rating Towing Mass   48000~58000KG



        Boom        Max lifting capacity:       40T
               Max Extended lifting capacity:       4.5T
               Max. Lifting Height mm       12070



       Under lift       Original Lifting Mass Kg       12500/25000

       Rating Lifting Mass Fully Extended Kg
       9500 /12500

With 360-degree rotation ,Remote operating device
