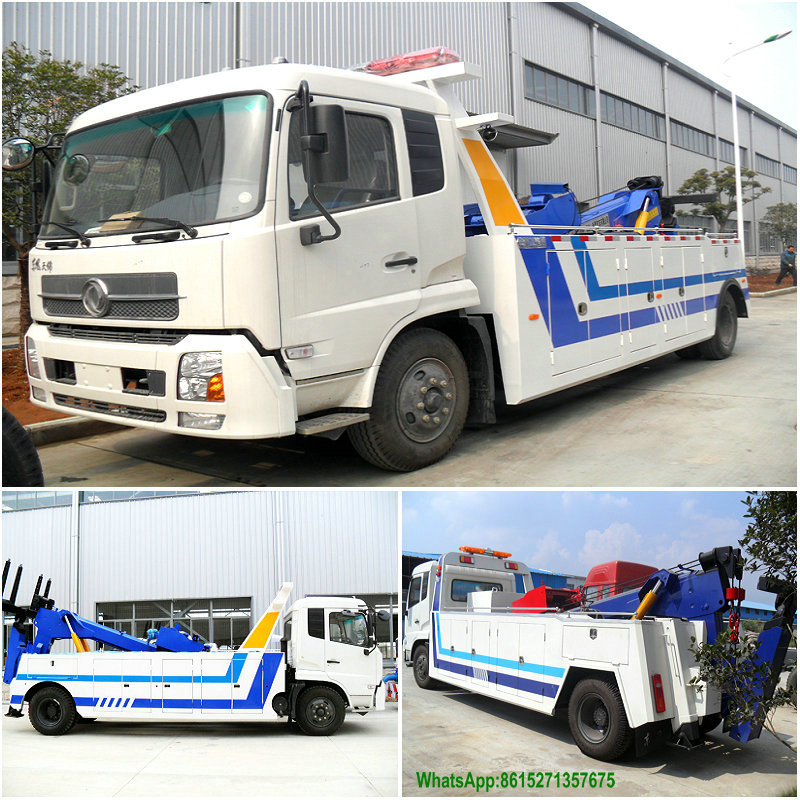

Dongfeng Tianjin 10T towing conjoined road wrecker
two 10T 80 kn hydraulic winch 40M Steel Wire Rope
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
Description
| Technical Parameters |
| Total Mass(kg) | 16000 | Curb Weight(kg) | 10805 |
| Rated quality(kg) | XX | Chassis Model | DFL5160XXYBX1A |
| Approach/departure angle | 20/16 | Front / rear overhang | 1430/1620 |
| Dimensions(mm) | 8650*2480*3050 | Number of spring | 7/9+6,8/10+8 |
| Number of axes | 2 | Maximum speed(km/h) | 85 |
| Tire Specifications | 9.00-20,9.00R20 | Number of tires | 6 |
| Front track | 1880 | Rear track | 1800,1860 |
| Wheelbase | 5600 | Axle load | 6000/10000 |
| Emission Standards | Euro3/Euro4 | Type of fuel | Diesel |
| Engine parameters |
| Engine Model | ISDe210 40 | Engine Manufacturer | Dongfeng cummins engine Co.,Ltd |
| Engine Displacement(ml) | 6700 | Engine power(kw) | 155 |
Modified
Description | 1. Unitary body, two sides with combined operation device, front bumper with a counterweight.
2. Equipped with winch, supporting forks, supporting forks stand, chain hook and warning lights. |
| Component | Basic composition: chassis, unitary body, winch, crane, supporting forks, supporting forks stand, chain hook and warning lights. |
| Purpose | This truck is mainly used for road fault vehicle, urban peccancy vehicles and rescue, etc. |
| Product advantage | high quality with best price |
Dongfeng Recovery Trucks with crane
In need of a custom built Recovery Vehicle?
Well look no further and learn how the skilled team is ready to build your next recovery vehicle to your specifications!
Whether your starting or expanding a fleet, we can provide an affordable solution to satisfy your recovery needs without sacrificing quality. Our base model recovery bodies are very capable; however, customers have a variety of additional upgrades to build their own recovery vehicle to handle the toughest tasks. We offer customers the freedom to choose everything from recovery body to wheelbase length, hydraulic winch and your choice of color. Only new engines, hydraulic systems and P.T.O. systems are installed to insure dependability and overall customer satisfaction.
That's our specialty and with a talented team of welders, electricians, and mechanics the craftsmanship is displayed throughout our custom built recovery vehicle.
8T12D2 Two 80KN hydraulic winch 40m
最大牵引质量：Rating Towing Mass 16000 Kg~25000KG
| 吊臂Boom | 最大起吊质量Max lifting capacity: | 12T |
| | 最远起吊质量全伸出Max Extended lifting capacity: | 5.75T |
| | 最大起吊高度：Max. Lifting Height mm | 4830 |
| 托臂Under lift | 原地托举质量最短伸出时：Original Lifting Mass Kg | 4500 |
| | 全伸出时额定托举质量：
Rating Lifting Mass Fully Extended Kg | 3500 |
16T18D2 Two 100KN hydraulic winch 40m
最大牵引质量：Rating Towing Mass 25000 Kg~31000KG | 吊臂Boom | 最大起吊质量Max lifting capacity: | 18T |
| | 最远起吊质量全伸出Max Extended lifting capacity: | 8T |
| | 最大起吊高度：Max. Lifting Height mm | 6500 |
| 托臂Under lift | 最短伸出时原地托举质量：Original Lifting Mass Kg | 6500 / 7470 / 10120 |
| | 全伸出时额定托举质量：
Rating Lifting Mass Fully Extended Kg | 5500/7310 |
20T20D2 Two 100KN hydraulic winch 40m
最大牵引质量：Rating Towing Mass 25000 Kg~31000KG | 吊臂Boom | 最大起吊质量Max lifting capacity: | 20T |
| | 最远起吊质量全伸出Max Extended lifting capacity: | 9T |
| | 最大起吊高度：Max. Lifting Height mm | 6400 |
| 托臂Under lift | 原地托举质量最短伸出时：Original Lifting Mass Kg | 9778 |
| | 全伸出时额定托举质量：
Rating Lifting Mass Fully Extended Kg | 7310 |
30DZ3+16T+40ZT1 Two 150KN hydraulic winch 55m
最大牵引质量：Rating Towing Mass 38000 Kg~48000KG | 吊臂Boom | 最大起吊质量Max lifting capacity: | 25T |
| | 最远起吊质量全伸出Max Extended lifting capacity: | 3.5T |
| | 最大起吊高度：Max. Lifting Height mm | 12000 |
| 托臂Under lift | 最短伸出时原地托举质量 ：Original Lifting Mass Kg | 12500/16000 |
| | 全伸出时额定托举质量：
Rating Lifting Mass Fully Extended Kg | 9500 |
With 360-degree rotation ,Remote operating device
40DZ3+25T+40ZT1 Two 250KN hydraulic winch 55m
最大牵引质量：Rating Towing Mass 48000~58000KG | 吊臂Boom | 最大起吊质量Max lifting capacity: | 40T |
| | 最远起吊质量全伸出Max Extended lifting capacity: | 4.5T |
| | 最大起吊高度：Max. Lifting Height mm | 12070 |
| 托臂Under lift | 最短伸出时原地托举质量 ：Original Lifting Mass Kg | 12500/25000 |
| | 全伸出时额定托举质量：
Rating Lifting Mass Fully Extended Kg | 9500 /12500 |
With 360-degree rotation ,Remote operating device
TIC TRUCKS , www.truckinchina.com Dongfeng Recovery Trucks with crane In need of a custom built Recovery Vehicle?
Well look no further and learn how the skilled team is ready to build your next recovery vehicle to your specifications!
Whether your starting or expanding a fleet, we can provide an affordable solution to satisfy your recovery needs without sacrificing quality. Our base model recovery bodies are very capable; however, customers have a variety of additional upgrades to build their own recovery vehicle to handle the toughest tasks. We offer customers the freedom to choose everything from recovery body to wheelbase length, hydraulic winch and your choice of color. Only new engines, hydraulic systems and P.T.O. systems are installed to insure dependability and overall customer satisfaction.
That's our specialty and with a talented team of welders, electricians, and mechanics the craftsmanship is displayed throughout our custom built recovery vehicle.
8T12D2 Two 80KN hydraulic winch 40m
最大牵引质量：Rating Towing Mass 16000 Kg~25000KG
| 吊臂Boom | 最大起吊质量Max lifting capacity: | 12T |
| | 最远起吊质量全伸出Max Extended lifting capacity: | 5.75T |
| | 最大起吊高度：Max. Lifting Height mm | 4830 |
| 托臂Under lift | 原地托举质量最短伸出时：Original Lifting Mass Kg | 4500 |
| | 全伸出时额定托举质量：
Rating Lifting Mass Fully Extended Kg | 3500 |
16T18D2 Two 100KN hydraulic winch 40m
最大牵引质量：Rating Towing Mass 25000 Kg~31000KG
| 吊臂Boom | 最大起吊质量Max lifting capacity: | 18T |
| | 最远起吊质量全伸出Max Extended lifting capacity: | 8T |
| | 最大起吊高度：Max. Lifting Height mm | 6500 |
| 托臂Under lift | 最短伸出时原地托举质量：Original Lifting Mass Kg | 6500 / 7470 / 10120 |
| | 全伸出时额定托举质量：
Rating Lifting Mass Fully Extended Kg | 5500/7310 |
20T20D2 Two 100KN hydraulic winch 40m
最大牵引质量：Rating Towing Mass 25000 Kg~31000KG
| 吊臂Boom | 最大起吊质量Max lifting capacity: | 20T |
| | 最远起吊质量全伸出Max Extended lifting capacity: | 9T |
| | 最大起吊高度：Max. Lifting Height mm | 6400 |
| 托臂Under lift | 原地托举质量最短伸出时：Original Lifting Mass Kg | 9778 |
| | 全伸出时额定托举质量：
Rating Lifting Mass Fully Extended Kg | 7310 |
30DZ3+16T+40ZT1 Two 150KN hydraulic winch 55m
最大牵引质量：Rating Towing Mass 38000 Kg~48000KG
| 吊臂Boom | 最大起吊质量Max lifting capacity: | 25T |
| | 最远起吊质量全伸出Max Extended lifting capacity: | 3.5T |
| | 最大起吊高度：Max. Lifting Height mm | 12000 |
| 托臂Under lift | 最短伸出时原地托举质量 ：Original Lifting Mass Kg | 12500/16000 |
| | 全伸出时额定托举质量：
Rating Lifting Mass Fully Extended Kg | 9500 |
With 360-degree rotation ,Remote operating device
40DZ3+25T+40ZT1 Two 250KN hydraulic winch 55m
最大牵引质量：Rating Towing Mass 48000~58000KG
| 吊臂Boom | 最大起吊质量Max lifting capacity: | 40T |
| | 最远起吊质量全伸出Max Extended lifting capacity: | 4.5T |
| | 最大起吊高度：Max. Lifting Height mm | 12070 |
| 托臂Under lift | 最短伸出时原地托举质量 ：Original Lifting Mass Kg | 12500/25000 |
| | 全伸出时额定托举质量：
Rating Lifting Mass Fully Extended Kg | 9500 /12500 |
With 360-degree rotation ,Remote operating device
TIC TRUCKS , www.truckinchina.com
