Dongfeng Offroad 4X4 Aerial Platform Truck 12-16m
| Quantity: | |
|---|---|
- Shanghai, China
- 1000
- T/T

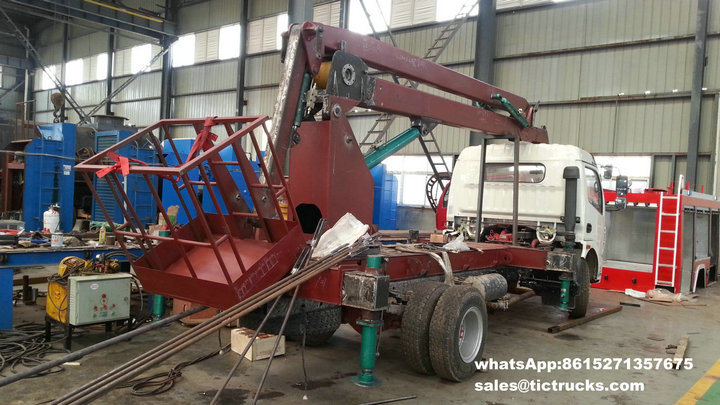

Dongfeng Offroad 4x4 Aerial Platform Truck 12-16m
Dongfeng Offroad 4x4 Aerial Platform Truck
fully Hydraulically Operate Arial Work Platforms
Max operation height 12m,14m,16m
max operation radius 5.7m, 6.3m,7m
max working platform rating loading=200kg,
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.

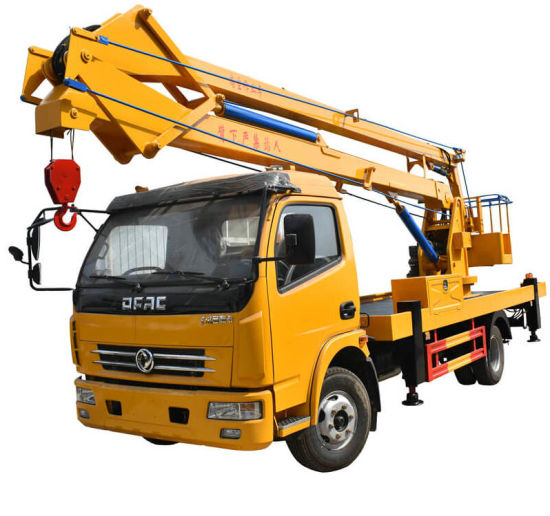

Hydraulic aerial platform vehicle 20m
| SPECIFICATIONS FOR DONGFENG HYDRAULIC AERIAL LIFT PLATFORM VEHICLE 20 M | |||
| Product Name | Dongfeng 20 M aerial hydraulic lift platform vehicle | Product Model NO. | DRZ5080JGK20E5 |
| Function | High altitude Operation | ||
| General Situation of Vehicle | |||
| Overall Dimension(MM) | 8100×2320×3350 | Curb Weight(Vehicle) (KG) | 7640 |
| Dimension of Loading space (MM) | / | Loading Capacity(KG ) | 200 |
| GVW.(KG) | 7835 | Fuel Type | Diesel |
| Transmission Type | Manual | Condition | New |
| Maximum Speed (KM/H) | 103 | Cab | 3 Persons |
| Chassis Specification | |||
| Chassis Brand | Dongfeng | Chassis Model NO. | EQ1080SJ8BDC |
| Driver's Seat Direction | Left Side Drive | Drive Form | 4*2 |
| Steering System | Steering wheel | Brake System | Air braking |
| Gear Box | 5-Speed | ABS | Include |
| Electric System | 24V | Axle Load(KG) | 3300/4975 |
| NO. of Axles | 2 | Tyres Specification | 7.50R16 |
| Whee Base(MM) | 3800 | NO. of Wheels | 6 |
| Overhang F/R (MM) | 1130/2460 | NO. of Spring Leaf | |
| Engine Specification | |||
| Engine Model NO. | CY4SK251 | Engine Power (KW/HP) | 115/156 |
| Displacement(ML) | 3856 | Emission level | Euro 5 EGR |
| Upper Body Configuration | Main Material: Carbon steel Q235, Upper Body And Chassis Connection Way: Weld and bolt connection, Max.Working Height: 20 M, Max Working Radius: 9M, 360° rotation, Prop Leg Max.Span : Lengthways :2430MM;Crosswise: front 1600MM, Rear:2780MM, adjustable; Load of Aerial Working Platform: ≤200 KG, Dimension of Aerial Working Platform: 1080X610X1100MM | ||
| Product Feature | 1.Three Foldable arms,arms is electrically controlled,speed is adjustable; 2.Hydraulic Cylinders control the boom arm stretching,lifting or retracting,and can be lockable; 3.Double station operation,up and down interlock; 4.Engine start and stop can be remote controlled; 5.Crane hook can be mounted if required,Max.Lifting Height: 11.5M, Max Lifting Weight: 1000 KG | ||
PACKING & DELIVERY

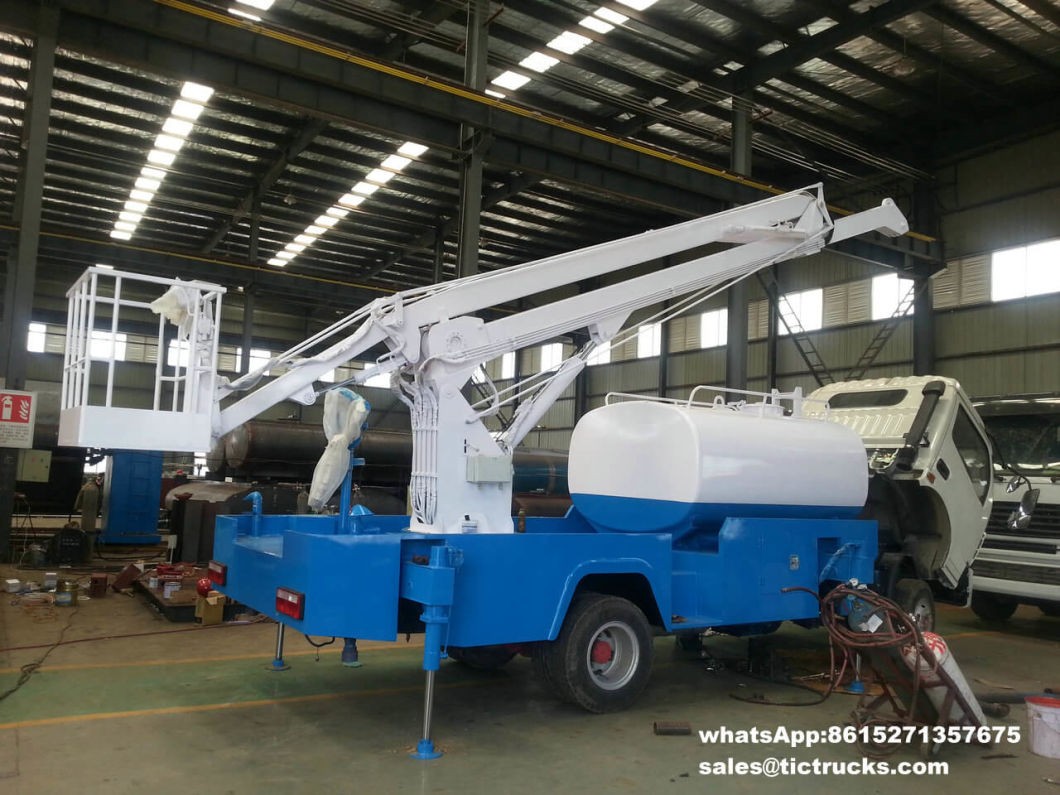

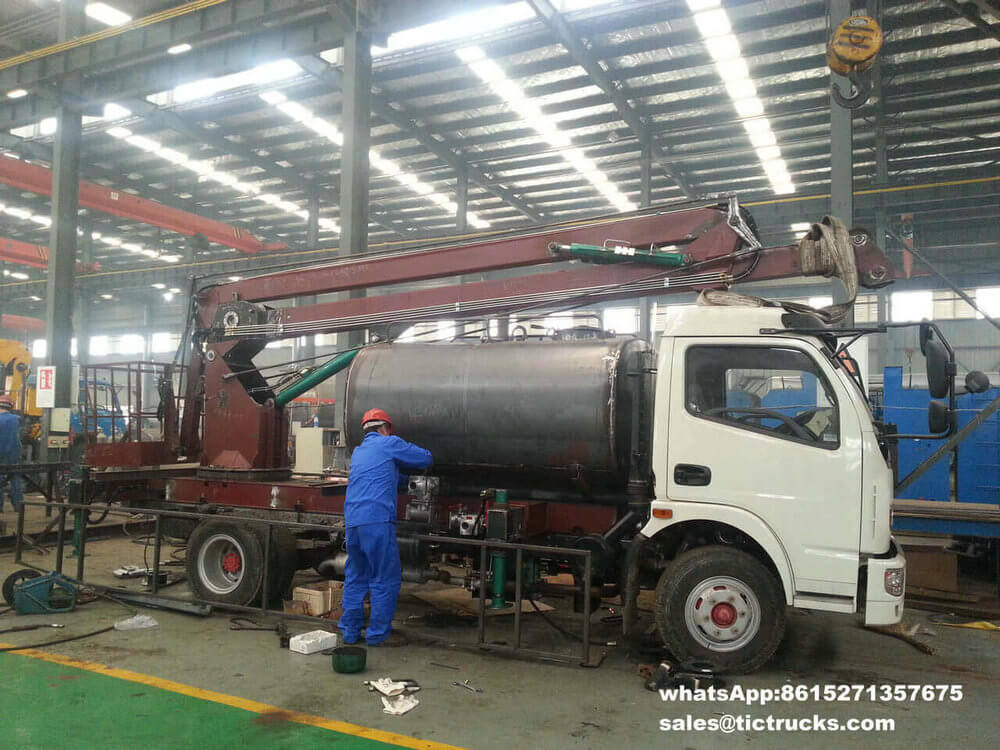

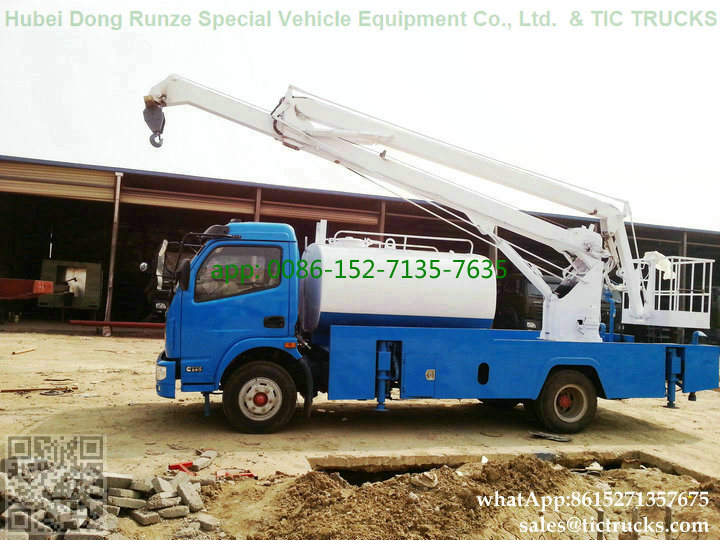

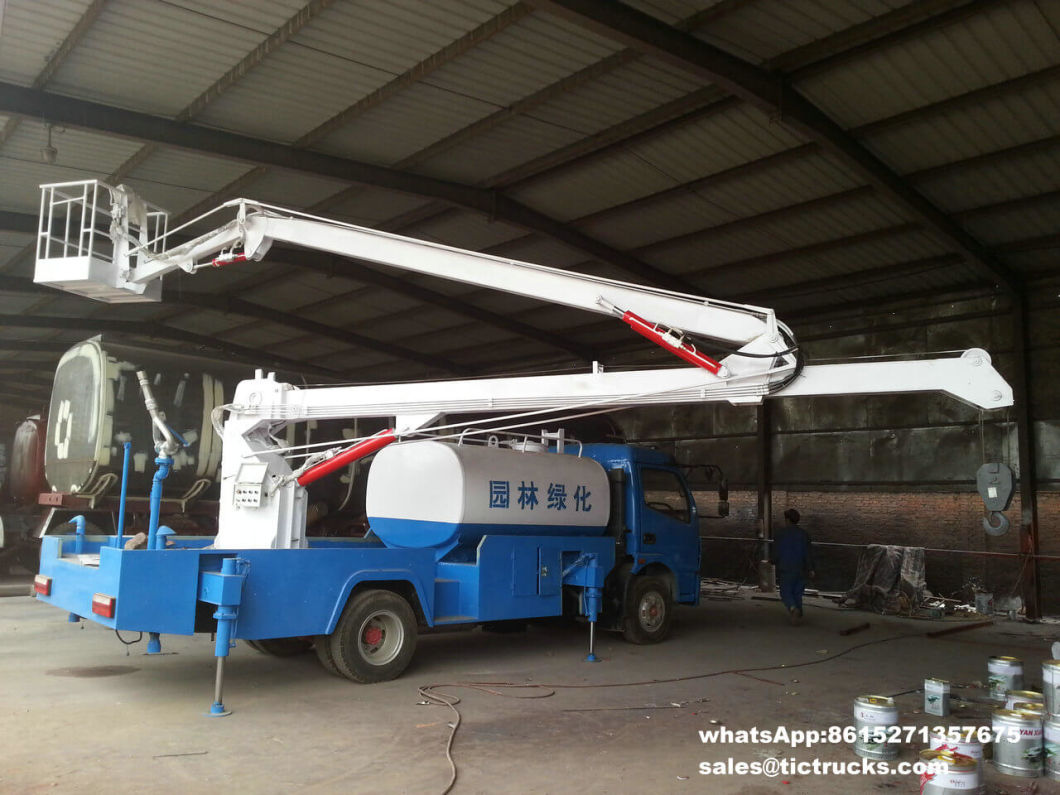

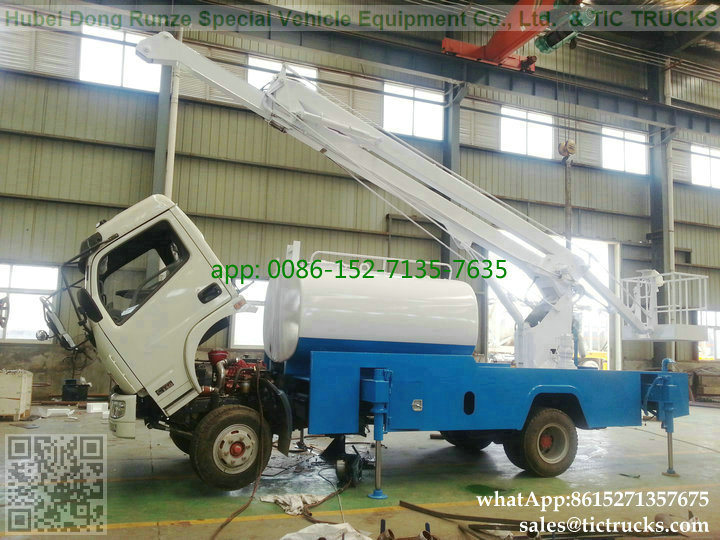

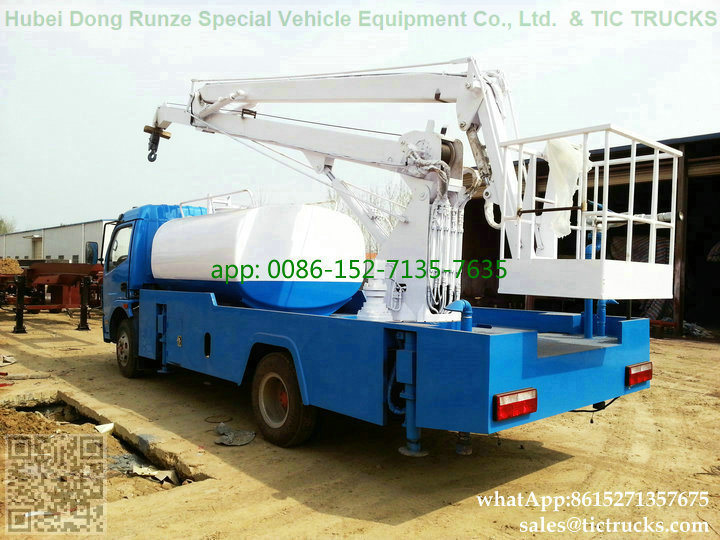

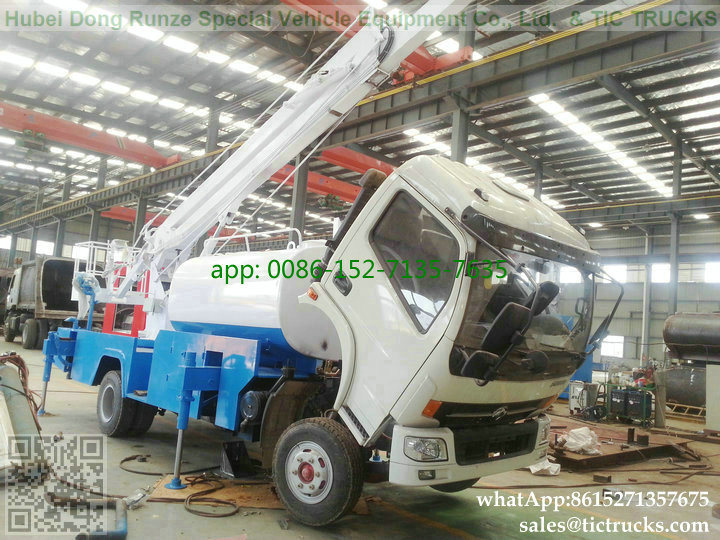

Aerial platform truck 16m water tank and water pump ,Truck Mounted Aerial Work Platform water tank,Work Platform water tank truck,aerial bucket truck water tank,bucket truck with water tank ,Truck Mounted water tank Aerial Work Platform
Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.
The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr
Truck may be medium light truck of 3.% ton.
Welcome all around world customer visit our factory
