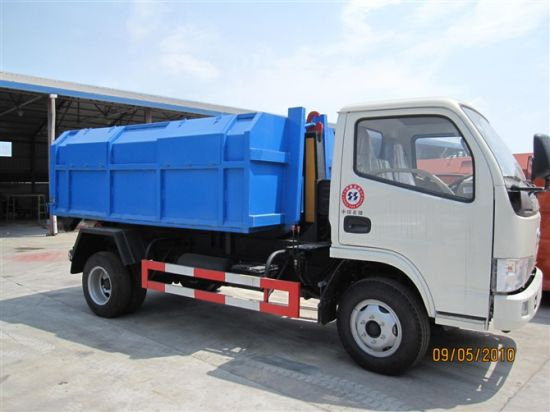

Dongfeng Mini Hooklift Truck for Cheap Sale

  • 10000
  • Nil
  • T/T, Western Union
  • 5060TLB
  • Diesel
  • 4×2
  • Dongfeng
  • Small
  • Arm Type
  • New
  • Emission Standards: : Euro 2, Euro 3, Euro 4
  • 70~140HP
  • TIC
  • military standard.
  • China
  • 8705909090
  • Roll Off
  • ISO9000, CCC
  • 3001-6000L
  • Euro 3
  • Manual
  • 6t

Hooklift Garbage Truck with Hydraulic Self Loading System

Dongfeng Roll off Garbage Truck

Garbage Collection Truck with Hooklift Hydraulics
Hooklift Truck/hook loader/self loading unloading truck
Total Weight Kg 6495
Rated Payload Weight 3200
Curb Weight 3100
Overall Dimension(LxWxH) MM 5350x1960x2250
Approach/Departure Angle ° 19/15
Front/Rear Overhang MM 1032/1018
Wheel Base 3300
Axles Number Pcs 2
Allowable People in Cab People 3
Axles Load Kg 2600/3895
Max Speed Km/H 90
Chassis Information
Chassis Model EQ1060TJ20D3
Brand Dongfeng
Dimension(LxWxH) MM 5820×1940x2080
Tire Number Pcs 6
Approach/Departure Angle ° 19/15
Steel Plate Spring Number Pcs 8/9+5,6/8+4
Front Wheel Distance MM 1506
Rear Wheel Distance 1466
Tire Type 7.00-16,6.50-16,7.00R16,6.50R16
Engine Information
Type YC4F90
Horsepower Hp 90
Output Volume ML 2659
Fuel Diesel
Emission Standard EURO III
Remark:Different driver room per chassis

Garbage bucket can be characterized by hanging from the crane, the arm, a working cycle time: 60S. The car is characterized by separate cargo compartment with the body, to achieve a vehicle with a number of co-operation cargo compartment, recycling transportation, to fully enhance the vehicle's transport capacity, especially for short-distance transport, such as the sanitation sector to urban garbage clean-up and transportation.
Private Function Description:
Envelope materialGarbage trucks can be used: Carbon steel, stainless steel, epoxy anti-corrosion treatment taken internally
Car-typeJunk cars varies depending on the model shape
Scope of useWidely used for small-scale garbage truck waste management and city streets, all with the dump functions, hydraulic operation, dumping easy.
Seal FormsSeal in the form of garbage trucks can choose: All sealed, on the clamshell, slide-type form are sealed to prevent secondary pollution, open the roof may take the form, please choose a user according to their different types of garbage trucks
