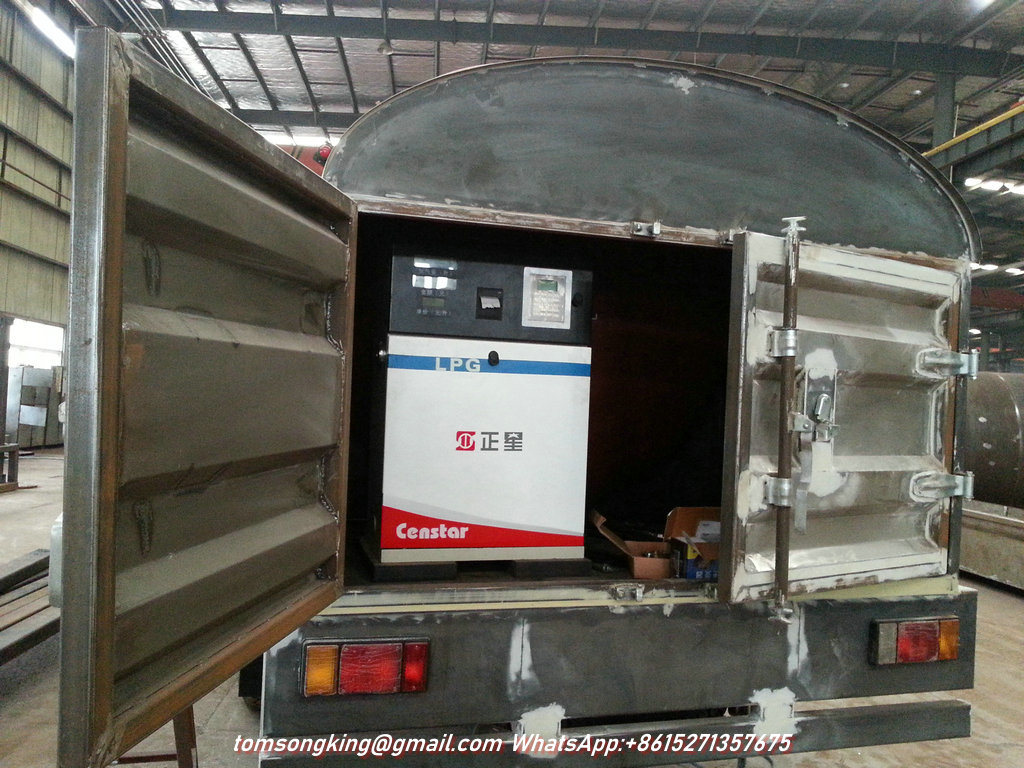

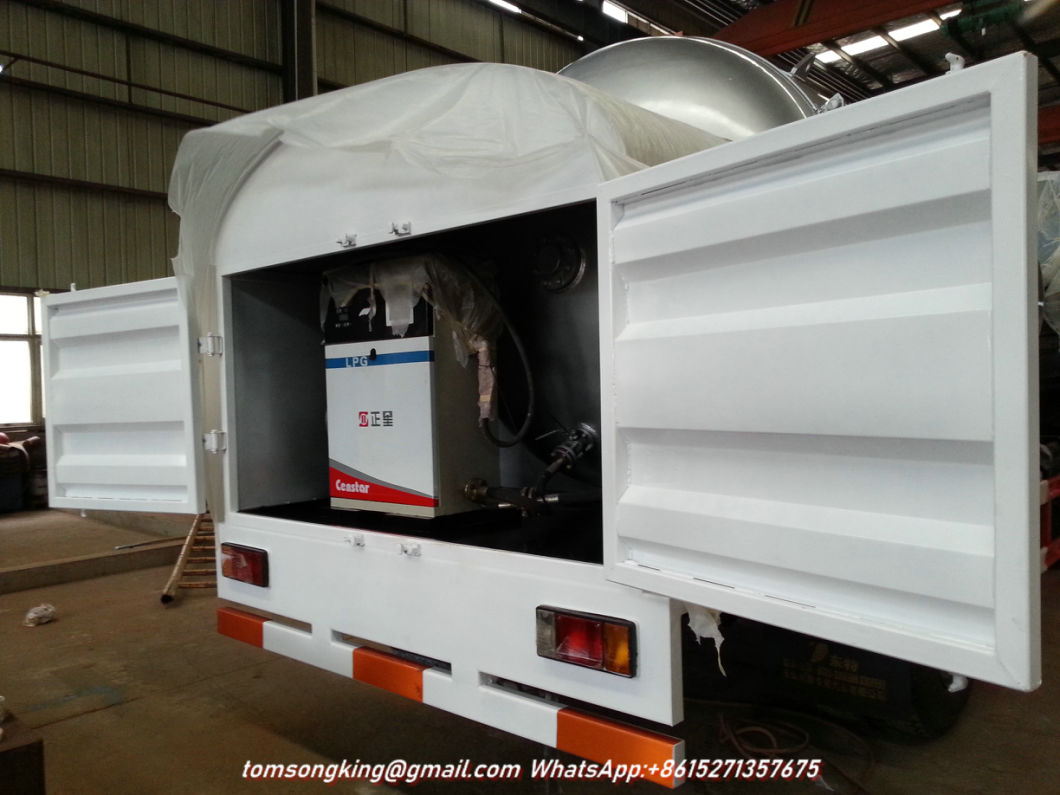

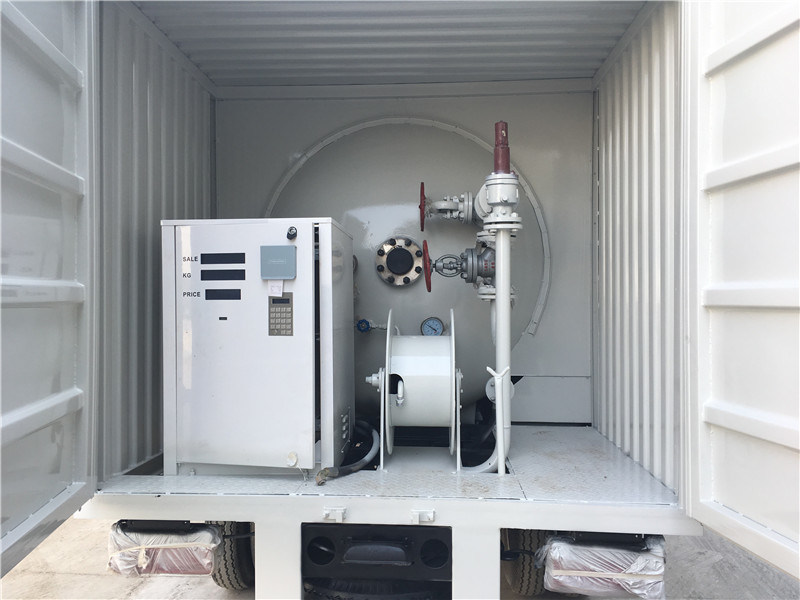

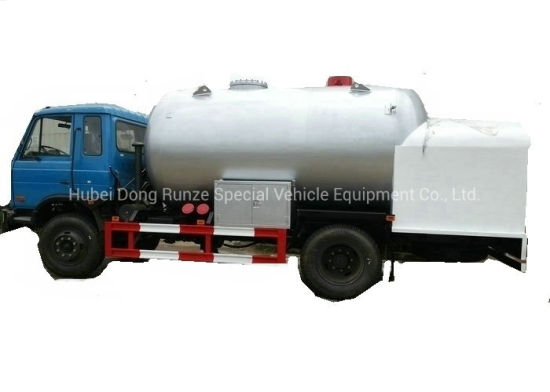

Dongfeng LPG Bobtail Tank Truck (Road LPG Tanker) Mounted with LPG Pump LPG Delivery Dispenser
Dongfeng LPG Bobtail Tank Truck (Road LPG Tanker) Mounted with LPG Pump LPG Delivery Dispenser
| Quantity: | |
|---|---|
- Shanghai, China
- 3000
- T/T
Dongfeng LPG Bobtail Tank Truck ( Road LPG Tanker ) Mounted with LPG Pump LPG Delivery Dispenser
Sinotruk HOWO 4x2 7t LPG ta
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.

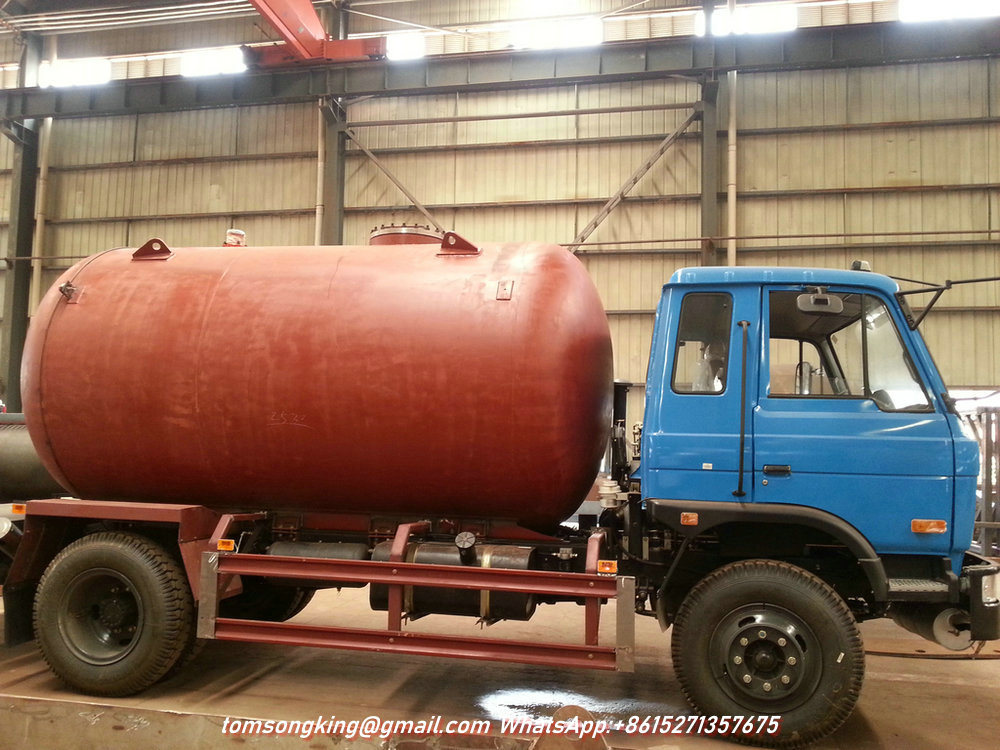

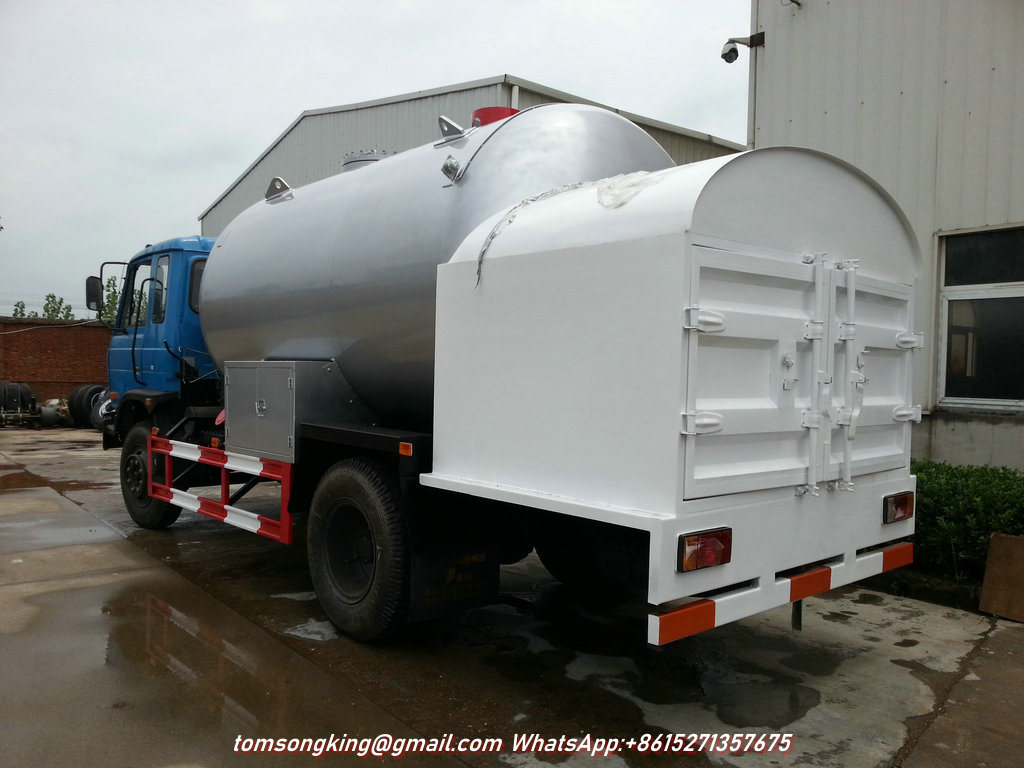

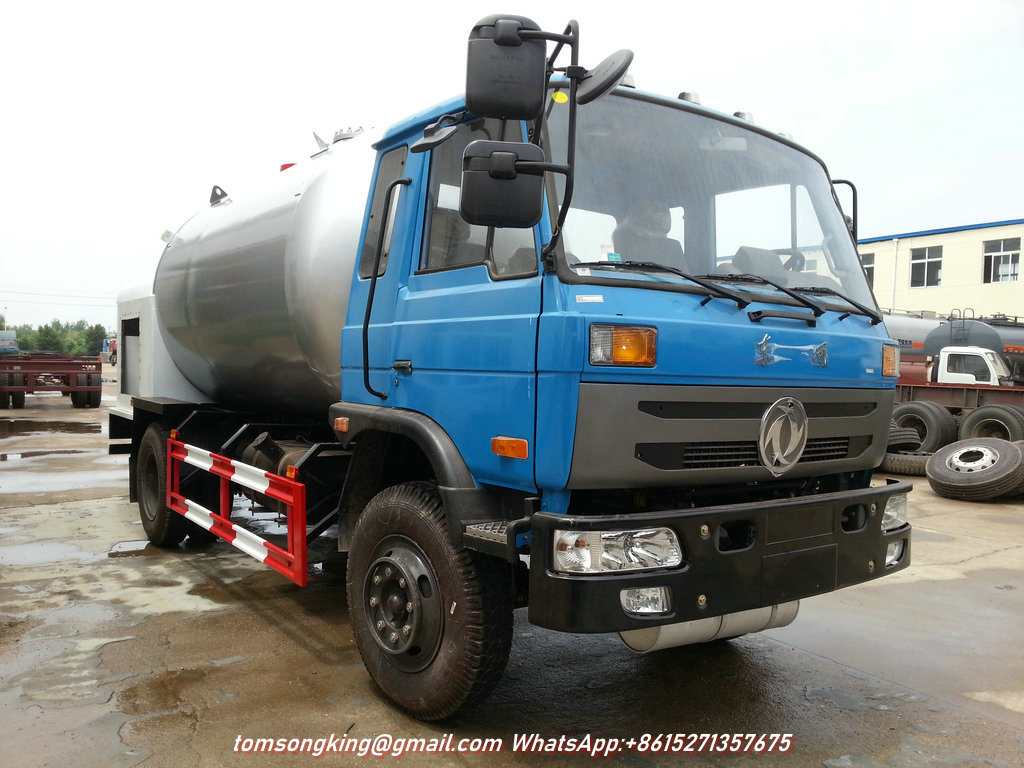

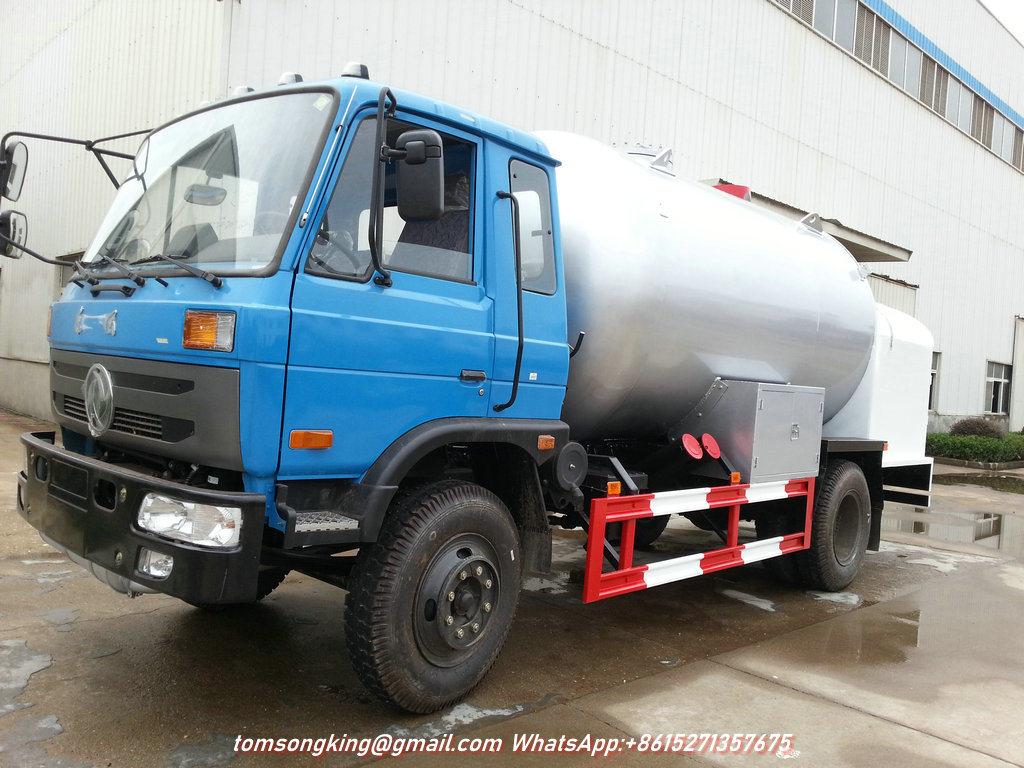

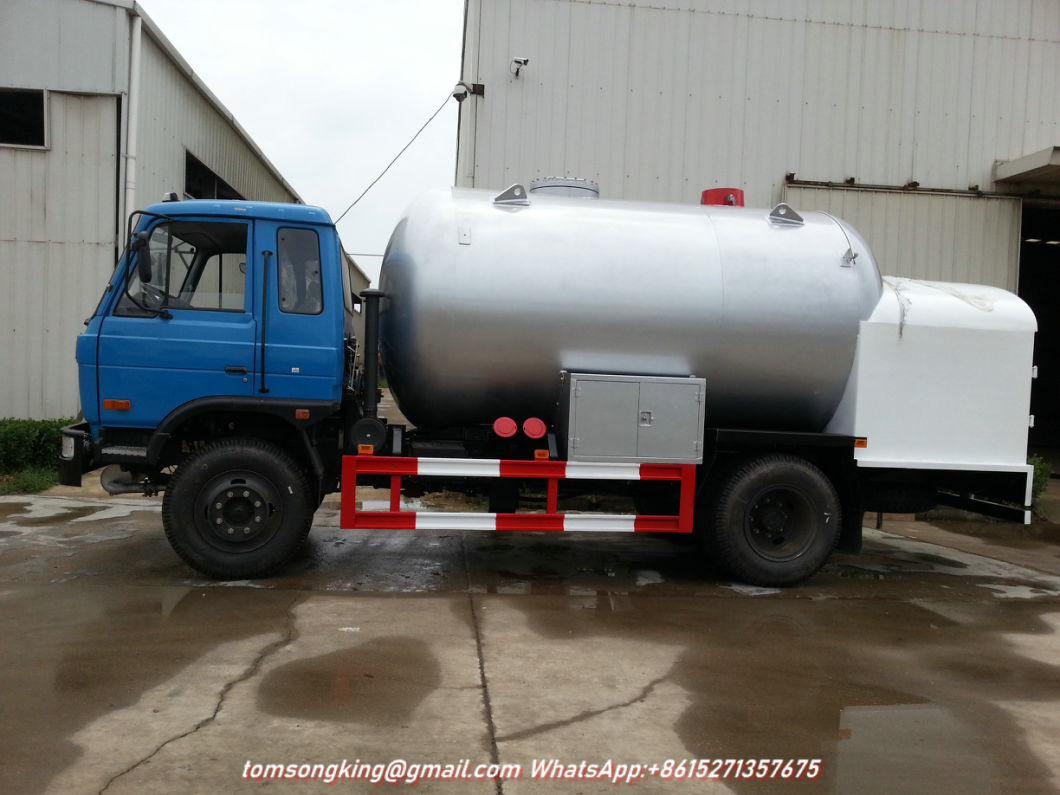

DONGFENG 6 wheelers 4*2 190hp RHD 10000L LPG Pressure Tank Truck
Other chassis optional: DONGFENG/ SINOTRUK/ FAW/ FOTON/ BEIBEN/ JAC/ SHACMAN/ HINO/ HYUNDAI
Other drive type optional: 4x2/ 6x4/ 8x4/ 4x4/ 6x6
RHD or LHD is optional.
| Vehicle Description | |||||
| Vehicle model | LPG Tank Truck | Overall dimensions (mm) | 5995x2000x2600 | ||
| GVW (kg) | Appro×16000 | Tank Volume (L) | 12000 | ||
| Mass in working order (kg) | Appro×3400 | Max. Speed (km/h) | 90 | ||
| Chassis Description | |||||
| Chassis Model | EQ1160GLJ | ||||
| Cab | Standard cabin | ||||
| Color | Optional | ||||
| Allowable person in cab | 2/3 | ||||
| Wheel base (mm) | 4500 | ||||
| Front/Rear track base (mm) | 2022/1830 | ||||
| Front/Rear overhang (mm) | 1515/1085 | ||||
| Number of axles | 2 | ||||
| Axle | Front axle | 6000 | |||
| Rear axle | 10000 | ||||
| Traction system | 4*2 | ||||
| Operation control system | Power steering | ||||
| Braking system | Full air | ||||
| Electric system | 24V | ||||
| Transmission | 6speed | ||||
| Spring plate | 9/12 | ||||
| Tire specification | 10.00-16 | ||||
| Tire quantity | 6+1 | ||||
| Engine Description | |||||
| Engine model | YC4FA195-50 | ||||
| Emission standard | Euro 2 | ||||
| Exhaust/output | 5336ml/139kw | ||||
| Horse power | 190hp | ||||
| Up-parts Description | |||||
| Tank Material | Q345R | ||||
| Design Temperature | 50 0C | ||||
| Corrosion allowance | 1.0mm | ||||
| Designed pressure | 1.61Mpa | ||||
| Hydraulic test pressure | 1.61MPa | ||||
| Tank Designed thickness | 9.37mm | ||||
| Working Condition: | 1,Altitude: 0-4500m 2,Temperature: -350C~+450C 3,Relative humidity: 80% 4,Wind force: ≤8 degree | ||||
| Specifications | |||
| Vehicle | LPG Gas Tanker | ||
| Overall dimension | 6100×2500×2350 mm | ||
| Curb weight | Appro×4870kg | ||
| Payload | Appro×2100 kg | ||
| Wheel base | 3800 mm | ||
| Max speed | 90 km/h | ||
LPG tank Parameter | Design Pressure: 1.77Mpa Design temperature: 50° Tank capacity: 5000 liters Filling medium: LPG(Propane) Tank material: Q345R Corrosion allowance: 1.00 mm Heat treatment method: PWHT Tank mass: 1860kg Hydraulic test pressure: 2.66Mpa External Dimensions(In-Diameter*Thickness*length): 1500*10(8)*3600 mm Vessel's sort: The third kind Service Years: 10 years | ||
Emergency Cut-off Valve Parameter | Model: QGJ43F-2.5 Nominal Pressure: PN2.5Mpa Nominal Diameter: Gas Phase DN25mm Liquid Phase DN50mm Operation Way: Manual Closing Time: 10s Melting switch temperature: 70±5° | ||
Safety Valve Parameter | Model: A412F-2.5, Inner full liff Nominal Pressure: PN2.5MPa Nominal Diameter: DN80mm Opening Pressure: 1.86-1.95MPa Closing Pressure: >1.49MPa Complete Opening Pressure:<2.12MPa | ||
Indicator For Liquid Level Parameter | Model: UQZ-2.5-1500, Float type Nominal Pressure: PN2.5MPa Surveying range: 0-1500 Precision: 2.5 Grade | ||
Load and Unload System Parameter | Valve type: Q41F-2.5P/CQA41F-2.5p Nominal Pressure: PN2.5MPa Tie-in model: Quick tie-in Gas phase pipe: DN25mm Liquid phase pipe: DN59mm | ||
| Chassis Info | |||
| Cabin | Single row cabin,air conditioner, power steering, 2 passengers | ||
| Drive Type | 4x2 | ||
| Engine | Diesel engine, Chinese brand or Cummins or Isuzu | ||
| Gearbox | 5-speed, manual | ||
| Tire model | 7.50R16 | ||
| No.of tire | 7 pcs | ||
