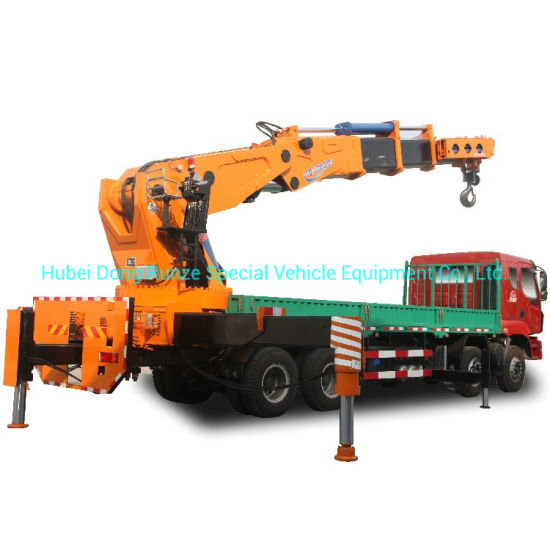

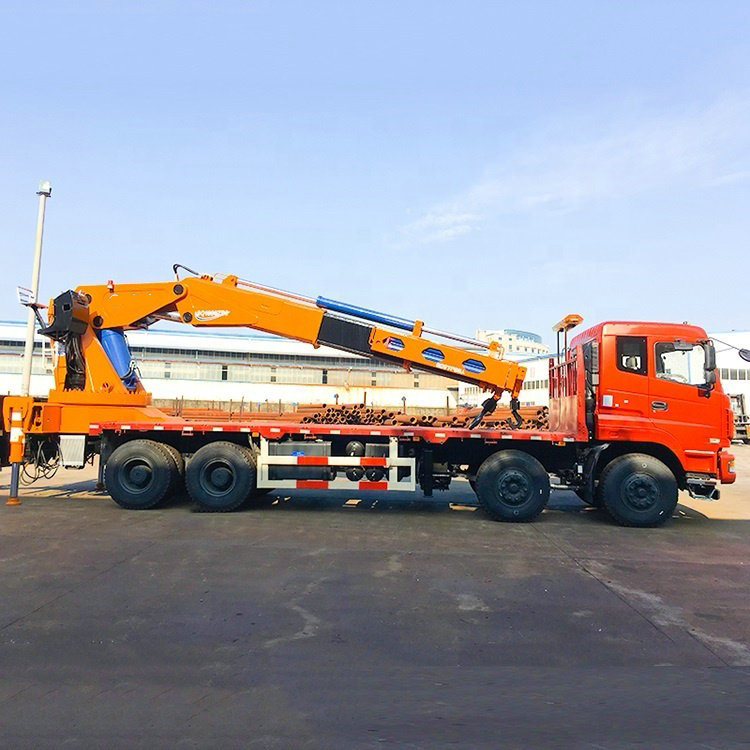

Dongfeng Hydraulic Truck Mounted Crane 80ton Sq1600zb6 Max Lifting Moment 1600 Kn. M
Dongfeng Hydraulic Truck Mounted Crane 80ton Sq1600zb6 Max Lifting Moment 1600 Kn. M
| Quantity: | |
|---|---|
- Shanghai, China
- 800
- T/T, Western Union
Dongfeng Hydraulic Truck Mounted Crane 80Ton SQ1600ZB6 Max Lifting Moment 1600 Kn.m
Max Lifting Moment: 1600 Kn.m
Max Lifting Capacity: 80 T
Max Lifting Height: 17 m
Customization, Cost Control Built How You Want it, Price You Can Afford. for sale call:+86-152 -7135-7675
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
| Model # | SQ600ZB4 /Knuckle Crane 30 Ton At 2 m |
| Max Lifting Moment | 600Kn.m |
| Max Lifting Capacity( kg / m) | 30000 /2.0 |
| 13600/4.4 | |
| 8600/4.07 | |
| 6538/7.89 | |
| Max Lifting Height | 14.7m |
| Max Working Radius | 11.5m |
| Hydraulic extension boom No.s | 4 stages |
| Rotation Angle | 360º continuous |
| Rated Working Pressure | 28 Mpa |
| Oil Tank Capacity | 250L |
| Related Oil Flow | 80 L/min |
| Outrigger Span | 2308-6120mm |
| Outrigger | 4 ,Extension, Hydraulic operating. |
| Crane Weight | 6900kg |
| Installation Space | 1450mm |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator,Hydraulic Safety Valve,Counter Balance Valve, Overwinding Alanm Device,Automatic Swing Brake,Hook Safety Device |
| Options | Aux.winch,Aux.Boom,Remote control |
| Material | HG785 |
| Model # | SQ760ZB6/Knuckle Crane 38 Ton At 2 m |
| Max Lifting Moment | 760 Kn.m |
| Max Lifting Capacity ( kg / m) | 25000/3.0 |
| 6500/9.5 | |
| 4200/12.9 | |
| 3500/14.7 | |
| Max Lifting Height | 17.5m |
| Max Working Radius | 14.7m |
| Boom Section | 6stages |
| Rotation Angle | 360 continuous |
| Rated Working Pressure | 28 Mpa |
| Oil Tank Capacity | 250L |
| Related Oil Flow | 80 L/min |
| Outrigger Span | 2330-7100mm |
| Outrigger | Extension, Hydraulic operating. |
| Crane Weight | 8200kg |
| Installation Space | 1800mm |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Options | Aux.winch,Aux.Boom,Remote control |
| Material | HG785 |

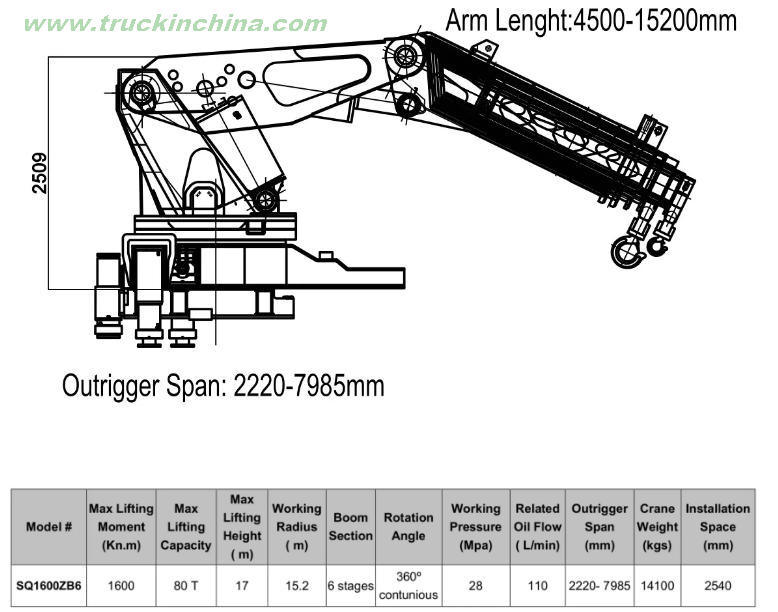

1600KN.M 80ton mounted truck crane SQ1600ZB6
| Model # | SQ1600ZB6 /knuckle crane 80 ton at 2 m |
| Max Lifting Moment | 1600Kn.m |
| Max Lifting Capacity ( kg / m) | 40000/4.0 |
| 23500/6.26 | |
| 14500/9.56 | |
| 5000/15.1 | |
| Max Lifting Height | 17m |
| Max Working Radius | 15.2m |
| Boom Section | 6 stages |
| Rotation Angle | 360 continuous |
| Rated Working Pressure | 28 Mpa |
| Oil Tank Capacity | 400L |
| Related Oil Flow | 110 L/min |
| Outrigger Span | 2220-7985mm |
| Outrigger | Extension, Hydraulic operating. |
| Crane Weight | 14100kg |
| Installation Space | 2540mm |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Options | Aux.winch,Aux.Boom,Remote control |
| Material | HG785 |
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability

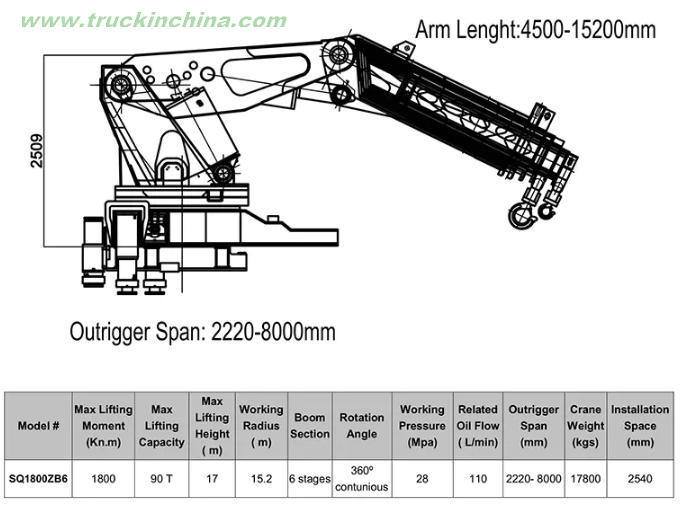

SQ1800ZB6(45T) at 4 m Knuckle Boom Truck Mounted Crane
| Model # | SQ1800ZB6 /Knuckle Crane 90 Ton At 2 m |
| Max Lifting Moment | 1800 Kn.m |
| Max Lifting Capacity(kg/m) | 45000/4 |
| 21000/7.86 | |
| 13500/11.26 | |
| 6100/15.1 | |
| Max Lifting Height | 17m |
| Max Working Radius | 15.2m |
| Boom Section | 6 stages |
| Rotation Angle | 360 continuous |
| Rated Working Pressure | 28 Mpa |
| Oil Tank Capacity | 400L |
| Related Oil Flow | 110 L/min |
| Outrigger Span | 2220-8000mm |
| Outrigger | Extension, Hydraulic operating. |
| Crane Weight | 17800kg |
| Installation Space | 2540mm |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Options | Aux.winch,Aux.Boom,Remote control |
| Material | HG785 |
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
SQ2400ZB6 / 2400 KN.M 120 Ton Mounted Truck Crane
| Model # | SQ2400ZB6/Knuckle Boom Crane 120ton At 2m |
| Max Lifting Moment | 2400Kn.m |
| Max Lifting Capacity(kg/m) | 60000/4.0 |
| 26000/8 | |
| 17400/11.34 | |
| 15000/13 | |
| Max Lifting Height | 14m |
| Working Radius | 13m |
| Boom Section | 6 stages |
| Rotation Angle | 360 continuous |
| Working Pressure | 28Mpa |
| Oil Tank Capacity | 400L |
| Rated Oil Flow | 110L/min |
| Outrigger Span | 2220- 7985mm |
| Outrigger | 5,Extension, Hydraulic operating. |
| Swing Type | Planetary gear reduction. |
| Options | Aux.winch,Aux.Boom,Remote control |
| Crane Weight | 18500kg |
| Installation Space | 2750mm |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Material | HG785 |
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability

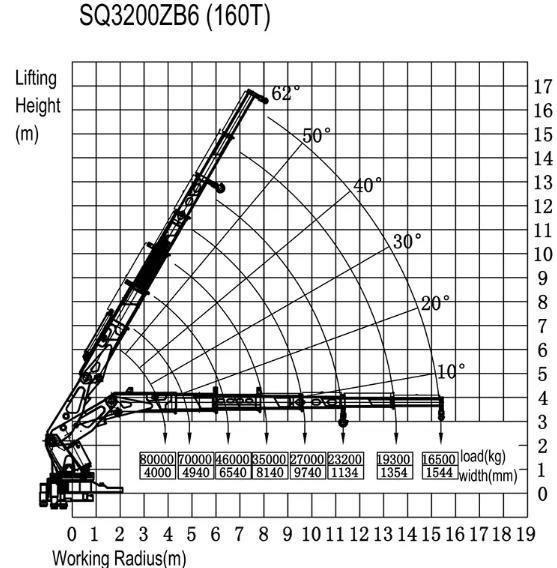

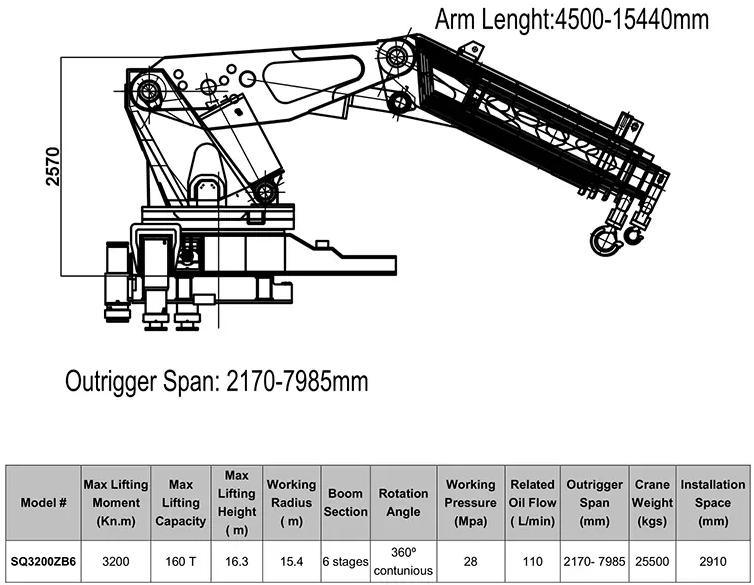

SQ3200ZB6 /knuckle crane 160 ton at 2 m
| Model # | SQ3200ZB6 /knuckle crane 160 ton at 2 m |
| Max Lifting Moment | 3200Kn.m |
| Max Lifting Capacity (kg/m) | 80000/4.0 |
| 70000/4.94 | |
| 27000/9.74 | |
| 16500/15.4 | |
| Max Lifting Height | 14.7m |
| Max Working Radius | 13.2m |
| Boom Section | 6 stages |
| Rotation Angle | 360 continuous |
| Rated Working Pressure | 28 Mpa |
| Oil Tank Capacity | 400L |
| Related Oil Flow | 110 L/min |
| Outrigger Span | 2170-8000mm |
| Outrigger | Extension, Hydraulic operating. |
| Crane Weight | 24700kg |
| Installation Space | 2910mm |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Options | Aux.winch,Aux.Boom,Remote control |
| Material | HG785 |
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
SQ1200ZB6 /Knuckle Crane 60 Ton At 2 m
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
SQ1200ZB6 /Knuckle Crane 60 Ton At 2 m
| Model # | SQ1200ZB6 /Knuckle Crane 60 Ton At 2 m |
| Max Lifting Moment | 1200Kn.m |
| Max Lifting Capacity (kg/m) | 40000/3.0 |
| 18000/5.25 | |
| 7000/12.5 | |
| 5000/15.5 | |
| Max Lifting Height | 18.5m |
| Max Working Radius | 15.5m |
| Boom Section | 7 stages |
| Rotation Angle | 360 continuous |
| Rated Working Pressure | 28 Mpa |
| Oil Tank Capacity | 400L |
| Related Oil Flow | 110 L/min |
| Outrigger Span | 2250-8000mm |
| Outrigger | Extension, Hydraulic operating. |
| Crane Weight | 11600kg |
| Installation Space | 2300mm |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Options | Aux.winch,Aux.Boom,Remote control |
| Material | HG785 |
1,Use HG70 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
30T ~160Ton Truck Mounted Crane for sale
with telescopic boom / Knuckle boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck mounted crane
trucks mounted crane.
| Truck Model | 5311JSQLV | 5311JSQB | 5310JSQH7FB |
| Chassis | EQ1311GLJ(24) | STQ1311L16Y3B5 (24) | LZ1310M5FBT(33) |
| Engine | YC6A290- | YC6A270- | YC6L350- |
| Transmission | 9JS119TA | 9JS119TA | 10JSD120TB |
| Wheelbase | 2150+4400+1350 | 2150+4300+1350 | 1950+4500+1350 |
| Front Axle | 5.5Tx 2 | 6.5T x 2 | 6.5T x 2 |
| Rear Axle | 12T x 2 (tandem axle) | 18T x 2 (tandem axle) | 18T x 2 (tandem axle) |
| Tire | 11.00R20*13 | 11.00R20*13 | 11.00R20*13 |
| Crago box(mm) | 8000*2300*550 | 8000*2300*550 | 8000*2470*550 |
| Crane 30T 600 Kn.m | SQ600ZB4 /30T at 2m $88800FOB ~$103800CIF | $88800FOB ~$103800CIF | $103000FOB ~$118000CIF |
| Crane 38T 760 Kn.m (25T at 3m) | SQ760ZB6/ 38 ton at 2 m $93800FOB ~$108800CIF | $93800FOB ~$108800CIF | $108000FOB ~$123000CIF |
| Crane 60T 1200 Kn.m 40T at 3m | SQ1200ZB6 /60 Ton At 2 m 35T at 3.4m ,40T at 3m $112900FOB ~$127900CIF | $112900FOB ~$127900CIF | $127000FOB ~$142000CIF |
| Crane 80T 1600 Kn.m (40T at 4m) | SQ1600ZB6 / 80 ton at 2 m $116000FOB ~$131000CIF | $116000FOB ~$131000CIF | $130000FOB ~$145000CIF |
| Crane 90T 1800 Kn.m (45T at 4m) | SQ1800ZB6 /90T at 2 m $131000FOB ~$146000CIF | $131000FOB ~$146000CIF | $136000FOB ~$151000CIF |
| Crane 120T 2400 Kn.m (60T at 4m) | SQ2400ZB6/ 120ton at 2m $142000FOB ~$157000CIF | $142000FOB ~$157000CIF | $156500FOB ~$171500CIF |
| Crane 160T 3200 Kn.m | SQ3200ZB6(160T) at 2m (80T at 4m) $164000FOB ~$179000CIF | $164000FOB ~$179000CIF | $169000FOB ~$184000CIF |
| Truck Model | 8x4 | 8x4 | 8x4 | 8*8 | 10*4 |
| Chassis | HINO /ISUZU /HYUNDAI | BEIBEN / SHACMAN /FOTON/SINOTRUCK | JAC /FAW/DFL /IVECO/ CAMC / C&C | BEIBEN / SHACMAN / SINOTRUCK | SINOTRUCK HOWO / DFL/C&C |
| Engine | 380HP /460HP | 380HP /420HP/460HP | 380HP /420HP | 336HP / 380HP | 380HP /420HP |
| Wheelbase | **** | **** | **** | **** | ***** |
| Front Axle | 7Tx 2 | 7.5T x 2 | 7.5T x 2 | 7.5T x 2 | 7.5T x 2+6.5T |
| Rear Axle | 16T x 2 (tandem axle) | 18T x 2 (tandem axle) | 18T x 2 (tandem axle) | 18T x 2 (tandem axle) | 18T x 2 (tandem axle) |
| Tire | 11.00R20*13 | 12.00R20*13 | 12.00R20*13 | 12.00R20*13 | 12.00R20*13 |
| Crago box(mm) | 8000*2300*550 | 8000*2300*550 | 8000*2470*550 | 8000*2300*550 | 8000*2470*550 |
| Crane 30T 600 Kn.m | SQ600ZB4 /30T at 2m $126000FOB ~$141000CIF | $103000FOB ~$118000CIF | $103000FOB ~$118000CIF | $113000FOB ~$128000CIF | $108000FOB ~$123000CIF |
| Crane 38T 760 Kn.m (25T at 3m) | SQ760ZB6/ 38 ton at 2 m $131000FOB ~$146000CIF | $108000FOB ~$123000CIF | $108000FOB ~$123000CIF | $118000FOB ~$133000CIF | $113000FOB ~$128000CIF |
| Crane 60T 1200 Kn.m 40T at 3m | SQ1200ZB6 /60 Ton At 2 m 35T at 3.4m , $150000FOB ~$165000CIF | $127000FOB ~$142000CIF | $127000FOB ~$142000CIF | ||
| Crane 80T 1600 Kn.m | SQ1600ZB6 / 80 ton at 2 m (40T at 4m) $153000FOB ~$168000CIF | $130000FOB ~$145000CIF | $130000FOB ~$145000CIF | $140000FOB ~$155000CIF | $135000FOB ~$150000CIF |
| Crane 90T 1800 Kn.m | SQ1800ZB6 /90T at 2 m (45T at 4m) $159000FOB ~$174000CIF | $136000FOB ~$151000CIF | $136000FOB ~$151000CIF | $146000FOB ~$151000CIF | $141000FOB ~$156000CIF |
| Crane 120T 2400 Kn.m | SQ2400ZB6/ 120ton at 2m (60T at 4m) $$179500FOB ~$194500CIF | $156500FOB ~$171500CIF | $156500FOB ~$171500CIF | ||
| Crane 160T 3200 Kn.m | SQ3200ZB6(160T) at 2m (80T at 4m) $192000FOB ~$207000CIF | $169000FOB ~$184000CIF | $169000FOB ~$184000CIF | $179000FOB ~$194000CIF | $174000FOB ~$189000CIF |
All Price For Refer Only . Final Price Will Confirm Order With Discount 3~5%.
boom Cranes list:
boom Cranes list:
| Modle | Modle | ( TM ) | (M) | (T) | |
| 1 | SQZ020K2Q | SQ1ZK2Q | 2 | 3.2 | 1 |
| 2 | SQZ030K1 | SQ2ZK1 | 4 | 5.05 | 2 |
| 3 | SQZ068K1 | SQ3.2ZK1 | 6.72 | 5.5 | 3.2 |
| 4 | SQZ068K2 | SQ3.2ZK2 | 6.72 | 7.6 | 3.2 |
| 5 | SQZ086K2 | SQ4ZK2 | 8.4 | 7.6 | 4 |
| 6 | SQZ106K2Q | SQ5ZK2Q | 10.5 | 8.01 | 5 |
| 7 | SQZ106K3Q | SQ5ZK3Q | 10.5 | 9.92 | 5 |
| 8 | SQZ132K2Q | SQ6.3ZK2Q | 13.23 | 8.01 | 6.3 |
| 9 | SQZ132K3Q | SQ6.3ZK3Q | 13.23 | 9.92 | 6.3 |
| 10 | SQZ160K3Q | SQ8ZK3Q | 16 | 9.75 | 8 |
| 11 | SQZ200K3Q | SQ10ZK3Q | 20 | 9.75 | 10 |
| 12 | SQZ300K3Q | SQ12ZK3Q | 30 | 9.78 | 15 |
| 13 | SQZ350K3Q | SQ14ZK3Q | 35 | 9.52 | 18 |
| 14 | SQZ350K4Q | SQ14ZK4Q | 35 | 11.4 | 18 |
| 15 | SQZ400K3Q | SQ16ZK3Q | 40 | 9.62 | 20 |
| 16 | SQZ400K4Q | SQ16ZK4Q | 40 | 11.52 | 20 |
| 17 | SQZ625K6Q | SQ25ZK6Q | 62.5 | 15.45 | 32 |
The parameter of crane (Optional) | Crane model | Max. lifting weight(KG) | Max. working height (m) |
SQ5SK2Q, SQ5ZK2Q | 5000 | 10.5 , 8.01 | |
| SQ5SK3Q ,SQ5ZK3Q | 5000 | 12.5 , 9.92 | |
| SQ6.3SK2Q, SQ6.3ZK2Q | 6000 | 11.0 , 8.01 | |
| SQ6.3SK3Q, SQ6.3ZK2Q | 6000 | 12.8 , 9.92 | |
| SQ8SK3Q,SQ8ZK3Q | 8000 | 13.5 , 9.755 | |
| SQ10SK3Q,SQ10SK3Q | 10000 | 14.0 ,9.75 | |
| SQ12SK3Q ,SQ12SK3Q | 12000 | 14.5 ,9.78 | |
| SQ14SK4Q ,SQ14SK3Q | 14000 | 17.8 , 11.4 | |
| SQ16SK4Q , SQ16SK3Q | 16000 | 17.85 , 11.518 | |
| FOB(Shanghai)/CIF | $ 58600 ~ 118800 | ||
excellent performance with reasonable price.

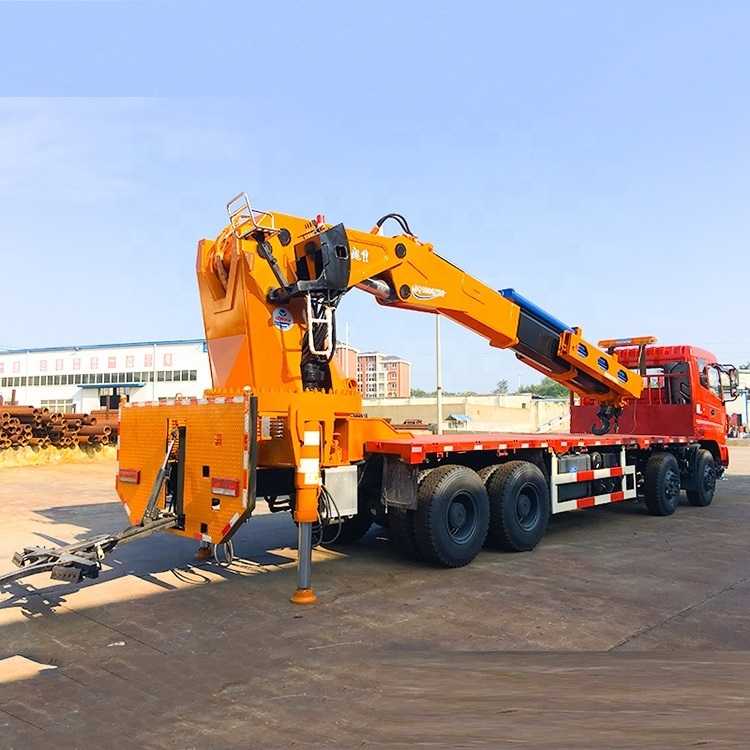

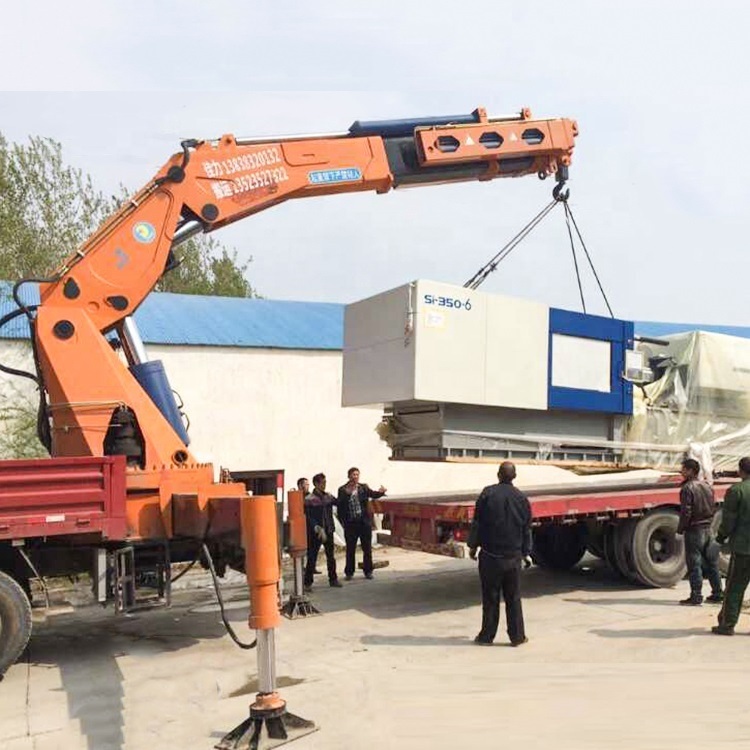

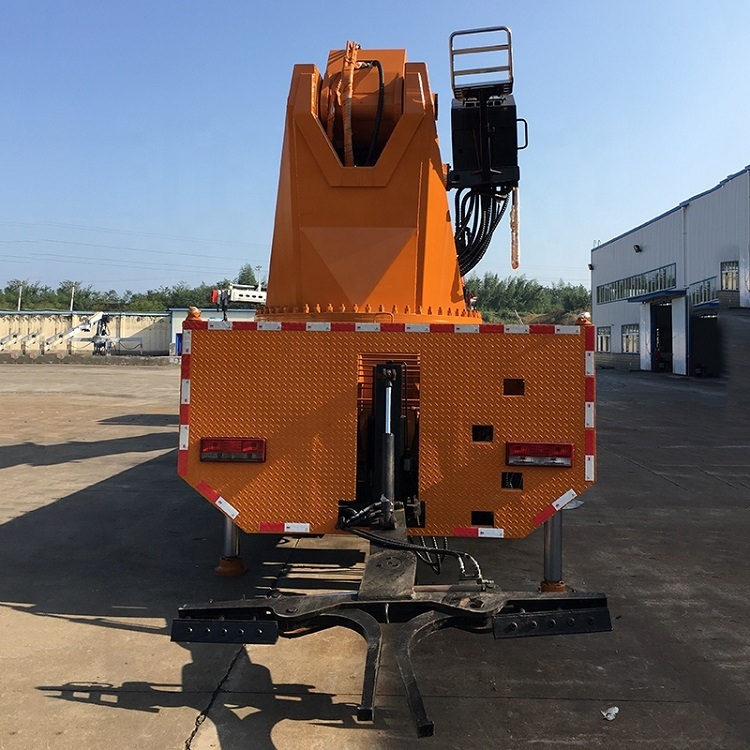

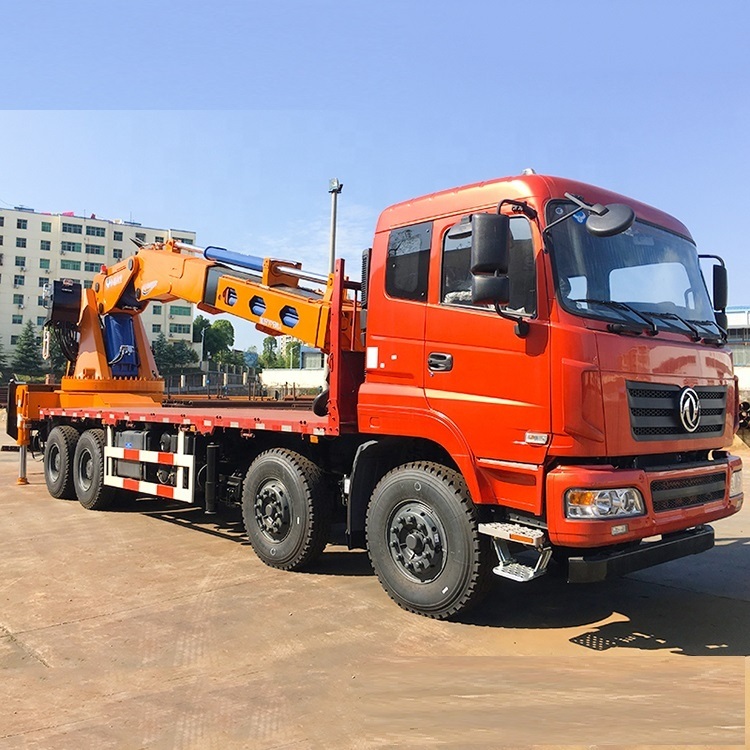

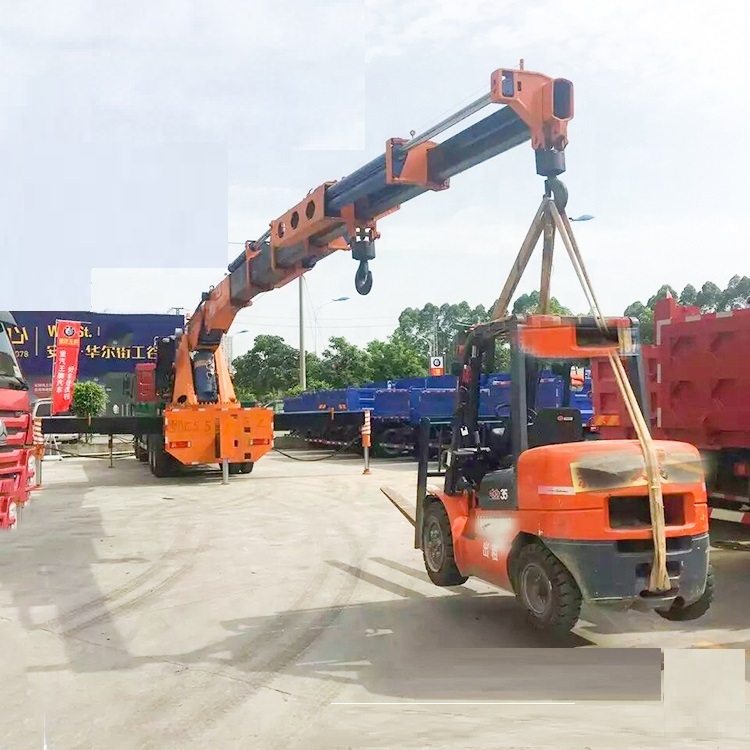

Dongfeng Hydraulic Truck Mounted Crane 80Ton SQ1600ZB6 Max Lifting Moment 1600 Kn.m
Max Lifting Moment: 1600 Kn.m
Max Lifting Capacity: 80 T
Max Lifting Height: 17 m
Customization, Cost Control Built How You Want it, Price You Can Afford. for sale call:+86-152 -7135-7675
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
| Model # | SQ600ZB4 /Knuckle Crane 30 Ton At 2 m |
| Max Lifting Moment | 600Kn.m |
| Max Lifting Capacity( kg / m) | 30000 /2.0 |
| 13600/4.4 | |
| 8600/4.07 | |
| 6538/7.89 | |
| Max Lifting Height | 14.7m |
| Max Working Radius | 11.5m |
| Hydraulic extension boom No.s | 4 stages |
| Rotation Angle | 360º continuous |
| Rated Working Pressure | 28 Mpa |
| Oil Tank Capacity | 250L |
| Related Oil Flow | 80 L/min |
| Outrigger Span | 2308-6120mm |
| Outrigger | 4 ,Extension, Hydraulic operating. |
| Crane Weight | 6900kg |
| Installation Space | 1450mm |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator,Hydraulic Safety Valve,Counter Balance Valve, Overwinding Alanm Device,Automatic Swing Brake,Hook Safety Device |
| Options | Aux.winch,Aux.Boom,Remote control |
| Material | HG785 |
| Model # | SQ760ZB6/Knuckle Crane 38 Ton At 2 m |
| Max Lifting Moment | 760 Kn.m |
| Max Lifting Capacity ( kg / m) | 25000/3.0 |
| 6500/9.5 | |
| 4200/12.9 | |
| 3500/14.7 | |
| Max Lifting Height | 17.5m |
| Max Working Radius | 14.7m |
| Boom Section | 6stages |
| Rotation Angle | 360 continuous |
| Rated Working Pressure | 28 Mpa |
| Oil Tank Capacity | 250L |
| Related Oil Flow | 80 L/min |
| Outrigger Span | 2330-7100mm |
| Outrigger | Extension, Hydraulic operating. |
| Crane Weight | 8200kg |
| Installation Space | 1800mm |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Options | Aux.winch,Aux.Boom,Remote control |
| Material | HG785 |
1600KN.M 80ton mounted truck crane SQ1600ZB6
| Model # | SQ1600ZB6 /knuckle crane 80 ton at 2 m |
| Max Lifting Moment | 1600Kn.m |
| Max Lifting Capacity ( kg / m) | 40000/4.0 |
| 23500/6.26 | |
| 14500/9.56 | |
| 5000/15.1 | |
| Max Lifting Height | 17m |
| Max Working Radius | 15.2m |
| Boom Section | 6 stages |
| Rotation Angle | 360 continuous |
| Rated Working Pressure | 28 Mpa |
| Oil Tank Capacity | 400L |
| Related Oil Flow | 110 L/min |
| Outrigger Span | 2220-7985mm |
| Outrigger | Extension, Hydraulic operating. |
| Crane Weight | 14100kg |
| Installation Space | 2540mm |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Options | Aux.winch,Aux.Boom,Remote control |
| Material | HG785 |
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
SQ1800ZB6(45T) at 4 m Knuckle Boom Truck Mounted Crane
| Model # | SQ1800ZB6 /Knuckle Crane 90 Ton At 2 m |
| Max Lifting Moment | 1800 Kn.m |
| Max Lifting Capacity(kg/m) | 45000/4 |
| 21000/7.86 | |
| 13500/11.26 | |
| 6100/15.1 | |
| Max Lifting Height | 17m |
| Max Working Radius | 15.2m |
| Boom Section | 6 stages |
| Rotation Angle | 360 continuous |
| Rated Working Pressure | 28 Mpa |
| Oil Tank Capacity | 400L |
| Related Oil Flow | 110 L/min |
| Outrigger Span | 2220-8000mm |
| Outrigger | Extension, Hydraulic operating. |
| Crane Weight | 17800kg |
| Installation Space | 2540mm |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Options | Aux.winch,Aux.Boom,Remote control |
| Material | HG785 |
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
SQ2400ZB6 / 2400 KN.M 120 Ton Mounted Truck Crane
| Model # | SQ2400ZB6/Knuckle Boom Crane 120ton At 2m |
| Max Lifting Moment | 2400Kn.m |
| Max Lifting Capacity(kg/m) | 60000/4.0 |
| 26000/8 | |
| 17400/11.34 | |
| 15000/13 | |
| Max Lifting Height | 14m |
| Working Radius | 13m |
| Boom Section | 6 stages |
| Rotation Angle | 360 continuous |
| Working Pressure | 28Mpa |
| Oil Tank Capacity | 400L |
| Rated Oil Flow | 110L/min |
| Outrigger Span | 2220- 7985mm |
| Outrigger | 5,Extension, Hydraulic operating. |
| Swing Type | Planetary gear reduction. |
| Options | Aux.winch,Aux.Boom,Remote control |
| Crane Weight | 18500kg |
| Installation Space | 2750mm |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Material | HG785 |
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
SQ3200ZB6 /knuckle crane 160 ton at 2 m
| Model # | SQ3200ZB6 /knuckle crane 160 ton at 2 m |
| Max Lifting Moment | 3200Kn.m |
| Max Lifting Capacity (kg/m) | 80000/4.0 |
| 70000/4.94 | |
| 27000/9.74 | |
| 16500/15.4 | |
| Max Lifting Height | 14.7m |
| Max Working Radius | 13.2m |
| Boom Section | 6 stages |
| Rotation Angle | 360 continuous |
| Rated Working Pressure | 28 Mpa |
| Oil Tank Capacity | 400L |
| Related Oil Flow | 110 L/min |
| Outrigger Span | 2170-8000mm |
| Outrigger | Extension, Hydraulic operating. |
| Crane Weight | 24700kg |
| Installation Space | 2910mm |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Options | Aux.winch,Aux.Boom,Remote control |
| Material | HG785 |
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
SQ1200ZB6 /Knuckle Crane 60 Ton At 2 m
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
SQ1200ZB6 /Knuckle Crane 60 Ton At 2 m
| Model # | SQ1200ZB6 /Knuckle Crane 60 Ton At 2 m |
| Max Lifting Moment | 1200Kn.m |
| Max Lifting Capacity (kg/m) | 40000/3.0 |
| 18000/5.25 | |
| 7000/12.5 | |
| 5000/15.5 | |
| Max Lifting Height | 18.5m |
| Max Working Radius | 15.5m |
| Boom Section | 7 stages |
| Rotation Angle | 360 continuous |
| Rated Working Pressure | 28 Mpa |
| Oil Tank Capacity | 400L |
| Related Oil Flow | 110 L/min |
| Outrigger Span | 2250-8000mm |
| Outrigger | Extension, Hydraulic operating. |
| Crane Weight | 11600kg |
| Installation Space | 2300mm |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Options | Aux.winch,Aux.Boom,Remote control |
| Material | HG785 |
1,Use HG70 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
30T ~160Ton Truck Mounted Crane for sale
with telescopic boom / Knuckle boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck mounted crane
trucks mounted crane.
| Truck Model | 5311JSQLV | 5311JSQB | 5310JSQH7FB |
| Chassis | EQ1311GLJ(24) | STQ1311L16Y3B5 (24) | LZ1310M5FBT(33) |
| Engine | YC6A290- | YC6A270- | YC6L350- |
| Transmission | 9JS119TA | 9JS119TA | 10JSD120TB |
| Wheelbase | 2150+4400+1350 | 2150+4300+1350 | 1950+4500+1350 |
| Front Axle | 5.5Tx 2 | 6.5T x 2 | 6.5T x 2 |
| Rear Axle | 12T x 2 (tandem axle) | 18T x 2 (tandem axle) | 18T x 2 (tandem axle) |
| Tire | 11.00R20*13 | 11.00R20*13 | 11.00R20*13 |
| Crago box(mm) | 8000*2300*550 | 8000*2300*550 | 8000*2470*550 |
| Crane 30T 600 Kn.m | SQ600ZB4 /30T at 2m $88800FOB ~$103800CIF | $88800FOB ~$103800CIF | $103000FOB ~$118000CIF |
| Crane 38T 760 Kn.m (25T at 3m) | SQ760ZB6/ 38 ton at 2 m $93800FOB ~$108800CIF | $93800FOB ~$108800CIF | $108000FOB ~$123000CIF |
| Crane 60T 1200 Kn.m 40T at 3m | SQ1200ZB6 /60 Ton At 2 m 35T at 3.4m ,40T at 3m $112900FOB ~$127900CIF | $112900FOB ~$127900CIF | $127000FOB ~$142000CIF |
| Crane 80T 1600 Kn.m (40T at 4m) | SQ1600ZB6 / 80 ton at 2 m $116000FOB ~$131000CIF | $116000FOB ~$131000CIF | $130000FOB ~$145000CIF |
| Crane 90T 1800 Kn.m (45T at 4m) | SQ1800ZB6 /90T at 2 m $131000FOB ~$146000CIF | $131000FOB ~$146000CIF | $136000FOB ~$151000CIF |
| Crane 120T 2400 Kn.m (60T at 4m) | SQ2400ZB6/ 120ton at 2m $142000FOB ~$157000CIF | $142000FOB ~$157000CIF | $156500FOB ~$171500CIF |
| Crane 160T 3200 Kn.m | SQ3200ZB6(160T) at 2m (80T at 4m) $164000FOB ~$179000CIF | $164000FOB ~$179000CIF | $169000FOB ~$184000CIF |
| Truck Model | 8x4 | 8x4 | 8x4 | 8*8 | 10*4 |
| Chassis | HINO /ISUZU /HYUNDAI | BEIBEN / SHACMAN /FOTON/SINOTRUCK | JAC /FAW/DFL /IVECO/ CAMC / C&C | BEIBEN / SHACMAN / SINOTRUCK | SINOTRUCK HOWO / DFL/C&C |
| Engine | 380HP /460HP | 380HP /420HP/460HP | 380HP /420HP | 336HP / 380HP | 380HP /420HP |
| Wheelbase | **** | **** | **** | **** | ***** |
| Front Axle | 7Tx 2 | 7.5T x 2 | 7.5T x 2 | 7.5T x 2 | 7.5T x 2+6.5T |
| Rear Axle | 16T x 2 (tandem axle) | 18T x 2 (tandem axle) | 18T x 2 (tandem axle) | 18T x 2 (tandem axle) | 18T x 2 (tandem axle) |
| Tire | 11.00R20*13 | 12.00R20*13 | 12.00R20*13 | 12.00R20*13 | 12.00R20*13 |
| Crago box(mm) | 8000*2300*550 | 8000*2300*550 | 8000*2470*550 | 8000*2300*550 | 8000*2470*550 |
| Crane 30T 600 Kn.m | SQ600ZB4 /30T at 2m $126000FOB ~$141000CIF | $103000FOB ~$118000CIF | $103000FOB ~$118000CIF | $113000FOB ~$128000CIF | $108000FOB ~$123000CIF |
| Crane 38T 760 Kn.m (25T at 3m) | SQ760ZB6/ 38 ton at 2 m $131000FOB ~$146000CIF | $108000FOB ~$123000CIF | $108000FOB ~$123000CIF | $118000FOB ~$133000CIF | $113000FOB ~$128000CIF |
| Crane 60T 1200 Kn.m 40T at 3m | SQ1200ZB6 /60 Ton At 2 m 35T at 3.4m , $150000FOB ~$165000CIF | $127000FOB ~$142000CIF | $127000FOB ~$142000CIF | ||
| Crane 80T 1600 Kn.m | SQ1600ZB6 / 80 ton at 2 m (40T at 4m) $153000FOB ~$168000CIF | $130000FOB ~$145000CIF | $130000FOB ~$145000CIF | $140000FOB ~$155000CIF | $135000FOB ~$150000CIF |
| Crane 90T 1800 Kn.m | SQ1800ZB6 /90T at 2 m (45T at 4m) $159000FOB ~$174000CIF | $136000FOB ~$151000CIF | $136000FOB ~$151000CIF | $146000FOB ~$151000CIF | $141000FOB ~$156000CIF |
| Crane 120T 2400 Kn.m | SQ2400ZB6/ 120ton at 2m (60T at 4m) $$179500FOB ~$194500CIF | $156500FOB ~$171500CIF | $156500FOB ~$171500CIF | ||
| Crane 160T 3200 Kn.m | SQ3200ZB6(160T) at 2m (80T at 4m) $192000FOB ~$207000CIF | $169000FOB ~$184000CIF | $169000FOB ~$184000CIF | $179000FOB ~$194000CIF | $174000FOB ~$189000CIF |
All Price For Refer Only . Final Price Will Confirm Order With Discount 3~5%.
boom Cranes list:
boom Cranes list:
| Modle | Modle | ( TM ) | (M) | (T) | |
| 1 | SQZ020K2Q | SQ1ZK2Q | 2 | 3.2 | 1 |
| 2 | SQZ030K1 | SQ2ZK1 | 4 | 5.05 | 2 |
| 3 | SQZ068K1 | SQ3.2ZK1 | 6.72 | 5.5 | 3.2 |
| 4 | SQZ068K2 | SQ3.2ZK2 | 6.72 | 7.6 | 3.2 |
| 5 | SQZ086K2 | SQ4ZK2 | 8.4 | 7.6 | 4 |
| 6 | SQZ106K2Q | SQ5ZK2Q | 10.5 | 8.01 | 5 |
| 7 | SQZ106K3Q | SQ5ZK3Q | 10.5 | 9.92 | 5 |
| 8 | SQZ132K2Q | SQ6.3ZK2Q | 13.23 | 8.01 | 6.3 |
| 9 | SQZ132K3Q | SQ6.3ZK3Q | 13.23 | 9.92 | 6.3 |
| 10 | SQZ160K3Q | SQ8ZK3Q | 16 | 9.75 | 8 |
| 11 | SQZ200K3Q | SQ10ZK3Q | 20 | 9.75 | 10 |
| 12 | SQZ300K3Q | SQ12ZK3Q | 30 | 9.78 | 15 |
| 13 | SQZ350K3Q | SQ14ZK3Q | 35 | 9.52 | 18 |
| 14 | SQZ350K4Q | SQ14ZK4Q | 35 | 11.4 | 18 |
| 15 | SQZ400K3Q | SQ16ZK3Q | 40 | 9.62 | 20 |
| 16 | SQZ400K4Q | SQ16ZK4Q | 40 | 11.52 | 20 |
| 17 | SQZ625K6Q | SQ25ZK6Q | 62.5 | 15.45 | 32 |
The parameter of crane (Optional) | Crane model | Max. lifting weight(KG) | Max. working height (m) |
SQ5SK2Q, SQ5ZK2Q | 5000 | 10.5 , 8.01 | |
| SQ5SK3Q ,SQ5ZK3Q | 5000 | 12.5 , 9.92 | |
| SQ6.3SK2Q, SQ6.3ZK2Q | 6000 | 11.0 , 8.01 | |
| SQ6.3SK3Q, SQ6.3ZK2Q | 6000 | 12.8 , 9.92 | |
| SQ8SK3Q,SQ8ZK3Q | 8000 | 13.5 , 9.755 | |
| SQ10SK3Q,SQ10SK3Q | 10000 | 14.0 ,9.75 | |
| SQ12SK3Q ,SQ12SK3Q | 12000 | 14.5 ,9.78 | |
| SQ14SK4Q ,SQ14SK3Q | 14000 | 17.8 , 11.4 | |
| SQ16SK4Q , SQ16SK3Q | 16000 | 17.85 , 11.518 | |
| FOB(Shanghai)/CIF | $ 58600 ~ 118800 | ||
excellent performance with reasonable price.
