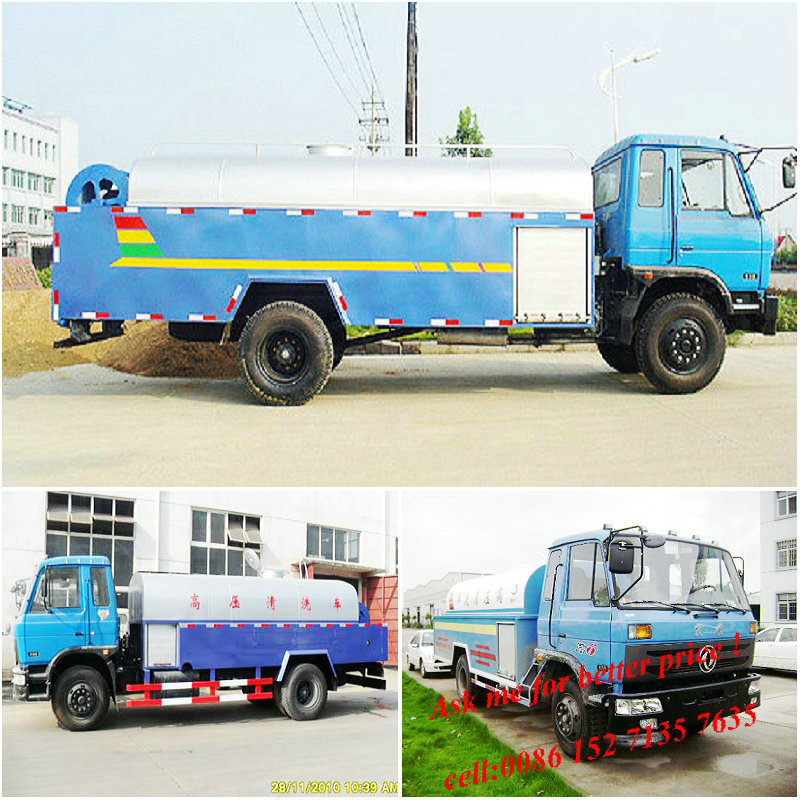

Dongfeng high pressure fetting truck(6-7m3)
| Product || |
Dongfeng 140 high pressure cleaning truck（5-6 m3）
Both Italy pump and domestic pump can be used
|Parameters||Overall dimension length/width/height (mm)||8150×2470×2500|
|Approach angle/Departure angle (mm)||33/22|
|Front suspension/rear suspension (mm)||1065/1985|
|Fuel Consumption/100 km||14-18|
|Max Speed (Km/h)||80|
|Engine||Engine Type||YC4E140-20 / YC6J140-21 / EQ6100-1|
|Displacement/Power (kw)||4257 /5420 / 105 /99|
|Manufacturer||Guangxi Yuchai Machine Co.,Ltd/DFAC Commercial Vehicle Engine manufacturing.|
|Type||4-in-line、six-cylinder 4-stroke supercharged diesel engine|
|Tread(front/rear)||1810 / 1800|
|Steering gear||Duel-armed steering wheel, worm and peg steering|
|Transmission||5 forward gear，1 reverse gear，manual mechanical type|
|Clutch||Uniwafer, dry diaphragm spring clutch|
|Braking system||Split air braking system，pneumatic servo，drum brake|
|Number of spring axle(front/rear)||9/11+8|
|Tire Type||9.00-20 12PR|
|Air-condition||Choose to fix|
This high pressure watering and dredging truck is multi-functional equipment combined with water spraying, cleaning of road surface, curbs, handrails, billboard, verge by high pressure water, emergency firefighting, spraying dust, watering the green belt, clearing the sewer outfall and cleaning industrial cleaner. This kind of machine can be widely used in daily work of variable grades of highway, municipal administration, and sanitation.
★ Emission standard EUROIII, EUROIV
★ Water tank is designed as elliptical cross section with advanced preservative treatment on the surface, being equipped with flow meter; level gauge and low water level alarm inside, the power will be cut down automatically when water level reaches the lowest limit.
★ Low pressure waterway system realizes cleaning of road surface, water spraying, watering the green belt, and firefighting.
★ High-power water spraying truck is driven by self-priming centrifugal with large flow and high lift.
Front spraying and back impacting function, high pressure back impacting by 20m cleaning width. Controlled by air-control ball valve, can be operated inside cab.
Back spraying gun can be turned by 360°
★ High pressure waterway system realizes front impacting, left & right spraying in corners, spraying dust device, handheld-gun operation and draining.
★ Safety valve and overflow valve, double protection to high pressure water pump.
★ Front water spraying device can be stretched and turned left and right.
★ All nozzles are imported parts, fine spraying particles, large spraying range.
★ Draining, hose retracted by hydraulic reel.
