Availability: | |
---|---|
Quantity: | |

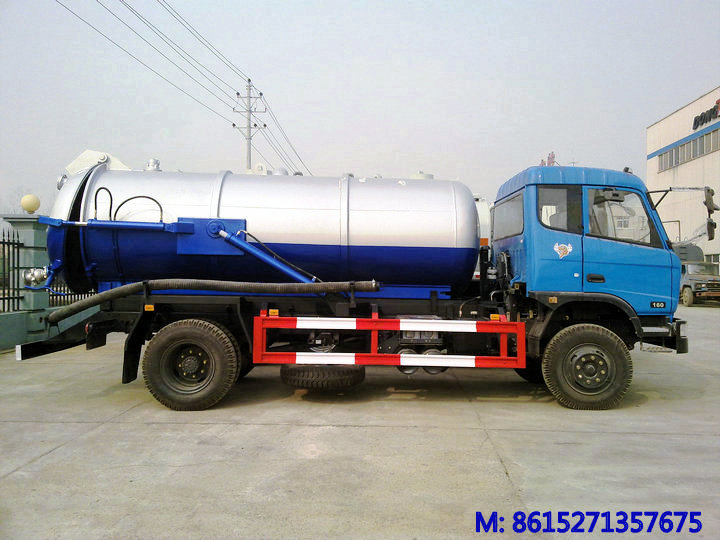

Dongfeng Vacuum tanker truck 10000L LHD/RHD EURO3 EURO4/5 4X2/4X4
with vacuum pump for non-potable water, chemical sewage suction and transport
optional inner lined PE for chemical wast acid
optional inner lined PE for chemical wast acid
with twin vacuum pump for non-potable water, sewage suction and transport
Commodity | Dongfeng EQ1162GKJ 160HP 8Tons High Pressure Vacuum Suction Truck | |
Chassis | EQ1162GKJ | |
Cubage (T) | 10000Litres to 128000Litres | |
Vehicle | Overall dimension(length/width/height)mm | 7250,7400×2480×3280 |
G V W(kg) | 16930 | |
Payload (kg) | 7500 | |
Kerb mass(kg) | 8705 | |
Fuel Type | Diesel | |
Fuel consumption(L/100km) | 22 | |
Top speed | 90 | |
Engine | Model | YC4E160-33 |
Exhaust/Power(kw) | 4260cc/105kw | |
160HP | ||
Manufacturer | GUANGXI YUCHAI | |
Type | 6-in-line water cool Turbo Charge engine | |
Chassis | Drive type | 4x2 |
Wheelbase (mm) | 3,950 | |
Front Bridge | 3.6T FRONT AXLE | |
Rear Bridge | 9T rear axle | |
Transmission | Double spoke wheel, with power steering | |
Gear box | 6Forwards, mechanical transmission | |
Tire specification | 8.25-20,9.00-20,8.25R20,9.00R20 | |
Air condition | with | |
suction system | suction pump | Single Stage Rotary Oil Seal Vacuum Pump |
special parameter | Vertical suction heihgt | ≥8 |
working pressure | 8500Pa | |
rotation speed | 500 | |
suction speed | 98L/S | |
power | 5.5kw | |
inlet diatmeter | 50mm | |
filling time | Less Than 5s | |
discharge time | Less Than 5s |
Vacuum tanker | |
Material | Q235, 6mm optional Aluminum / midd Steel Stainless Steel Vaccum |
Capacity(L) | 6000~10000L |
Tank dimensions(mm) | 6600*1850*1850 |
Vacuum pump | |
Model | Dual 50QZXDG-45/400 |
flux(L/S) | 45 |
Min pressure | 400 P |
sewage tanker ,CAPACITY 8000 UPTO 12000 Sewage Tank,Sewer JettingTruck,Vacuum Suction tanker , vacuum suction truck ,vacuum truck,Sewer Jet Truck ,vacuum sewage suction truck ,Septic Tank Truck ,Cesspit Emptier
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
The waste water truck is also called sewer truck, sewage suction truck, vacuum suction truck, vacuum sewage suction truck, sewage suction tanker truck, sewage tanker truck, sewage drainage truck, sewage sucking truck, sewage pump truck,etc.
It mainly used for sucking septic material and sludge from drains,transportation and discharge of sewage from septic tank and sludge from drains.And the sewage truck is also used for clean the drainage on the city underground sewers,the industrial pipes, walls and furthermore acts as a sprinkling.Moreover, it can be used to transport water, flush the equipment.
Vehicle Main Dimensions | Cab type | Single or double |
Overall dimension(L×W×H)(mm) | 7570,7770,8120,8320×2500×3200(mm) | |
Wheelbase (mm) | 3950 | |
Axle number | 2 | |
Drive type | 4*2 | |
Steering type | Left Hand Drive with hydraulic power steering | |
Max. Drive Speed (km/h) | 120 | |
Curb weight (kg) | Approx 7200kg |
Chassis parameter | Chassis Model | EQ1168GLJ4 |
Chassis manufacturer: | DONGFENG-DRZE | |
Transmission | Manual , 5 shift (5 forward and 1 reverse) | |
Brakes | air brake | |
Tire | 7.00-16 8PR,7.00R16 8PR |
Engine parameter | Engine Brand | YUCHAI |
Model | YC6J180-50 | |
Fuel type | Diesel | |
Horse Power(kw)/(hp) | 180hp/132kw | |
Displacement(L) | 6.7 | |
Emission Standard | Euro 4 |
Superstructure Parameter and main performance | Cleaning Tank volume(m3) | 10 |
Cleaning Tank material | 4 mm good quality carbon steel , round shape | |
Sewage tank volume(m3) | 2 | |
Sewage tank material | 5 mm good quality carbon steel , round shape | |
Pump | Imported ITALY high pressure pump and high quality vacuum pump | |
Standard configuration | 60m long high pressure pipe, 10 high pressure sprayers, inspect window, one gravity mouth, cleaning apparatus,5m long suction pipe, etc | |
Main performance | 16Mpa, 125L/MIN, vertical suction lift: 7-10m. | |
Main function | Cleaning city sewer, pipeline dredge, suction sewage,etc | |
Optional | watering |
Basic equipment: inspect fecal window, gravity mouth, cleaning apparatus, fecal suction pipe, oil-water separators, overflow valve Fecal suction gun, special vacuum pump(rating rotate speed=1400r/m, min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, steering:clockwise)
Main Features: self-priming, self-discharging, high efficiency,Time for full suction<5min
Tank material optional: carbon steel, stainless steel, epoxy resin anticorrosive processing(in order to contain partial chemical sewage or industrial wastewater).
Product details:
Product | DFAC EQ1141KJ 12cbm Sewage Sucking Tanker Truck | |
Cab | Single row with one sleeper , with power steering, air condition | |
Volume | ; Suction sewage tank: 12cbm | |
Chassis | Brand | DONGFENG |
Chassis model | EQ1141KJ | |
Drive type | 4×2, LHD/RHD | |
Tire | 10.00-20 | |
Tire No. | 6+1(spare) | |
Braking System | Air braking | |
Clutch | Uniwafer, dry clutch, hydraulic remote control | |
Transmission | 6 forward gear,1 reverse gear,manual mechanical type | |
Engine | Model | B190-33 |
Horse Power(hp) | 190 | |
Displacement(cc)/Power(kw) | 5900/140 | |
Emission | Euro 3 | |
Main Parameters | Overall dimension (L*W*H/mm) | 7890*2495*3200 |
Wheelbase(mm) | 4500 | |
Axles No. | 2 | |
GVW(kg) | 14900 | |
Curb Weight(kg) | 8715 | |
Leaf spring No. | 8/10+8 | |
Approaching/Departure Angle(°) | 25/14 | |
Front/Rear trace(mm) | 1940/1860 | |
Front/Rear suspension(mm) | 1205/2185 | |
Max speed(km/h) | 90 | |
Front/Rear Axle Load(kg) | 5640/9260 |
