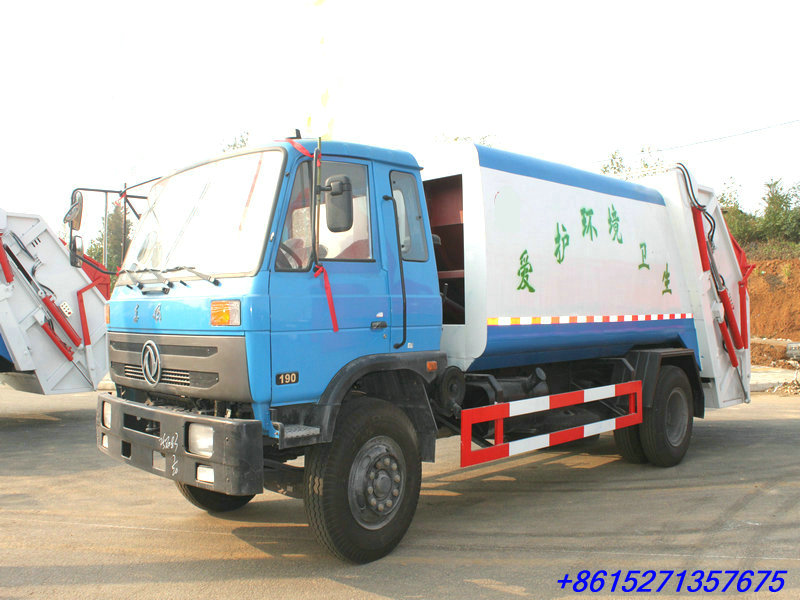

Dongfeng EQ 8~10M3 Trash Garbage Compactor Truck
| Availability: | |
|---|---|
| Quantity: | |
Dongfeng EQ 8~10T Trash Compactor Truck Left hand driving Compactor Garbage Truck
Dongfeng EQ 8~10T Trash Compactor Truck Left hand driving Compactor Garbage Truck
| Item | unit | parameter | ||
| Vehicle model |
| TIC110ZYS Garbage Compactor Truck | ||
| Chassis model |
| EQ1110GLJ | ||
| Overall dimensions | mm | 7750,7600×2495×3350 | ||
|
| Fact cubage | L | 10000 | |
| GVW | kg | Appro×11495 | ||
| Rated loading capacity | Appro×2800 | |||
| Mass in working order | Appro×8500 | |||
| Body internal dimensions | mm | / | ||
| Wheel base | 3950 | |||
| F/R track base | 1900/1800 | |||
| Approach/departure angle | ° | 33/11 | ||
| Exhaust/hp | ml/kw | 5900/125 | ||
| Max speed | km/h | 90 | ||
| Tire specification | 9.00-20,9.00R20 | Engine type | B170-33 | |
| Traction system | 4×2 | transmission | 6-speed with over drive | |
| Number of axles | 2 | Electric system | 24v | |
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | |
| Equipment | Equipped with hermetic dustbin, hydraulic system and operating system Automatic compress and uninstall, sewage can be collected by the dump tank. Pressure is large, leakproofness is good, operation is convenient and security is dependable | |||
| Engine | DongFeng Cummins Environmental Protection,supercharge,diesel engine | |||
| Production cycle | 15-20 days | |||
| Warranty | 12 month,from the date of supply | |||
| Factory price | $ | FOB/DAF/CNF/CIF | $ | |
Price: FOB/DAF/CNF/CIF
Payment term: T/T, prepay 30% as subscription, balance will be paid after the clients inspect the trucks in our factory before delivery.
If this is not the particular one you are looking for, don't worry, we have a variety of selections for you.
Just contact us directallly, we will be more than happy to help and serve you.
| COMPACTOR BODY INFORMATION | |||||
| Shape | Smooth Body (Optional) | ||||
| Body Capacity (m3) | 10 | ||||
| Hopper Capacity (m3) | 1.6 | ||||
| Gate size (width x height) (mm) | 1380 x 1350 | ||||
| Operation Mechanism | manual & automatic | ||||
| Discharging System | horizontal push-out | ||||
| Loading Time [one cycle] (sec) | 25~30 | ||||
| Discharge Time (sec) | 30~35 | ||||
| Hydraulic System Working Pressure (Mpa) | 16.2 | ||||
| Compression Ratio | 2.5-3 to 1 | ||||
| Body Material | Carbon steel made of Q235B | ||||
| Plate thickness | Body | Floor | 4 | ||
| Roof | 5 | ||||
| Side | 4 | ||||
| Hopper | Side(upper) | 5 | |||
| Side(lower) | 5 | ||||
| Bottom | 5 | ||||
| Discharge plate | 4 | ||||
| Press plate | 5 | ||||
Our Trash compactor truck equipped with China famous hydraulic cylinders and components, adopted by advanced German electronic controlling hydraulic system for realizing manual and intelligent controlling operation, Italy multi-way valve is optional;
The carriage of our Trash compactor truck is designed with circular arc with good appearance.
