Dongfeng 4x2 Overhead working truck with sprinkler Aerial Platform 16m Water Tank Truck
Working Height: 14m;16m 2 section of articulated boom
Water Tank Volume: 3000 L-5000L
Aerial platform truck 16m with water tank and water pump Customising water tank bucket lifting truck, High platform water tank truck, water tank bucket lifting truck, aerial platform water tank truck ,water truck with aerial platform Multi-fonction
Aerial Platform 16m Water Tank 4000L Truck
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.

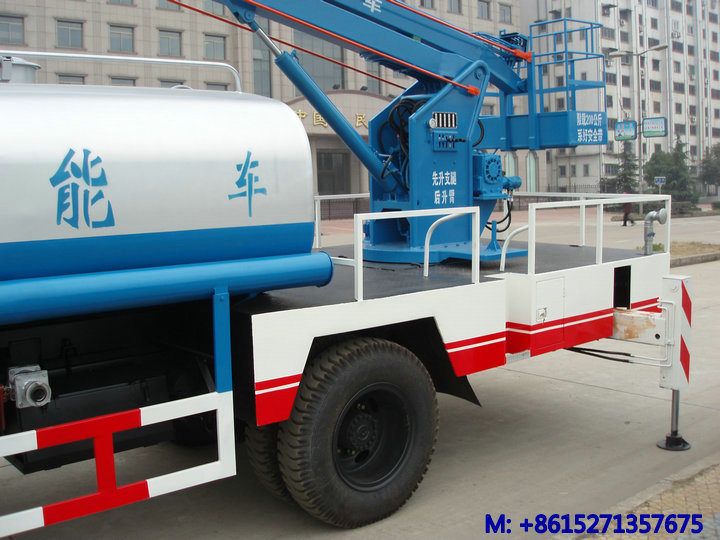

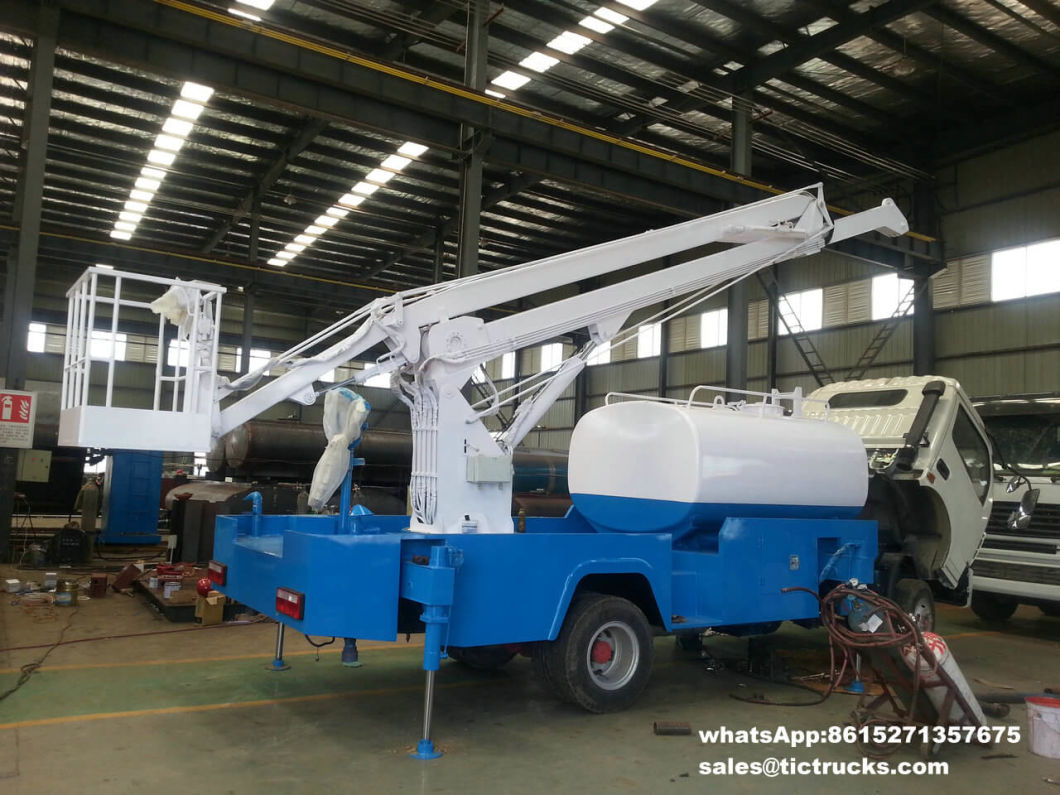

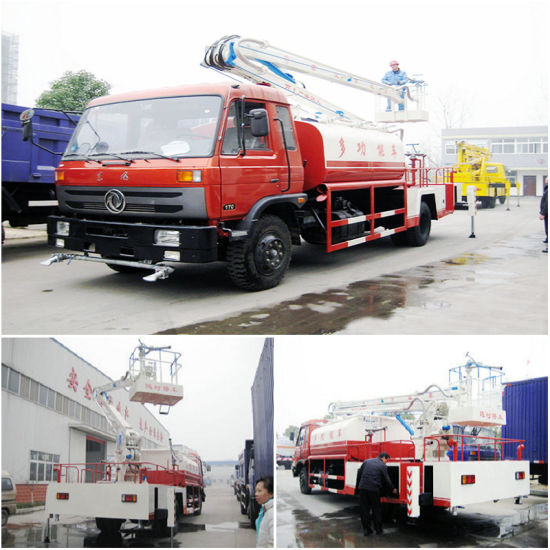

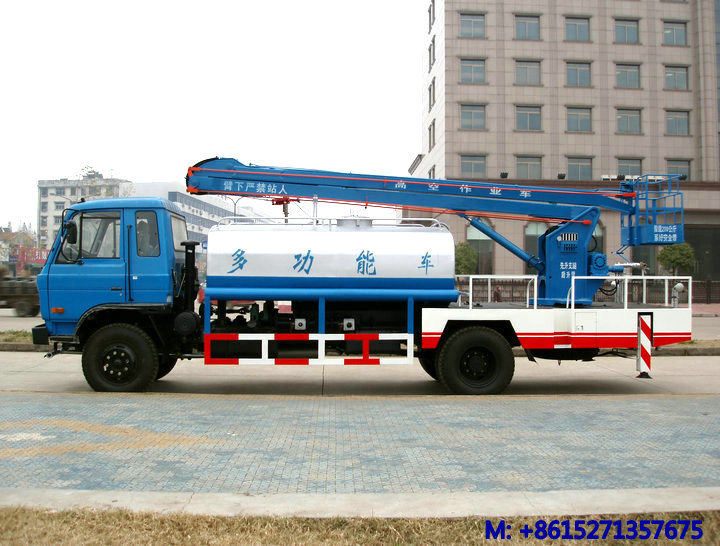

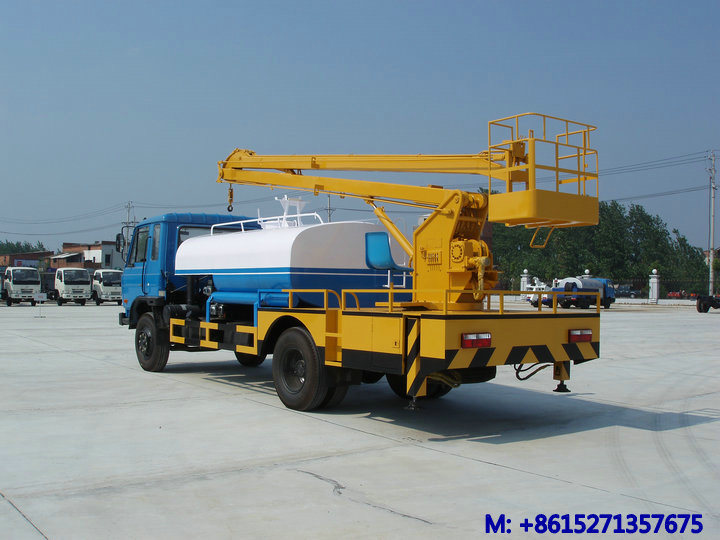

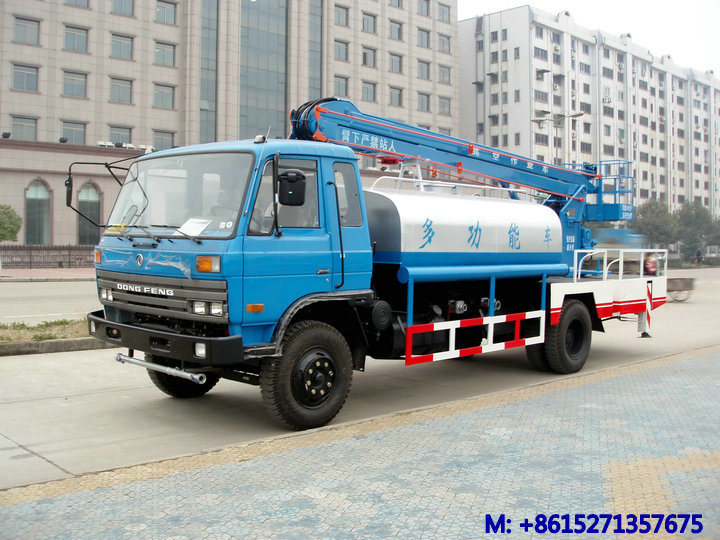

Aerial platform truck with water tanker
water tanker is superior high quality carbon steel plate, provided with Yifeng special-purpose sprinkler water pump, vertical imbibing length≥5m, spray width≥14m, hoisting heights ≥25m.
Front washing and rear sprinkling, with spurting aside, with working platform after the tank installed high pressure cannon(the spurting water can be adjusted to concurrent shape, heavy rain shape, moderate rain, fine rain shape, and the cannon can rotate 360 degree, hoisting≥25m)
Installed with self-flow and fire hydrant valve. Equip with self-priming pump, which could suck the pool water into the tanker, and also can suck water from fire hydrant in the street directly.
The water trucks also have the function of pesticide spraying. The water tankers could be processed through antiseptic treatment according to customer's requirements. They're also applicable for water carrier and emergent firefighting.
Please notify in advance if you have special requirements about water trucks (eg: stainless steel plate material). We can offer various spare parts, pipes and sprayer nozzles.
Technical parameters |
Total Mass(kg) | 12450 | Curb Weight(kg) | 5855 |
Rated qualityof(kg) | 6400 | Chassis Model | EQ1121 |
Approach/Departure Angle | 21/14(°) | Front/Rear Overhang | 1250/2150 |
Dimensions(mm) | 7350x2480x2950 | Number of spring | 8/10+8 |
Number of axes | 2 | Maximum speed | 85 |
Tire Specifications | 10.00-20 ,9.00-20 | Number of tires | 6 |
Front track | 1900 | Rear track | 1800 |
Wheelbase | 3950 | Axle load | 4370/7720 |
Emission Standards | Euro3 | Type of fuel | Diesel |
Engine parameters |
Engine Model | B190-33 | Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd |
Engine Displacement(ml) | 5900 | Engine power(kw) | 140 |
Chassis
Description | 1. Dongfeng 4x2 chassis, flat cab with sleeper, left/right hand drive with A/C;
2. Dongfeng 6 cylinder 190HP diesel engine, 6 speed gear box, 10.00-20 tire;
3. Power steering, air brake. |
Modified
Description | 1. Tank effective volume:6000L -8000L, made by 4-6mm carbon steel plate or corrosion resistant plate;
2. Equipped with front (rear,side)sprinkler, with rear working platform,Greening water cannon, 360°rotatable, adjust water to high or low(spray like columnar,vaporific,drizzle);
3. Pump parameters:model:65QZ40/50N(S),flow:660L/min,lift:50m,input shaft speed:1450r/min,shaft power:9.25KW,vertical suction:6.5m,direction of input shaft:left-right rotating;
Pump parameters:model: 80QZ60/90N(S),flow:1000L/min,lift:50m,input shaft speed:1180r/min,shaft power:22.5KW,vertical suction:6.5m,direction of input shaft:left-right rotating
4. Equipped with self-flow valve,fire hydrant interface,self-priming and self-draining pump,inhale to tanker directly and inject by fire hydrant. |
Component | Basic composition:chassis,tanker,PTO,transmission shaft,special self-priming pump,pipeline,jet,rear work platform.Optional equipment:GPS, gimbaled nozzle,VVB,pneumatic valve,visual operating system,external power,medicament tray. |
Application | Our company develop all kinds of watering trucks, mainly used in city roads,big factory,troops,parks,cleaning,proventing dust,watering,crop-dusting and so on.We can produce different all kinds of watering trucks according to customer's requirements. |
Product advantage | reasonable price,multiple functions,easy operation |
Description
| Technical parameters |
| Total Mass(kg) | 12450 | Curb Weight(kg) | 5855 |
| Rated qualityof(kg) | 6400 | Chassis Model | EQ1121 |
| Approach/Departure Angle | 21/14(°) | Front/Rear Overhang | 1250/2150 |
| Dimensions(mm) | 7350x2480x2950 | Number of spring | 8/10+8 |
| Number of axes | 2 | Maximum speed | 85 |
| Tire Specifications | 10.00-20 ,9.00-20 | Number of tires | 6 |
| Front track | 1900 | Rear track | 1800 |
| Wheelbase | 3950 | Axle load | 4370/7720 |
| Emission Standards | Euro3 | Type of fuel | Diesel |
| Engine parameters |
| Engine Model | B190-33 | Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd |
| Engine Displacement(ml) | 5900 | Engine power(kw) | 140 |
| Chassis
Description | 1. Dongfeng 4x2 chassis, flat cab with sleeper, left/right hand drive with A/C;
2. Dongfeng 6 cylinder 190HP diesel engine, 6 speed gear box, 10.00-20 tire;
3. Power steering, air brake. |
| Modified
Description | 1. Tank effective volume:12000L, made by 4-6mm carbon steel plate or corrosion resistant plate;
2. Equipped with front (rear,side)sprinkler, with rear working platform,Greening water cannon, 360°rotatable, adjust water to high or low(spray like columnar,vaporific,drizzle);
3. Pump parameters:model:65QZ40/50N(S),flow:660L/min,lift:50m,input shaft speed:1450r/min,shaft power:9.25KW,vertical suction:6.5m,direction of input shaft:left-right rotating;
Pump parameters:model: 80QZ60/90N(S),flow:1000L/min,lift:50m,input shaft speed:1180r/min,shaft power:22.5KW,vertical suction:6.5m,direction of input shaft:left-right rotating
4. Equipped with self-flow valve,fire hydrant interface,self-priming and self-draining pump,inhale to tanker directly and inject by fire hydrant. |
| Component | Basic composition:chassis,tanker,PTO,transmission shaft,special self-priming pump,pipeline,jet,rear work platform.Optional equipment:GPS, gimbaled nozzle,VVB,pneumatic valve,visual operating system,external power,medicament tray. |
| Application | Our company develop all kinds of watering trucks, mainly used in city roads,big factory,troops,parks,cleaning,proventing dust,watering,crop-dusting and so on.We can produce different all kinds of watering trucks according to customer's requirements. |
| Product advantage | reasonable price,multiple functions,easy operation |
T: 86 722 3308751, M:8615271357675
Aerial platform truck 16m water tank and water pump ,Truck Mounted Aerial Work Platform water tank,Work Platform water tank truck,aerial bucket truck water tank,bucket truck with water tank ,Truck Mounted water tank Aerial Work Platform
Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.
The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr
Truck may be medium light truck of 3.% ton.
