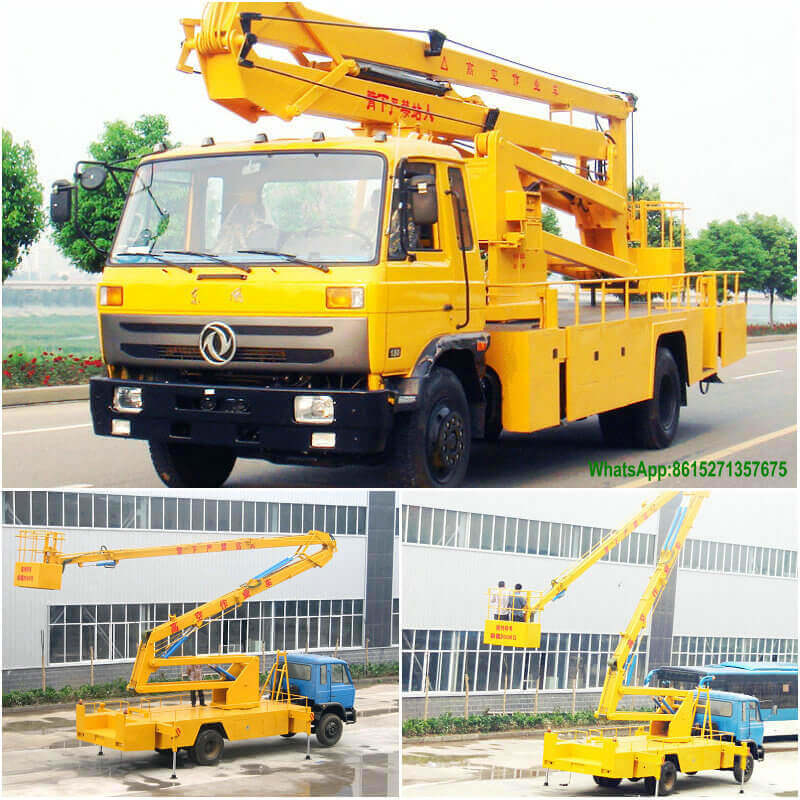

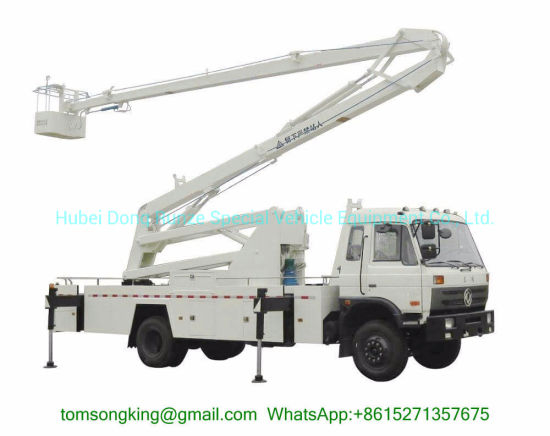

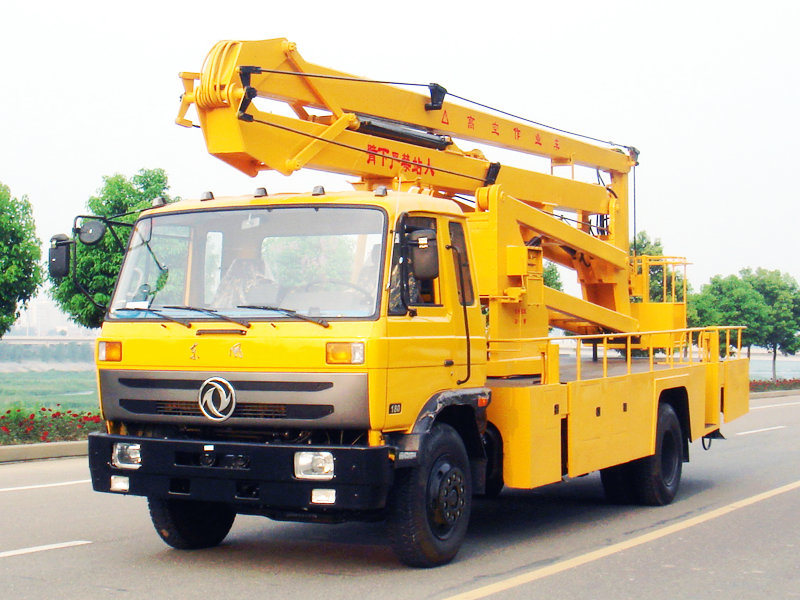

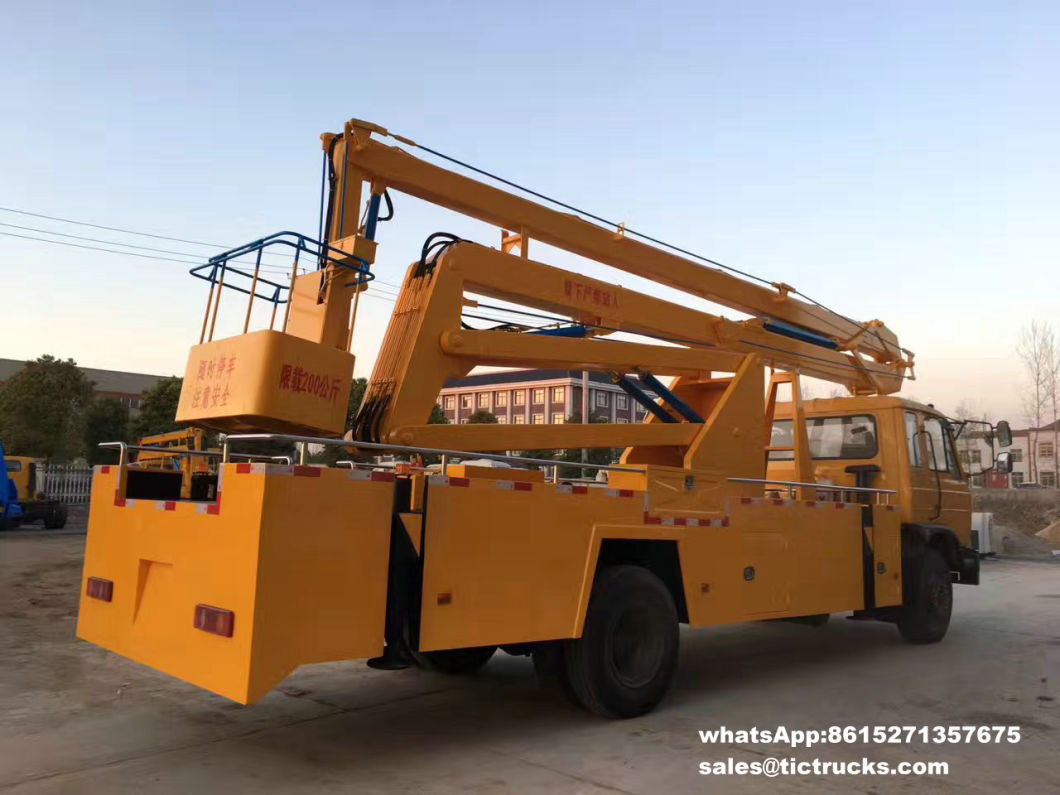

Dongfeng Aerial Platform Truck 22m-24m Fully Hydraulically Operate 3 Boom
Dongfeng 20-24m Aerial Platform Truck
Dongfeng 24m aerial platform truck
fully Hydraulically Operate Arial Work Platforms
Price: $ 50000.00
Discount Price: $ 42000.00
fully Hydraulically Operate Arial Work Platforms
Max operation height 12m,14m,16m
max operation radius 5.7m, 6.3m,7m
max working platform rating loading=200kg,
Aerial Working Platform High Altitude Working Truck for Street Lamp Maintenance Function:
Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Features:
---- The working cage can be made of steel structure or reinforced fiberglass.
---- Dongfeng chassis ensures perfect driving performance.
---- Dongfeng Chaoyang engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Massive, durable, long service life.
Specification:
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.
Specification:
160HP/4x2/4x4
24 Meters Truck Fold Arm Type High Altitude Working Platform Aerial Description

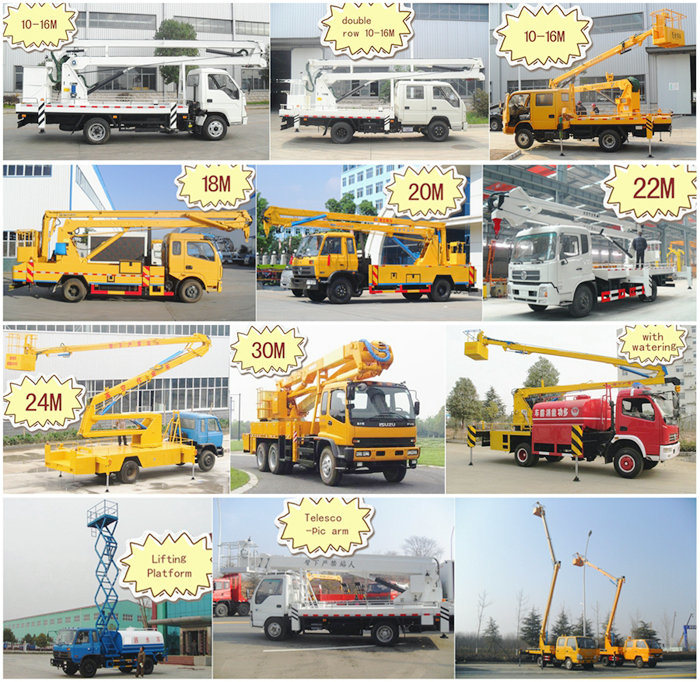

The aerial working vehicle/platform series mainly include 10-24m aerial working vehicle series and 10-42m self-propelled aerial working platform series. These products mainly adopt the folding and extension type working arm structure, with advanced operation and control system and safety alarm device. They are widely applied to power, municipal construction, ship, airport, traffic, advertising, garden, communication and photography
| Technical parameters |
| The total mass(kg) | 10080 | Curb Weight(kg) | 9885 |
| Rated quality(kg) | xx | Chassis Model | EQ1168VFJ1 |
| Approach / departure angle(°) | 23/14 | Front/Rear overhang | 1250/2050 |
| Dimensions(mm) | 9200,8530*2480*3610 | Number of spring | 9/10+8 |
| Number of axles | 2 | Maximum speed | 90 |
| Tire Specifications | 9.00-20,9.00R20 | Number of tires | 6 |
| Front track | 1920,1960 | Rear track | 1860 |
| Wheelbase(mm) | 3800,3950,4200,4500,4700,5100 | Axle load | 5950/9950 |
| Emission Standards | Euro II/Euro III/Euro IV | Type of fuel | Diesel |
| Engine parameters |
| Engine Model | YC6J160-46 | Engine Manufacturer | Guangxi yuchai machinery |
| Engine Displacement(ml) | 6494 | Engine power(kw) | 118 |
| Modified Description | 1. Basic equipment:1.height of working:20-25m,360°all rotation,three folding arms,single hydraulic cylinder,rated load of cage:200-250kg.
2. 1 ton stretch hook,four hydraulic oil cylinder that are adjustable,without emergency power unit.
3. Equipped with two-way balancing valve,ectrical control operation,two sets of operating system. (1set platform pilot switch and 1 set pilot switch in the cab); |

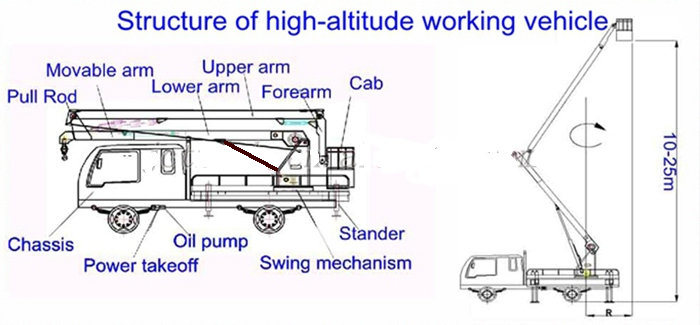

| Basic composition | chassis,PTO,gear pump,chassis parts,folding arms/telescopic arms, oil cylinder,pipeline system,working cage, rotating mechanism,hydraulic system,electrical system. |
| Application | Convenient moving,used in narrow roads and streets.Aerial work platform can be used in aloft working of electricity,street lamp,municipal administration,gardens,transportation and so on |
190HP/4x2/4x4

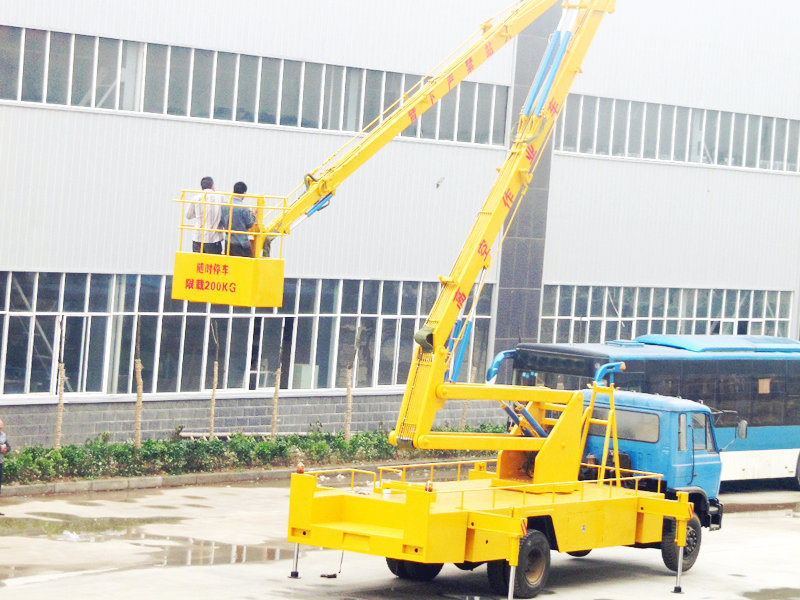

| Dongfeng 22m-24 MArticulated Platform |
| General | Vehicle Brand | Dong Run |
| Chassis Brand | Dongfeng |
| Overall Dimension | 9600 * 2500 * 3620 mm |
| GVW / Kerb Weight | 15,825 kg / 15,500 kg |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummins engine |
| Power | 190 Ps (40 KW) |
| Displacement | 5900 ml |
| Emission Standard | Euro III |
| Chassis | Drive Type | 4X2, left or right hand drive |
| Transmission | 6-speed front, 1 reverse |
| Wheelbase/No. of axle | 4700 mm / 2 |
| Tyre Specification | 10.00-20 |
| Tyre Number | 6 tyres and 1 spare tyre |
| Max Speed | 80 km/h |
| Paint | Metallic paint |
| Superstructure | Working Cage | 200 kg capacity, anti-slip floor |
| Working Height | ≤24M |
| Slewing | 360° continuous rotation with base turntable |
| Control | Control both on the ground and in the cage |
| Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure. |
| Emergency stop switches at base and operator's cage. |
| Optional | ** Hoist hook with cables can be equipped for the function of a crane. |
Similar Key Words: hydraulic boomlifter, overhead working truck, truck mounted aerial platform, aerial beam lifter, man lift truck, articulated basket platform, skylift, insulated aerial cage truck
www.truckinchina.com
PACKING & DELIVERY
Aerial platform truck 16m water tank and water pump ,Truck Mounted Aerial Work Platform water tank,Work Platform water tank truck,aerial bucket truck water tank,bucket truck with water tank ,Truck Mounted water tank Aerial Work Platform
Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.
The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr
Truck may be medium light truck of 3.% ton.

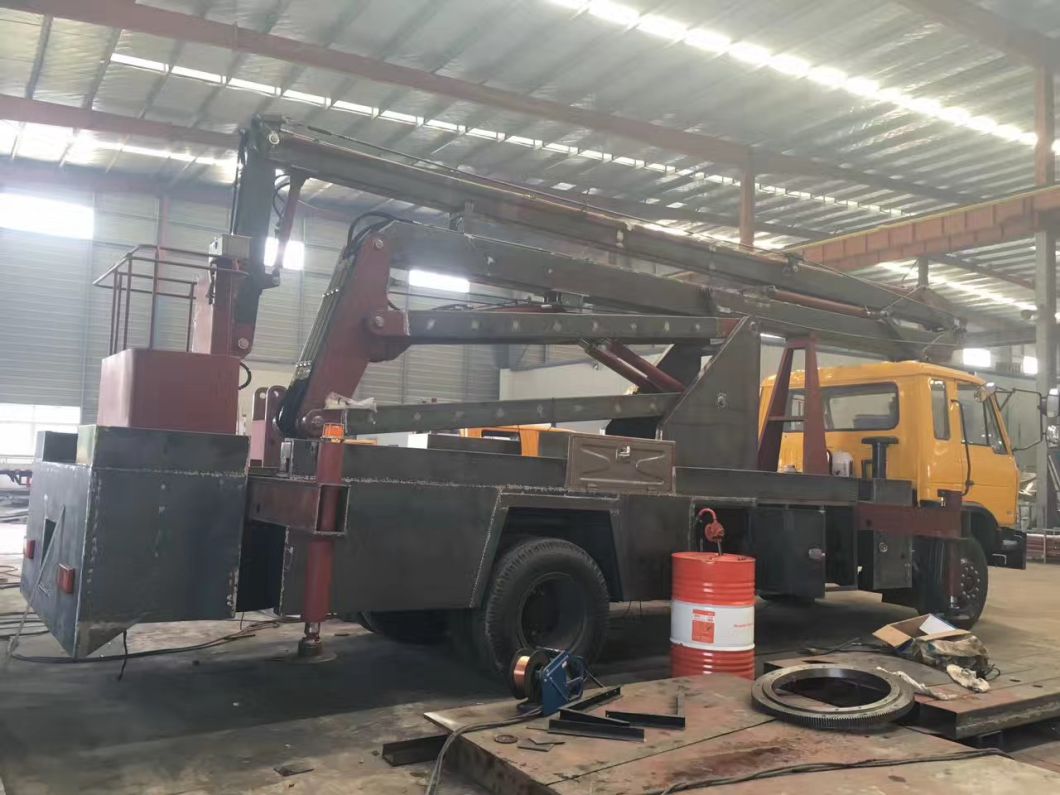

Welcome all around world customer visit our factory
