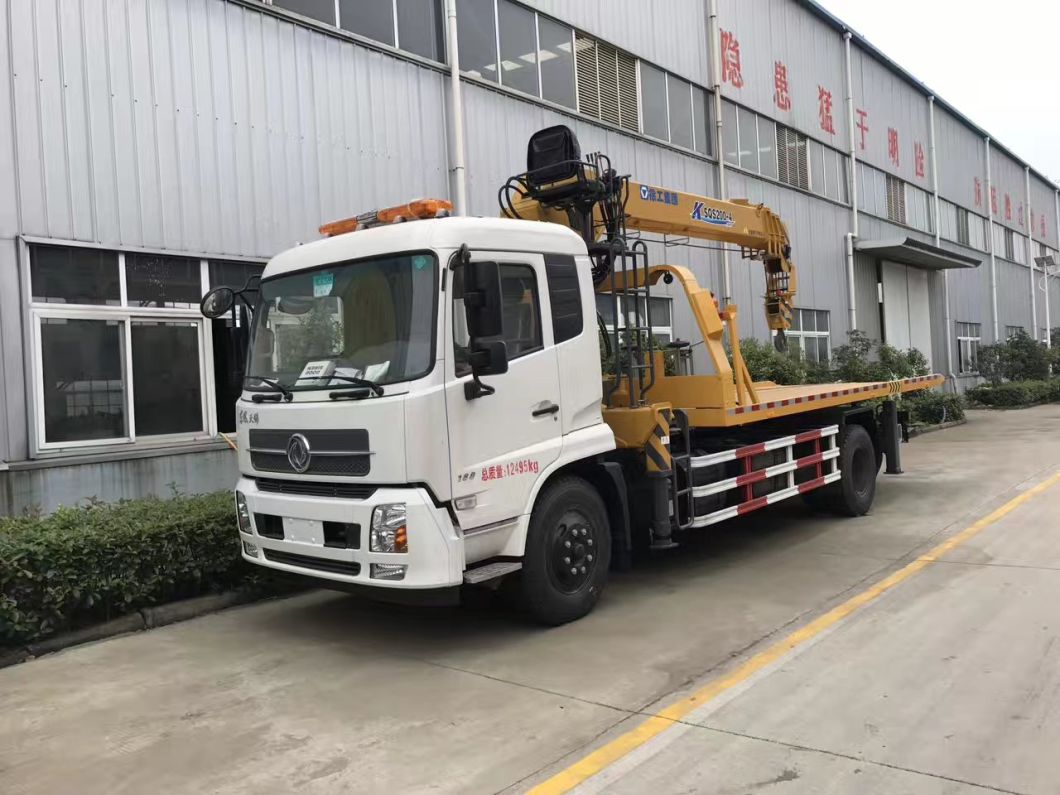

Dongfeng 8tons Wrecker Tow with 5tons Crane for Road Recovery Lifting Broken Cars

Dongfeng 8tons Wrecker Tow with 5tons Crane for Road Recovery Lifting Broken Cars
Availability:
Quantity:
  • Shanghai, China

  • 10000

  • T/T

Dongfeng 8tons Wrecker Tow With 5tons Crane For Road Recovery Lifting Broken Cars


Ask for better price

The pictures are for your reference only.

Dongfeng 8tons Wrecker Tow with 5tons Crane for Road Recovery Lifting Broken Cars
Dongfeng 8tons Wrecker Tow with 5tons Crane for Road Recovery Lifting Broken Cars
Dongfeng 8tons Wrecker Tow with 5tons Crane for Road Recovery Lifting Broken Cars
Dongfeng 8tons Wrecker Tow with 5tons Crane for Road Recovery Lifting Broken Cars
Dongfeng 8tons Wrecker Tow with 5tons Crane for Road Recovery Lifting Broken Cars
Dongfeng 8tons Wrecker Tow with 5tons Crane for Road Recovery Lifting Broken Cars

Dongfeng 8tons Wrecker Tow with 5tons Crane for Road Recovery Lifting Broken Cars
Dongfeng 8tons Wrecker Tow with 5tons Crane for Road Recovery Lifting Broken Cars
Dongfeng 8tons Wrecker Tow with 5tons Crane for Road Recovery Lifting Broken Cars
Dongfeng 8tons Wrecker Tow with 5tons Crane for Road Recovery Lifting Broken Cars


Flat plate wrecker information list


Wrecker Special features

Rated lifts quality

1500 kg

corbel telescopic stroke

1200 mm

Corbel maximum effective length

1300 mm

Maximum tractor speed

40 km / h

Wrecker Flat institutions

Tablet Size L * W

5600 * 2200(mm)

panel smallest angle

10(°)

Flat working stroke

2700(mm)

Max quality flat-panel

3000(kg)

Wrecker Winch parameters

Number (only) a rated takeoff weight

3000(kg)

Rope length

23(m)

twisted rope speed

8(m / min)

More equipment showing here

1: flat bed thickness :5mm

2: The balance valve, cylinder block, abrasion wheel, pulley, pulley, pulley block, a baffle, tire, hoisting joint, hook, lights (side)

3:   Both side Linkage 5 valve with the operating rod with shelf

4:   Two units tower wheels

5:   One unit "L" type tower fork (2 fork)

6:   Two unit "L" type tower fork jack (2 jack)

7:   Back lifting arm ( include legs,back lifting arm , back lifting arm seat), hydraulic lock ,balance valve

8:   Portal frame  , spare tyre rack

9:   Took box ,with 5 lock

10:  Hydraulic  oil tank

11:  1.2meters Warning light

12:  Gear pump with PTO

13:  Plastic roller chain

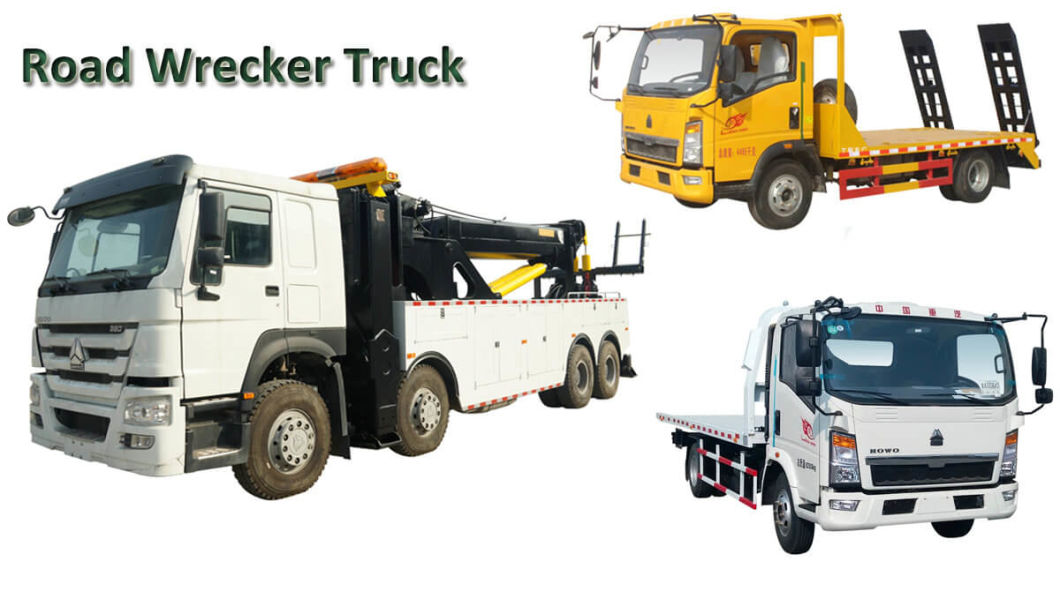

There are five commonly used wrecker tow truck , usually depending on the type or size of the recovery wrecker :

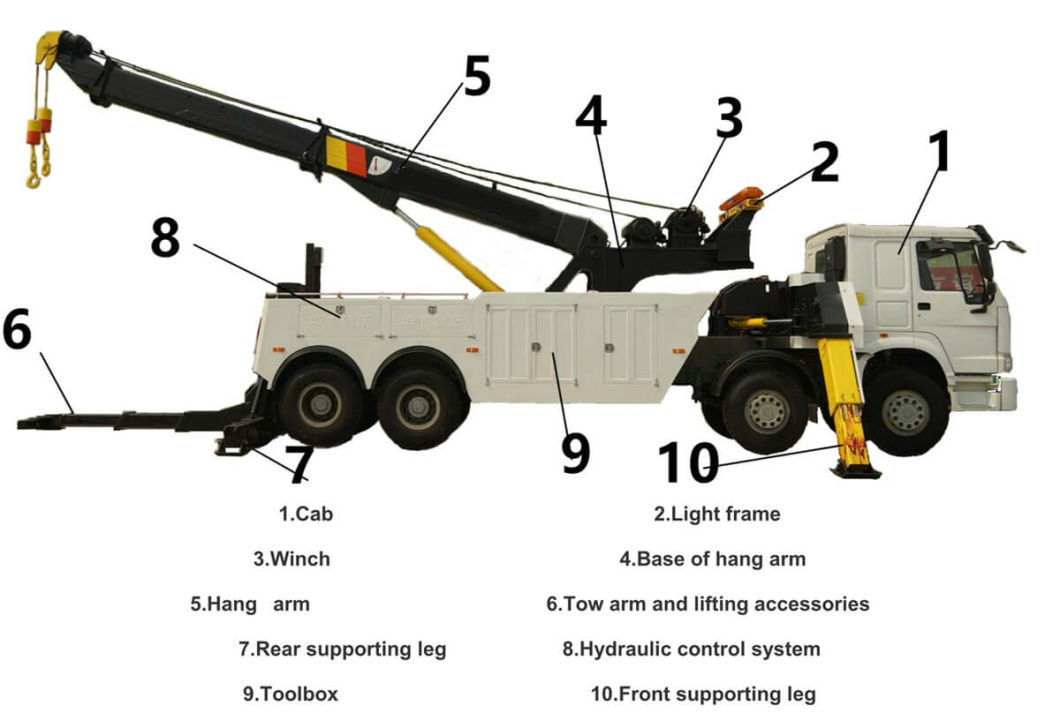

First type : Boom towing truck

- use adjustable arms and winches to retract vehicles from ditches, embankments, or any vehicle that cannot arrive safely. Some booms are fixed, some heavy rotating racks, hydraulic telescopic tubes, others. In the past boom, trucks used the "hook chain" system, the chain around the frame or axle, and then hoisted by the winch. A heavy rubber pad is attached to the truck and truck so that it can be towed onto other bridges." Slings and belts are an evolution, replacing parts of chains with rubber belts.  slings did not use too much today because they could shave bumper cars. But they are sometimes used in wrecker accidents carrier or have one or two front wheels or rear wheels missing or pickups and other vehicles have steel bumpers. Equipped with all wheel drive, the truck is towed away, unable to use the machine string, because it can make the car power transmission system problems.

Second type :Wheel lift wrecker towing truck

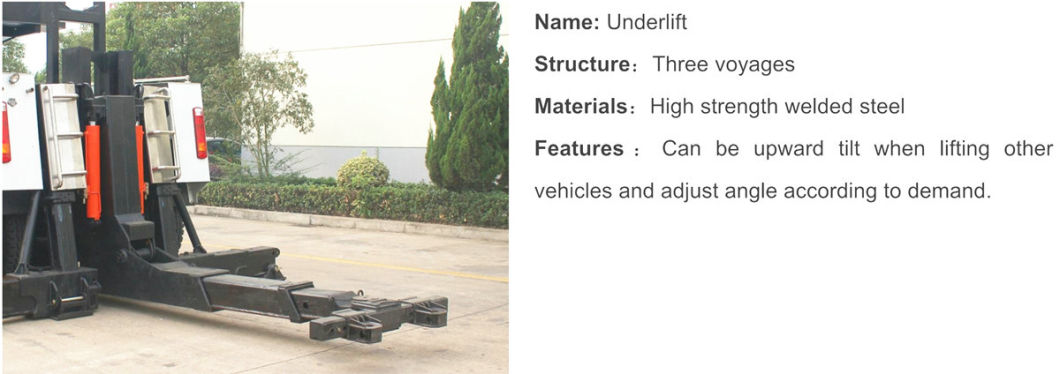

(also called "glasses") - from the chain hook technique to generate a large metal frame, can be installed in the front or rear under the cradle, rendering vehicles by pneumatic or hydraulic hoist can drag the ground clear front or rear. The device usually picks up the wheel of the vehicle (i.e., front wheel, if it is front wheel drive, rear wheel, if it is rear wheel drive), and contacts the tire.   wheel lift wrecker tow truck are common in china; cradles are like glasses. Medium and heavy-duty trucks use variations, "underlift" or "chassis lift", in which the elevator shaft or frame is not the wheel. A forklift truck can be used as an adapter or a lift chassis.

Third type :Integration towing truck  (also known as "Self Loader wrecker equipment", "Snatcher towing vehicle", "quick choice tow truck" or "roll back wrecker") - the arm and wheel lift together. Used of light trucks to recover or stop vehicles. Most of the truck's cab equipment is controlled so that the pickup truck does not leave the truck to connect the vehicle.  heavy trucks are also manufactured using integrated lifts.

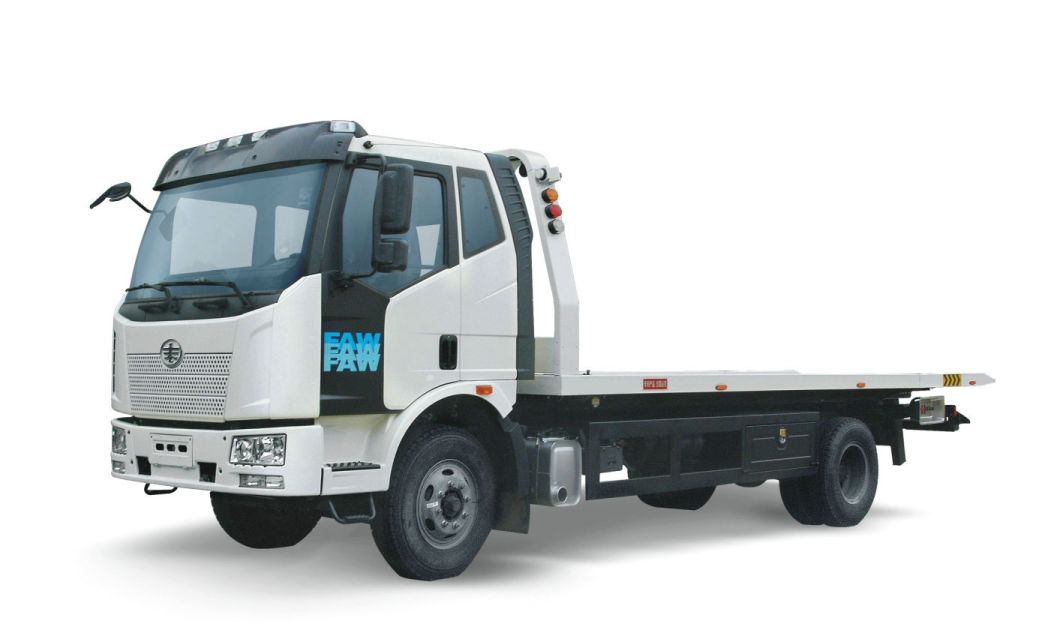

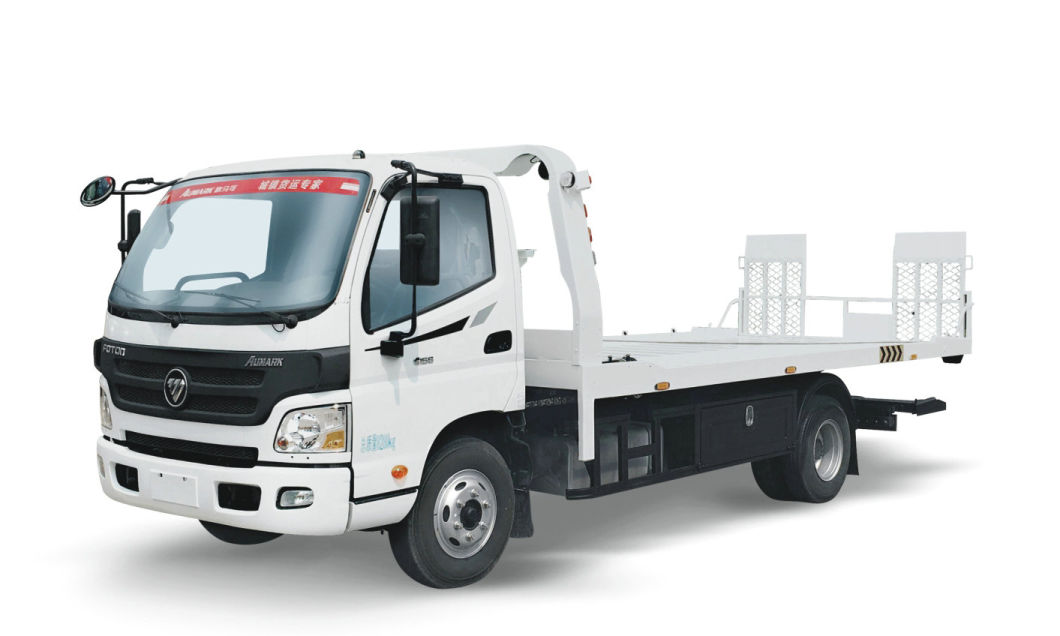

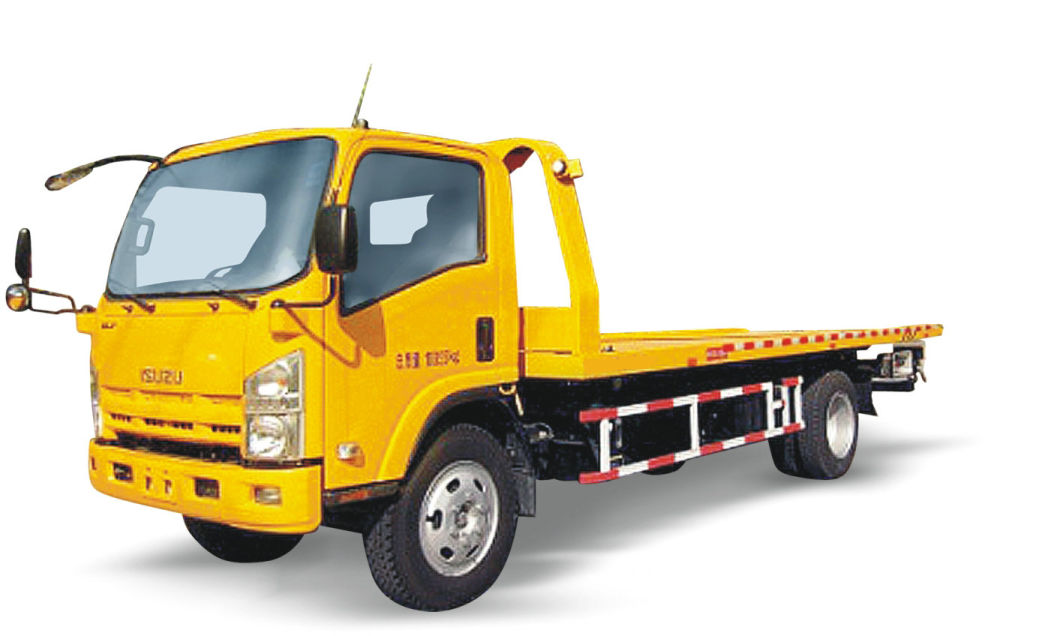

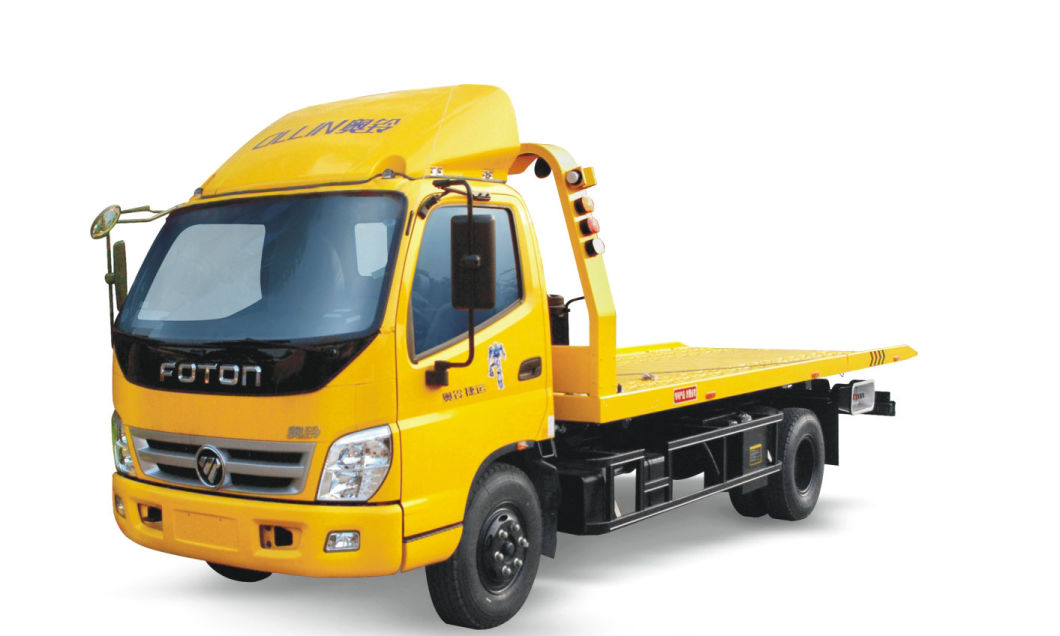

Forth type --Flat plates wrecker truck  (also known as "rolling back tow truck" or "sliding tow truck") - the entire back of the truck is fitted with a bed that can be hydraulically tilted down to the ground, allowing the vehicle to be placed under its own power or pulled up by the winch. [9] because they carry, rather than traction vehicles, it can be completely fixed; in the United States, they carry serious damage to car accidents.

Fifth type ---Lifting platform  wrecker truck the derricks lift the vehicle vertically and use the wheel lift to load it on the bed. In Europe, this car can eliminate the parallel parking of vehicles.



Dongfeng 8tons Wrecker Tow with 5tons Crane for Road Recovery Lifting Broken Cars

Dongfeng 8tons Wrecker Tow with 5tons Crane for Road Recovery Lifting Broken Cars
