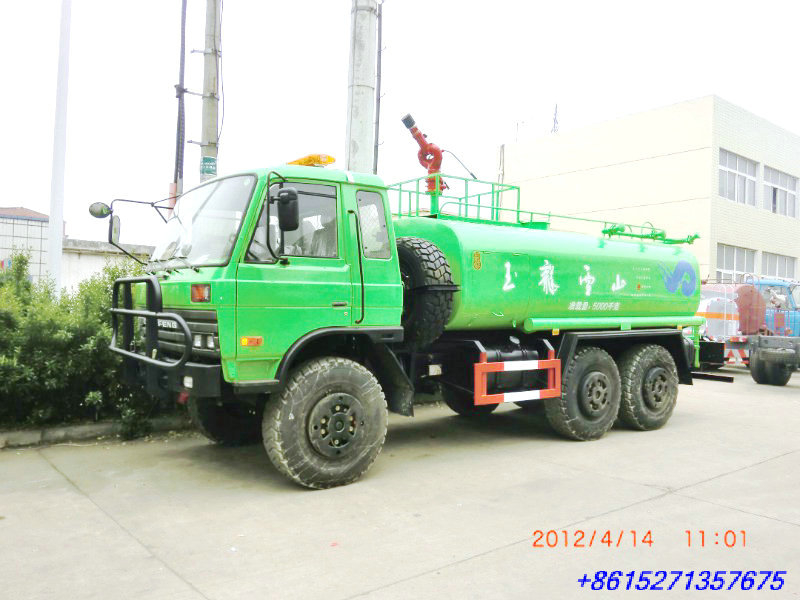

Dongfeng 6x6 Water Tanker Truck with Fire Pump

Dongfeng 6x6 Water Tanker Truck with Fire Pump
Quantity:

Dongfeng 6x6 water tanker truck with fire pump Special performance suction ≥ 6 M sprinkler width ≥ 14 M fire sprinkler pump Range up to ≥ 48 M

Dongfeng 6x6 water tanker truck with fire pump   Dimensions: EQ2162GSJ Engine: Description: From off-road chassis converted, can be made of ordinary sprinkler, you can also install fire pumps and fire water cannons, to achieve better spray effects, this car compared with conventional sprinkler Chassis powerful , tires, climbing ability, suitable for mountainous jungle or desert plains regions.

 Pediment (spray) and sprinkle with side spray, with working platform, platform installation green sprinkler pressure gun (gun adjustable spray shape, adjustable straight-shaped, heavy rain, moderate rain, drizzle, continuous adjustment), with Fire connection with gravity valve, with self-priming function.
 Special performance suction ≥ 6 M sprinkler width ≥ 14 M Range up to ≥ 48 M

 Fire features tank dedicated the first part of installation of fire sprinkler pump, fire special PTO, upper installation of fire sprinkler gun (gun maximum range ≥ 48 meters), can be watering, but also emergency fire, but also large-scale water use.



       Dongfeng six-drive off-road sprinkler Main technical data
       Product Name:        Dongfeng six-drive off-road sprinkler        Dimensions (mm):        7650,7760 × 2470 × 2893,2740
       Chassis Type:        EQ2162GSJ        Tank volume:        8-10 cubic
       The total mass: (kg)        16050        Approach / departure angle (°)        35/36
       Rated Quality: (kg)        7900        Front / rear overhang (mm):        1385/1365
       Curb weight: (kg)        7955        Maximum speed (km / h):        90
       Axle load:        4200/12300 (and loading axis)



       Chassis Parameters
       Chassis Type:        EQ2162GSJ        Batch:        199
       Number of axes:        3        Fuel type:        Diesel fuel
       Wheelbase (mm):        3500 +1250        Front track (mm):        1876
       Cab number:        3        Rear track (mm):        1870/1870
       Number of tires:        6        Spring:        10/12
       Tire Size:        12.5R20
       Vehicle Description:        Off-road vehicle when a total mass of 11 650 and the corresponding load mass is 3500. Top of Cab optional air conditioning.



       Engine parameters
       Engine Model        Engine Manufacturer        Displacement (ml)        Power (kw)
       B190 33        Dongfeng Cummins Engine Co., Ltd.        5900        140



       Other information
       Special Features:
       Converted by the off-road chassis, can be made into ordinary sprinkler, you can also install fire pumps and fire as water cannons, spray in order to achieve better results, this car compared with conventional sprinkler Chassis powerful, big tires , climbing ability, suitable for mountainous jungle or desert plains regions.

Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

 Tanker


   Material                    Steel

   Thickness of shell      4 ,5,6mm

   Thickness of dish       5,6mm

   Inside baffles            3mm

   Compartments          1 compartments

   Volume                    15000L to 25000L+ 5% expansion

   Option:                   Water Pump, Sprinkler


   Tank Top Accessories
 Ladders fixed on the front and rear; foldable handrail
 Walkway with anti-slip material in the front of reach the manholes
 Not covering the complete length of the tank.

 Painting
 Exterior surface treatment by shot blasting
 Painting by high solid primer directly on the surface
 Painting inside special paint booth with the cargo cabin color or the color chosen by the customer

 Accessories
 Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
 1 Tool box with standard tools,   Heavy duty tail bumper
