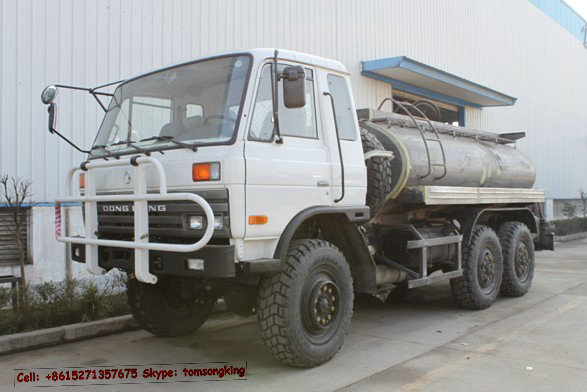

Dongfeng 6x6 water tanker truck
Dongfeng 6x6 water tanker truck
| Truck Chassis model | EQ2102(6*6 drive type) EQ5160GLJ | |
| Dimension(Lx Wx H)（mm） | 7760×2470×2740 | |
| Track(front/rear)（mm） | 1876/1870 | |
| Front/rear overhang (mm) | 1410/625 | |
| Approach / Departure angle (˚) | 35/34 | |
| Wheel distance（mm） | 3475+1250,3500+1250 | |
| Total mass (kg) | 10675 | |
| Kerb mass (kg) | 6965 | |
| Rated load weight (kg) | 3715 | |
| Drive type | 6x6 | |
| Max.grade ability (%) | 60% | |
| Max.slop ability (%) | 40% | |
| Min.turning circle (m) | 18.8 | |
| Max speed (km/h) | 90 | |
| Max.brake distance (m) | 8m | |
| Min.ground clearance (mm) | 305 | |
| Vertical obstacle-navigation Height (mm) | 700 | |
| Climbing trenches depth (mm) | 700 | |
| Max.fording depth (m) | 1 | |
| Engine | Engine model:EQ6BT5.9; or B190 Engine manufacture: Dongfeng cummins co.,Ltd Rated power(kw/r/min):118/2800 | |
| Displacement (L) | 5.880 | |
| Max.power (kw/hp) | 118kw/160hp ;or 140kw/190hp | |
| Max rated speed (r/min） | 2800 | |
| Fuel consumption (L/100km) | 26.5L | |
| Emission standard | Euro II | |
| Fuel tank (L) | Main fuel tank:145L,spare fuel tank:50L | |
| Fuel tank material | Aluminum alloy | |
| Clutch | Valeo 350 | |
| Dry single plate, hydraulic control booster Mechanical operation with hydraulic assistance | ||
| Mechanism,5 gears, 5 forward,1reverse gear Manual operation | ||
| Braking | Service Brake | Brake gap can be adjusted automatically double circulation air brake system |
| Assistant brake | WEVB(Engine exhaust brake) | |
| Park brake | Spring brake effect to middle and rear tires | |
| Steering description | Whole circulation in ball type, hydraulic power assistance | |
| Vehicle frame dimension(mm) | 232x75x6.5 | |
| Front axle description(T) | 3.7T | |
| Rear axle description(T) | 4Tx2 axle | |
| Tire and number | 12.5R-20 off-road tire,6+1 tires | |
| Cab | 1. Full steel skeleton structure cab 2. One sleeper bed in the cab,with Air-conditioner 5.Air- damping driver\\\\ s seat | |
| Water truck special function | A. Water tank capacity(L):10,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
| Manhole size(mm) | Man way access hole on top of tank; manhole diameter:￠500mm | |
| Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
| Man walk way | With skid resistance man walk way on top of tank | |
| Water pump model | 80QZB(F)-60/90S | |
| Flow rate(L/m) | 1000 | |
| Head of delivery(m) | 60 | |
| Shaft power | 22.5 | |
| Suction height (m) | 6.5 | |
| Efficiency(%) | 95% | |
Welcome all around world customer visit our factory.-
----Fuel tank truck
-----Refuel tanker
-----Edible oil tank truck
-----Insulation oil tanker truck
-----Crude oil transport tank truck
-----Fuel tank full trailer
-----Fuel tank semi trailer
-----Mild steel oil tanker
-----Stainless steel oil tank
-----Aluminum fuel tank
-----Fuel tank container
-----Mobile refueling station
-----Horizontal storage fuel tanker
-----RHD fuel tank truck
And more customized products.
All more details of fuel tank truck, please kindly contact with us.
TIC TRUCKS , www.truckinchina.com
