Dongfeng 6x6 Off-Road Fire Truck chassis view

Views: 1570 Author: Dong Runze Special Vehicle Publish Time: 2017-06-19 Origin: Dong Runze Special Vehicle

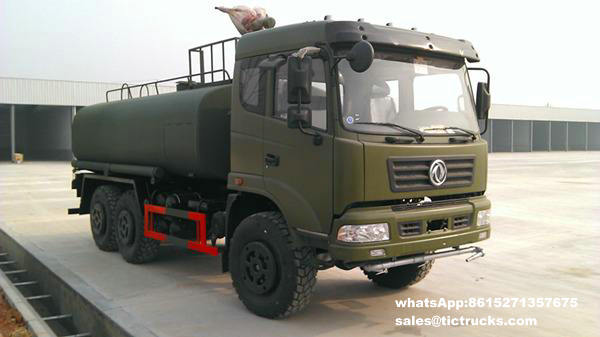

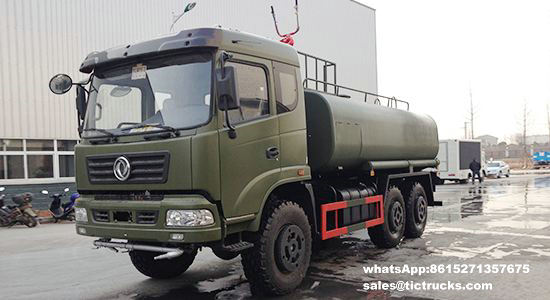

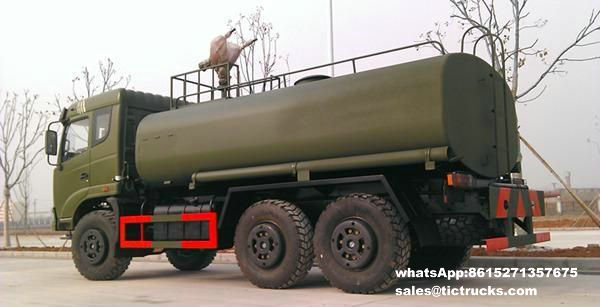

Dongfeng off Road 6x6 All Wheel Drive Water Truck with Fire Pump

Dongfeng 6*6 fire truck adopts dongfeng DFS5160GLJ original military chassis. Comparing to other chassis, the dongfeng 6*6 off road chassis is with large power, large tyres, strong climbing grade, suitable for hillways and deserts, etc.

DONGFENG 6*6 fire truck is with simple equipments at the rear part for some simple fire fighting equipments. And the tank volume of this fire truck is about 10cbm, equips with CB10/40 fire fighting pump, PS40 fire fighting moniter, and the range is above 55m.

offroad water tanker-001-truck fire-pump_1.jpg offroad water tanker-002-truck fire-pump_1.jpg

- See more at: http://www.truckinchina.com/Dongfeng-off-Road-6x6-All-Wheel-Drive-Water-Truck-with-Fire-Pump-pd6363285.html#sthash.AZ3IhDN7.dpuf

The total mass	16500 (Kg)	Curb Weight	7660 (Kg)
Wheelbase	3500+1250 (mm)	Chassis Model	DFS5160GLJ
Approach / departure angle	35/18 (°)	Front overhang / rear overhang	1385/1815mm)
Dimensions	7950×2470×2850 (mm)	Axle load	6000/10000(Kg)
Number of axes	2	Maximum speed	95 (km/h)
Tire Specifications	12.5R20	Number of tires	6
Front track	1916(mm)	Rear track	1876/1876(mm)
Emission standards	Euro 4	Type of fuel	diesel
Engine Model	Engine Manufacturer	Engine displacement	Engine power
YC6J180-42 ISDe185 40	Guangxi yuchai machinery co.,LTD Dongfeng cummins engine co., LTD	6494 6700 (ml)	132 136 (kw)
Product Price	Should be configured with different vehicles and different coat materials, we recommend that you contact us

Dongfeng 6x6 Off-Road Fire Truck chassis view

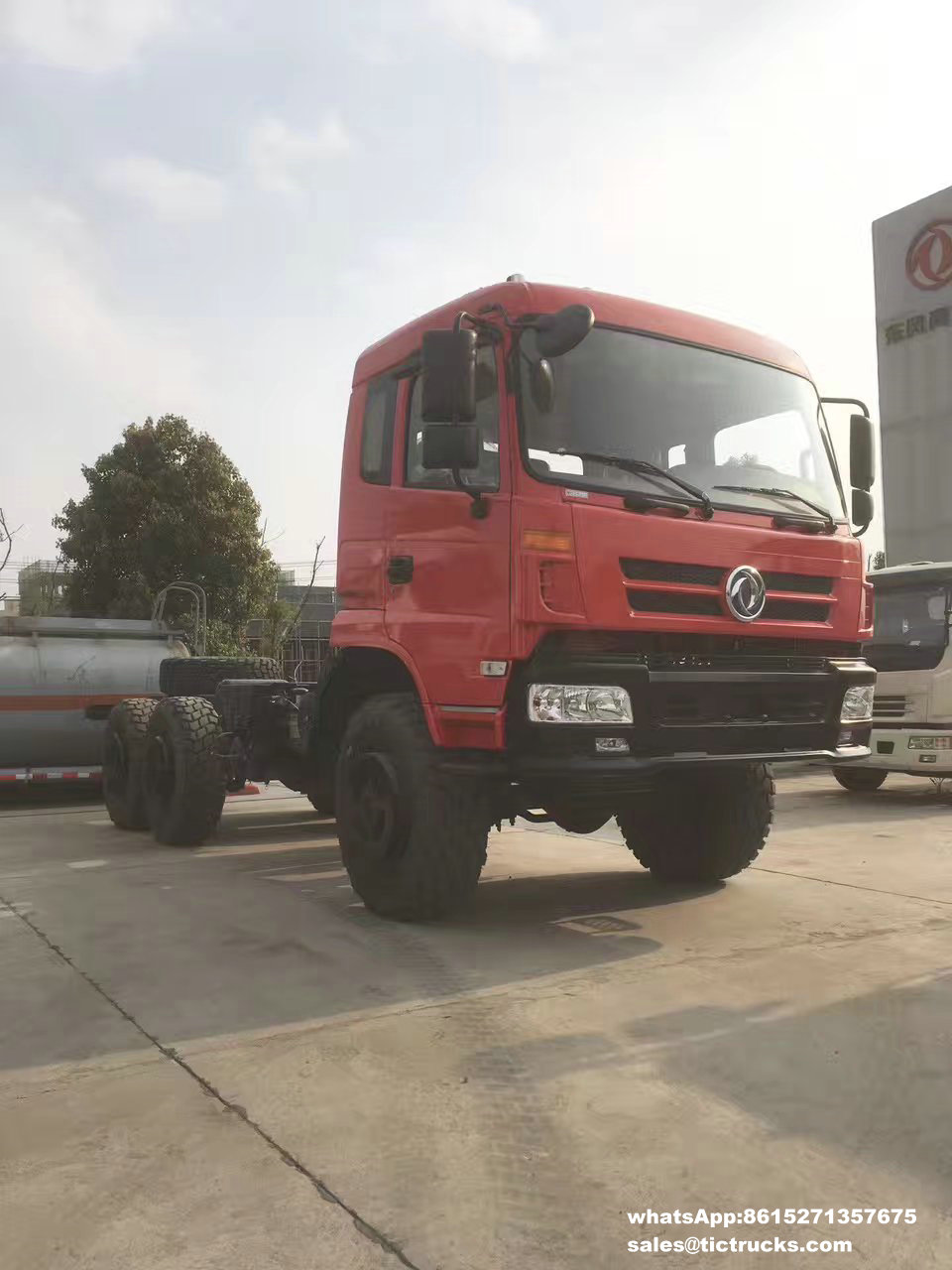

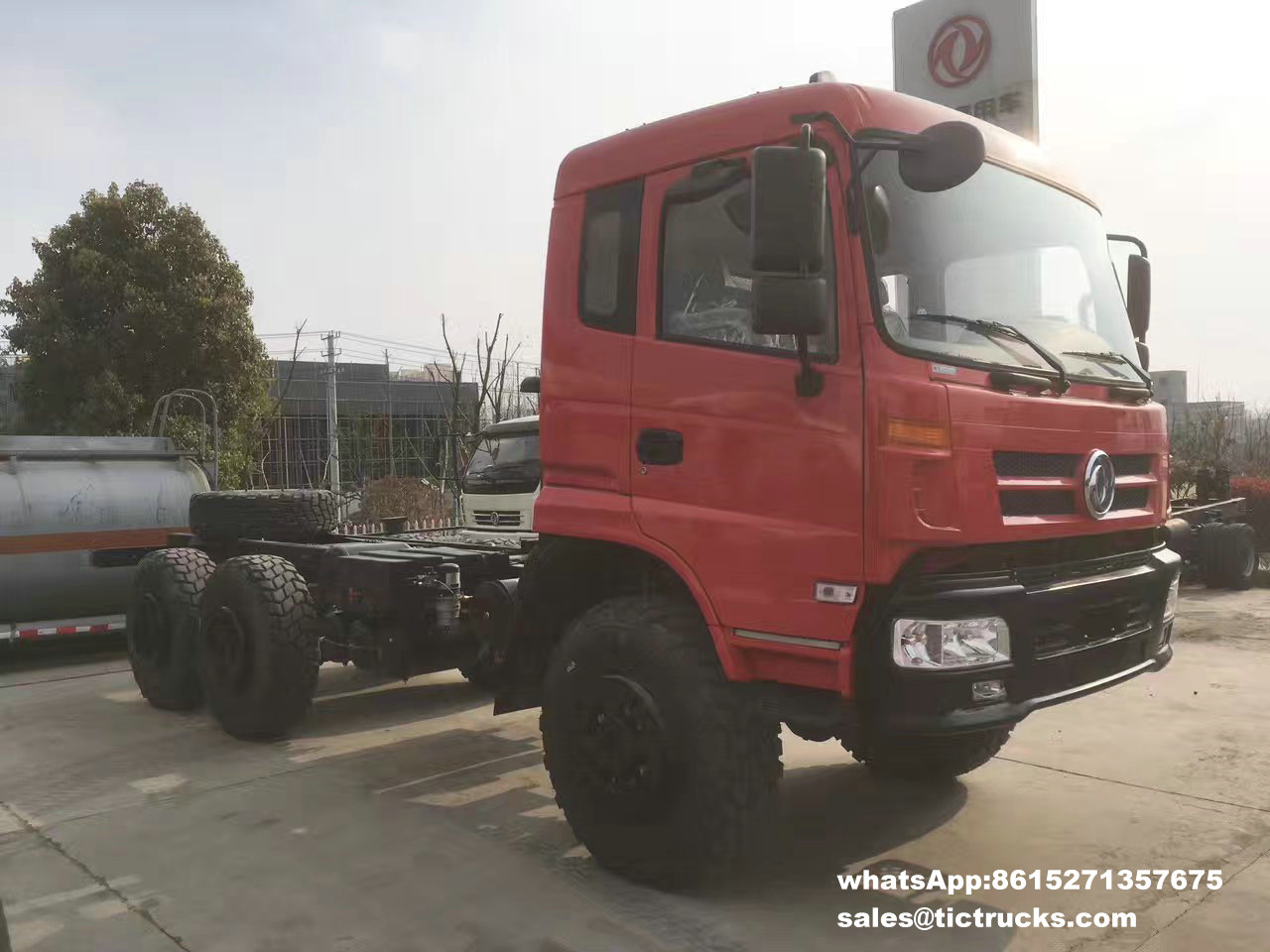

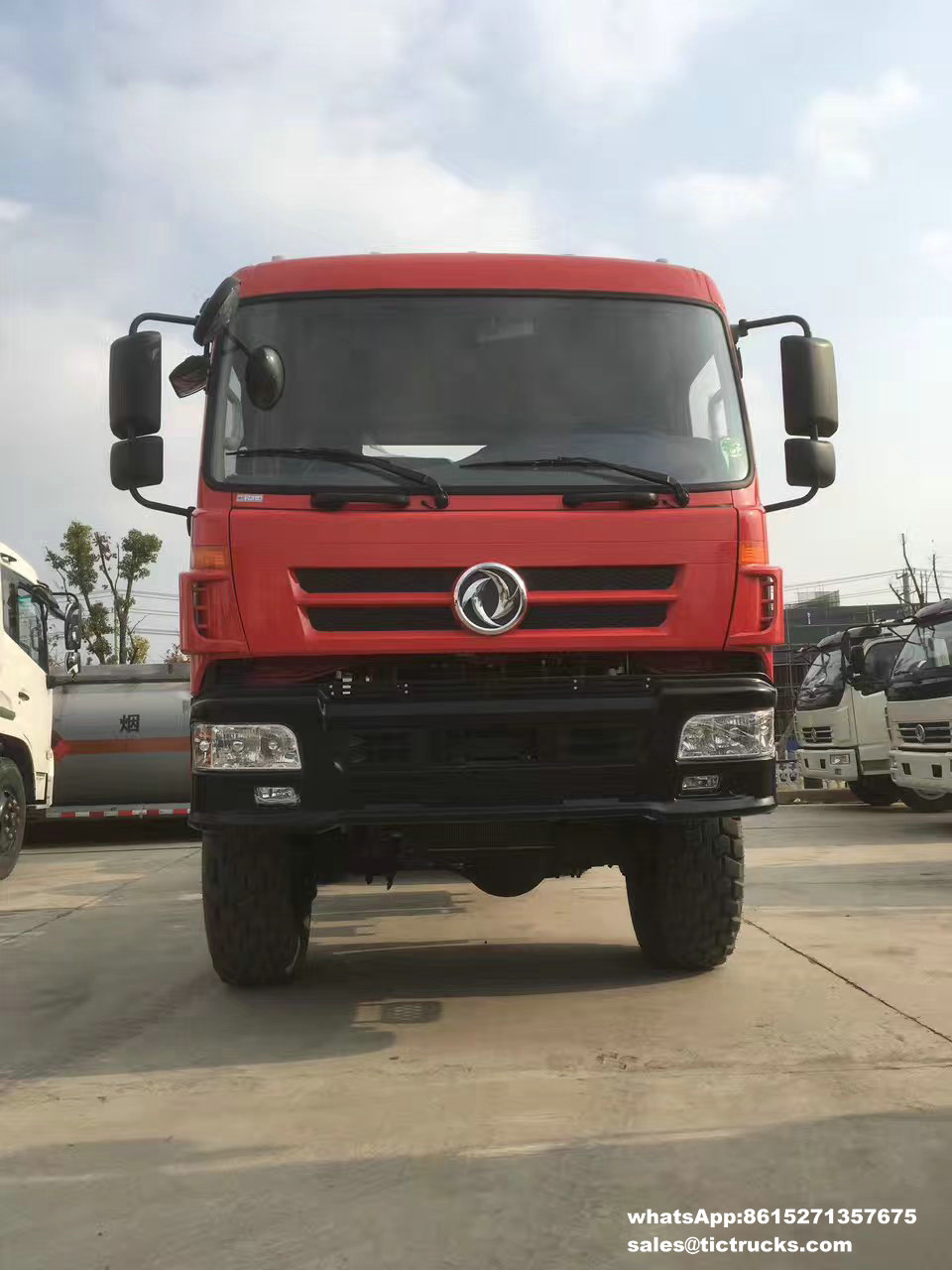

offroad water tanker-003-truck fire-pump_1.jpg offroad water tanker-004-truck fire-pump_1.jpg offroad water tanker-006-truck fire-pump_1.jpg offroad water tanker-005-truck fire-pump_1.jpg

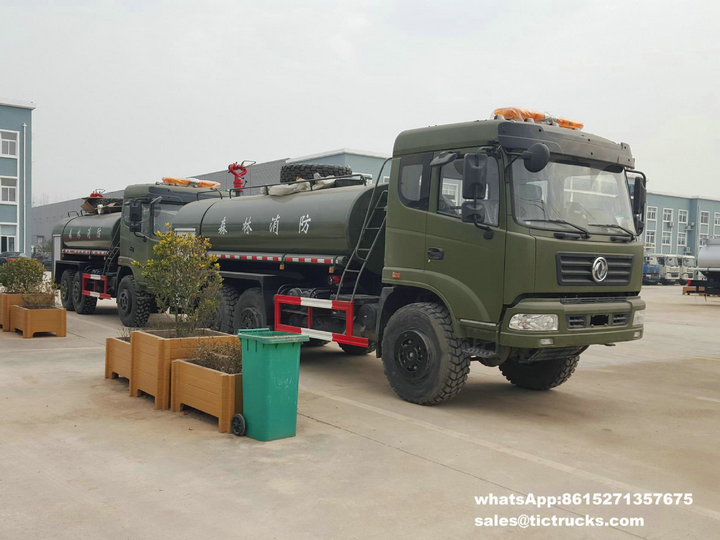

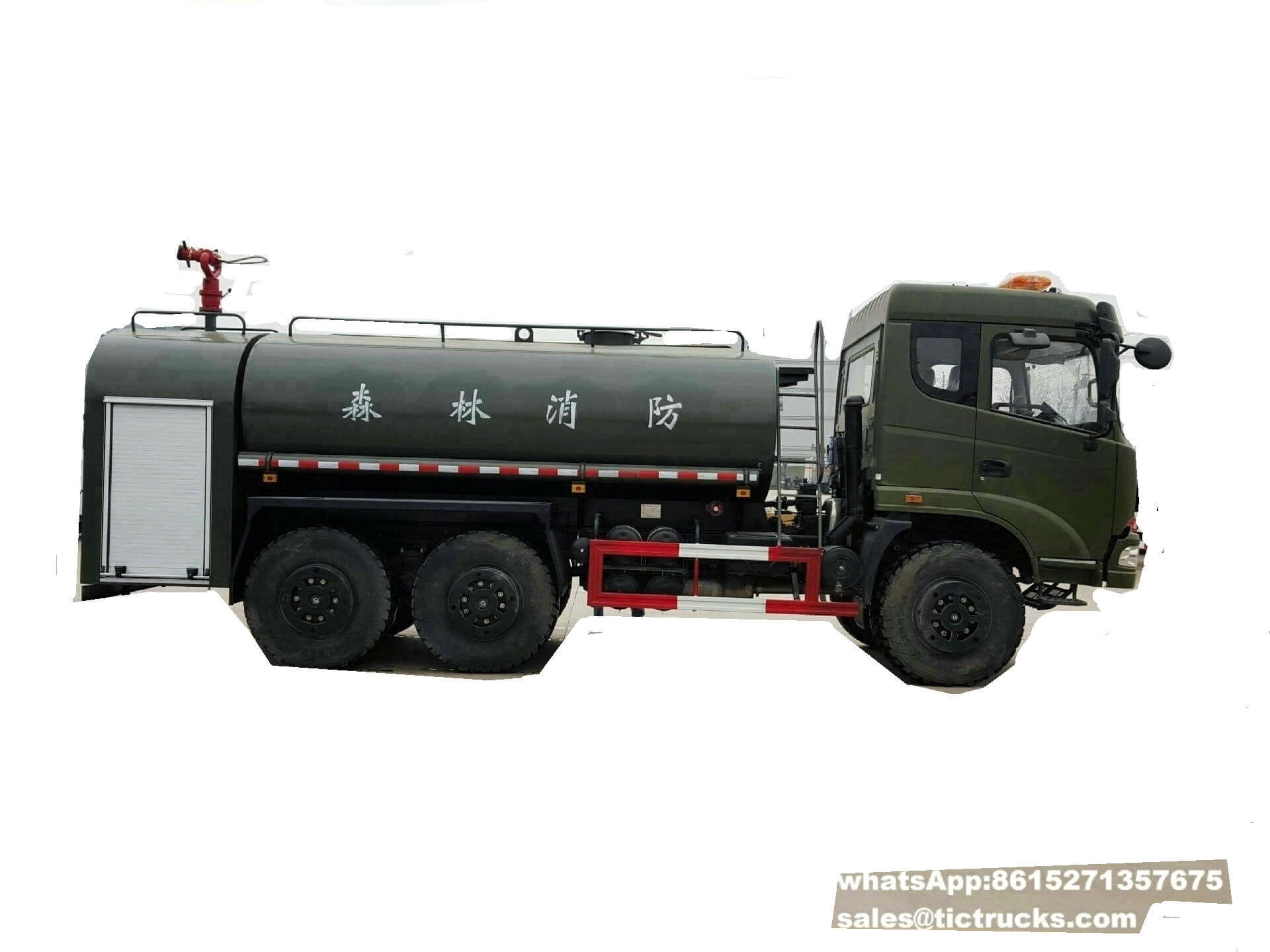

dongfeng offroad fire truck water tanker 23_1.jpg for forest fire fighting truck

tank body high quality carbon steel Q235 B 4MM plate ,

tank volume 8-10 cubic meters, high-power Granville Dragon sprinkles pump, water cannon range is larger than 65 meters, suction water vertical height more than 7 meters, mainly uses in the forest area or the scenic

Chassis Related parameters:

Clutch: Sipa 350mm single chip, hydraulic control

Transmission: 5 Gear transmission

Stepper: Mechanical 2 gear, transmission ratio, high-grade 1.348, low-grade 2.41

Front Axle: 3.7-ton front axle

Middle and rear axle: 4-ton Dongfeng single-stage deceleration double rear axle

Steering gear: Integral type Power steering machine

Frame section Size (mm): 232 X 75x. 5

Cab: Dongfeng Flat half a row of sleeper cab,

Fuel tank (L): main tank 145, auxiliary tank 50

Maximum climbing degree: 3500kg, no trailer 60%

Maximum braking distance: (load 3500kg, ) 8m

Standing slope: 40%

Maximum mileage (km): 700

Vertical obstacle Height (mm): 700

Trench width (mm): 700

Other optional winch

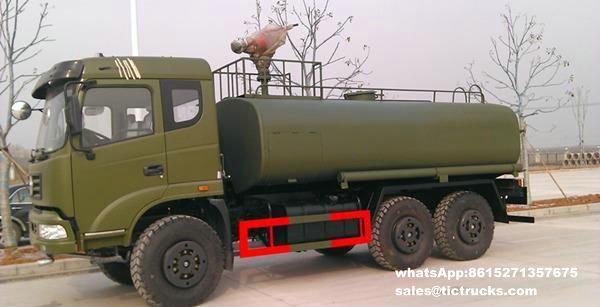

dongfeng offroad fire truck water tanker 25_1.jpg
