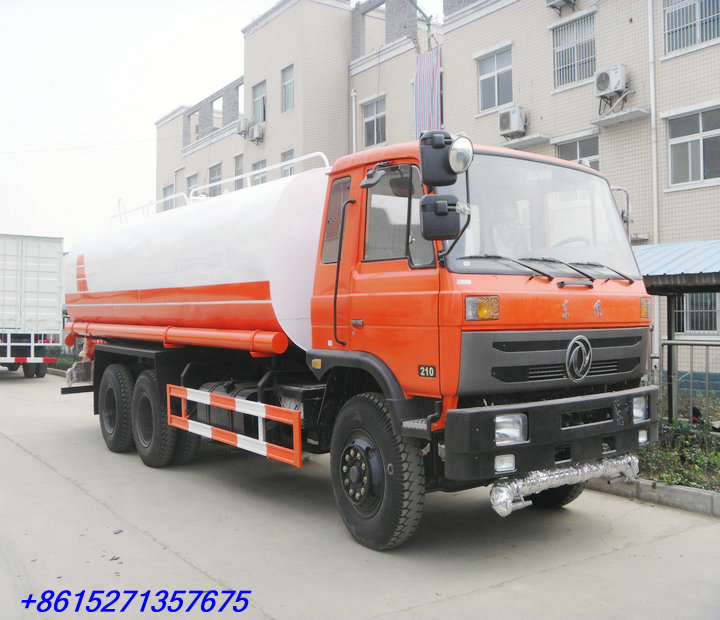

TIC5250 Dongfeng 6x4 EQ water truck
| Technical parameters | ||||
| Total Weight(kg) | 25000 | Curb Weight(kg) | 8205 | |
| Rated quality(kg) | 16600 | Chassis Model | EQ5251GYYKJ | |
| Approach/Departure angle | 32/11(°) | Front/Rear overhang | 1250/3050 | |
| Dimensions(mm) | 9950x2500x3250,3400 | Number of spring | 8/13,8/12 | |
| Number of axles | 3 | Maximum speed | 85 | |
| Tire Specifications | 10.00-20 16PR,11.00-20 14PR | Number of tires | 10 | |
| Front track | 1940 | Rear track | 1860 | |
| Wheelbase(mm) | 4350+130 | Axle load(kg) | 7000/18000 | |
| Emission Standards | Euro3/Euro4 | Type of fuel | Diesel | |
| Engine parameters | ||||
| Engine Model | ISDe210 40 | Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd | |
| Engine Displacement | 6700 ml | Engine power(kw) | 155 | |
| Chassis Description | Dongfeng 6x4 chassis, with left/right hand drive optional, flat cab with air conditioner | |||
| Modified | 1.Tank effective volume:18000L-20000L tanker is made by 4-6mm carbon steel plate or stainless steel plate. | |||
| 2.Equipped with front (rear,side)sprinkler, with rear working platform,Greening water cannon, 360°rotatable, adjust water to high or low(spray like columnar,vaporific,drizzle); | ||||
| 3.Equipped with high power water pump, Japan technology: | ||||
| Component | Basic composition:chassis,tanker,PTO,transmission shaft,special self-priming pump,pipeline,jet,rear work platform.Optional equipment:GPS, gimbaled nozzle,VVB,pneumatic valve,visual operating system,external power,medicament tray. | |||
| Purpose | Our company develop all kinds of watering trucks, mainly used in city roads,big factory,troops,parks,cleaning,proventing dust,watering,crop-dusting and so on.We can produce different all kinds of watering trucks according to customer's requirements. | |||
| Product advantage | Best Quality with good price. | |||
