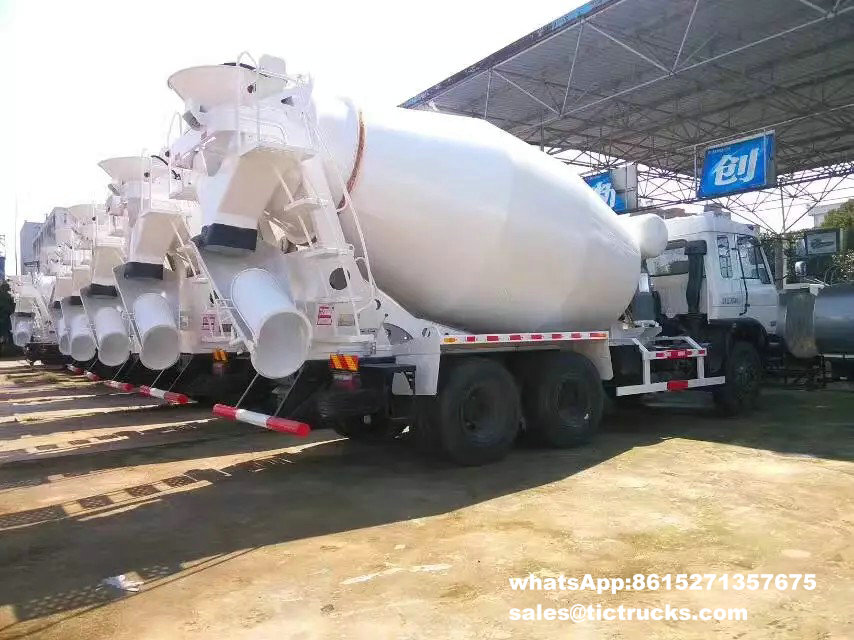

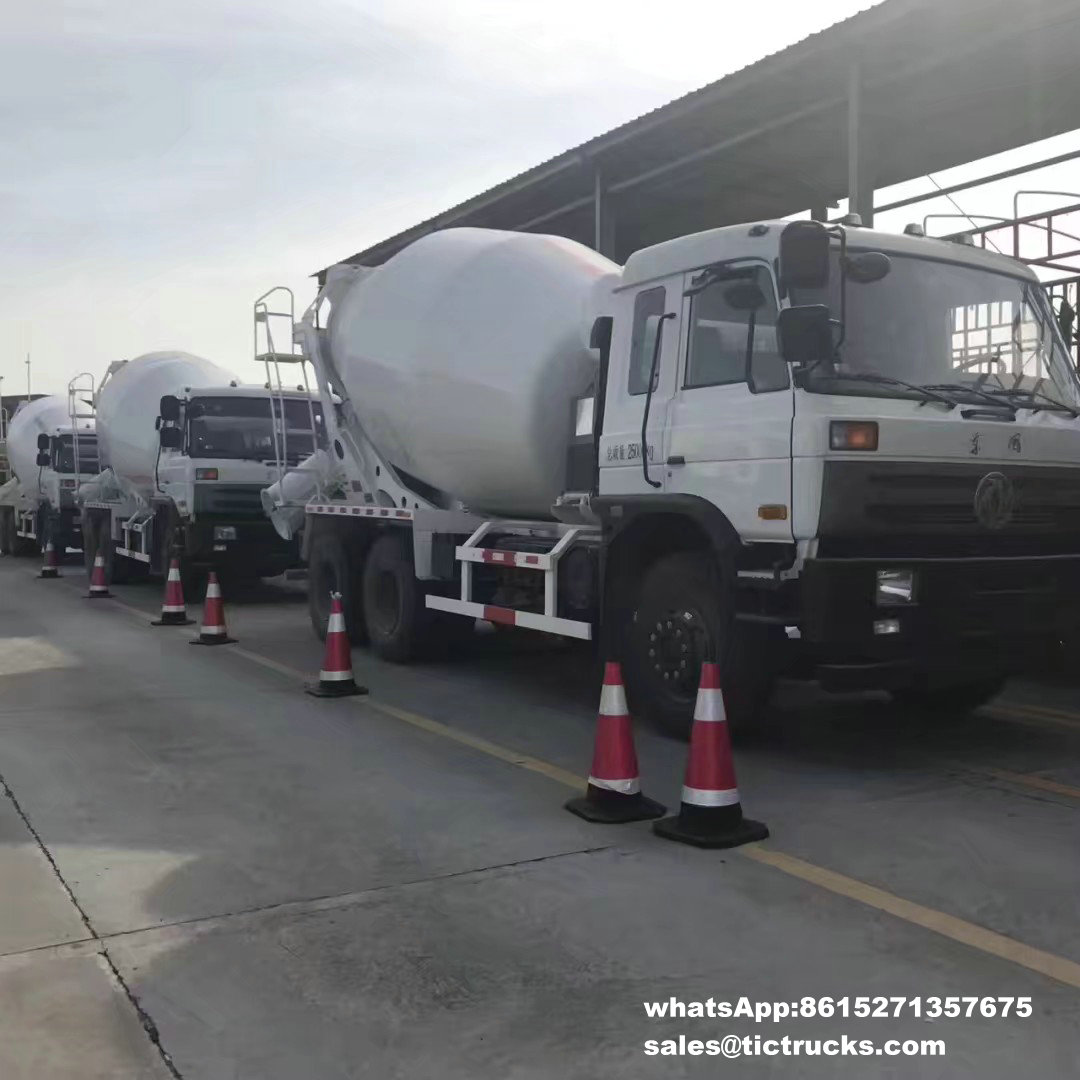

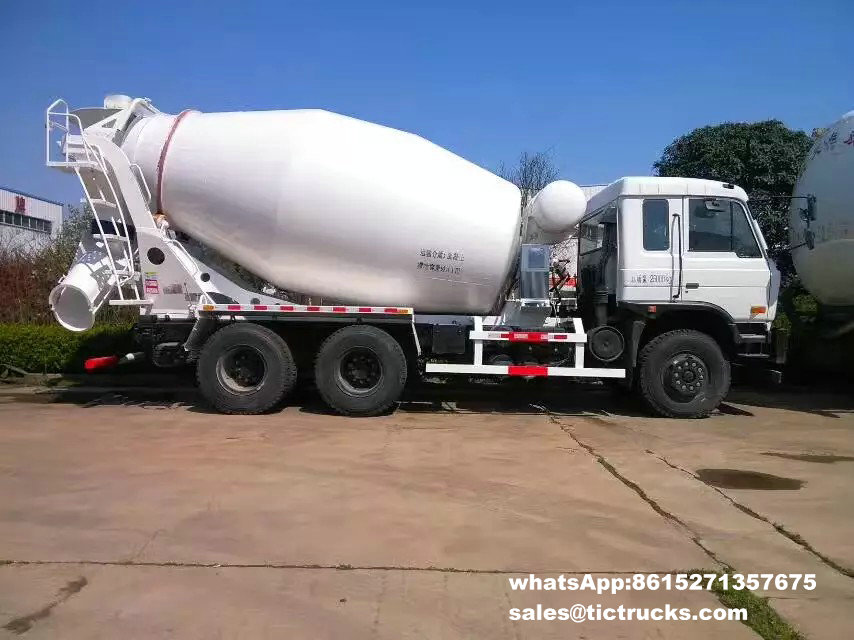

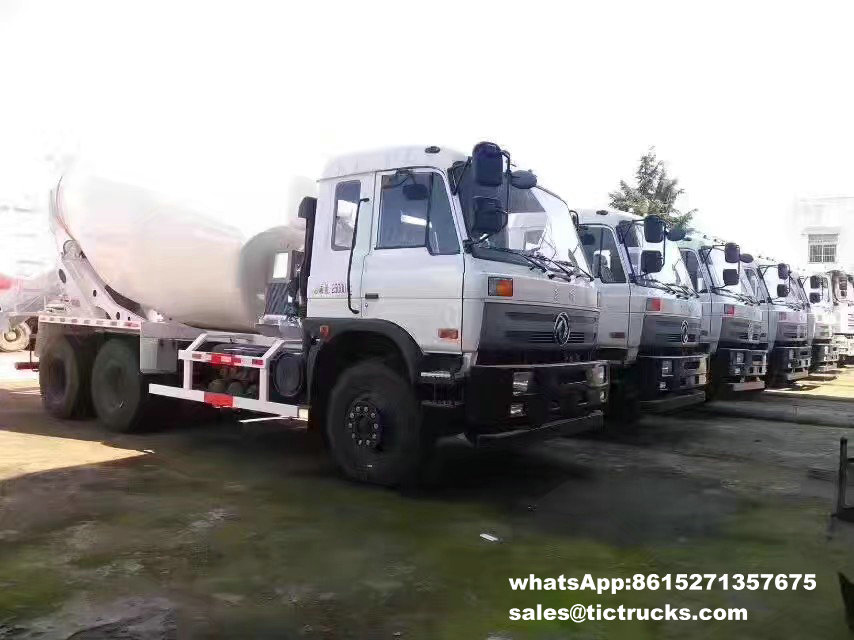

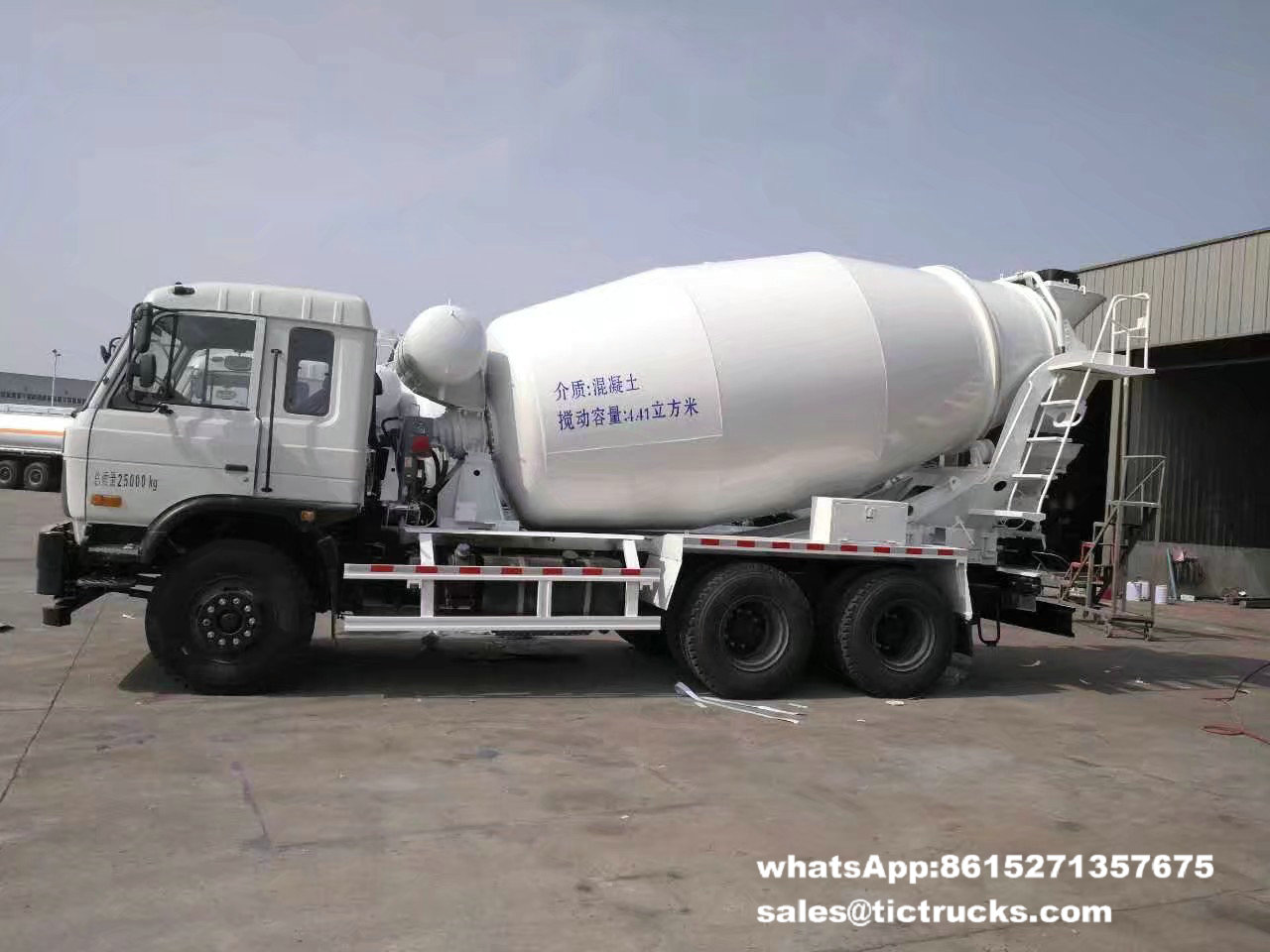

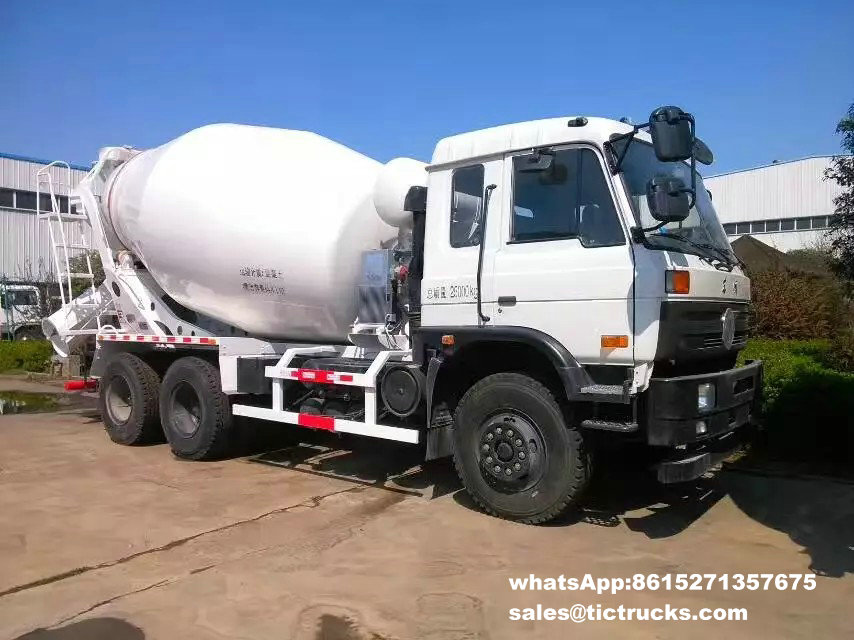

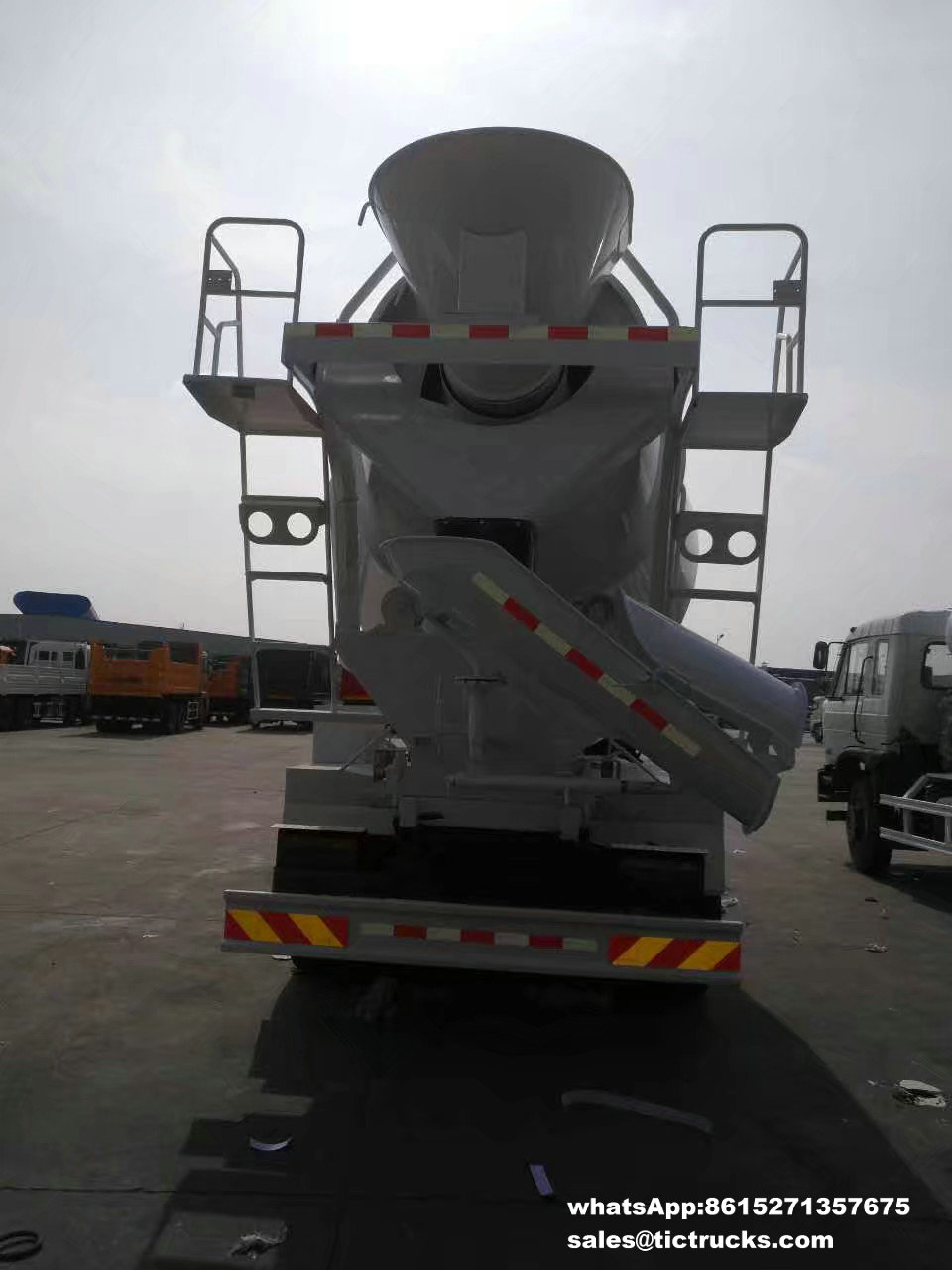

Dongfeng 6x4 Concrete Mixer Truck 6-8 CBM EQ5250GJB

Product model

EQ5250GJB 6x4 concrete mixer truck

Manufacturer

DONGFENG

Brand of chassis

Dongfeng

Parameter of Chassis

Engine

Cummins diesel engine, 340HP, model: L340 33

Displacement standard

Euro III

Fuel

Diesel

Cabin

Left hand drive, Flat headed cab, air conditioner

Gear box

Fast 9-speed

Wheelbase(mm)

3650+1350

Drive type

6x4

Tire

11.00-20R20 Steel tires

Leaf spring

8/12

Cluct

φ430mm

Rear axle

Loading ability: dongfeng13T

F/R overhang(mm)

1500/2760

Approach/ departure Angle(.)

25/30

Max speed(km/h)

80

Curb weight(kg)

13200(Kg)

Rated loading weight(kg)

11670(Kg)

Overall Dimension(L×W×H)(mm)

8960*2500*3910mm

Parameters of Refitting Parts(Concrete mixer)

Tank welding

automatic welding

Type of board material

The mixing drum is made of 5mm thick Mn steel, and the ends of drum are 6mm thick.

Valid mixing capacity

5-8CBM

Pump

Italy PV089 pump

Motor

Italy MF089motor

Gear box

Italy MF68(75or80)motor

Radiator

China 12(25or26)L Radiator

Pump,Motor,Gearbox can be seleceted Chinese manufacturing

Price

Production cycle

40 days after receiving prepayment

Payment term

30% prepayment, the truck will be allowed to deliver to customer after receiving 70% rest payment.

price shiyan in china(FOB Shanghai)

please contact us

Remarks

7T front axle, 13T single reduction dual rear axle (Steyr bridge) (Widen brakes, the enhanced brake drums), drive ratio 5.26

Air conditioner: option

Feature:

geometry capacity:14.4 ,15.4 m3

agitate capacity:5.1  m3
fill in ratio:55.5%,58.4%
feed speed:≥3 m3 /min
out feed speed:≥2 m3 /min
leaving ratio:≤1%
agitate rotate speed:0-14   r/min
mixer canister landslide degree:50-210  mm
mixer canister grandient:15°,12°

Waster supplying style: Pressured-air Water Supplying System. using the international brand air pressuring system units , together with the reliable and safe water tank with super volume , this system has the features of high pressure , big flowing-volume , more reliable and safe.

We can provide 3/4/5/6/7/8/9/10/12CBM cement mixer truck.Truck mounted concrete mixers list 2.pdf

m3

     mm

mm

USD

100%TT

30%+70%

30%TT+70%LC365days

DRZ5250GJBD

DONGFENG

DFL5250GJBA

10

8800X2500X3930

3650+1350

L340-30

340/Euro 3

11.00R20

353000

$51920

$57970

$65506

DRZ5142GJBB

FOTON

BJ5142GJB-G1

4

6460X2480X3450

3400

YCD4F22-110

110/Euro 2

8.25-16

112300

16520

$20500

$23165

DRZ5142GJBB1

FOTON

BJ5142GJB-G1

5

6660X2480X3450

3600

YCD4D130-33

130/ Euro 2

8.25-20

129300

19020

$23090

$26090

DRZ5162GJBB

FOTON

BJ5162GJB-F1

7

6980X2490X3750

4200

YC6J190-33

190/Euro 2

10.00R20

199500

$29340

$33930

$38340

DRZ5252GJBB

FOTON

BJ5252GJB-S

10

8930X2495X3790

3575+1350

WP10.340E32

340/Euro 3

11.00R20

338900

$49840

$55820

$63070

DRZ5253GJBB

FOTON

BJ5253GJB-S2

12

9350X2495X3935

4100+1350

WP10.340E32

340/Euro 3

12.00R20

357000

$52500

$59040

$66715

DRZ5318GJBB

FOTON

BJ5318GJB-1

14

10752X2495X3998

1800+3450+1350

WP10.340E32

340/Euro 3

12.00R20

422200

$62090

69650

$78700

DRZ5313GJBB

FOTON

BJ5313GJB-11

18

11230X2495X3995

1800+3650+1350

WP12.380E32

380/Euro 3

12.00R20

450300

$66230

$74140

$83770

DRZ5142GJBBRHD

FOTON

BJ5142GJB-G1

5

6660X2480X3450

3600

YC4D130-33

130/Euro 2

8.25-20

137300

20200

$24280

$27430

DRZ5250GJBQ

ISUZU

QL1250DAFZY

14

10050X2490X3900

4000+1300

6HK1-TCSG40

280/Euro 4

11.00R20

496400

73000

$80070

$90470

DRZ5254GJBN

North-Benz

ND1254B38J

12

9300X2500X3900

3800+1450

WP10.340E32

340/Euro 3

12.00R20

369000

$54270

$60700

$68500

DRZ5316GJBN

North-Benz

ND1316D35J

16

10550X2500X3990

1500+3550+1450

WP12.375

375/Euro 3

12.00R20

443200

$65180

$65280

$73760

DRZ5255GJBFS364

SHACMAN

SX5255GJBJR364

10

9130X2500X3900

3575+1400

WP10.340E32

340/Euro 3

12.00R20

344900

$50730

$57170

$64600

DRZ5255GJBFS424

SHACMAN

SX5255GJBJR424

14

10050X2490X3900

4175+1400

WP10.340E32

340/Euro 3

12.00R20

353000

$51920

$58990

$66650

DRZ5315GJBFS326

SHACMAN

SX5315GJBJT326

15

10870X2500X3900

1800+3175+1400

WP10.340E32

340/Euro 3

12.00R20

402100

$59140

$66750

$75420

DRZ5315GJBFS346

SHACMAN

SX5315GJBJT346

16

10825X2500X3900

1800+3375+1400

WP10.340E32

340/Euro 3

12.00R20

405600

$59650

$67280

$76020

DRZ5315GJBFS386

SHACMAN

SX5315GJBJT386

18

11800X2500X4000

1800+3775+1400

WP12.380E32

380/Euro 3

12.00R20

441700

$64960

$73220

$82730

DRZ5257GJBZ34

HOWO

ZZ1257N4048W

12

9770X2500X3880

4025+1350

WD615.69

336/Euro 3

12.00-20

361800

$53205

$60040

$67840

DRZ5257GJBZ37

HOWO

ZZ1257N4048W

12

9770X2500X3880

4025+1350

WD615.96

375/Euro 3

12.00-20

364800

$53640

$60470

$68330

DRZ317GJBZ416

HOWO

Zz1317n3261W

16

10304*2496*3999

1800+3200+1350

WD615.47

371/Euro 3

12.00R22.5

418000

61470

68700

77630

Here the price is for standard configuration. Selective configuration and any change according to the buyer’s requirements please confirm the price with our company.

Standard configuration

Less than 7m3:chassis,sub frame,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 6mm alloy steel wear resistant material),domestic reducer,hydraulic pump,hydraulic motor,radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.

Selective configuration

1,American SALI56 hydraulic pump, SALI63 hydraulic motor

2,Italy P071 hydraulic pump, M063 hydraulic motor

3,A full set of imported parts (ZF3301 reducer)

Standard configuration

chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.

8m3

Germany ZF3301 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel

wear resistant material,front tank head 8mm alloy steel wear resistant material)

9-10m3

Germany ZF5300 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel

wear resistant material,front tank head 8mm alloy steel wear resistant material)

11-14m3

Germany ZF7300 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 6mm alloy steel

wear resistant material,front tank head 8mm alloy steel wear resistant material)

15-20m3

Italy PMP reducer,Italy PMP hydraulic pump,Italy PMP hydraulic motor,KAIPENG radiator,mixer tank(main tank 6mm alloy steel wear resistant material,front

tank head 8mm alloy steel wear resistant material)

Selective configuration

Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system.

Italy Bonfiglioli/Italy PMP reducer,Italy PMP/Italy MESSOR/America EATON/America SAUER hydraulic pump,Italy PMP/America EATON/America SAUER hydraulic motor.
