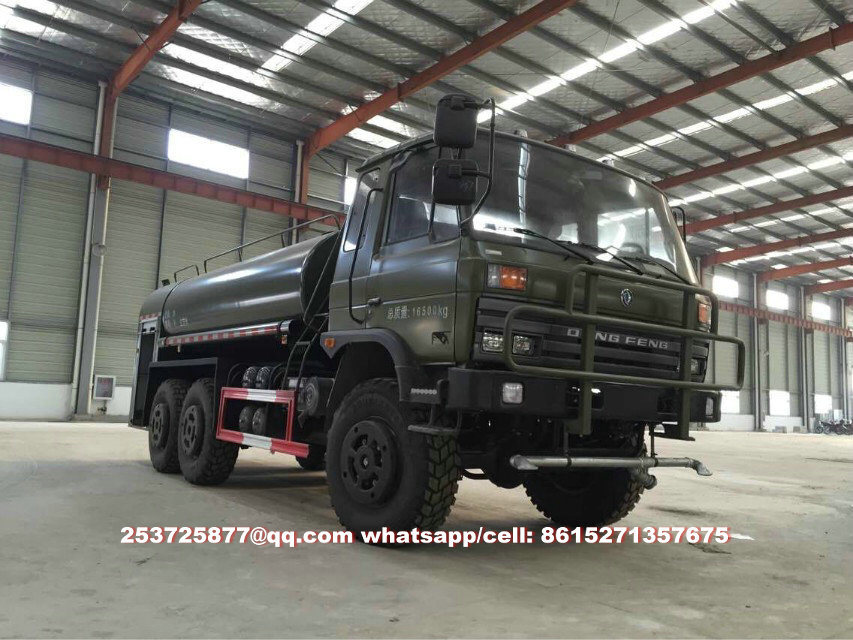

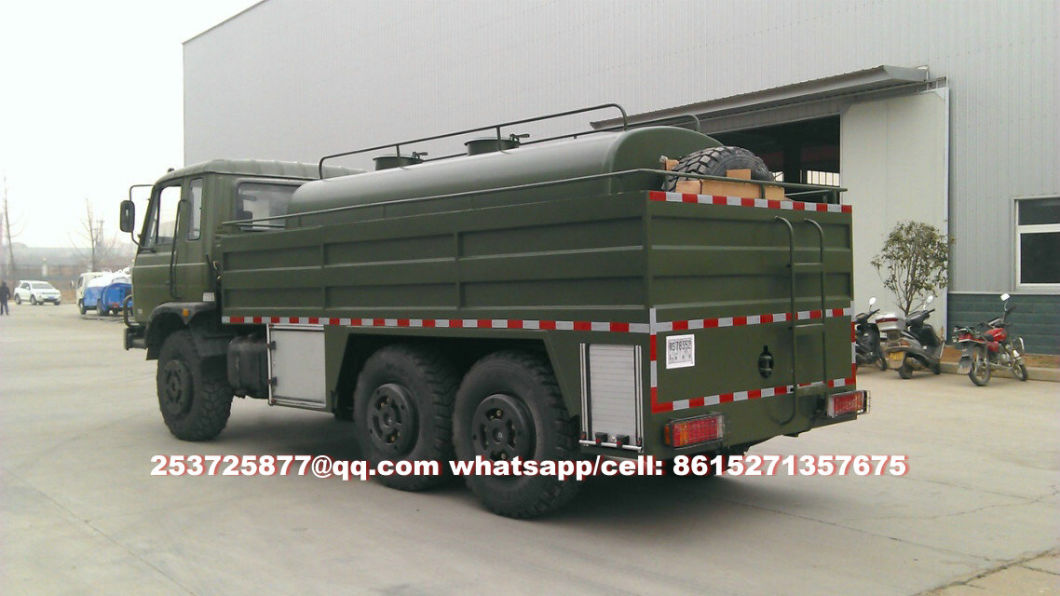

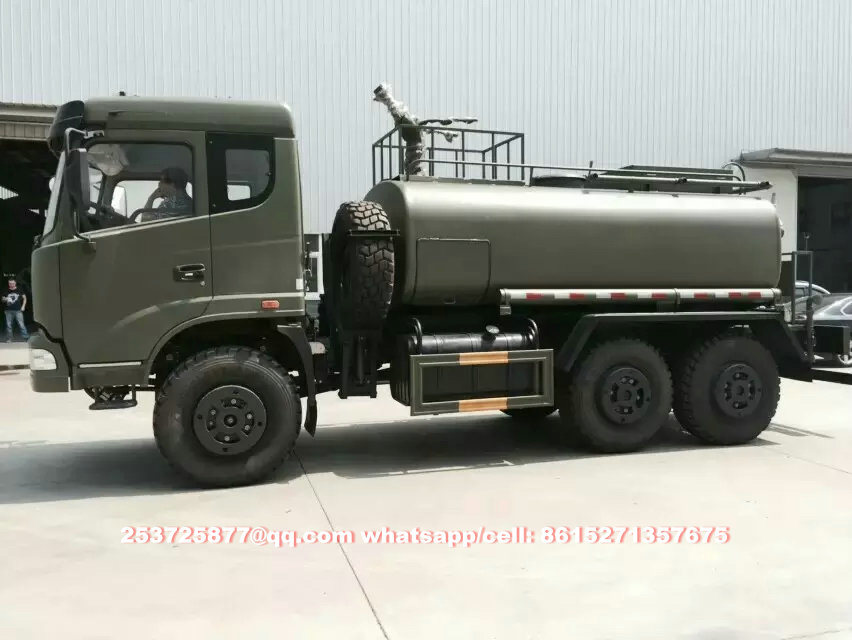

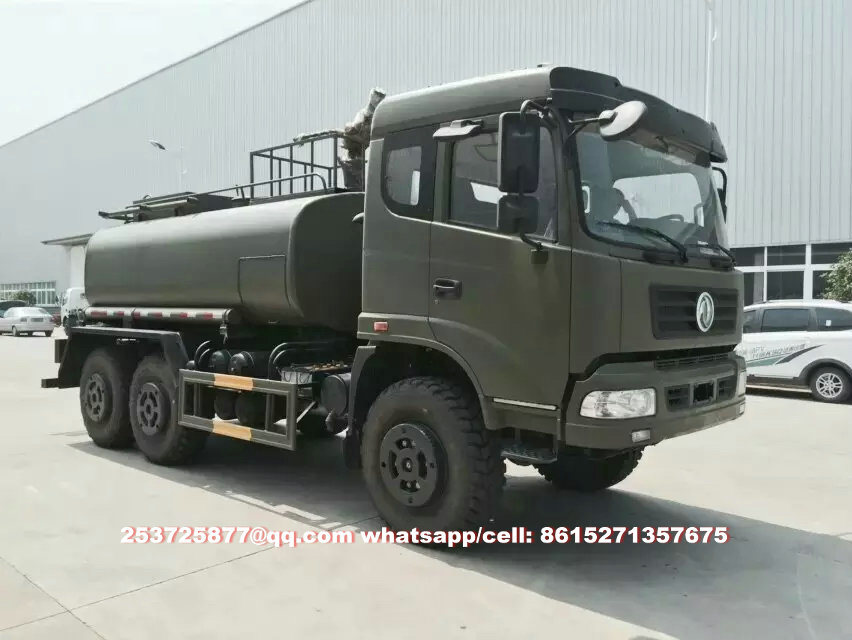

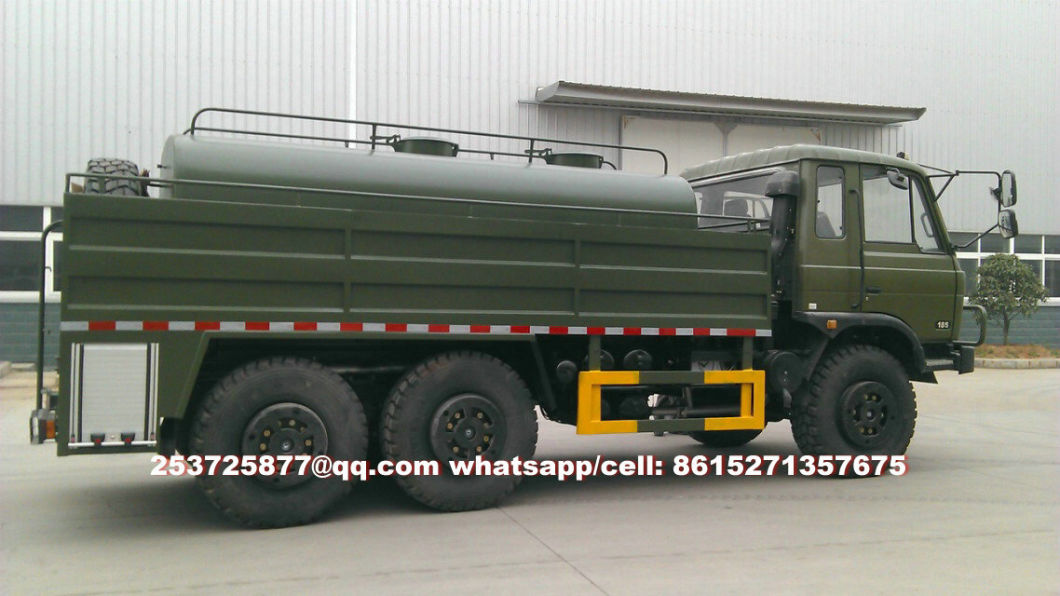

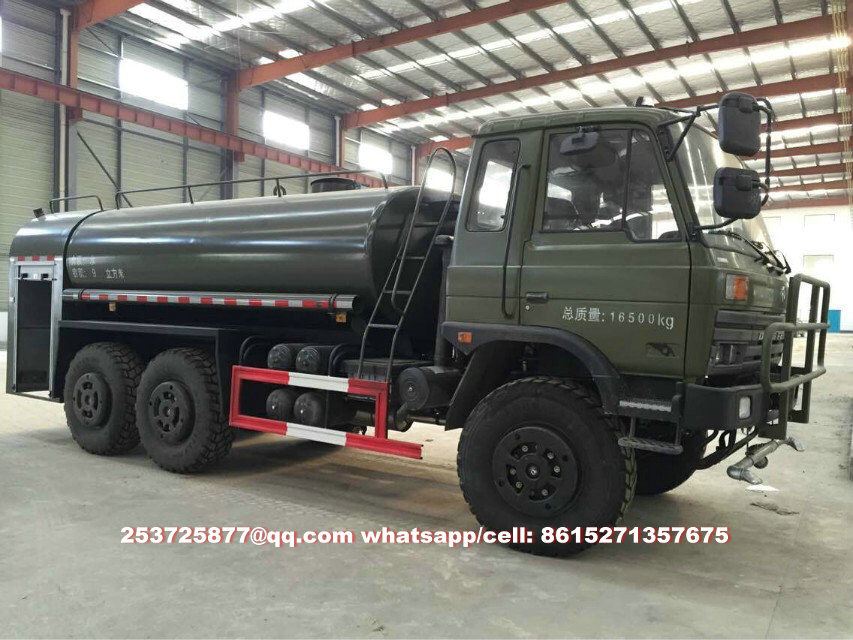

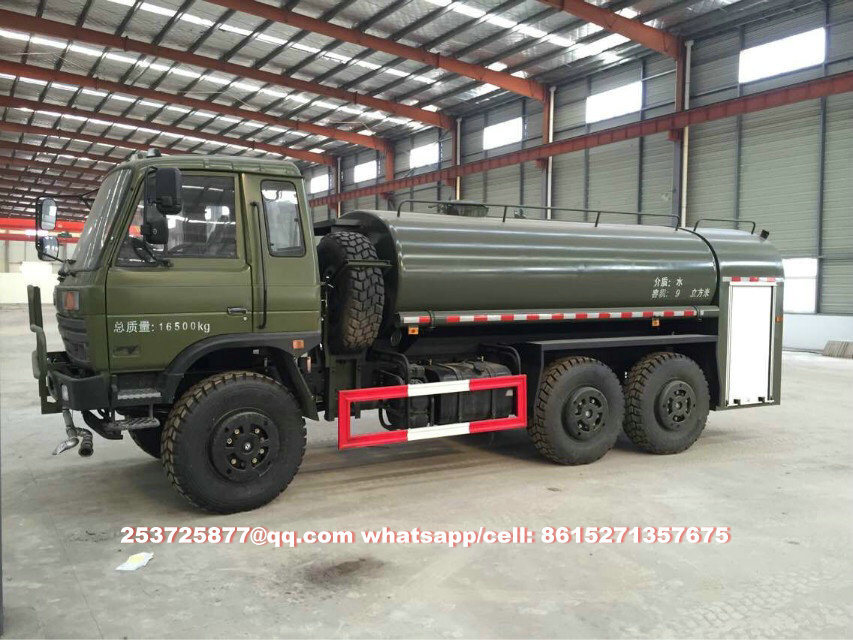

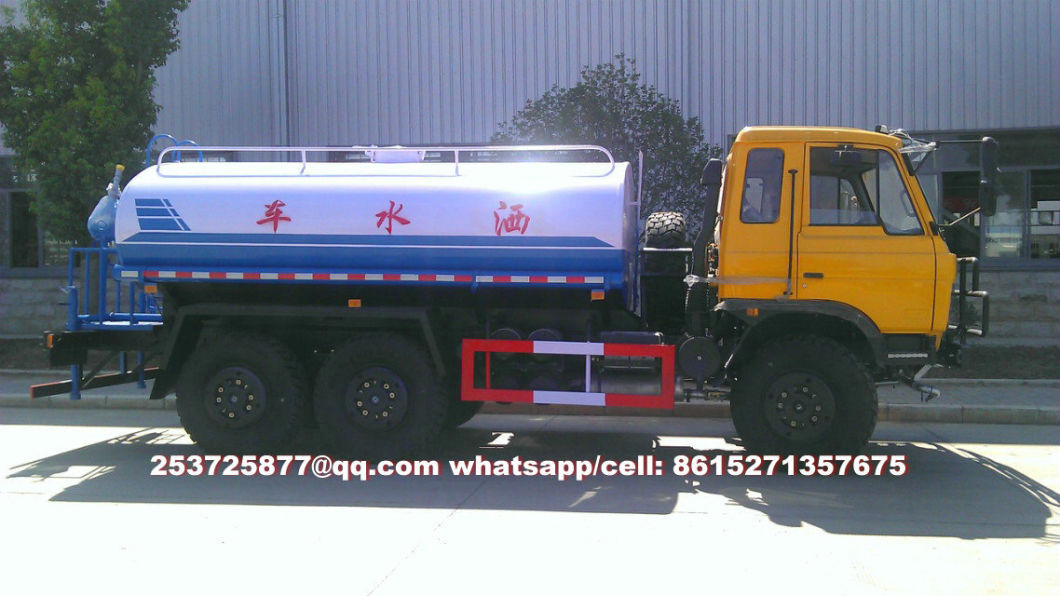

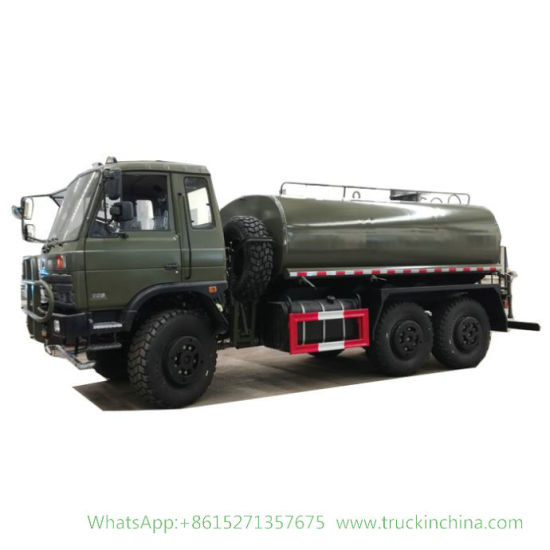

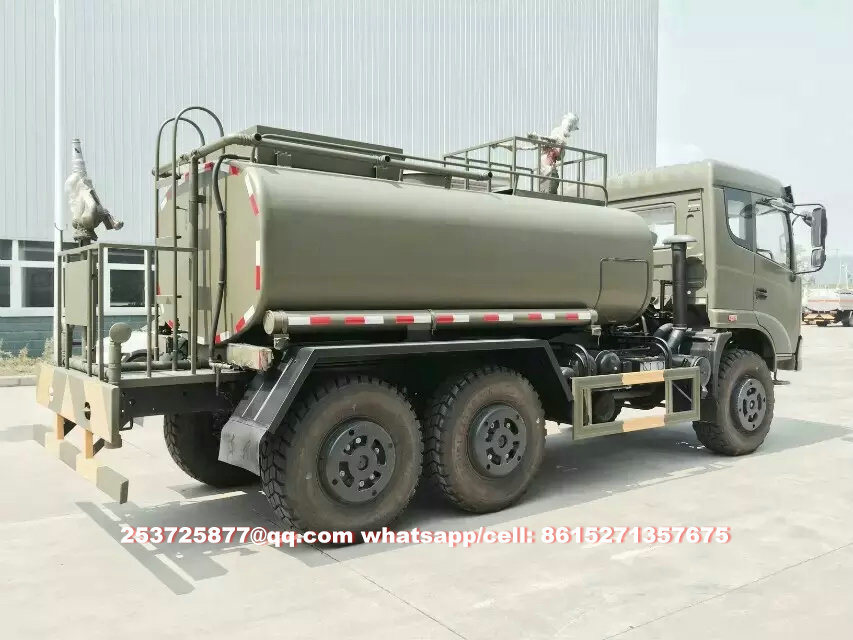

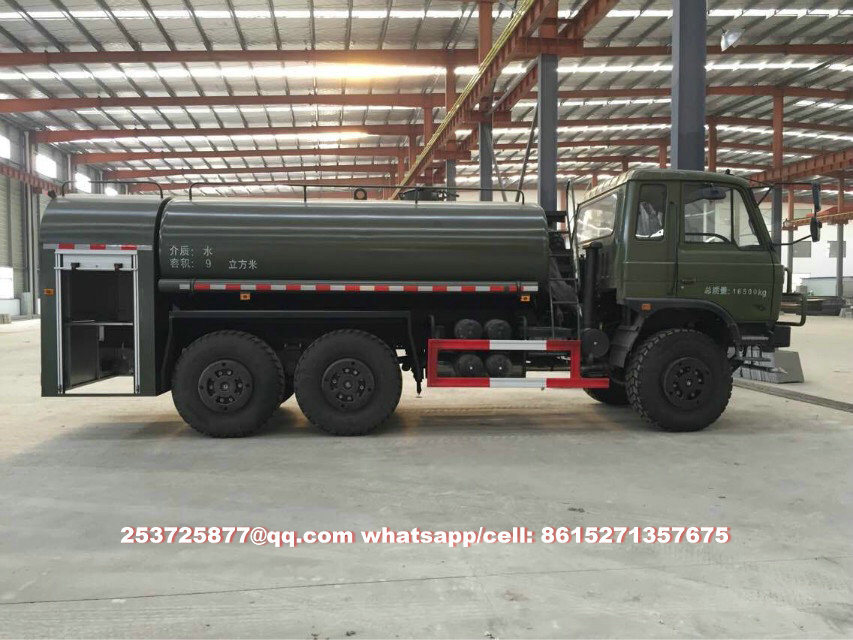

Dongfeng 6Wd Off Road Spray Water Sprinkler Truck 9Tons (6X6 Tanker Bowser with Pump )
Main specification of All Wheel Drive 6WD Water Truck 10000Liters:

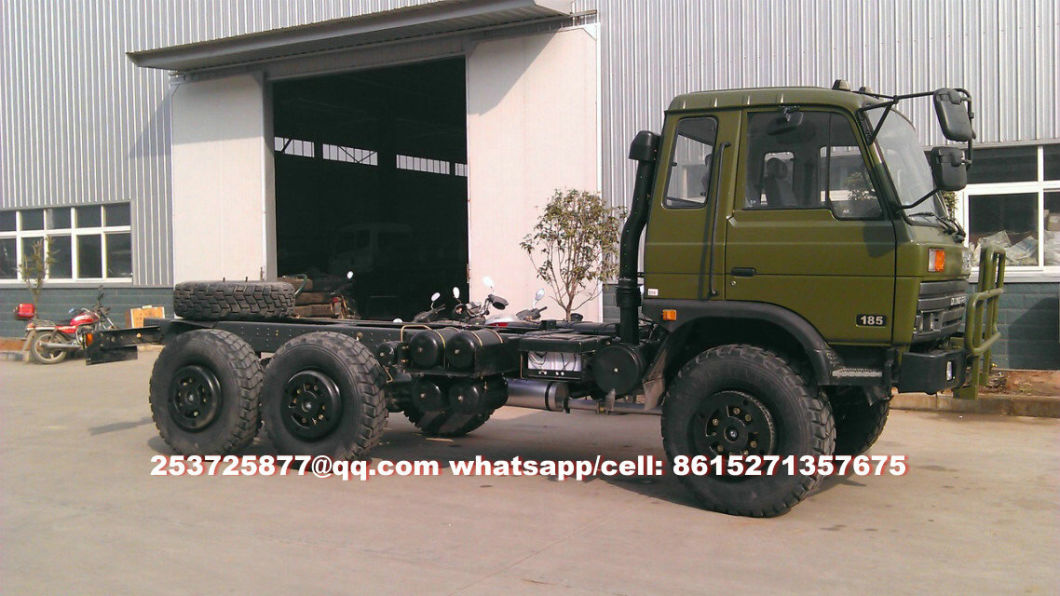

- on bassis of Dongfeng All Wheel Drive 6×6 6WD chassis
- 190HP Engine for Choice 6700CC displacement
- 12.5R10 Desert Off Road Tire 4+1pcs
- Water Tank capacity:10000Liters / 10Tons
- With Water Pump
- Carbon Steel Water truck or Stainless Steel Drinking Water for Choice
- All Wheel Drive 10Tons Water Trucks. 6forwards
- 6WD OFF Road Water Truck Produced by Hubei Runli Company
- Off Road 6WD Water Truck exported to Mongolia
- Good Price and quality, fast delivery.
- Original: Made in ChinaEx
truck specifications
| Drive Style | 6x6 & LHD Model: DF5160 Water Tank volume 9000L Tank material : carbon steel thickness 4mm PTO, water pump, tool box, Water pipe length 2PCS Left and right water sprayers at front, left and right water sprayers at rear working platform at rear high pressure water gun climbing ladder rear bumper Side guard Mud guard Manhole diameter 500mm Water pipe box |
| Overall Dimensions | 8170x2500x2850 mm |
| Payload Capacity | 10 Ton |
| Total weight | 16050Kg |
| Min.turning radius | 18.8m |
| Max.gradeabitiy | 60% |
| Wheel base | 3500+1250 |
| Overhang(F/R) | 1385/1625 |
| Track(F/R) | 1916/1876/1876mm |
| ENGINE | B190 |
| Horse Power | 190, 136 |
| Torque | 630N.m/1500rpm |
| Type | In-Line Water Cooled. 6 Cylinder |
| Emission | Euro III |
| Cylinder BorexEngine stroke | 102 x120 |
| | SHAOCHI 6 GEARS |
| Gears | Forward 6 & Reverse 1(Fuller Technology) |
| Gear ratio | (F1):7.31 (F2):4.21 (F3):2.50 (F4):1.57 (F5):1.00 (F6):0.84 (R):7.20 |
| CABIN | Cabin with A/C and Radio player, flat head. Cabin model: 153G |
| STEERING UNIT | LHD |
| CLUTCH | Single, dry, diaphragm spring clutch diameter 350MM |
| FUEL CAPACITY | 350(L) |
| No. of Tire | 6+1 |
| Tire size | 12.5R20 |
Specification of Dongfeng All Wheel Drive 6×6 6WD Water Truck Water Tank Truck Spraying Water Trucks 10Tons :
| driving typ | Dongfeng All Wheel Drive 6WD Water Trucks |
| net weight(kgs) | 8955 |
| Dimension of Vehicle | 7800*2500*2840mm |
| Wheelbase | 3475+1250mm |
| Front/rear tread | 1876/1780 |
| Min Distance from the ground | 305mm |
| Motor | |
| Model | B190-33 |
| Type | Diesel, 6cylinder inline with water cooling |
| Displacement | 6700cc |
| Power( Kw/rpm) | 136/1500 |
| Max. Torque( N.m/rpm) | 630/1700 |
| | |
| Clutch | Ø350mm single dry, pneumatic booster, hydraulic contral |
| Front axle | 3.7T |
| Rear axle | 4T*2 |
| Tyre | 12.5R10 4+1 |
| Cabin | With one bed |
| Max. braking distance | 8m |
| Climbing gradient | 40% |
| Vertical obstacle height | 700mm |
| The trench width | 700mm |
| Max. fording depth | 700mm |
| Capacity of fuel tanker | Main fuel tanker: 145L |
| |
| Water tank capacity(L) | 10000Liters |
| Material of tank body | Carbon steel Q235 4mm thickness |
| Models | Wheelbase | Chassis Type | Parameter Configuration |
| Dongfeng | 5000mm | DFL1120B13 | 4 × 2 drive, D530 flat head of a row of semi-flat top cab, Cummins ISB180-40 electronically controlled common rail engine, wheelbase 5000mm, Dongfeng six-speed gearbox DF6S900, 4.5T front axle, 9T single reduction axle, 250mm double (7 + 4) girders, 900R20 steel tire. Original ABS, tachograph, manual windows and doors, with air conditioning. |
|
|
| DFL1160BX18 | 4 × 2 drive, D530 flat head of a row of semi-flat top cab, Dongfeng EQH160-40 electronically controlled common rail engine, wheelbase 5000mm, Dongfeng six-speed gearbox DF6S900, 3.6T front axle, rear 8T single reduction axle, 250mm singlebeam, 900R20 steel tire. Original ABS, tachograph, manual windows and doors, with air conditioning. |
|
|
| DFL1160BX5 | 4 × 2 drive, D530 flat head of a row of semi-flat top cab, Cummins ISB180-40 electronically controlled common rail engine, wheelbase 5000mm, Dongfeng six-speed gearbox DF6S900, 4.5T front axle, 9T single reduction axle, 250mm double (7 + 4) girders, 900R20 steel tire. Original ABS, tachograph, manual windows and doors, with air conditioning. |
|
|
| Dongfeng | 4700mm | DFL1160BX18 | 4 × 2 drive, D530 flat head of a row of semi-flat top cab, Dongfeng EQH160-40 electronically controlled common rail engine, wheelbase 4700mm, Dongfeng six-speed gearbox DF6S900, 3.6T front axle, rear 8T single reduction axle, 250mm singlebeam, 900R20 steel tire. Original ABS, tachograph, manual windows and doors, with air conditioning. |
|
|
| Dongfeng | 3800mm 4700mm | DFL1120B3 | 4 × 2 drive, D530 flat head of a row of semi-flat top cab, Cummins ISDe180 40 electronically controlled common rail engine, wheelbase 3800mm, steel 160L fuel tank, Dongfeng six-speed gearbox DF6S750, 4.5T front axle, 9T single reduction axle , 250mm double (7 + 4) girders, 9.00-20 bias tires, original ABS, tachograph, manual windows and doors, with air conditioning. |
|
|
| Dongfeng | 4200mm 4500mm | DFL1160BX4 | 4 × 2 drive, D530 flat head of a row of semi-flat top cab, Cummins ISB 180 -40 electronically controlled common rail engine, wheelbase 4200mm or 4500mm, Dongfeng six-speed gearbox DF6S900, 4.5T front axle, 9T single reduction rear axle, 250mm double (7 + 4) girders, 900R20 steel tire.Original ABS, tachograph, manual windows and doors, with air conditioning. |
|
|
| Dongfeng | 3800mm | DFL1120B19 | 4 × 2 drive, D530 flat head of a row of semi-flat top cab, Cummins ISB180-40 electronically controlled common rail engine, wheelbase 3800mm or 4200mm, Dongfeng six-speed gearbox DF6S900, 3.6T front axle, rear 8T single reduction axle, 250mm single beam, 900R20 steel tire. Original ABS, tachograph, manual windows and doors, with air conditioning. |
|
|
| Dongfeng small triaxial | A variety of optional | DFL1250BX5A | 6 × 2 drive, D530 flat head of a row of semi-flat top cab, Cummins ISB180-40 or ISB210-40 electronically controlled common rail engine, rear Datong seven-speed gearbox DC7J100TA, 5T front axle, 10T single reduction axle, 250mm double girder , 295 / 80R22.5 18PR steel tire. Original front disc brakes ABS speed, tachograph, manual windows and doors, with air conditioning. |
|
Other models in this categor
10000 Liters water tank truck , dongfeng Water tank , WATER TANK , Water tank Truck , water tanker
| EQ5140KLJ | YC6J180-33 | EQ1168GLJ3 | YC6J180-42 YC6J180-46 | EQ1168GLJ3 | 4500,4700,5100 |
| EQ5140KLJ | YC6J180-33 | YC6J180-42 YC6J180-46 | EQ1168GLJ3 | 4500,4700,5100 |
| EQ5140KLJ | ISDe210 30 | ISB210 40 | EQ1168GLJ3 | 4500,4700,5100 |
| EQ5140KLJ | B190 33 | ISDe185 40, ISB180 40, | EQ1168GLJ3 | 4500 |
| EQ5140KLJ | B190 33 | ISDe185 40, ISB180 40, | EQ1168GLJ3 | 4500,4700,5100 |
| | | | EQ1168GLJ3 | 4500,4700,5100 |
| EQ5140KLJ | YC6J180-30 | YC6J180-42 YC6J180-46 | EQ1168GLJ3 | 4500,4700,5100 |
| EQ5140KLJ | ISDE185-30 | ISDe185 40 | EQ1168GLJ3 | 4500 |
| EQ5140KLJ | ISDE185-30 | ISDe185 40 | EQ1168GLJ3 | 4500 |
| EQ5140KLJ | ISDE185-30 | ISDe185 40 | EQ1168GLJ3 | 4500,4700,5100 |
| EQ5140KLJ | ISDE180-30 | ISDe180 40 | EQ1168GLJ3 | 4500 |
| | | | EQ1168GLJ3 | 4500,4700,5100 |
| EQ5140KLJ | B190 30 | ISDe185 40, ISB180 40, | EQ1168GLJ3 | 4500 |
| | | | EQ1168GLJ3 | 4500,4700,5100 |
| EQ5140KLJ | B190 33 | ISDe185 40, ISB180 40, | EQ1168GLJ3 | 4500 |
| EQ1101GLJ | YC4E160-33 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | YC4E160-33 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | B170 33 | EQ1128GLJ | ISB170 40 |
| EQ1101GLJ | B170 33 | EQ1128GLJ | ISB170 40 |
| EQ1101GLJ3 | B170 33 | EQ1168GLJ3 | ISB170 40 |
| EQ1101GLJ3 | B170 33 | EQ1128GLJ1 | ISB170 40 |
| EQ1101GLJ | YC6J180-30 | EQ1128GLJ | YC6J180-42 |
| EQ1101GLJ3 | YC6J170-33 | EQ1168GLJ3 | YC6J180-46 |
| EQ1101GLJ | ISDe160 30 | EQ1128GLJ | ISDe180 40 |
| EQ1101GLJ | YC4E160-33 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | YC4E160-33 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | YC6J180-30 | EQ1128GLJ | YC6J180-42 |
| EQ1101GLJ | ISDe185 30 | EQ1128GLJ | ISB170 40 |
| | | | |
| EQ1101GLJ | ISDe180 30 | EQ1128GLJ | ISDe180 40 |
| EQ1101GLJ3 | ISDe160 30 | EQ1128GLJ1 | ISDe180 40 |
| EQ1101GLJ | YC4E160-30 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | ISDe160 30 | EQ1128GLJ | ISDe180 40 |
| EQ1101GLJ | YC4E160-30 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | YC6J180-30 | EQ1128GLJ | YC6J180-42 |
| | | | |
| EQ1101GLJ | YC4E160-30 | EQ1128GLJ | YC4E160-42 |
| EQ1101GLJ | B170 30 | EQ1128GLJ | ISB170 40 |
| EQ1101GLJ3 | B170 30 | EQ1128GLJ1 | ISB170 40 |
| | | | |
| EQ1101GLJ | B170 33 | EQ1128GLJ | ISB170 40 |
| EQ1101GLJ | B170 33 | EQ1128GLJ | ISB170 40 |
Our water tank truck with different chassis, eg:DFAC, DFL, SINOTRUCK, CNHTC,NORTH BENS, FOTON, ISUZU, JAC, JMC, KAMA, YUEJIN, etc.
Our water tank series:
-----water tanker truck
-----sanitation water tank truck
-----sprinkler truck
-----water wagon truck
-----insulation water tank truck
-----pesticide sprinkling truck
-----water spraying truck
-----Mild steel water tank cart
-----Stainless steel tank water truck
-----Aluminum alloy water tanker
-----RHD watering cart
-----Water tank semi trailer
-----Storage water tanker
TIC TRUCKS , www.truckinchina.com
ater truck special function |
A. Water tank capacity(L):6000L 10,000 Liters
B. Sprinkling area(m):14-16m
C. Suction lift(m):≥7m
Water cannon range description
Water cannon installed on the rear of the truck,also
with operation platform,that operator can work on
the platform.It can be used to clean road,trees,and
also for emergency fire fighting.
Water cannon range:≥60m,it can rotation with 360°
degree freely |
Manhole size(mm) |
Man way access hole on top of tank; manhole
diameter:¢500mm |
Front spray function |
Front spray bar with fan sprayer,spray range: ≥20m |
Man walk way |
With skid resistance man walk way on top of tank |
Water pump model |
80QZB(F)-60/90S |
Flow rate(L/m) |
1000 |
Head of delivery(m) |
60 |
Shaft power |
22.5 |
Suction height (m) |
6.5 |
Efficiency(%) |
95% |
Welcome all around world customer visit our factory.- which has excellent performance with reasonable price.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
