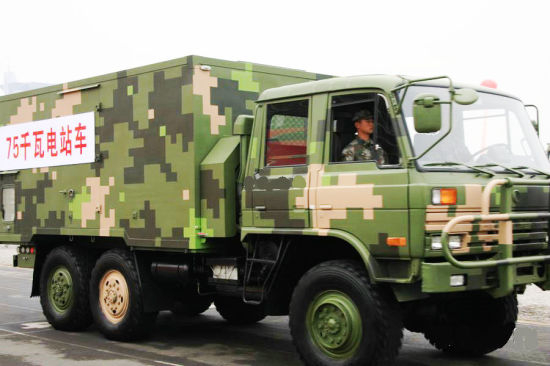

Dongfeng 6x6 Emergency Power Supply Vehicle Euro 3/ 4 mobile power station electronic vehicle,
| Truck Chassis model |
EQ2102(6*6 drive type) EQ5160GLJ |
Dimension(Lx Wx H)(mm) |
7760×2470×2740 |
Track(front/rear)(mm) |
1876/1870 |
Front/rear overhang (mm) |
1410/625 |
Approach / Departure angle () |
35/34 |
Wheel distance(mm) |
3475+1250,3500+1250 |
Total mass (kg) |
10675 |
Kerb mass (kg) |
6965 |
Rated load weight (kg) |
3715 |
Drive type |
6x6 |
Max.grade ability (%) |
60% |
Max.slop ability (%) |
40% |
Min.turning circle (m) |
18.8 |
Max speed (km/h) |
90 |
Max.brake distance (m) |
8m |
Min.ground clearance (mm) |
305 |
Vertical obstacle-navigation
Height (mm) |
700 |
Climbing trenches depth (mm) |
700 |
Max.fording depth (m) |
1 |
Engine |
Engine model:EQ6BT5.9; or B190
Engine manufacture: Dongfeng cummins co.,Ltd
Rated power(kw/r/min):118/2800 |
Displacement (L) |
5.880 |
Max.power (kw/hp) |
118kw/160hp ;or 140kw/190hp |
Max rated speed (r/min) |
2800 |
Fuel consumption (L/100km) |
26.5L |
Emission standard |
Euro II |
Fuel tank (L) |
Main fuel tank:145L,spare fuel tank:50L |
Fuel tank material |
Aluminum alloy |
Clutch |
Valeo 350 |
Dry single plate, hydraulic control booster
Mechanical operation with hydraulic assistance |
Mechanism,5 gears, 5 forward,1reverse gear
Manual operation |
Braking |
Service Brake |
Brake gap can be adjusted automatically
double circulation air brake system |
Assistant brake |
WEVB(Engine exhaust brake) |
Park brake |
Spring brake effect to middle and rear tires |
Steering description |
Whole circulation in ball type, hydraulic power
assistance |
Vehicle frame dimension(mm) |
232x75x6.5 |
Front axle description(T) |
3.7T |
Rear axle description(T) |
4Tx2 axle |
Tire and number |
12.5R-20 off-road tire,6+1 tires |
Cab
|
1. Full steel skeleton structure cab
2. One sleeper bed in the cab,with Air-conditioner
5.Air- damping driver\\\\ s seat |
Generator Power source service truck Electric cars moble power supply vehicle Truck chassis
EURO4
Standard:
1) Complete imported / Chinese Made Diesel power generator set (With control screen)
2) Equipped with original air-condition in operator cabin.
3) Manual button to control cable stock
4) Equipped with control and support system of manual button such as hydraulic assembly, control system, hydraulic oil tank, and hydraulic oil pipe
5) Standard operationg room (Desk, sofa, AC, safe lumious lock, and speficic decoration parts)
6) Grade II silencing and fume exhausting system(with noise less than 75dB)
7) Specific lacquer of truck with joint venture brand is adopted as truck lacquer
8) Dry powder fire extinguisher
Technical parameter of 160kw to 900kw auto Start Power Electronic Generator with yuchai diesel engine
