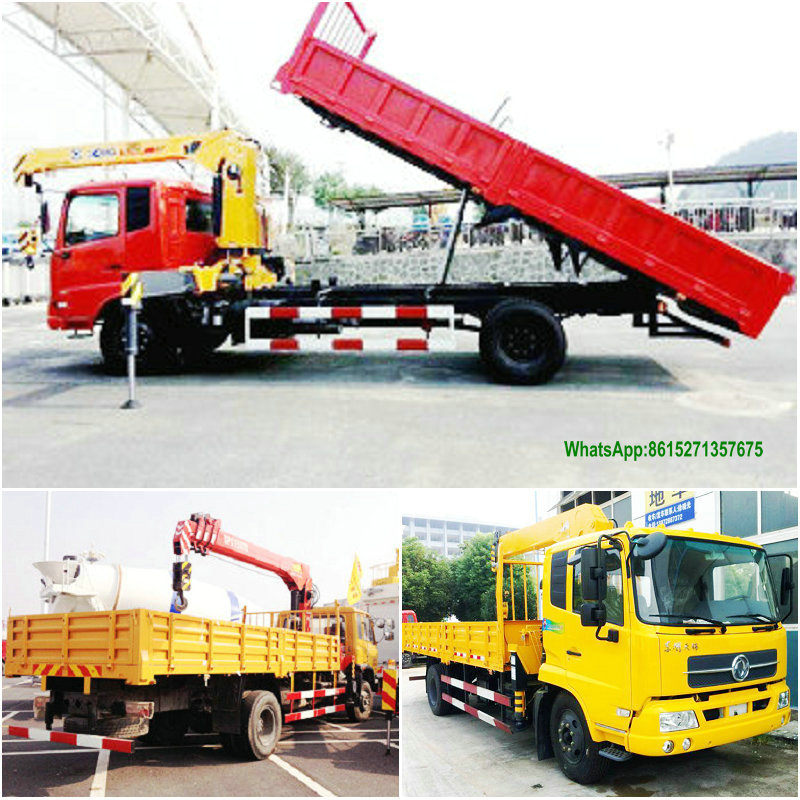

Dongfeng 6- 8 Ton Crane Truck with Tipping Cargo
| Quantity: | |
|---|---|
| Cabin | Single row,Left/right hand drive with AC | |
| Chassis | Brand | Dongfeng |
| Chassis model | DFL1160BX5 | |
| Drive type | 4x2 | |
| Tire Spec. | 10.00-20,10.00R20 | |
| Tire Numbers | 6 | |
| Braking System | Air braking | |
| Clutch | Uniwafer, dry clutch, hydraulic remote control | |
| Transmission | Manual | |
| Engine | Model | ISDe210 40 |
| Horse Power(hp) | 210 | |
| Displacement(cc)/ Power(kw) | 6700/155 | |
| Emission | EuroIII/EuroIV | |
| Main Parameters | Overall dimension (L*W*H/mm) | 9000X2500X3790 |
| Wheelbase(mm) | 5000 | |
| Axles No. | 2 | |
| GVW(kg) | 16000 | |
| Curb Weight(kg) | 8305 | |
| Leaf spring No. | 8/10+8 | |
| Approaching/Departure Angle(°) | 20/10 | |
| Front/Rear track(mm) | 1880/1800 | |
| Front/Rear suspension(mm) | 1430/2570 | |
| Max speed(km/h) | 80 | |
| Front/Rear Axle Load(kg) | 6000/10000 | |
| Modifried Descripton | 1. Straight arm crane/folding boom crane; | |
| 2. 360°hydraulic rotate;2 of H-shape legs; 2 sets of operating system. | ||
| 3. Equipped with crane dedicated box. | ||
| Application | This truck is widely used in all kinds of loading, unloading and installation of lifting operation. Especially applicable to outdoor lifting, emergency operation and at the station, port, warehouse, construction sites and other places of narrow homework. | |
