Dongfeng 4x4 Water Bowser Truck View

Views: 8090 Author: Site Editor Publish Time: 2022-01-07 Origin: Site

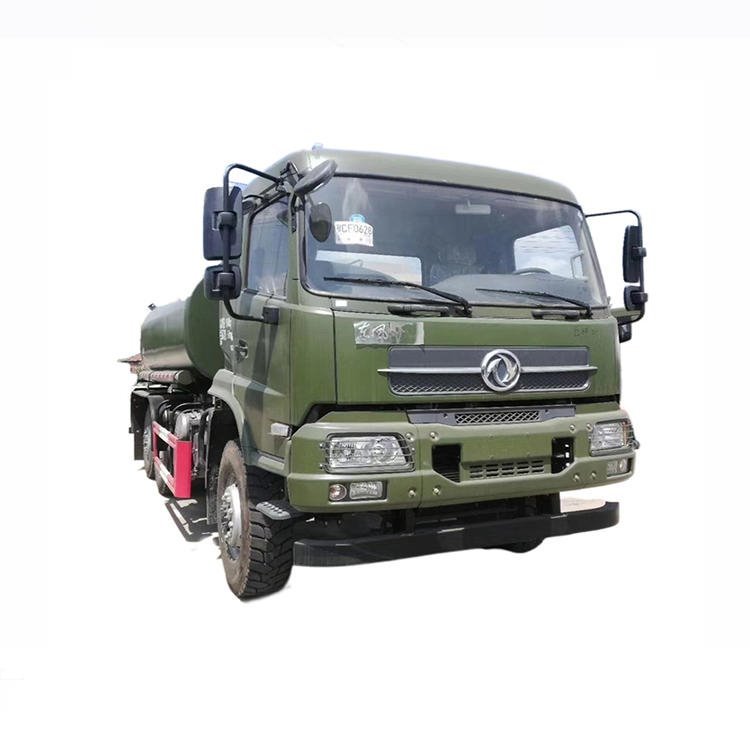

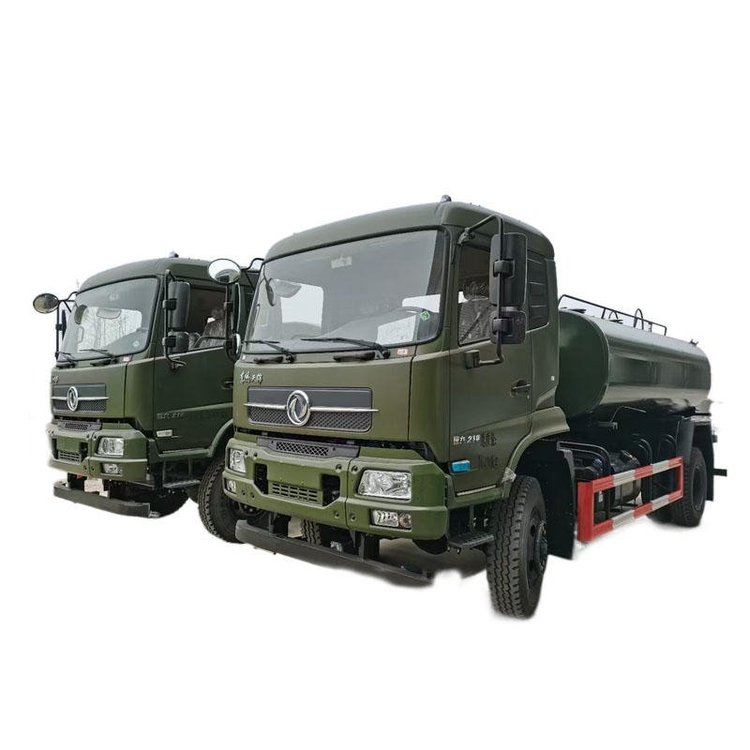

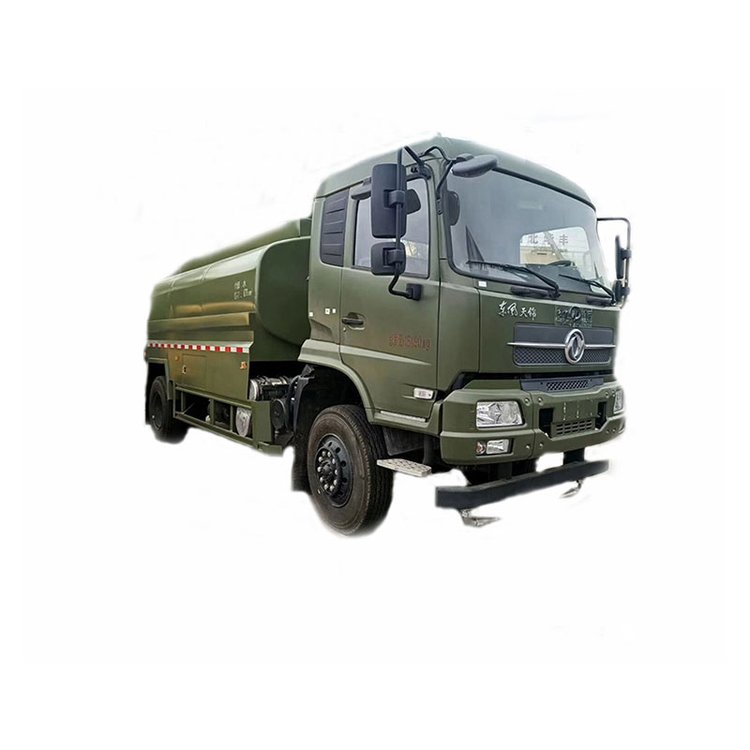

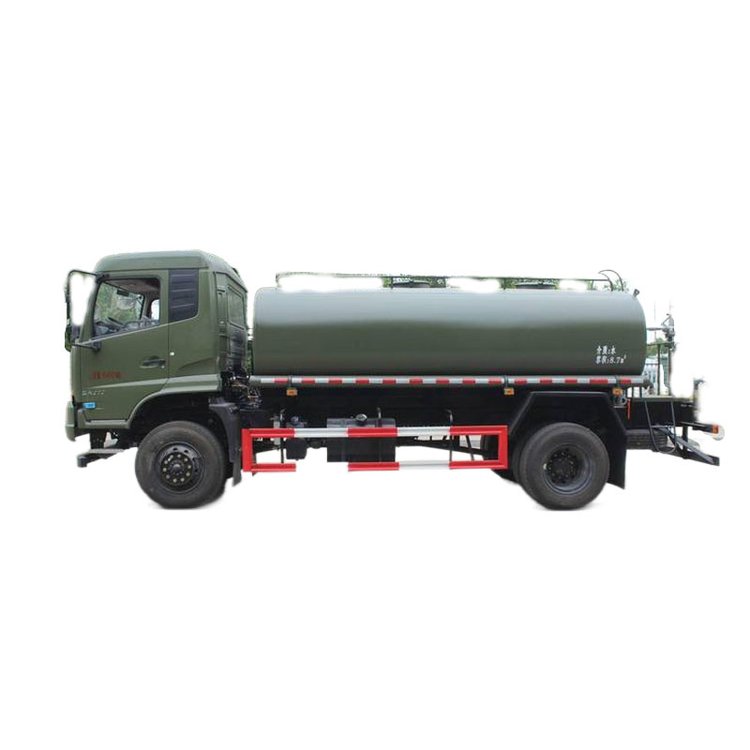

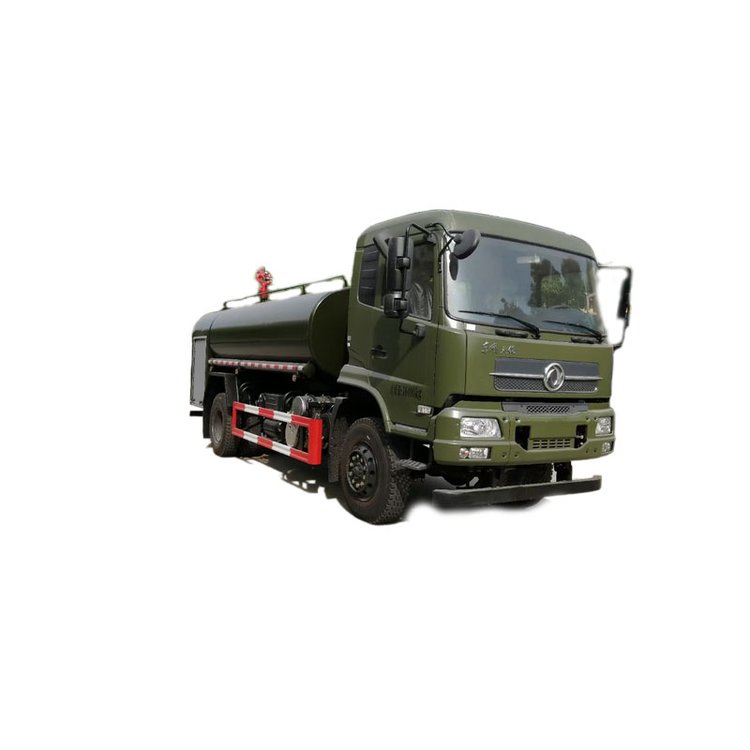

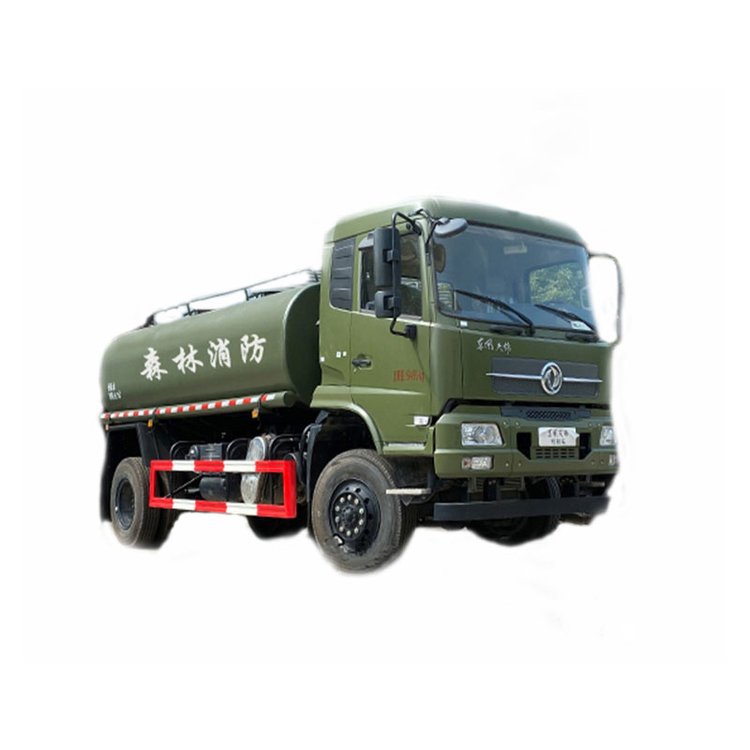

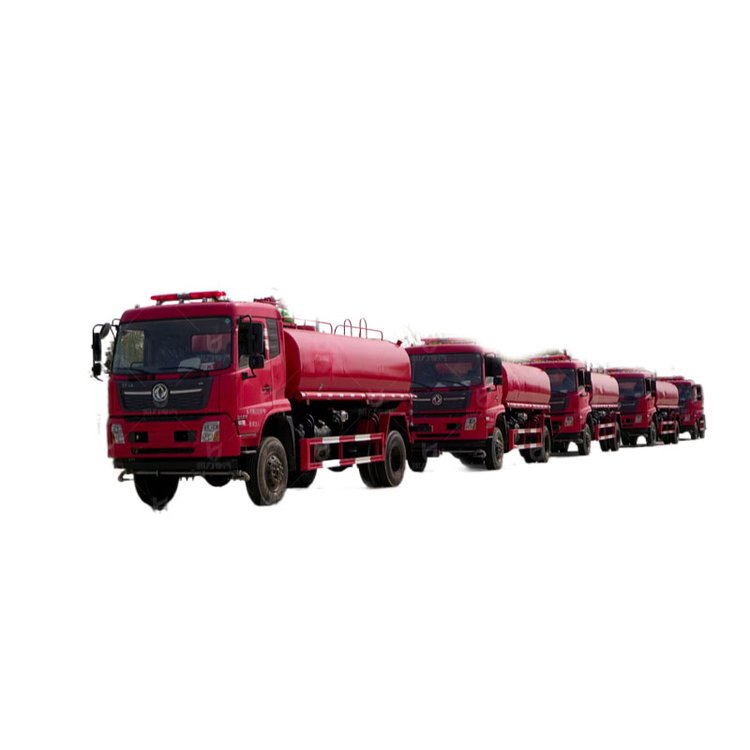

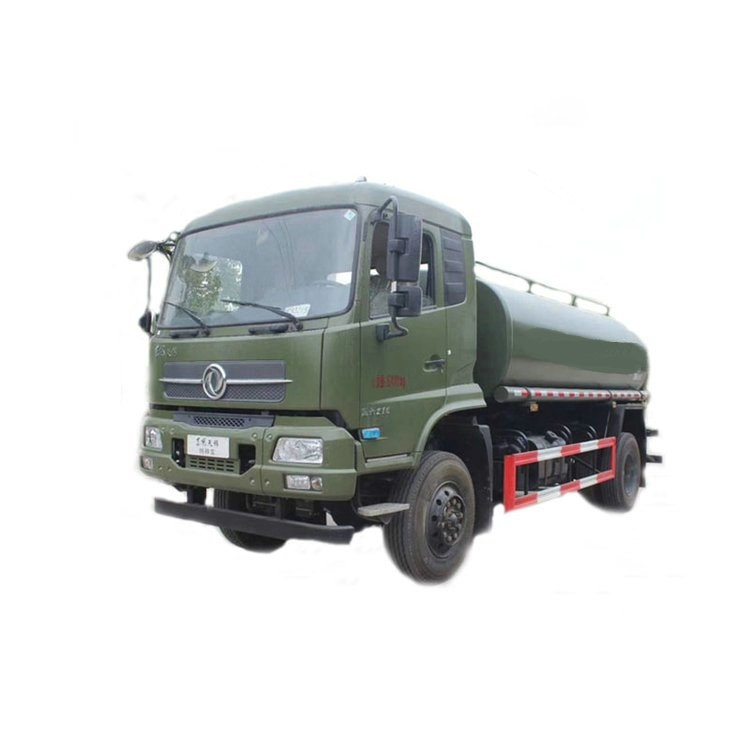

Dongfeng 4x4 Water bowser Truck View

dongfeng offroad Sprinkler water supply vehicle (20)

dongfeng offroad Sprinkler water supply vehicle (12)

Technical Parameter:

Main Technical Parameter
Production name		Dongfeng 4x4 Water bowser Vehicle Water Tank Truck for Sales
Gross weight(Kg)		15800	Overall dimensions(mm)		7700×2500×3200
Payload(Kg)		9900	Tank Volume (m³)		10-12
Curb weight(kg)		5705	Front/rear hang(mm)		1250/2500
Approach/departure angle(°)		21/16	Wheelbase(mm)		4500
Axle No.		2	Max speed(Km/h)		90
Axle load(Kg)		5800/10000	Transmission		8 forward gear,1 reverse gear
Tank size (mm)		4200×2350×1450 (Long x long axis x short axis)
Chassis Technical Parameter
Chassis model	EQ1160GD5DJ			Tyre No.		6
Chassis brand	Dongfeng			Engine manufacturer		Dongfeng
Wheel track(front /rear)(mm)	4500			Tyre specification		10.00-20
Fuel Type	diesel			Emission standard		Euro V(Euro 5)
Engine model	ISB190 50			Displacement(ml)		5900
Engine manufacturer	Cummins			Power(Kw)		144 (1190HP)
Standard configuration: Equipped with front(rear,side) sprinkler(sprinkling width>14m ),rear working platform with high pressure water cannon ( range>28m );Equipped with high-power special water pump (suction lift>6m) and fire hydrant valve,self-flow valve,filter gauze,two water pipe,etc.
