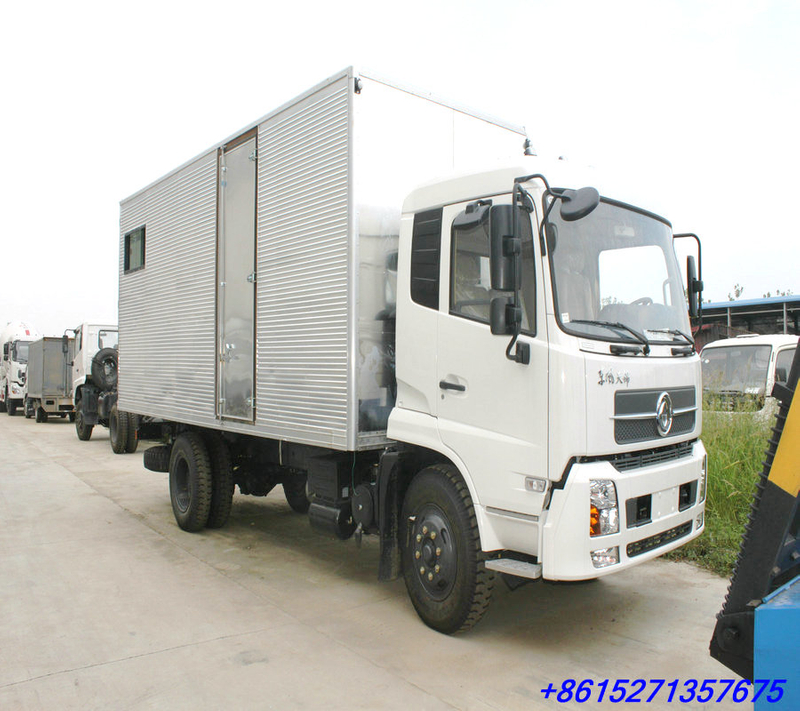

Dongfeng 4x4 Mobile Workshop Maintenance Lorry
| Quantity: | |
|---|---|
Dongfeng 4x4 Mobile workshop maintenance lorry Special vehicle for repair and maintenance works
Special vehicle for repair and maintenance works Dongfeng 4x4 Mobile workshop maintenance lorry
DFL1100B Dongfeng 4x4 truck chassis
Dongfeng latest model
All wheel drive
Cummins Euro III engine
Dongfeng 4x4 truck chassis DFL1100B
| Model | DFL1100B | Drive type | 4X4 |
| Overall dimension mm | 7090x2370x2760 | Wheelbase | 4200mm |
| Curb weight | 4.6 tons | Load weight | 10.49 tons |
| Max gross weight | 15.3 tons | Top speed | 85KM/h |
| Engine model | Cummins EQB160-30 | Cylinder number | 4 |
| Cylinders arranged form | inline | Displacement | 4.752L |
| Emission standard | Euro 4/5 | maximum output power | 118KW |
| Horsepower | 160Hp | ||
| Seating Rows | 1 | standard Number | 2 person |
| Transmission Type | Dongfeng DF6S750 | shift | manual |
| Forward gear | 6 | Reverse gear | 1 |
| Front Axle allows the load | 3.3T | Rear Axle allows the load | 8T |
| spring number | 10/10+8 | ||
| Number of tires | 6 | Tire size | 9.00-20,9.00R20 |
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
DFL1100B 4x4 Dong Feng Medium Truck Sale
| Name | Dong Feng Medium truck | Model No. | DFL1100B | |
| Max Gross Weight (kg) | 11000 | Curb weight (kg) | 5500 | |
| Load weight (kg) | 5500 | Tonnage level | Medium truck | |
| Dimension (mm) | ||||
| Overall dimension | 7280x2500x2910 | Box dimension | 5350x2200x600 | |
| wheelbase | 4200 | Wheel tread | front:1896, rear:1800 | |
| Engine specifications | ||||
| Model | EQH160-30 | Displacement (ml) | 4752 | |
| Max power (kw) | 118 | Manufacturer | Dong Feng | |
| Emission Standard | Euro 3 | Engine type | 4-cylinder inline | |
| Performance | ||||
| final-drive ratio | 4.875 | Tire model | 8.25-20 | |
| others | ||||
| Air conditioner | optional | Drive type | Left or Right | |
| quipment | power set (generator), 40KVA | |
| welding set, 3P, input 19.2KVA | ||
| air compressor, 0.7MPa, 0.36M³/min | ||
| bench drilling, bore range 3 ~ 16mm | ||
| bench vice, 150mm | ||
| Bench grinder, 250mm | ||
| gas welding & cutting set with oxygen/acetylene cylinder | ||
| fitter’s bench integrated with tool cabinet | ||
| general tools set, mechanical purpose | ||
| 2T Truck Mounted Hydraulic Crane | ||
| 5T Hydraulic Winch | ||
Tools
| No | Name | Specification | Quantity |
| 1 | Bow saw frame | 2 | |
| 2 | Hacksaw blade | 18 tine; 32 tine | Each 1 |
| 3 | Manual oil gun | 1 | |
| 4 | Oil pot | 300cc | 1 |
| 5 | Hand electric drill | 220V 0.6~6mm | 1 |
| 6 | Pipe expansion ware | 1 set | |
| 7 | Electrical maintenance kits | with multimeter | 1 set |
| 8 | Screw tap | Coarse thread | 6/set |
| 9 | Screw tap | Fine thread | 3/set |
| 10 | Screw tap holder | 180mm;280mm | each 1 set |
| 11 | Screw die | Coarse thread | 6/set |
| 12 | Screw die | Fine thread | 3/set |
| 13 | Drill | 1-10mm (at intervals of)0.5mm | 2set |
| 14 | Drill | 11-16mm | 2sets |
| 15 | Drill | 3.4;4.2;5.1;6.8;8.5;10.2 | each 1 set |
| 16 | Steel ruler | 150mm,300mm | Each 1 |
| 17 | Vernier caliper | 150mm,250mm | 1 |
| 18 | Screw thread gauge | the metric system; British system | each 1 |
| 19 | Tape | 2m | 1 |
| 20 | Round head hammer | 2.5 pound | 1 |
| 21 | File | roundness,semi-circle,flat,square ,triangle | Each 2 |
| 22 | Assorted set of files | 2 sets | |
| 23 | Screwdriver | cross 125mm;minus 125mm | each 1 |
| 24 | Pointed plier | 150mm | 1 |
| 25 | Steel wire clamp | 200mm | 1 |
| 26 | Carp clamp | 200mm | 1 |
| 27 | Oxygen watch | 1 | |
| 28 | Acetylene watch | 1set | |
| 29 | Welding wire clip | 500A | 1 |
| 30 | White glass | 10 | |
| 31 | Protection glasses | 1 | |
| 32 | Steel brush | 1 | |
| 33 | Emery cloth | 46#;80#;120# | each 10 |
| 34 | Metric fixed wrench | 10/set | 1 set |
| 35 | Metric ring wrench | 10/set | 1 set |
| 36 | Wrench | 8";10";12" | each 1 |
| 37 | Round head hammer | 1.5 pound | 1 |
| 38 | Welding torch | 1 | |
| 39 | Cut torch | 1 | |
| 40 | Oxygen tube | 30m | 1 |
| 41 | Acetylene tube | 30m | 1 |
| 42 | Hand electric drill | 220V 3-19mm | 1 |
| 43 | Jack | 10T | 1 |
| 44 | Socket wrench | 8mm-32mm | 32/set |
| 45 | Cut clamp | medium-sized | 1 |
| 46 | Welding gloves | 1 | |
| 47 | |||
| 48 | Work Light | 1 | |
| 49 | Welding mask | 1 |
| Equipment for Mobile Workshop DTA5190YX | |||||
| Item | Description | Technical Data | Measurement | Weight | Qty. |
| 1 | Chassis | As Option | |||
| 2 | Power Set | Model: 40GF74-4 | 2030x650x1255(mm) | 1030kg | 1 |
| Rated Power: 40KW | |||||
| Rated Voltage: 400/230V | |||||
| Rated Frequency: 50Hz | |||||
| Rated Current: 72.2A | |||||
| Output: 3-phase, 4-line | |||||
| Diesel Engine: R4100ZD | |||||
| Generator Model: TZH-40 | |||||
| 3 | Welding Set | Model: ZX5-250B | 406x530x840(mm) | 160kg | 1 |
| Voltage: 380V | |||||
| Phase: 3 | |||||
| Frequency: 50/60Hz | |||||
| Initial Current: 29.6A | |||||
| Range: 25-250A | |||||
| Input: 19.2KVA | |||||
| Working Ambient: -10--+40oC | |||||
| 4 | Air Compressor | Model: AW3608 | 1180x410x850(mm) | 130kg | 1 |
| Voltage: 380V | |||||
| Frequency: 50Hz | |||||
| Power: 3KW | |||||
| Pressure: 0.7MPa | |||||
| Capacity: 0.36M3/mm | |||||
| 5 | Drilling Machine | Model: ZQJ4119AD | 760x490x260(mm) | 57kg | 1 |
| Bore Range: 3--16mm | |||||
| Power: 700W | |||||
| 6 | Vice | Size: 150mm | |||
| 7 | Grinding Machine | Model: MQ3225 | 1 | ||
| Size: 250mm | |||||
| Power: 700W | |||||
| 8 | Oxygen Cylinder | Volume: 40L | 1 | ||
| 9 | Acetylene Cylinder | 1 | |||
| 10 | Gas Welding Set | 1 | |||
| 11 | Working Bench | Steel Panel | 2300x550x780(mm) | 1 | |
| 12 | Hand Tools | M6--16 drilling set; Hack Saw; | |||
| Hammer; Portable Oil Pump; | |||||
| 3--16mm Thread Tapper; | |||||
| Spanner sets; Socket Spanner Sets | |||||
| Files; Clamps | |||||
